Metabo Spare Parts for Rotary Hammer UHE 28 Multi

SKU: Metabo UHE 28 Multi - 00361000
€2.05
VAT included

Metabo Spare Parts for Rotary Hammer UHE 28 Multi

METABO service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and fix issues for Rotary Hammer UHE 28 Multi - 00361000.

Rotary Hammer UHE 28 Multi - 00361000
Metabo Spare Parts for Rotary Hammer UHE 28 Multi
  • Metabo Spare Parts for Rotary Hammer UHE 28 Multi
  • Metabo Spare Parts for Rotary Hammer UHE 28 Multi
Metabo

Metabo Spare Parts for Rotary Hammer UHE 28 Multi

SKU: Metabo UHE 28 Multi - 00361000 Condition: New
€2.05
VAT included

Metabo Spare Parts for Rotary Hammer UHE 28 Multi

METABO service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and fix issues for Rotary Hammer UHE 28 Multi - 00361000.

Rotary Hammer UHE 28 Multi - 00361000
settings 64 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
64 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

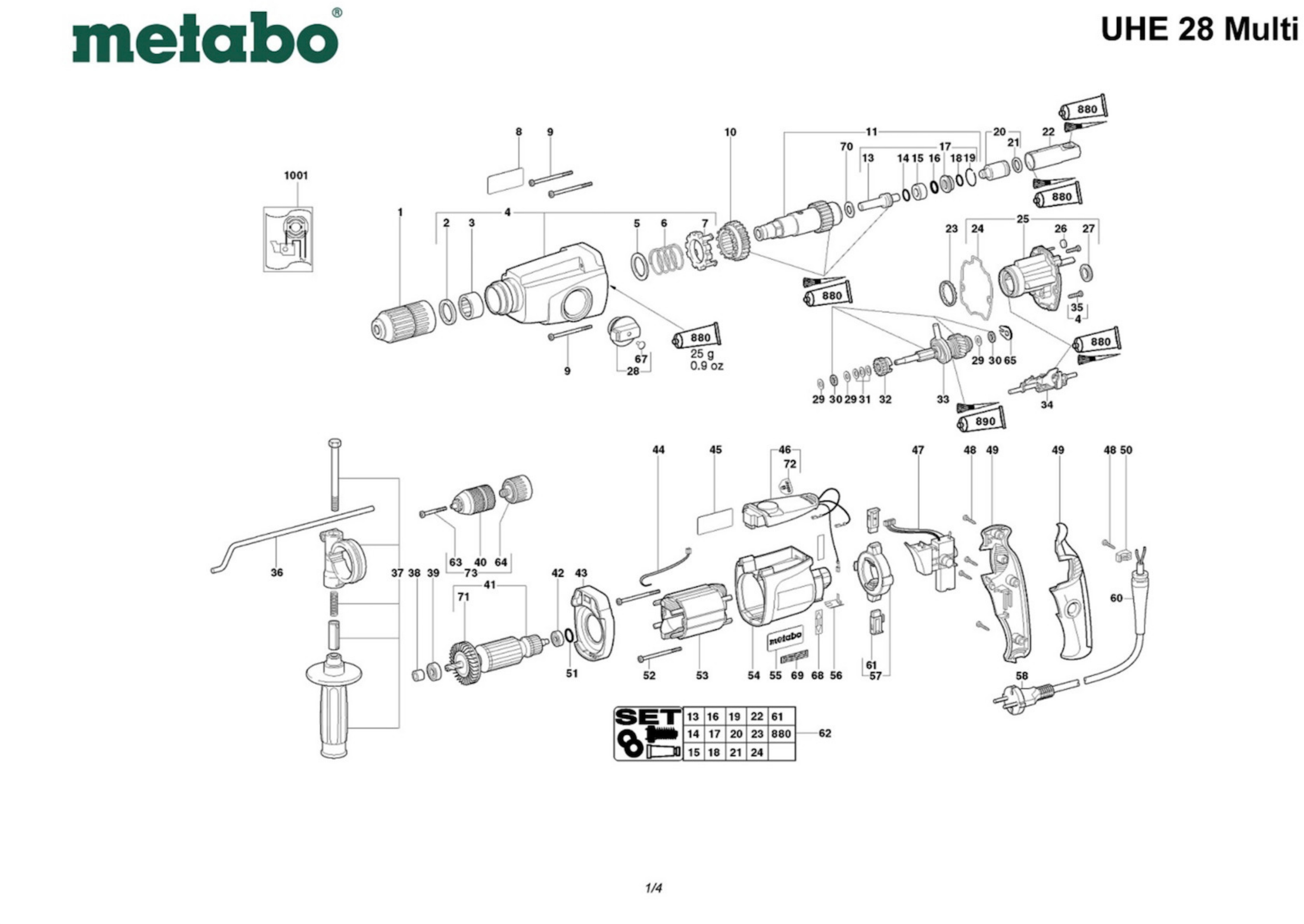

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Adaptor SDS Plus for Rotary Hammer Metabo UHE 28 Multi 31602959 Adaptor SDS Plus for Rotary Hammer Metabo UHE 28 Multi €88.63
2
 photo_cameraImage coming soon 14319491 Shaft sealing ring €1.74
3
 photo_cameraImage coming soon 14311383 Needle sleeve €19.99
4
 photo_cameraImage coming soon 31603053 Gear housing cpl. €80.09
5
 photo_cameraImage coming soon 14115375 Supporting disc €1.76
6
 Gear Case Spring for Rotary Hammer Metabo UHE 20 34200269 Gear Case Spring for Rotary Hammer Metabo UHE 20 €6.96
7
 photo_cameraImage coming soon 34337444 Retaining ring €1.56
9
 photo_cameraImage coming soon 14112249 Self-tap. fill. h. screw €1.75
11
 photo_cameraImage coming soon 31603056 Drill driving sleeve cpl. €86.37
13
 photo_cameraImage coming soon 31603058 Intermediate striker cpl. €14.73
14
 photo_cameraImage coming soon 14319240 O-ring €1.76
15
 photo_cameraImage coming soon 34101255 Supporting ring €3.20
16
 photo_cameraImage coming soon 14319391 O-ring €1.74
17
 photo_cameraImage coming soon 31603057 Catching sleeve cpl. €24.32
18
 photo_cameraImage coming soon 14319392 O-ring €5.95
19
 photo_cameraImage coming soon 14118184 Circlip €1.81
20
 photo_cameraImage coming soon 31601766 Striker cpl. €34.48
21
 photo_cameraImage coming soon 34409314 Sealing ring €5.17
23
 photo_cameraImage coming soon 32005048 Ball holder €3.49
24
 photo_cameraImage coming soon 34409557 Seal €1.74
25
 photo_cameraImage coming soon 31603054 Gear flange cpl. €52.48
26
 photo_cameraImage coming soon 34407067 Felt seal €1.81
27
 photo_cameraImage coming soon 34409592 Rubber buffer €1.81
29
 photo_cameraImage coming soon 33912961 Washer €1.81
30
 Axial Needle Bearing for Rotary Hammer Metabo UHE 28 Plus 14311428 Axial Needle Bearing for Rotary Hammer Metabo UHE 28 Plus €6.71
31
 photo_cameraImage coming soon 14115492 Cup spring €1.77
32
 photo_cameraImage coming soon 34000323 Coupling sleeve €12.22
33
 photo_cameraImage coming soon 31603048 Intermediate gear cpl. €97.37
35
 photo_cameraImage coming soon 14111944 Fill. head screw(DIN 7985) €1.65
36
 Deth Rod for Rotary Hammer Metabo BH E 6020 S 34151163 Deth Rod for Rotary Hammer Metabo BH E 6020 S €5.00
37
 Support Handle for Rotary Hammer Metabo UHE 28 Multi 31400077 Support Handle for Rotary Hammer Metabo UHE 28 Multi €32.13
38
 photo_cameraImage coming soon 34337604 Sealing ring €1.98
39
 photo_cameraImage coming soon 14311488 Ball bearing, 8x22x7 €7.22
40
 photo_cameraImage coming soon 30100219 Futuro plus ring S2M 13 mm €68.37
41
 photo_cameraImage coming soon 31000788 Armature cpl.230V (w. tacho gen.) €87.38
42
 photo_cameraImage coming soon 14311475 Ball bearing, 6X 19X 6 €10.30
43
 Intermediate Flange for Rotary Hammer Metabo UHE 20 34337427 Intermediate Flange for Rotary Hammer Metabo UHE 20 €12.41
44
 photo_cameraImage coming soon 34307802 Temperature sensor €12.15
46
 photo_cameraImage coming soon 34307879 VTC electronic SIGNAL Code!,230V €86.37
47
 Switch 230V for Hammer Metabo UHE 28 Plus 34340688 Switch 230V for Hammer Metabo UHE 28 Plus €30.94
48
 photo_cameraImage coming soon 14111706 Self-tap. fill. h. screw €1.98
49
 Motor Housing + Grip for Rotary Hammer Metabo UHE 28 Plus 31604106 Motor Housing + Grip for Rotary Hammer Metabo UHE 28 Plus €39.58
50
 photo_cameraImage coming soon 34336249 Cable clip €2.02
51
 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 14319243 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 €1.88
52
 photo_cameraImage coming soon 14111826 Self-tap. fill. h. screw €1.81
53
 230/240V Stator for Rotary Hammer Metabo UHE 28 Plus 31100981 230/240V Stator for Rotary Hammer Metabo UHE 28 Plus €27.59
54
 photo_cameraImage coming soon 31501265 Motor housing €14.48
55
 photo_cameraImage coming soon 33812216 M-Label,08 52x22 €1.74
56
 Brush Contact for Hammer Metabo UHE 28 Plus 33912939 Brush Contact for Hammer Metabo UHE 28 Plus €3.43
57
 photo_cameraImage coming soon 31602879 Brush holder module €28.84
58
 Cord CEE Plug for Rotary Hammer Metabo UHE 2250 Multi 34448673 Cord CEE Plug for Rotary Hammer Metabo UHE 2250 Multi €22.87
60
 photo_cameraImage coming soon 34410114 Cable sleeve €2.55
61
 photo_cameraImage coming soon 31603496 Carbon brush set €14.48
62
 photo_cameraImage coming soon 31603204 Maintenance kit €116.22
63
 photo_cameraImage coming soon 34170336 Cap screw €5.84
64
 photo_cameraImage coming soon 31603239 Adaptor €43.95
65
 photo_cameraImage coming soon 33913098 Butting sheet €1.56
67
 Control Knob Hole Cover for Rotary Hammer Metabo KHE 22 SP 34337675 Control Knob Hole Cover for Rotary Hammer Metabo KHE 22 SP €1.93
68
 photo_cameraImage coming soon 33811541 Indication label €1.58
70
 photo_cameraImage coming soon 34101263 Ring €1.74
71
 photo_cameraImage coming soon 31603574 Fan w. prot. Grid €11.57
72
 photo_cameraImage coming soon 33811788 Sticker €1.54
880
 Grease Tube GF 126 for All Metabo Power Tools 34413080 Grease Tube GF 126 for All Metabo Power Tools €22.39
890
 photo_cameraImage coming soon 34413056 Grease SF 011 50Gr 1,8oz €37.66

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Rotary Hammer UHE 28 Multi

METABO service center and original spare parts Worldwide Distributor

. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Rotary Hammer UHE 28 Multi - 00361000.

In the following table, look for the model of the Hammer and the respective parts of the code.
Metabo UHE 28 Multi - 00361000

Rotary Hammer UHE 28 Multi/00361000
# Part Num. Description
1 31602959 Adaptor SDS -PLUS
2 14319491 Shaft sealing ring
3 14311383 Needle sleeve
4 31603053 Gear housing cpl.
5 14115375 Supporting disc
6 34200269 Pressure spring
7 34337444 Retaining ring
8 33811792 Metabo label
9 14112249 Self-tap. fill. h. screw
10 31602951 Sliding block
11 31603056 Drill driving sleeve cpl.
13 31603058 Intermediate striker cpl.
14 14319240 O-ring
15 34101255 Supporting ring
16 14319391 O-ring
17 31603057 Catching sleeve cpl.
18 14319392 O-ring
19 14118184 Circlip
20 31601766 Striker cpl.
21 34409314 Sealing ring
22 34105577 Exciter sleeve
23 32005048 Ball holder
24 34409557 Seal
25 31603054 Gear flange cpl.
26 34407067 Felt seal
27 34409592 Rubber buffer
28 31603262 Control knob cpl.
29 33912961 Washer
30 14311428 Axial needle bearing
31 14115492 Cup spring
32 34000323 Coupling sleeve
33 31603048 Intermediate gear cpl.
34 31602956 Shift element
35 14111944 Fill. head screw(DIN 7985)
36 34151163 Depth stop
37 31400077 Support handle compl.
38 34337604 Sealing ring
39 14311488 Ball bearing, 8x22x7
40 30100219 Futuro plus ring S2M 13 mm
41 31000788 Armature cpl.230V (w. tacho gen.)
42 14311475 Ball bearing, 6X 19X 6
43 34337427 Intermediate flange
44 34307802 Temperature sensor
45 33804532 Rating plate
46 34307879 VTC electronic SIGNAL Code!,230V
47 34340688 poti switch 230V
48 14111706 Self-tap. fill. h. screw
49 31604106 Drill Handle w/overmold green
50 34336249 Cable clip
51 14319243 O-ring
52 14111826 Self-tap. fill. h. screw
53 31100981 Field coil 230V
54 31501265 Motor housing
55 33812216 M-Label,08 52x22
56 33912939 Brush contact
57 31602879 Brush holder module
58 34448673 Cord with plug
60 34410114 Cable sleeve
61 31603496 Carbon brush set
62 31603204 Maintenance kit
63 34170336 Cap screw
64 31603239 Adaptor
65 33913098 Butting sheet
67 34337675 Seal
68 33811541 Indication label
70 34101263 Ring
71 31603574 Fan w. prot. Grid
72 33811788 Sticker
73 31602960 SSP Cuck w. adaptor
880 34413080 Grease FG 126
890 34413056 Grease SF 011 50Gr 1,8oz
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo UHE 28 Multi - 00361000
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo UHE 28 Multi

Diagram Metabo UHE 28 Multi

Download (194.78KB)

You might also like

Brush Contact for Hammer Metabo UHE 28 Plus
Metabo SKU: 33912939
Brush Contact for Hammer Metabo UHE 28 Plus
Brush Contact for Hammer Metabo UHE 28 Plus Genuine part Metabo, Brush Contact for Hammers UHE 28 Plus/00363000 - UHE 28 Multi/00361000 - UHE 2850 Multi/00712001 - SBE 1300/00843000 Parts for the following products: - Rotary Hammer...
AVAILABLE €3.43
Details
Switch 230V for Hammer Metabo UHE 28 Plus
Metabo SKU: 34340688
Switch 230V for Hammer Metabo UHE 28 Plus
Switch 230V for Hammer Metabo UHE 28 Plus Genuine part Metabo, Poti Switch 230V for Hammers UHE 28 Plus/00363000 - UHE 28 Multi/00361000 Parts for the following products: -  Rotary Hammer Metabo UHE 28...
Usually Ships in: 7/10 Business Days Approx. €30.94
Details
Axial Needle Bearing for Rotary Hammer Metabo UHE 28 Plus
Metabo SKU: 14311428
Axial Needle Bearing for Rotary Hammer Metabo UHE 28 Plus
Axial Needle Bearing for Rotary Hammer Metabo UHE 28 Plus Genuine part Metabo, Axial Needle Bearing for Rotary Hammers UHE 28 Plus/00363000 - UHE 28 Multi - KHE 22 SP - 2650 - 2851 Parts for the following products: - Rotary Hammer...
AVAILABLE €6.71
Details
230/240V Stator for Rotary Hammer Metabo UHE 28 Plus
Metabo SKU: 31100981
230/240V Stator for Rotary Hammer Metabo UHE 28 Plus
230/240V Stator for Rotary Hammer Metabo UHE 28 Plus Genuine part Metabo, 230/240V Stator (FIELD) for Hammers UHE 28 Plus/00363000 - UHE 28 Multi/00361000 - UHE 2850 Multi/00712001 - KHE 2851/00657000. Parts for the following...
AVAILABLE €27.59
Details
Gear Case Spring for Rotary Hammer Metabo UHE 20
Metabo SKU: 34200269
Gear Case Spring for Rotary Hammer Metabo UHE 20
Gear Case Spring for Rotary Hammer Metabo UHE 20 Genuine replacement part Metabo, Gear Case Spring for Rotary Hammers UHE 20 - UHE 28 Multi - KHE 22 SP. Parts for the following products: - Rotary Hammer UHE 28 Multi/00361000 - Rotary...
AVAILABLE €6.96
Details
Intermediate Flange for Rotary Hammer Metabo UHE 20
Metabo SKU: 34337427
Intermediate Flange for Rotary Hammer Metabo UHE 20
Intermediate Flange for Rotary Hammer Metabo UHE 20 Genuine replacement part Metabo, Intermediate Flange for Rotary Hammers UHE 20 - UHE 28 Multi - KHE 22 SP - UHE 28 Plus. Parts for the following products: - Rotary Hammer UHE 28...
AVAILABLE €12.41
Details
Cord CEE Plug for Rotary Hammer Metabo UHE 2250 Multi
Metabo SKU: 34448673
Cord CEE Plug for Rotary Hammer Metabo UHE 2250 Multi
Cord CEE Plug for Rotary Hammer Metabo UHE 2250 Multi Original Spare Part Metabo, Power Cord with CEE Plug 2x1  4,5 mt for Rotary Hammers UHE 2250 Multi - UHE 2850 Multi - UHE 20 - UHE 28 Plus. Part for the following products: -...
on 7/10 Business Days Approx €22.87
Details
Motor Housing + Grip for Rotary Hammer Metabo UHE 28 Plus
Metabo SKU: 31604106
Motor Housing + Grip for Rotary Hammer Metabo UHE 28 Plus
Motor Housing + Grip for Rotary Hammer Metabo UHE 28 Plus Genuine part Metabo, Motor Housing + Grip for Rotary Hammers UHE 28 Plus - UHE 28 Multi - KHE 28 SP - KHE 24 SP.  Parts for the following products: -  Rotary Hammer UHE 28 Plus...
on 7/10 Business Days Approx €39.58
Details
Support Handle for Rotary Hammer Metabo UHE 28 Multi
Metabo SKU: 31400077
Support Handle for Rotary Hammer Metabo UHE 28 Multi
Support Handle for Rotary Hammer Metabo UHE 28 Multi Genuine part Metabo, Support Handle Comlete for Rotary Hammers UHE 28 Multi - KHE 28 SP - BH E 6024 S.  Parts for the following products: -  Rotary Hammer UHE 28 Multi - 00361000 -...
on 7/10 Business Days Approx €32.13
Details
Adaptor SDS Plus for Rotary Hammer Metabo UHE 28 Multi
Metabo SKU: 31602959
Adaptor SDS Plus for Rotary Hammer Metabo UHE 28 Multi
Adaptor SDS Plus for Rotary Hammer Metabo UHE 28 Multi Genuine part Metabo, Adaptor SDS Plus Chuck for Rotary Hammers UHE 28 Multi - KHE 28 SP - UHE 20.  Parts for the following products: -  Rotary Hammer UHE 28 Multi - 00361000 -...
on 7/10 Business Days Approx €88.63
Details
Comments (0)
