Metabo Spare Parts for Chop Saw CS 23-355

SKU: Metabo CS 23-355 - 02335000
€1.82
VAT included

Metabo Spare Parts for Chop Saw CS 23-355

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Chop Saw CS 23-355 - 02335000.
Metabo Spare Parts for Chop Saw CS 23-355
  • Metabo Spare Parts for Chop Saw CS 23-355
  • Metabo Spare Parts for Chop Saw CS 23-355
Metabo

Metabo Spare Parts for Chop Saw CS 23-355

SKU: Metabo CS 23-355 - 02335000 Condition: New
€1.82
VAT included

Metabo Spare Parts for Chop Saw CS 23-355

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Chop Saw CS 23-355 - 02335000.
settings 64 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
64 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

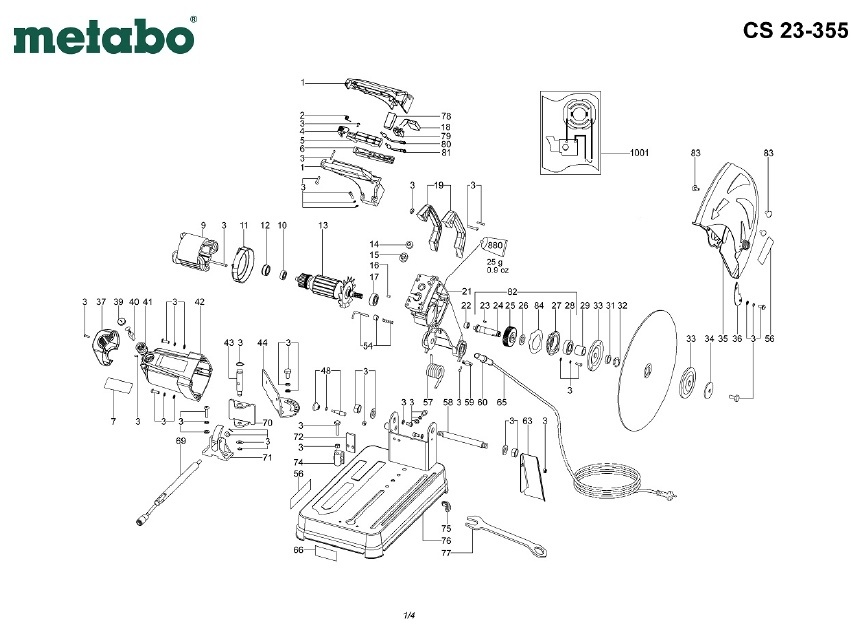

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31604368 Handle half compl. €7.20
2
 photo_cameraImage coming soon 34202214 Torsion spring €1.46
3
 photo_cameraImage coming soon 31604296 Screw set €11.78
4
 photo_cameraImage coming soon 34339467 Switch lock €1.46
5
 photo_cameraImage coming soon 34340898 Switch €10.45
6
 photo_cameraImage coming soon 34409834 Switch guard €1.46
7
 photo_cameraImage coming soon 33804967 NAME PLATE €1.46
9
 Field Coil Ass'y for Chop Saw CS 23-355 31101088 Field Coil Ass'y for Chop Saw CS 23-355 €81.38
10
 photo_cameraImage coming soon 14311486 Ball bearing , €11.78
11
 photo_cameraImage coming soon 34339460 Baffle €1.46
12
 photo_cameraImage coming soon 34409837 Rubber ring €1.46
13
 Armature Ass'y for Chop Saw CS 23-355 31000934 Armature Ass'y for Chop Saw CS 23-355 €89.74
14
 photo_cameraImage coming soon 34409835 Cable sleeve,230V €20.77
15
 photo_cameraImage coming soon 34409836 Cable sleeve,120V €1.46
16
 photo_cameraImage coming soon 34409838 Rubber plug €1.46
17
 photo_cameraImage coming soon 14311510 Ball bearing, 15X 35X 11 €7.20
18
 photo_cameraImage coming soon 34325449 Interference suppr. cond. €3.75
19
 photo_cameraImage coming soon 31604369 Handle compl. €2.99
21
 photo_cameraImage coming soon 31541639 Motor bracket €41.99
22
 photo_cameraImage coming soon 14311404 Ball bearing, 10x26x8 €11.86
23
 photo_cameraImage coming soon 34114785 Key €1.46
24
 photo_cameraImage coming soon 34114786 Spindle €10.45
25
 photo_cameraImage coming soon 34120101 Gear wheel €11.78
26
 photo_cameraImage coming soon 34409832 Ring €1.46
27
 photo_cameraImage coming soon 31541638 Gear box cover €2.99
28
 photo_cameraImage coming soon 14311046 Ball bearing, 17x40x12 €17.90
29
 photo_cameraImage coming soon 34100575 Spacer sleeve €1.46
31
 photo_cameraImage coming soon 34100576 Spacer sleeve €2.22
32
 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB 14118011 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB €1.91
33
 photo_cameraImage coming soon 34103198 Flange €5.86
34
 photo_cameraImage coming soon 34101299 Supporting disc €1.46
35
 photo_cameraImage coming soon 33920311 Wheel guard compl. €53.46
36
 photo_cameraImage coming soon 34103201 Flange protection €1.46
37
 photo_cameraImage coming soon 34339462 Motor housing cover €3.75
39
 photo_cameraImage coming soon 34300094 Cover cap for Kohlebuersten €1.46
40
 photo_cameraImage coming soon 31604297 Carbon brush set,230V €8.92
41
 photo_cameraImage coming soon 34300093 Brush holder €5.28
42
 photo_cameraImage coming soon 34339461 Motor housing €17.90
43
 photo_cameraImage coming soon 34151533 Connector bolt €2.99
44
 photo_cameraImage coming soon 34339457 Stop gauge €8.92
48
 photo_cameraImage coming soon 31604370 Locking bolt compl. €2.79
54
 photo_cameraImage coming soon 31604372 Spindle stop compl. €1.46
56
 photo_cameraImage coming soon 33812116 Metabo label €1.46
57
 photo_cameraImage coming soon 34205085 Spring €5.86
58
 photo_cameraImage coming soon 34152018 Bolt €4.52
60
 photo_cameraImage coming soon 34409833 Cable sleeve €1.46
63
 photo_cameraImage coming soon 33916078 GUARD PLATE €5.58
65
 photo_cameraImage coming soon 34449749 Cable w.CEE plug €23.83
69
 photo_cameraImage coming soon 34114784 Spindle €9.92
70
 photo_cameraImage coming soon 33913339 Clamping Jaws €8.92
71
 photo_cameraImage coming soon 34339458 Threaded spindle holder €9.92
72
 photo_cameraImage coming soon 33913342 steelplate €1.46
74
 photo_cameraImage coming soon 34151536 Depth stop €4.52
75
 photo_cameraImage coming soon 34409828 Rubber foot €1.46
76
 photo_cameraImage coming soon 33913341 Base table €47.73
77
 photo_cameraImage coming soon 34416352 Spanner Kentool €2.22
78
 photo_cameraImage coming soon 34339489 Dummy plug €1.46
79
 photo_cameraImage coming soon 34305025 Terminal rail €1.46
80
 photo_cameraImage coming soon 34449758 CABLE €1.46
81
 photo_cameraImage coming soon 34449760 CABLE €1.46
82
 photo_cameraImage coming soon 31604371 Spindle compl. €35.49
83
 photo_cameraImage coming soon 34409855 Rubber plug €1.65
84
 photo_cameraImage coming soon 14319524 Gasket €1.46
880
 photo_cameraImage coming soon 34413118 Grease Tube €1.46

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Chop Saw CS 23-355

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Chop Saw CS 23-355 - 02335000.

In the following table, look for the model of the Chop Saw and the respective parts of the code.
Chop Saw CS 23-355 - 02335000

Chop Saw CS 23-355/02335000
# Part Num. Description
1 31604368 Handle half compl.
2 34202214 Torsion spring
3 31604296 Screw set
4 34339467 Switch lock
5 34340898 Switch
6 34409834 Switch guard
7 33804967 NAME PLATE
9 31101088 Field Coil ass'y,230V
10 14311486 Ball bearing ,
11 34339460 Baffle
12 34409837 Rubber ring
13 31000934 Armature cpl. 230 V
14 34409835 Cable sleeve,230V
15 34409836 Cable sleeve,120V
16 34409838 Rubber plug
17 14311510 Ball bearing, 15X 35X 11
18 34325449 Interference suppr. cond.
19 31604369 Handle compl.
21 31541639 Motor bracket
22 14311404 Ball bearing, 10x26x8
23 34114785 Key
24 34114786 Spindle
25 34120101 Gear wheel
26 34409832 Ring
27 31541638 Gear box cover
28 14311046 Ball bearing, 17x40x12
29 34100575 Spacer sleeve
31 34100576 Spacer sleeve
32 14118011 Retaining ring
33 34103198 Flange
34 34101299 Supporting disc
35 33920311 Wheel guard compl.
36 34103201 Flange protection
37 34339462 Motor housing cover
39 34300094 Cover cap for Kohlebuersten
40 31604297 Carbon brush set,230V
41 34300093 Brush holder
42 34339461 Motor housing
43 34151533 Connector bolt
44 34339457 Stop gauge
48 31604370 Locking bolt compl.
54 31604372 Spindle stop compl.
56 33812116 Metabo label
57 34205085 Spring
58 34152018 Bolt
59 34339516 Cable clip
60 34409833 Cable sleeve
63 33916078 GUARD PLATE
65 34449749 Cable w.CEE plug
69 34114784 Spindle
70 33913339 Clamping Jaws
71 34339458 Threaded spindle holder
72 33913342 steelplate
74 34151536 Depth stop
75 34409828 Rubber foot
76 33913341 Base table
77 34416352 Spanner Kentool
78 34339489 Dummy plug
79 34305025 Terminal rail
80 34449758 CABLE
81 34449760 CABLE
82 31604371 Spindle compl.
83 34409855 Rubber plug
84 14319524 Gasket
880 34413118 Grease Tube
