Metabo

Metabo Spare Parts for Cordless Mitre Saw KS 18 LTX 216

SKU: Metabo KS 18 LTX 216/19000000
€1.58
VAT included

Metabo Spare Parts for Cordless Mitre Saw KS 18 LTX 216

Metabo original spare parts to replace worn components or repair damaged parts of the Mitre Saw KS 18 LTX 216 - 19000000.

Fix Your Mitre Saw KS 18 LTX 216. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Metabo Spare Parts for Cordless Mitre Saw KS 18 LTX 216
  • Metabo Spare Parts for Cordless Mitre Saw KS 18 LTX 216
  • Metabo Spare Parts for Cordless Mitre Saw KS 18 LTX 216
  • Metabo Spare Parts for Cordless Mitre Saw KS 18 LTX 216
Metabo

Metabo Spare Parts for Cordless Mitre Saw KS 18 LTX 216

SKU: Metabo KS 18 LTX 216/19000000 Condition: New
€1.58
VAT included

Metabo Spare Parts for Cordless Mitre Saw KS 18 LTX 216

Metabo original spare parts to replace worn components or repair damaged parts of the Mitre Saw KS 18 LTX 216 - 19000000.

Fix Your Mitre Saw KS 18 LTX 216. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 66 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
66 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

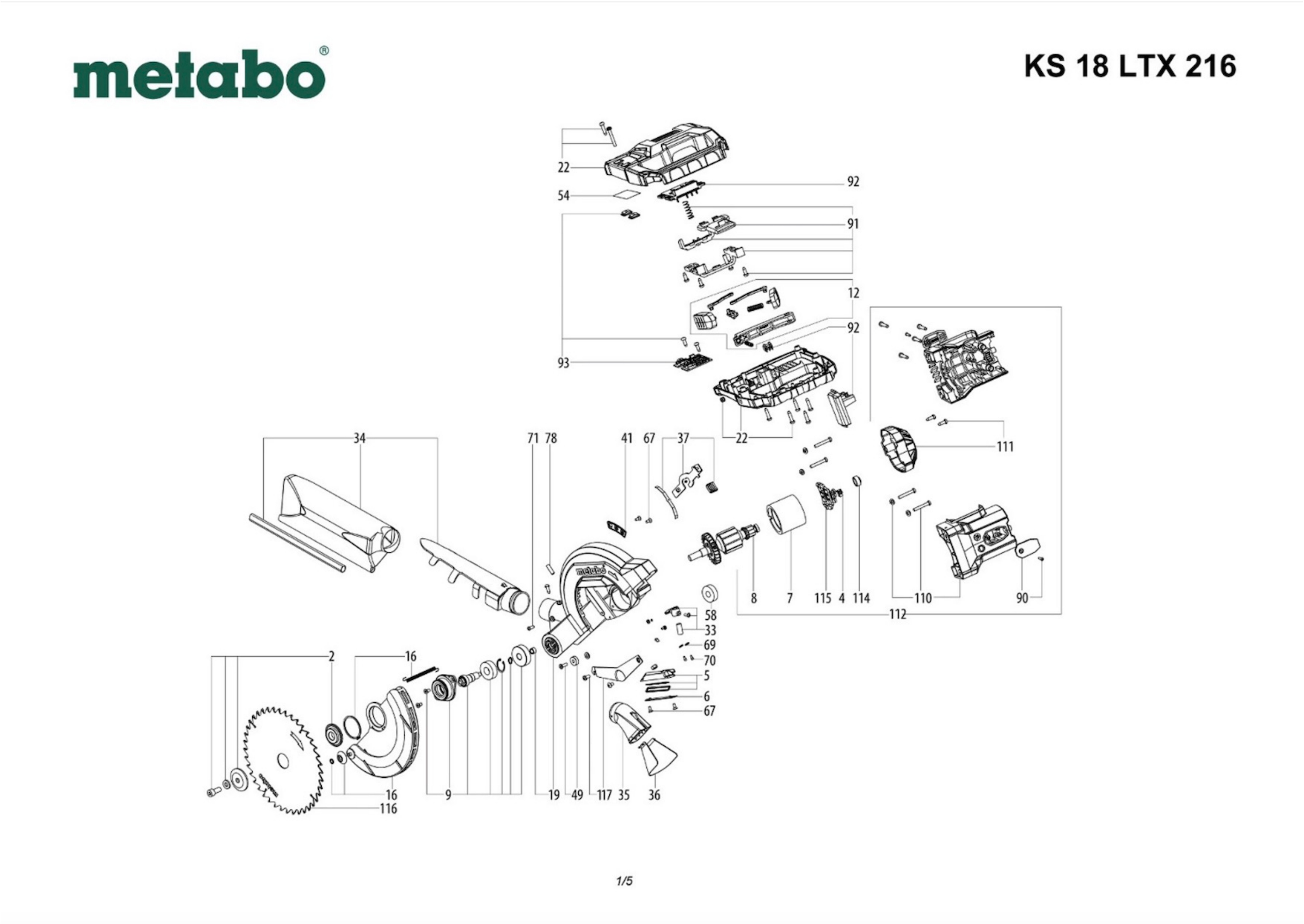

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 31606061 Flange compl. €10.75
4
 photo_cameraImage coming soon 31604758 Carbon brush set €14.61
5
 photo_cameraImage coming soon 34308514 LED lense €5.86
7
 Magnet for Cordless Mitre Saw Metabo KS 18 LTX 216 31101188 Magnet for Cordless Mitre Saw Metabo KS 18 LTX 216 €68.55
8
 photo_cameraImage coming soon 31001155 Armature compl.,18 V for JFD AKKU KGS €97.43
9
 Gear Housing Ass'y for Mitre Saw Metabo KS 216 M 31606069 Gear Housing Ass'y for Mitre Saw Metabo KS 216 M €33.12
12
 photo_cameraImage coming soon 34344055 Switch compl. €5.86
14
 Metabo KGS 216 M Turntable Complete 31605595 Metabo KGS 216 M Turntable Complete €65.46
15
 photo_cameraImage coming soon 31605592 Table compl. €97.43
16
 Metabo KS 216 M Lasercut Safety Guard Compl. 31605630 Metabo KS 216 M Lasercut Safety Guard Compl. €17.10
17
 photo_cameraImage coming soon 31606084 Foot compl. €3.45
19
 photo_cameraImage coming soon 31605622 Wheel guard compl. €66.84
21
 photo_cameraImage coming soon 31605690 SWIVEL LEVER compl. €13.50
22
 photo_cameraImage coming soon 34344053 Handle compl. €29.56
23
 photo_cameraImage coming soon 31605675 Clamping lever compl. €4.26
24
 photo_cameraImage coming soon 31605606 Motor bracket compl. €35.49
25
 photo_cameraImage coming soon 31605678 Control grip compl. €4.26
26
 photo_cameraImage coming soon 31541851 Table side extension right €20.77
27
 photo_cameraImage coming soon 31541848 Table side extension left €20.77
29
 photo_cameraImage coming soon 31605668 Workpiece holder compl. €18.43
30
 Rip Fence Ass'y for Mitre Saw Metabo KS 216 M Lasercut 31605598 Rip Fence Ass'y for Mitre Saw Metabo KS 216 M Lasercut €48.16
32
 photo_cameraImage coming soon 34343601 Table insert €1.65
33
 Laser with Holder for Mitre Saw Metabo KGS 216 M 34343607 Laser with Holder for Mitre Saw Metabo KGS 216 M €22.49
34
 Dust Estraction Bag Set Ass'y for Mitre Saw Metabo KGS 254 M 31605634 Dust Estraction Bag Set Ass'y for Mitre Saw Metabo KGS 254 M €12.41
35
 photo_cameraImage coming soon 34343577 Cover dust collector €1.65
36
 photo_cameraImage coming soon 34343625 Extraction funnel €1.46
37
 photo_cameraImage coming soon 31609225 Spindle lock compl. €1.46
38
 photo_cameraImage coming soon 31605681 TRANSPORT LOCK COMPLETE €2.22
40
 photo_cameraImage coming soon 31606139 tipping axis compl. €13.50
41
 photo_cameraImage coming soon 34344109 Cover (cable channel) €1.50
43
 photo_cameraImage coming soon 31606143 Scale set compl. €1.46
45
 photo_cameraImage coming soon 33914764 Sliding sheet €1.46
46
 photo_cameraImage coming soon 31606151 End stop cpl. €4.26
47
 photo_cameraImage coming soon 34343622 Star grip screw €1.57
48
 photo_cameraImage coming soon 31604452 Locking table trunnion compl. €4.52
50
 photo_cameraImage coming soon 33913675 Locking element €1.46
52
 photo_cameraImage coming soon 31606155 Tool holder col. €1.57
54
 photo_cameraImage coming soon 33806423 Rating plate €1.46
58
 photo_cameraImage coming soon 14311573 Ball bearing €3.08
59
 photo_cameraImage coming soon 14113203 Hex nut €1.59
60
 photo_cameraImage coming soon 14115005 Washer €1.68
61
 photo_cameraImage coming soon 14115039 Lock washer €1.59
62
 photo_cameraImage coming soon 14111387 Cap screw €1.78
63
 photo_cameraImage coming soon 14115013 Washer €1.61
64
 photo_cameraImage coming soon 14115524 Lock washer €1.80
67
 photo_cameraImage coming soon 14112384 Countersunk screw €1.57
72
 photo_cameraImage coming soon 14111143 Fillister head screw €1.70
73
 photo_cameraImage coming soon 14111678 Fillister head screw €1.50
76
 photo_cameraImage coming soon 14111322 Fillister head screw €1.75
77
 photo_cameraImage coming soon 14115035 Lock washer €1.57
78
 photo_cameraImage coming soon 14112448 HEX. SOCKET SET SCREW FLAT PT M 6X20 VE €1.59
79
 photo_cameraImage coming soon 14113010 Hexagonal nut €1.70
80
 photo_cameraImage coming soon 14112449 Truss head screw €1.46
81
 photo_cameraImage coming soon 14111060 Fillister head screw €1.46
82
 photo_cameraImage coming soon 14112450 HEXAGON HEAD SCREW M 10X40 VERZ. €1.59
83
 photo_cameraImage coming soon 14111390 Cap screw €1.78
90
 photo_cameraImage coming soon 34344052 Brush cover €1.46
91
 photo_cameraImage coming soon 31609222 clamp kit €3.75
92
 photo_cameraImage coming soon 34308440 Electronic unit €105.08
93
 photo_cameraImage coming soon 34308442 Electronic unit €110.81
94
 photo_cameraImage coming soon 14111344 Hexagon head screw €1.70
110
 photo_cameraImage coming soon 31606010 Motor housing compl. €23.83
111
 photo_cameraImage coming soon 34344051 Motor cap €5.28
112
 photo_cameraImage coming soon 31609223 Motor compl. €236.99
114
 photo_cameraImage coming soon 34409874 Rubber bushing €1.61
115
 photo_cameraImage coming soon 31605321 Brush holder compl.,18 V €15.66
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

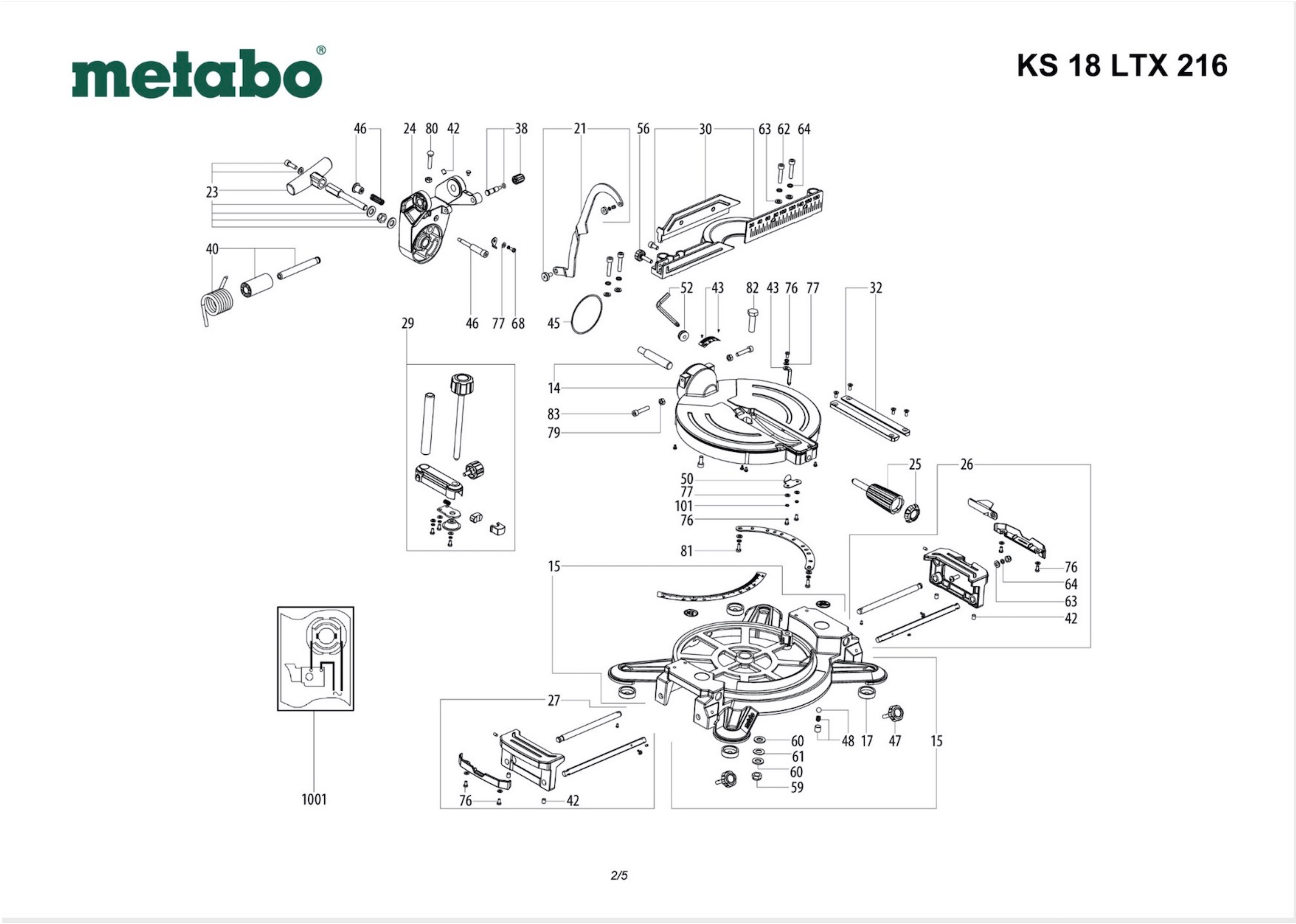

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
14
 Metabo KGS 216 M Turntable Complete 31605595 Metabo KGS 216 M Turntable Complete €65.46
15
 photo_cameraImage coming soon 31605592 Table compl. €97.43
17
 photo_cameraImage coming soon 31606084 Foot compl. €3.45
21
 photo_cameraImage coming soon 31605690 SWIVEL LEVER compl. €13.50
23
 photo_cameraImage coming soon 31605675 Clamping lever compl. €4.26
24
 photo_cameraImage coming soon 31605606 Motor bracket compl. €35.49
25
 photo_cameraImage coming soon 31605678 Control grip compl. €4.26
26
 photo_cameraImage coming soon 31541851 Table side extension right €20.77
27
 photo_cameraImage coming soon 31541848 Table side extension left €20.77
29
 photo_cameraImage coming soon 31605668 Workpiece holder compl. €18.43
30
 Rip Fence Ass'y for Mitre Saw Metabo KS 216 M Lasercut 31605598 Rip Fence Ass'y for Mitre Saw Metabo KS 216 M Lasercut €48.16
32
 photo_cameraImage coming soon 34343601 Table insert €1.65
38
 photo_cameraImage coming soon 31605681 TRANSPORT LOCK COMPLETE €2.22
40
 photo_cameraImage coming soon 31606139 tipping axis compl. €13.50
43
 photo_cameraImage coming soon 31606143 Scale set compl. €1.46
45
 photo_cameraImage coming soon 33914764 Sliding sheet €1.46
46
 photo_cameraImage coming soon 31606151 End stop cpl. €4.26
47
 photo_cameraImage coming soon 34343622 Star grip screw €1.57
48
 photo_cameraImage coming soon 31604452 Locking table trunnion compl. €4.52
50
 photo_cameraImage coming soon 33913675 Locking element €1.46
52
 photo_cameraImage coming soon 31606155 Tool holder col. €1.57
59
 photo_cameraImage coming soon 14113203 Hex nut €1.59
60
 photo_cameraImage coming soon 14115005 Washer €1.68
61
 photo_cameraImage coming soon 14115039 Lock washer €1.59
62
 photo_cameraImage coming soon 14111387 Cap screw €1.78
63
 photo_cameraImage coming soon 14115013 Washer €1.61
64
 photo_cameraImage coming soon 14115524 Lock washer €1.80
76
 photo_cameraImage coming soon 14111322 Fillister head screw €1.75
77
 photo_cameraImage coming soon 14115035 Lock washer €1.57
79
 photo_cameraImage coming soon 14113010 Hexagonal nut €1.70
80
 photo_cameraImage coming soon 14112449 Truss head screw €1.46
81
 photo_cameraImage coming soon 14111060 Fillister head screw €1.46
82
 photo_cameraImage coming soon 14112450 HEXAGON HEAD SCREW M 10X40 VERZ. €1.59
83
 photo_cameraImage coming soon 14111390 Cap screw €1.78

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Cordless Mitre Saw KS 18 LTX 216

Fix Your Mitre Saw KS 18 LTX 216 - 19000000. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Mitre Saw and the respective parts of the code.
Metabo KS 18 LTX 216/19000000

Mitre Saw KS 18 LTX 216/19000000
# Part Num. Description
2 31606061 Flange compl.
4 31604758 Carbon brush set
5 34308514 LED lense
7 31101188 Field coil compl.,2 pol.
8 31001155 Armature compl.,18 V for JFD AKKU KGS
9 31606069 Gear-box compl.
12 34344055 Switch compl.
14 31605595 Turntable compl.
15 31605592 Table compl.
16 31605630 Safety guard compl.
17 31606084 Foot compl.
19 31605622 Wheel guard compl.
21 31605690 SWIVEL LEVER compl.
22 34344053 Handle compl.
23 31605675 Clamping lever compl.
24 31605606 Motor bracket compl.
25 31605678 Control grip compl.
26 31541851 Table side extension right
27 31541848 Table side extension left
29 31605668 Workpiece holder compl.
30 31605598 Rip Fence Ass'y
32 34343601 Table insert
33 34343607 Laser with holder
34 31605634 Dust etraction kit compl.
35 34343577 Cover dust collector
36 34343625 Extraction funnel
37 31609225 Spindle lock compl.
38 31605681 Transport lock compl.
40 31606139 tipping axis compl.
41 34344109 Cover (cable channel)
43 31606143 Scale set compl.
45 33914764 Sliding sheet
46 31606151 End stop cpl.
47 34343622 Star grip screw
48 31604452 Locking table trunnion compl.
50 33913675 Locking element
52 31606155 Tool holder col.
54 33806423 Rating plate
58 14311573 Ball bearing
59 14113203 Hex nut
60 14115005 Washer
61 14115039 Lock washer
62 14111387 Cap screw
63 14115013 Washer
64 14115524 Lock washer
67 14112384 Countersunk screw
72 14111143 Fillister head screw
73 14111678 Fillister head screw
76 14111322 Fillister head screw
77 14115035 Lock washer
78 14112448 HEX. SOCKET SET SCREW, FLAT PT M 6X20 VE
79 14113010 Hexagonal nut
80 14112449 Truss head screw
81 14111060 Fillister head screw
82 14112450 HEXAGON HEAD SCREW M 10X40 VERZ.
83 14111390 Cap screw
90 34344052 Brush cover
91 31609222 clamp kit
92 34308440 Electronic unit
93 34308442 Electronic unit
94 14111344 Hexagon head screw
110 31606010 Motor housing compl.
111 34344051 Motor cap
112 31609223 Motor compl.
114 34409874 Rubber bushing
115 31605321 Brush holder compl.,18 V
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo KS 18 LTX 216/19000000
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo KS 18 LTX 216

Diagram Metabo KS 18 LTX 216

Download (428.69KB)

You might also like

Gear Housing Ass'y for Mitre Saw Metabo KS 216 M
Metabo SKU: 31606069
Gear Housing Ass'y for Mitre Saw Metabo KS 216 M
Gear Housing Ass'y for Mitre Saw Metabo KS 216 M Genuine part Metabo, Gear Housing Assembly for Mitre Saw Metabo Metabo KS 216 M Lasercut/19216000 - KGS 216 M/19260000 - KS 18 LTX 216/19000000 - KGS 18 LTX 216/19001000. Parts for the...
AVAILABLE €33.12
Details
Laser with Holder for Mitre Saw Metabo KGS 216 M
Metabo SKU: 34343607
Laser with Holder for Mitre Saw Metabo KGS 216 M
Laser with Holder for Mitre Saw Metabo KGS 216 M Genuine part Metabo, Laser with Holder for Mitre SawsKS 216 M Lasercut - KGS 216 M/19260000 - KGS 254 M - KGS 305 M - KGS 18 LTX 216 - 19001000 Part for the following products: -  Mitre...
on 7/10 Business Days Approx €22.49
Details
Magnet for Cordless Mitre Saw Metabo KS 18 LTX 216
Metabo SKU: 31101188
Magnet for Cordless Mitre Saw Metabo KS 18 LTX 216
Magnet for Cordless Mitre Saw Metabo KS 18 LTX 216 Original Spare Parts Metabo, Magnet Complete 2 Pol. for Cordless Mitre Saw KS 18 LTX 216 - KGS 18 LTX 216. Part for the following products: -  Cordless Mitre Saw KS 18 LTX...
Last items in stock €68.55
Details
Metabo KS 216 M Lasercut Safety Guard Compl.
Metabo SKU: 31605630
Metabo KS 216 M Lasercut Safety Guard Compl.
Metabo KS 216 M Lasercut Safety Guard Compl. Genuine part Metabo, Safety Guard Complete for Mitre Saw Metabo Metabo KS 216 M Lasercut. Parts for the following products: -  Mitre...
on 7/10 Business Days Approx. €17.10
Details
Metabo KGS 216 M Turntable Complete
Metabo SKU: 31605595
Metabo KGS 216 M Turntable Complete
Metabo KGS 216 M Turntable Complete Genuine part Metabo, Turntable Complete for Mitre Saws KS 18 LTX 216 - KGS 216 M. Part for the following products: - Mitre Saw Metabo KGS 216 M Lasercut - 19216000 - Mitre Saw KS...
Last items in stock €65.46
Details
Comments (0)
