Metabo Spare Parts for Multi Hammer UHE 2250 Multi

SKU: Metabo UHE 2250 Multi 00854000
€1.92
VAT included

Metabo Spare Parts for Multi Hammer UHE 2250 Multi

We have the original Spares METABO for Multi Hammer UHE 2250 Multi - 00854000, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Multi Hammer UHE 2250 Multi - 00854000
Metabo Spare Parts for Multi Hammer UHE 2250 Multi
  • Metabo Spare Parts for Multi Hammer UHE 2250 Multi
  • Metabo Spare Parts for Multi Hammer UHE 2250 Multi - Drawing
Metabo

Metabo Spare Parts for Multi Hammer UHE 2250 Multi

SKU: Metabo UHE 2250 Multi 00854000 Condition: New
€1.92
VAT included

Metabo Spare Parts for Multi Hammer UHE 2250 Multi

We have the original Spares METABO for Multi Hammer UHE 2250 Multi - 00854000, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Multi Hammer UHE 2250 Multi - 00854000
settings 69 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
69 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

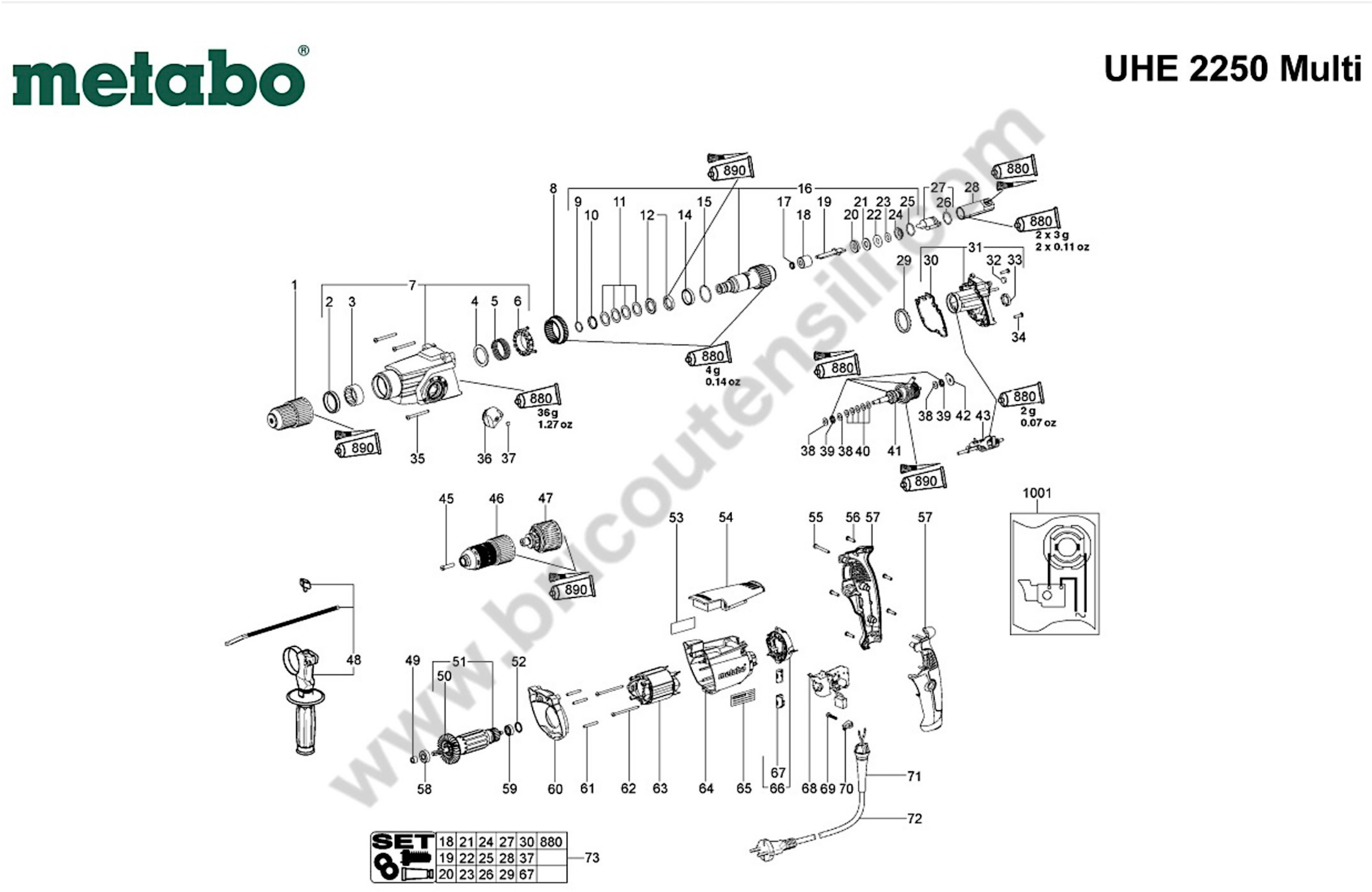

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31605100 Adaptor SDS -PLUS €73.14
2
 photo_cameraImage coming soon 14319516 Shaft sealing ring €10.05
3
 photo_cameraImage coming soon 14311509 Needle sleeve,30x37x16 €8.20
4
 photo_cameraImage coming soon 33900715 Washer €1.98
5
 photo_cameraImage coming soon 34200349 Pressure spring,34,7x38,3x1,8x27,7 €1.81
6
 photo_cameraImage coming soon 34339782 Retaining ring €1.81
7
 photo_cameraImage coming soon 31604783 Gear housing cpl. €64.31
8
 photo_cameraImage coming soon 34000403 Sliding block €10.05
9
 photo_cameraImage coming soon 14115638 Circlip €1.81
10
 photo_cameraImage coming soon 34101306 Support ring €5.17
11
 photo_cameraImage coming soon 34207062 Cup spring €1.81
14
 photo_cameraImage coming soon 34343100 Support ring €1.81
15
 photo_cameraImage coming soon 14115636 Circlip €1.81
17
 photo_cameraImage coming soon 14319520 Shaft sealing ring €2.65
18
 photo_cameraImage coming soon 34100581 Bushing €11.12
19
 photo_cameraImage coming soon 34105903 Piston €9.70
20
 photo_cameraImage coming soon 34101298 Support ring €3.11
21
 photo_cameraImage coming soon 14319515 O-ring €1.98
22
 photo_cameraImage coming soon 33900719 Washer €1.81
23
 photo_cameraImage coming soon 14319521 O-ring €1.81
24
 photo_cameraImage coming soon 34105895 Catching sleeve €4.33
25
 photo_cameraImage coming soon 14118184 Circlip €1.81
26
 photo_cameraImage coming soon 34409314 Sealing ring €5.17
27
 photo_cameraImage coming soon 31604335 Striker compl. €26.19
28
 photo_cameraImage coming soon 34105868 exciter sleeve compl. €26.19
29
 photo_cameraImage coming soon 32005048 Ball holder €3.49
30
 photo_cameraImage coming soon 34409864 Seal €3.02
31
 photo_cameraImage coming soon 31604786 Gear flange cpl. €52.11
32
 photo_cameraImage coming soon 34407067 Felt seal €1.81
33
 photo_cameraImage coming soon 34409592 Rubber buffer €1.81
34
 photo_cameraImage coming soon 14112340 Filister head screw €1.81
35
 photo_cameraImage coming soon 14112361 Self-tap. fill. h. screw €1.81
36
 photo_cameraImage coming soon 31604447 Control knob compl. €6.69
37
 Control Knob Hole Cover for Rotary Hammer Metabo KHE 22 SP 34337675 Control Knob Hole Cover for Rotary Hammer Metabo KHE 22 SP €1.93
38
 photo_cameraImage coming soon 33912961 Washer €1.81
39
 Axial Needle Bearing for Rotary Hammer Metabo UHE 28 Plus 14311428 Axial Needle Bearing for Rotary Hammer Metabo UHE 28 Plus €6.71
40
 photo_cameraImage coming soon 14115255 Cup spring €1.98
41
 photo_cameraImage coming soon 31604787 Pinion shaft compl. €82.26
42
 photo_cameraImage coming soon 33913435 guide sheet €1.81
43
 photo_cameraImage coming soon 31604446 Shift element compl. €19.64
45
 photo_cameraImage coming soon 34170336 Cap screw €5.84
46
 photo_cameraImage coming soon 31605087 Keyless chuck w.adaptor €113.52
47
 photo_cameraImage coming soon 31605088 Quick-change adaptor €45.54
48
 photo_cameraImage coming soon 31605227 Side support handle compl. €32.59
49
 photo_cameraImage coming soon 34337604 Sealing ring €1.98
50
 photo_cameraImage coming soon 33000183 Fan €11.74
51
 photo_cameraImage coming soon 31000922 Armature compl.,230 V €61.24
52
 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 14319243 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 €1.88
54
 photo_cameraImage coming soon 34339407 Cover w.o. electronic €2.48
55
 photo_cameraImage coming soon 14111699 Self-tap. fill. h. screw €1.98
56
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
57
 photo_cameraImage coming soon 34339853 Pistol grip 2-part, gummed €116.20
58
 photo_cameraImage coming soon 14311488 Ball bearing, 8x22x7 €7.22
59
 Ball Bearing 6x19x6 mm for Angle Grinders Metabo W 7-8-9-115 14311517 Ball Bearing 6x19x6 mm for Angle Grinders Metabo W 7-8-9-115 €7.95
60
 photo_cameraImage coming soon 34339978 Intermediate flange €1.72
61
 photo_cameraImage coming soon 34152023 Cylindrical pin €1.81
62
 photo_cameraImage coming soon 14111826 Self-tap. fill. h. screw €1.81
63
 photo_cameraImage coming soon 31100980 Field coil 230V €20.77
64
 Motor Housing for Percussion Drill Metabo SB 710 31501325 Motor Housing for Percussion Drill Metabo SB 710 €15.50
66
 photo_cameraImage coming soon 31605199 Brush holder module,230V - V-El. 850W €14.92
67
 Carbon Brushes for Hammers Metabo UHE 2250-KHE 3250 31604695 Carbon Brushes for Hammers Metabo UHE 2250-KHE 3250 €21.46
68
 Metabo SBE 710 Electronic Switch 34340922 Metabo SBE 710 Electronic Switch €22.69
69
 photo_cameraImage coming soon 14111706 Self-tap. fill. h. screw €1.98
70
 photo_cameraImage coming soon 34336249 Cable clip €2.02
71
 photo_cameraImage coming soon 34339430 Cable sleeve €2.52
72
 Cord CEE Plug for Rotary Hammer Metabo UHE 2250 Multi 34448673 Cord CEE Plug for Rotary Hammer Metabo UHE 2250 Multi €22.87
73
 photo_cameraImage coming soon 31604789 Maintenance kit €98.72
880
 Grease Tube GF 126 for All Metabo Power Tools 34413080 Grease Tube GF 126 for All Metabo Power Tools €22.39
890
 photo_cameraImage coming soon 34413121 Tube Grease,50g Klueber Microlube GL 261 €45.54

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Multi Hammer UHE 2250 Multi

We have the original Spares METABO for Multi Hammer UHE 2250 Multi - 00854000, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of the Drill and the respective parts of the code.
Multi Hammer UHE 2250 Multi - 00854000

Multi Hammer UHE 2250 Multi/00854000
# Part NUm. Description
1 31605100 Adaptor SDS -PLUS
2 14319516 Shaft sealing ring
3 14311509 Needle sleeve,30x37x16
4 33900715 Washer
5 34200349 Pressure spring,34,7x38,3x1,8x27,7
6 34339782 Retaining ring
7 31604783 Gear housing cpl.
8 34000403 Sliding block
9 14115638 Circlip
10 34101306 Support ring
11 34207062 Cup spring
12 31606406 Ratched wheel set
14 34343100 Support ring
15 14115636 Circlip
16 31604785 Drill driving sleeve cpl.
17 14319520 Shaft sealing ring
18 34100581 Bushing
19 34105903 Piston
20 34101298 Support ring
21 14319515 O-ring
22 33900719 Washer
23 14319521 O-ring
24 34105895 Catching sleeve
25 14118184 Circlip
26 34409314 Sealing ring
27 31604335 Striker compl.
28 34105868 exciter sleeve compl.
29 32005048 Ball holder
30 34409864 Seal
31 31604786 Gear flange cpl.
32 34407067 Felt seal
33 34409592 Rubber buffer
34 14112340 Filister head screw
35 14112361 Self-tap. fill. h. screw
36 31604447 Control knob compl.
37 34337675 Seal
38 33912961 Washer
39 14311428 Axial needle bearing
40 14115255 Cup spring
41 31604787 Pinion shaft compl.
42 33913435 guide sheet
43 31604446 Shift element compl.
45 34170336 Cap screw
46 31605087 Keyless chuck w.adaptor
47 31605088 Quick-change adaptor
48 31605227 Side support handle compl.
49 34337604 Sealing ring
50 33000183 Fan
51 31000922 Armature compl.,230 V
52 14319243 O-ring
53 33805491 Rating plate
54 34339407 Cover w.o. electronic
55 14111699 Self-tap. fill. h. screw
56 14111602 Self-tap fill h screw
57 34339853 Pistol grip 2-part, gummed
58 14311488 Ball bearing, 8x22x7
59 14311517 Ball bearing,6x19x6
60 34339978 Intermediate flange
61 34152023 Cylindrical pin
62 14111826 Self-tap. fill. h. screw
63 31100980 Field coil 230V
64 31501325 Motor housing
66 31605199 Brush holder module,230V - V-El. 850W
67 31604695 Carbon brush set,230 V
68 34340922 Electronic switch with dial
69 14111706 Self-tap. fill. h. screw
70 34336249 Cable clip
71 34339430 Cable sleeve
72 34448673 Cord with plug
73 31604789 Maintenance kit
880 34413080 Grease FG 126
890 34413121 Tube Grease,50g Klueber Microlube GL 261
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo UHE 2250 Multi 00854000
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Metabo UHE 2250 Multi Drawing

Metabo UHE 2250 Multi Drawing

Download (232.73KB)
