Metabo Spare Parts for Drill BE 1300 Quick

SKU: Metabo BE 1300 Quick - 00593000
€1.92
VAT included

Metabo Spare Parts for Drill BE 1300 Quick

Metabo genuine spare parts or replacements parts for to fix Hammer Drill BE 1300 Quick - 00593000.

Hammer Drill BE 1300 Quick - 00593000
Metabo Spare Parts for Drill BE 1300 Quick
  • Metabo Spare Parts for Drill BE 1300 Quick
  • Metabo Spare Parts for Drill BE 1300 Quick - Drawing
Metabo

Metabo Spare Parts for Drill BE 1300 Quick

SKU: Metabo BE 1300 Quick - 00593000 Condition: New
€1.92
VAT included

Metabo Spare Parts for Drill BE 1300 Quick

Metabo genuine spare parts or replacements parts for to fix Hammer Drill BE 1300 Quick - 00593000.

Hammer Drill BE 1300 Quick - 00593000
settings 45 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
45 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

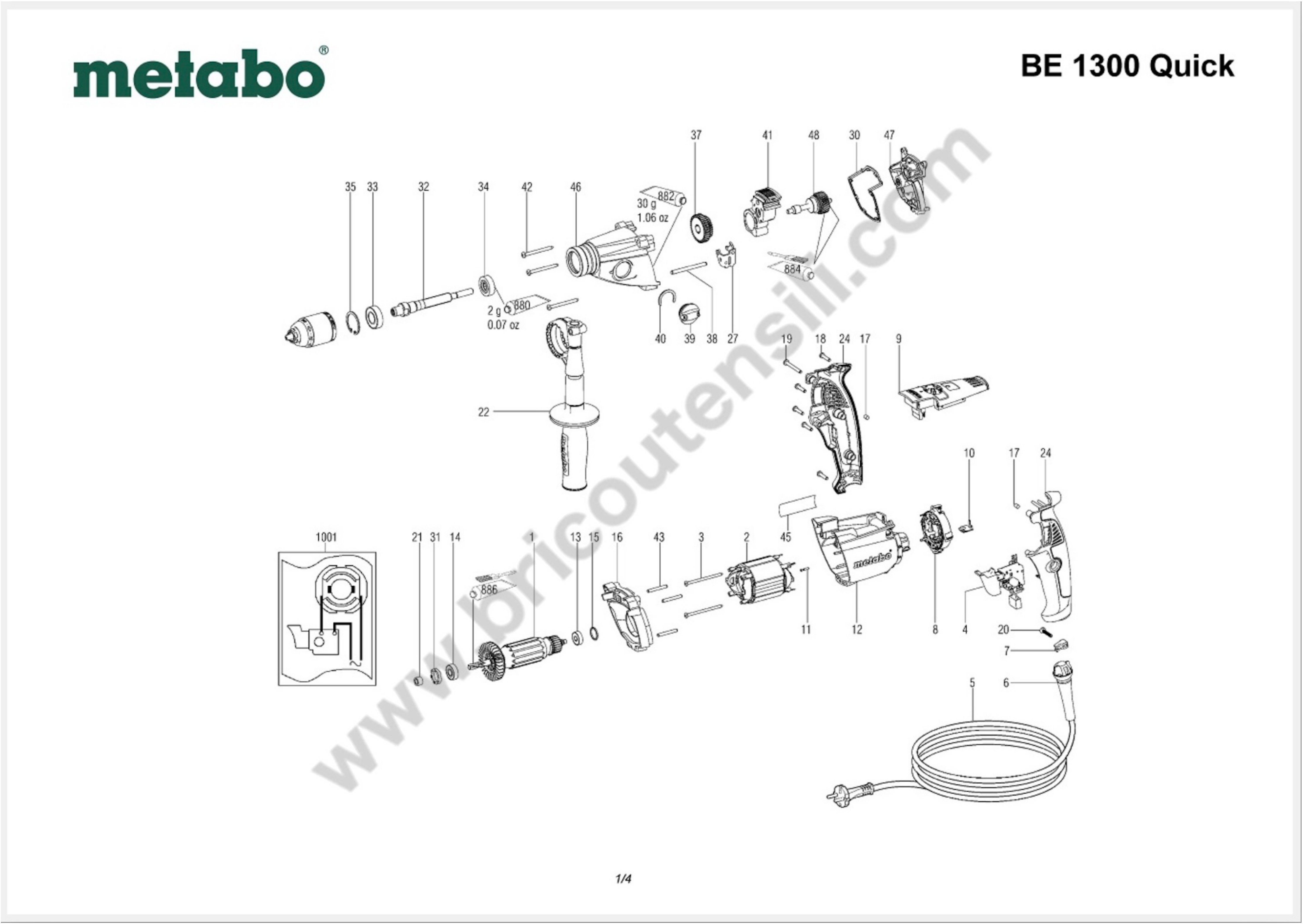

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31001041 Armature compl.,230 V (w. tacho gen.) €62.44
2
 photo_cameraImage coming soon 31101163 Field coil w.field coil,230 V €25.89
3
 photo_cameraImage coming soon 14111826 Self-tap. fill. h. screw €1.81
4
 Switch for Percussion Drills Metabo BE 1100-1300 34340925 Switch for Percussion Drills Metabo BE 1100-1300 €24.79
5
 photo_cameraImage coming soon 34449318 Cable with plug €23.87
6
 photo_cameraImage coming soon 34339430 Cable sleeve €2.52
7
 photo_cameraImage coming soon 34336249 Cable clip €2.02
8
 Carbon Brushes Holder for Percussion Drills Metabo BE 1100-1300 31605196 Carbon Brushes Holder for Percussion Drills Metabo BE 1100-1300 €24.79
9
 photo_cameraImage coming soon 34308336 Electronic unit,230V 50/60Hz €56.63
10
 Brush Contact for Hammer Metabo UHE 28 Plus 33912939 Brush Contact for Hammer Metabo UHE 28 Plus €3.43
11
 photo_cameraImage coming soon 34308160 Temperature sensor €4.31
12
 Motor Housing for Percussion Drill Metabo SB 710 31501325 Motor Housing for Percussion Drill Metabo SB 710 €15.50
13
 photo_cameraImage coming soon 14311581 Ball bearing, 6X 19X 6 €2.54
14
 photo_cameraImage coming soon 14311580 Ball bearing, 8x22x7 €2.59
15
 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 14319243 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 €1.88
16
 photo_cameraImage coming soon 34339393 Intermediate flange €2.12
17
 photo_cameraImage coming soon 34409758 Rubber plug €1.46
18
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
19
 photo_cameraImage coming soon 14111699 Self-tap. fill. h. screw €1.98
20
 photo_cameraImage coming soon 14111706 Self-tap. fill. h. screw €1.98
21
 photo_cameraImage coming soon 34337604 Sealing ring €1.98
22
 photo_cameraImage coming soon 31400102 Side support handle compl. €12.87
24
 photo_cameraImage coming soon 34339853 Pistol grip 2-part, gummed €116.20
27
 photo_cameraImage coming soon 33913307 Shift fork €2.26
28
 photo_cameraImage coming soon 14115659 Retaining ring €1.22
30
 Metabo Percussion Drill SB 710 Seal 34409793 Metabo Percussion Drill SB 710 Seal €2.30
31
 photo_cameraImage coming soon 34409592 Rubber buffer €1.81
32
 photo_cameraImage coming soon 34160439 Drill spindle €27.00
33
 photo_cameraImage coming soon 14311579 BALL BEARING, 15x32x9 €3.91
34
 photo_cameraImage coming soon 34105565 Slotted disc €3.65
35
 photo_cameraImage coming soon 14118168 Retaining ring €1.53
37
 Sliding Block for Impact Drill Metabo BE 751 34000401 Sliding Block for Impact Drill Metabo BE 751 €14.94
38
 photo_cameraImage coming soon 34154001 Guide bolt €4.35
39
 photo_cameraImage coming soon 31604196 Control knob compl. €2.12
40
 photo_cameraImage coming soon 14115581 Ring €1.53
41
 photo_cameraImage coming soon 34339718 Cover €1.58
42
 photo_cameraImage coming soon 14112361 Self-tap. fill. h. screw €1.81
43
 photo_cameraImage coming soon 34152023 Cylindrical pin €1.81
46
 photo_cameraImage coming soon 31605154 Gear housing compl. €97.37
47
 photo_cameraImage coming soon 31604280 Gear flange compl. €33.81
48
 Pinion Shaft w. Slip-Clutch for Hammer Drill Metabo SBE 1000 31604281 Pinion Shaft w. Slip-Clutch for Hammer Drill Metabo SBE 1000 €62.35
880
 photo_cameraImage coming soon 34413093 Grease 50Gr 1,8oz €34.48
882
 Grease Tube GF 126 for All Metabo Power Tools 34413080 Grease Tube GF 126 for All Metabo Power Tools €22.39
884
 photo_cameraImage coming soon 34413056 Grease SF 011 50Gr 1,8oz €37.66
886
 photo_cameraImage coming soon 34413103 Grease 50Gr 1,8oz €13.97

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Drill BE 1300 Quick

Metabo genuine spare parts or replacements parts for to fix Hammer Drill BE 1300 Quick - 00593000.

In the following table, look for the model of the Drill and the respective parts of the code.
Hammer Drill BE 1300 Quick - 00593000

Drill BE 1300 Quick/00593000
# Part Num. Description
1 31001041 Armature compl.,230 V (w. tacho gen.)
2 31101163 Field coil w.field coil,230 V
3 14111826 Self-tap. fill. h. screw
4 34340925 Poti switch
5 34449318 Cable with plug
6 34339430 Cable sleeve
7 34336249 Cable clip
8 31605196 Brush holder module,230V
9 34308336 Electronic unit,230V 50/60Hz
10 33912939 Brush contact
11 34308160 Temperature sensor
12 31501325 Motor housing
13 14311581 Ball bearing, 6X 19X 6
14 14311580 Ball bearing, 8x22x7
15 14319243 O-ring
16 34339393 Intermediate flange
17 34409758 Rubber plug
18 14111602 Self-tap fill h screw
19 14111699 Self-tap. fill. h. screw
20 14111706 Self-tap. fill. h. screw
21 34337604 Sealing ring
22 31400102 Side support handle compl.
24 34339853 Pistol grip 2-part, gummed
27 33913307 Shift fork
28 14115659 Retaining ring
30 34409793 Seal
31 34409592 Rubber buffer
32 34160439 Drill spindle
33 14311579 BALL BEARING, 15x32x9
34 34105565 Slotted disc
35 14118168 Retaining ring
37 34000401 Sliding block
38 34154001 Guide bolt
39 31604196 Control knob compl.
40 14115581 Ring
41 34339718 Cover
42 14112361 Self-tap. fill. h. screw
43 34152023 Cylindrical pin
45 33805772 Rating Plate
46 31605154 Gear housing compl.
47 31604280 Gear flange compl.
48 31604281 Pinion shaft w.slip-clutch
880 34413093 Grease 50Gr 1,8oz
882 34413080 Grease FG 126
884 34413056 Grease SF 011 50Gr 1,8oz
886 34413103 Grease 50Gr 1,8oz
