Metabo Spare Parts for Percussion Drill BE 75-16

SKU: Metabo BE 75-16 - 00580000
€1.92
VAT included

Metabo Spare Parts for Percussion Drill BE 75-16

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Percussion Drill BE 75-16 - 00580000.

Percussion Drill BE 75-16
Metabo Spare Parts for Percussion Drill BE 75-16
  • Metabo Spare Parts for Percussion Drill BE 75-16
  • Metabo Spare Parts for Percussion Drill BE 75-16

Metabo Spare Parts for Percussion Drill BE 75-16

SKU: Metabo BE 75-16 - 00580000 Condition: New
€1.92
VAT included

Metabo Spare Parts for Percussion Drill BE 75-16

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Percussion Drill BE 75-16 - 00580000.

Percussion Drill BE 75-16
settings 49 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

47 spare parts

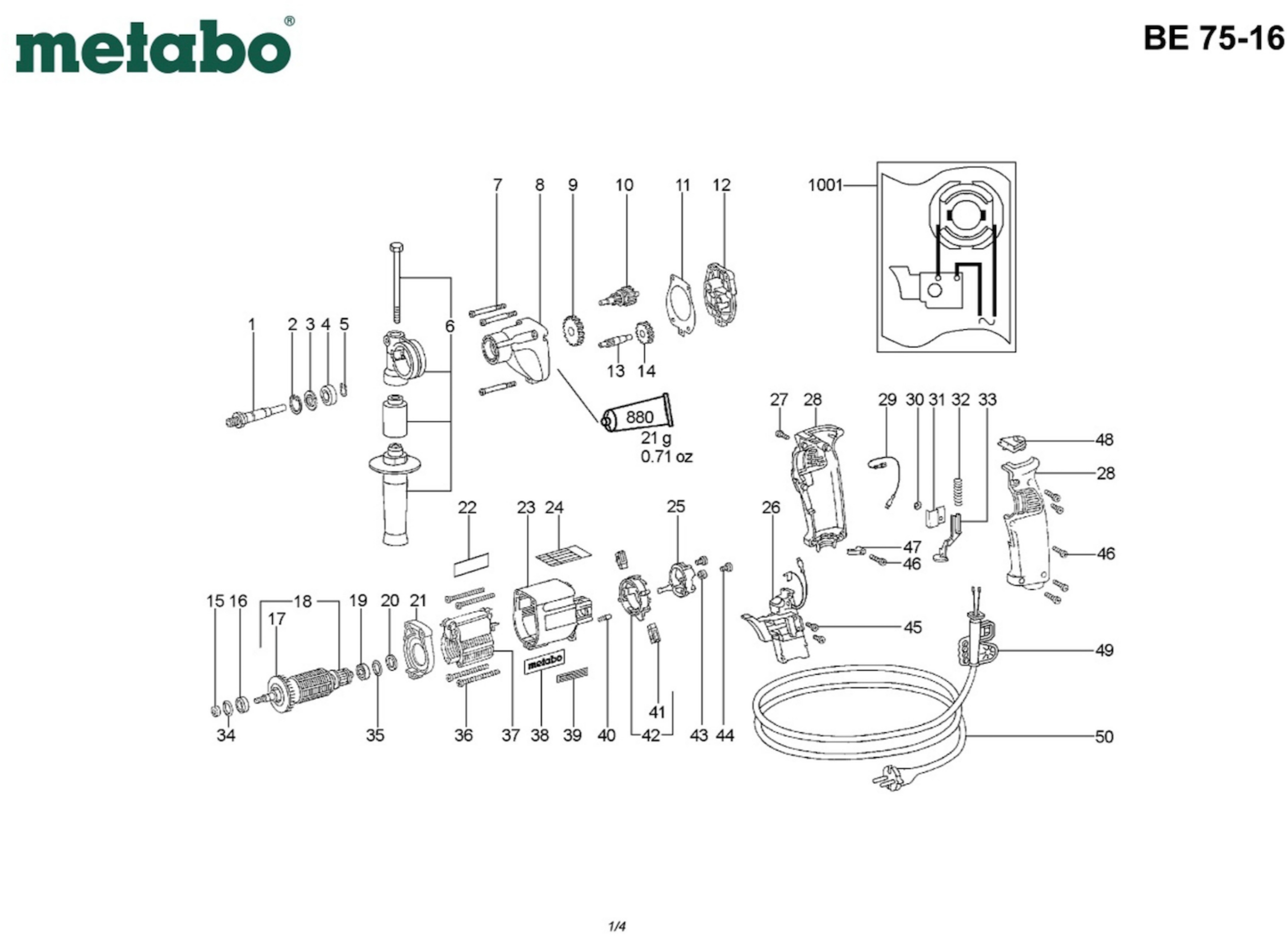

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 34160299 Spindle €40.65
2
photo_cameraImage coming soon 14118006 RETAINING RING €1.68
3
photo_cameraImage coming soon 34336217 Cover plate €7.00
4
photo_cameraImage coming soon 14311144 Ball bearing, 12x28x8 €23.75
6
photo_cameraImage coming soon 31400125 Side support handle compl. €16.28
7
photo_cameraImage coming soon 34170218 Tight-fit screw plast. 45 €1.41
8
photo_cameraImage coming soon 31604827 Gear housing cpl. €76.28
9
photo_cameraImage coming soon 34001164 Spur gear €23.16
10
photo_cameraImage coming soon 31604828 Pinion shaft w.slip-clutch €82.26
11
photo_cameraImage coming soon 33921027 Gasket €2.57
12
photo_cameraImage coming soon 31602294 Gear flange cpl. €41.87
13
photo_cameraImage coming soon 34001163 Pinion shaft €32.89
14
photo_cameraImage coming soon 34001162 Spur gear €23.16
15
photo_cameraImage coming soon 34335650 Sealing ring €1.27
16
photo_cameraImage coming soon 14311488 Ball bearing, 8x22x7 €7.22
17
photo_cameraImage coming soon 33000106 Fan cpl. €4.03
18
Metabo Percussion Drill BE 75-16 Armature 31000663 Metabo Percussion Drill BE 75-16 Armature €128.46
19
photo_cameraImage coming soon 14311566 Ball bearing, 6x19x6 €2.48
20
photo_cameraImage coming soon 14115340 Washer €1.76
21
photo_cameraImage coming soon 34336178 Intermediate flange €4.73
23
photo_cameraImage coming soon 31501232 Motor housing €25.90
24
photo_cameraImage coming soon 33812260 Rueckenschild BE 75-16 €1.28
25
photo_cameraImage coming soon 31602102 Pressure plate cpl. €10.40
26
photo_cameraImage coming soon 34307187 Electronic unit 220 V €58.32
27
photo_cameraImage coming soon 34170205 Screw €1.53
28
photo_cameraImage coming soon 34336235 Pistol grip €18.08
29
photo_cameraImage coming soon 34449015 Strand cpl. AWG18SW €2.25
30
photo_cameraImage coming soon 14118176 Circlip €1.43
31
photo_cameraImage coming soon 33911102 Cover €1.43
32
photo_cameraImage coming soon 34200121 Pressure spring €1.43
33
photo_cameraImage coming soon 34336246 Locking catch €1.43
34
photo_cameraImage coming soon 14319257 O-ring €1.59
35
O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 14319243 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 €1.88
36
photo_cameraImage coming soon 14111826 Self-tap. fill. h. screw €1.81
37
photo_cameraImage coming soon 31100883 Field coil 230 V €46.36
38
photo_cameraImage coming soon 33812237 M-Label,56x25 €1.56
40
photo_cameraImage coming soon 34200114 Index bolt €1.71
41
Metabo BE 75-16 Carbon Brush Set 31603373 Metabo BE 75-16 Carbon Brush Set €18.32
42
Metabo BE 75-16 Setting Ring Cpl. 31602576 Metabo BE 75-16 Setting Ring Cpl. €16.21
44
photo_cameraImage coming soon 14111684 Self-tap. fill. h. screw €1.43
45
photo_cameraImage coming soon 14111697 Fillister head screw €1.87
46
Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
47
photo_cameraImage coming soon 34336249 Cable clip €2.02
48
photo_cameraImage coming soon 34336177 Cover €1.59
49
photo_cameraImage coming soon 34410059 Cable sleeve €2.25
50
photo_cameraImage coming soon 34448853 Cable with plug €24.77
880
photo_cameraImage coming soon 34413097 Grease 50Gr 1,8oz €12.27

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Percussion Drill BE 75-16

We are METABO original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Percussion Drill BE 75-16 - 00580000

In the following table, look for the model of the Drill and the respective parts of the code.
Metabo BE 75-16 - 00580000

Drill BE 75-16/00580000
# Part Num. Description
1 34160299 Spindle
2 14118006 RETAINING RING
3 34336217 Cover plate
4 14311144 Ball bearing, 12x28x8
5 14118156 Retaining ring
6 31400125 Side support handle compl.
7 34170218 Tight-fit screw plast. 45
8 31604827 Gear housing cpl.
9 34001164 Spur gear
10 31604828 Pinion shaft w.slip-clutch
11 33921027 Gasket
12 31602294 Gear flange cpl.
13 34001163 Pinion shaft
14 34001162 Spur gear
15 34335650 Sealing ring
16 14311488 Ball bearing, 8x22x7
17 33000106 Fan cpl.
18 31000663 Armature cpl. 230 V
19 14311566 Ball bearing, 6x19x6
20 14115340 Washer
21 34336178 Intermediate flange
22 33805518 Rating plate
23 31501232 Motor housing
24 33812260 Rueckenschild BE 75-16
25 31602102 Pressure plate cpl.
26 34307187 Electronic unit 220 V
27 34170205 Screw
28 34336235 Pistol grip
29 34449015 Strand cpl. AWG18SW
30 14118176 Circlip
31 33911102 Cover
32 34200121 Pressure spring
33 34336246 Locking catch
34 14319257 O-ring
35 14319243 O-ring
36 14111826 Self-tap. fill. h. screw
37 31100883 Field coil 230 V
38 33812237 M-Label,56x25
40 34200114 Index bolt
41 31603373 Carbon Brush Set with holder
42 31602576 Setting ring cpl.
44 14111684 Self-tap. fill. h. screw
45 14111697 Fillister head screw
46 14111602 Self-tap fill h screw
47 34336249 Cable clip
48 34336177 Cover
49 34410059 Cable sleeve
50 34448853 Cable with plug
880 34413097 Grease 50Gr 1,8oz
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo BE 75-16 - 00580000
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo BE 75-16

Diagram Metabo BE 75-16

Download (460.29KB)
