Metabo Spare Parts for Angle Grinder W 1080-115

SKU: Metabo W 1080-115 - 06721000
€1.66
VAT included

Metabo Spare Parts for Angle Grinder W 1080-115

Metabo genuine spare parts or replacement parts for to repair Angle Grinder W 1080-115 - 06721000.
Metabo Spare Parts for Angle Grinder W 1080-115
  • Metabo Spare Parts for Angle Grinder W 1080-115
  • Metabo Spare Parts for Angle Grinder W 1080-115
Metabo

Metabo Spare Parts for Angle Grinder W 1080-115

SKU: Metabo W 1080-115 - 06721000 Condition: New
€1.66
VAT included

Metabo Spare Parts for Angle Grinder W 1080-115

Metabo genuine spare parts or replacement parts for to repair Angle Grinder W 1080-115 - 06721000.
settings 34 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
34 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

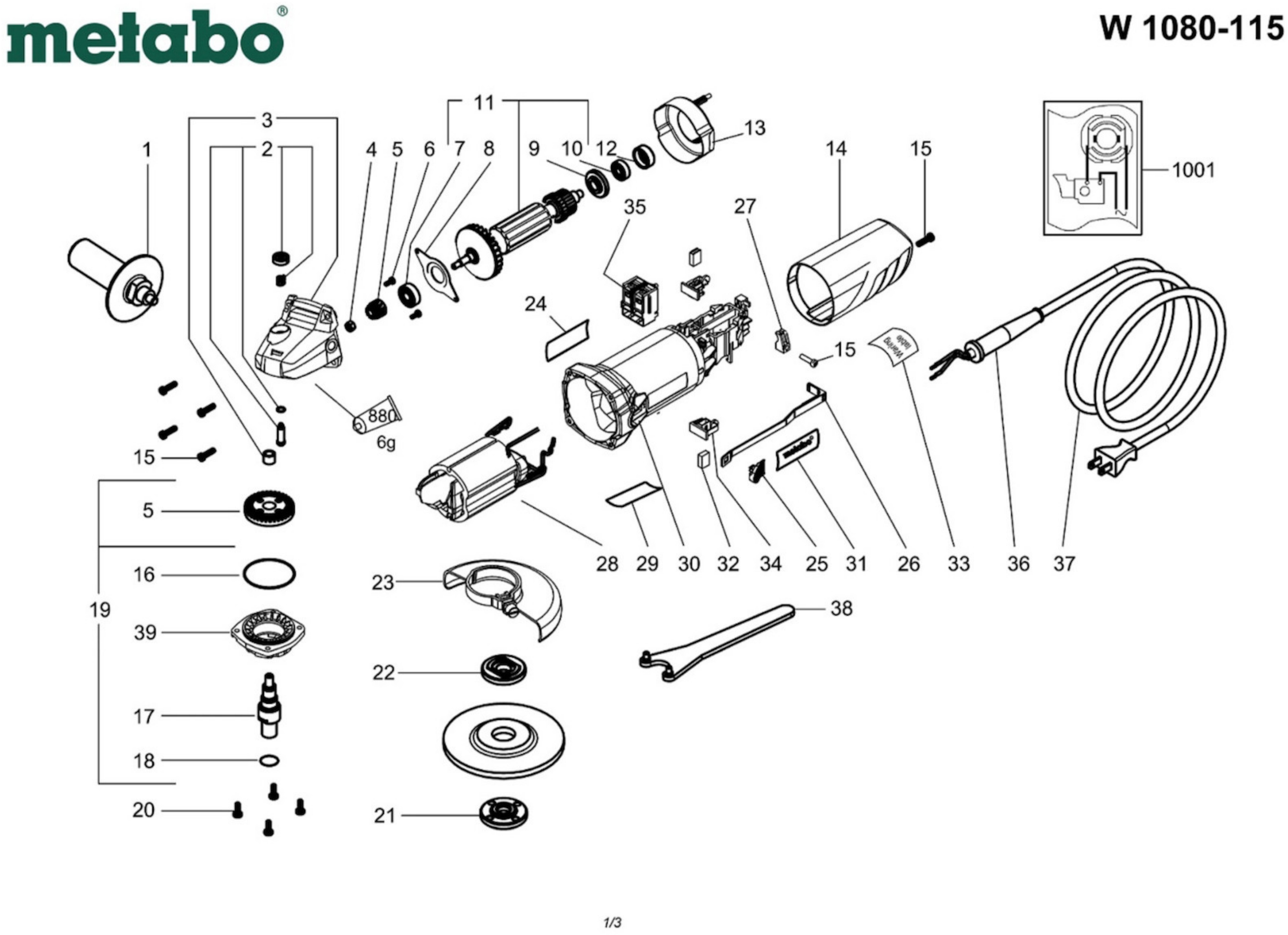

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31400054 Handle cpl. €12.25
2
 photo_cameraImage coming soon 31604061 Spindle stop compl. €3.40
3
 photo_cameraImage coming soon 31604966 Gear housing compl. €20.41
4
 photo_cameraImage coming soon 34110094 Hexagon nut w.recess €2.02
5
 Crown and Pinion for Angle Grinder Metabo W 1080-115 31604965 Crown and Pinion for Angle Grinder Metabo W 1080-115 €28.12
6
 photo_cameraImage coming soon 14111046 Fillister head screw €1.66
7
 photo_cameraImage coming soon 14311542 Ball bearing, 8x22x7 €6.28
9
 Armature Sealing Washer for Angle Grinder Metabo W 6-115 34339274 Armature Sealing Washer for Angle Grinder Metabo W 6-115 €5.18
10
 photo_cameraImage coming soon 14311504 Ball bearing, 6x19x6 €4.61
11
 photo_cameraImage coming soon 31001037 Armature compl.,230V €72.46
12
 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm 34409526 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm €2.08
14
 photo_cameraImage coming soon 34343024 Motor cap €3.15
15
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
16
 photo_cameraImage coming soon 34409755 O-ring 48 x 1 €1.62
17
 photo_cameraImage coming soon 34116115 Spindle M14 €7.65
18
 photo_cameraImage coming soon 14319254 O-ring €1.66
19
 photo_cameraImage coming soon 34103216 Flange compl. €28.98
20
 photo_cameraImage coming soon 14112007 Fill. head screw €1.66
21
 photo_cameraImage coming soon 34110690 Flange nut €9.91
22
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
23
 photo_cameraImage coming soon 33920396 Wheel guard compl.,Ø115 €18.44
24
 photo_cameraImage coming soon 33812216 M-Label,08 52x22 €1.74
27
 photo_cameraImage coming soon 34336249 Cable clip €2.02
28
 photo_cameraImage coming soon 31101153 Field coil compl.,230V €32.93
30
 photo_cameraImage coming soon 34343023 Motor housing €7.24
31
 photo_cameraImage coming soon 33812254 Metabo plate €1.66
32
 Carbon Brushes for Angle Grinder Metabo W 1080-115 34301300 Carbon Brushes for Angle Grinder Metabo W 1080-115 €24.79
34
 photo_cameraImage coming soon 34300087 Brush holder €2.10
35
 photo_cameraImage coming soon 34340976 Switch €7.24
36
 photo_cameraImage coming soon 34409736 Cable sleeve €1.66
37
 photo_cameraImage coming soon 34449842 Cable with plug €7.34
38
 photo_cameraImage coming soon 34416392 Pin spanner €5.32
39
 photo_cameraImage coming soon 34343026 Flange €6.18
880
 photo_cameraImage coming soon 34413091 Grease 100G €15.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Angle Grinder W 1080-115

Metabo genuine spare parts or replacement parts for to repair Angle Grinder W 1080-115 - 06721000.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Angle Grinder W 1080-115 - 06721000.

Angle Grinder W 1080-115/06721000
# Part Num. Description
1 31400054 Handle cpl.
2 31604061 Spindle stop compl.
3 31604966 Gear housing compl.
4 34110094 Hexagon nut w.recess
5 31604965 Bevel gear and pinion
6 14111046 Fillister head screw
7 14311542 Ball bearing, 8x22x7
8 33913575 cover plate
9 34339274 Sealing washer
10 14311504 Ball bearing, 6x19x6
11 31001037 Armature compl.,230V
12 34409526 Rubber bushing
13 34343025 Baffle
14 34343024 Motor cap
15 14111602 Self-tap fill h screw
16 34409755 O-ring 48 x 1
17 34116115 Spindle M14
18 14319254 O-ring
19 34103216 Flange compl.
20 14112007 Fill. head screw
21 34110690 Flange nut
22 34103116 Clamping flange
23 33920396 Wheel guard compl.,Ø115
24 33812216 M-Label,08 52x22
25 34340966 Switch slide
26 34343022 Switch rod
27 34336249 Cable clip
28 31101153 Field coil compl.,230V
29 33805662 Rating plate
30 34343023 Motor housing
31 33812254 Metabo plate
32 34301300 Carbon brush set
34 34300087 Brush holder
35 34340976 Switch
36 34409736 Cable sleeve
37 34449842 Cable with plug
38 34416392 Pin spanner
39 34343026 Flange
880 34413091 Grease 100G
