Metabo Spare Parts for Cordless Drill SB 18 LTX Impuls

SKU: SB 18 LTX Impuls - 02192000
€1.66
VAT included

Metabo Spare Parts for Cordless Drill SB 18 LTX Impuls

Metabo genuine spare parts or replacements part for to repair Cordless Drill SB 18 LTX Impuls/02192000.

Fix Your Cordless Drill SB 18 LTX Impuls. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Metabo Spare Parts for Cordless Drill SB 18 LTX Impuls
  • Metabo Spare Parts for Cordless Drill SB 18 LTX Impuls
  • Metabo Spare Parts for Cordless Drill SB 18 LTX Impuls/LTX Quick

Metabo Spare Parts for Cordless Drill SB 18 LTX Impuls

SKU: SB 18 LTX Impuls - 02192000 Condition: New
€1.66
VAT included

Metabo Spare Parts for Cordless Drill SB 18 LTX Impuls

Metabo genuine spare parts or replacements part for to repair Cordless Drill SB 18 LTX Impuls/02192000.

Fix Your Cordless Drill SB 18 LTX Impuls. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 21 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
21 spare parts

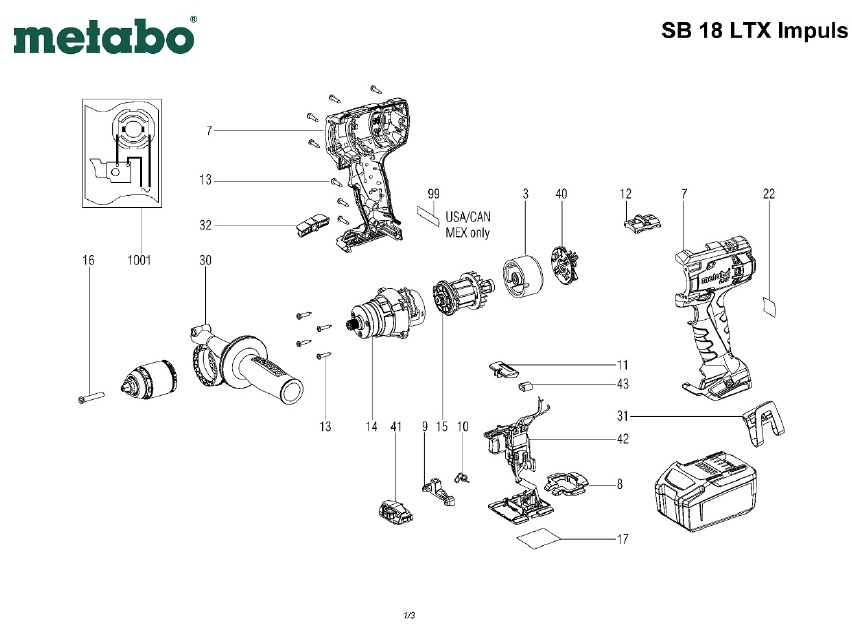

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
3
 photo_cameraImage coming soon 31101179 Field coil compl.,4 pol. €39.24
7
 photo_cameraImage coming soon 34343247 Housing w.cover €24.92
8
 Slider Switch for Cordless Drill Metabo BS-SB 34339479 Slider Switch for Cordless Drill Metabo BS-SB €2.49
9
 photo_cameraImage coming soon 34339477 METABO Pressure plate €1.50
10
 photo_cameraImage coming soon 34202167 METABO Spring clip €1.80
11
 Switch Slide for Cordless Drill Metabo BS-SB 18 LTX Quick-Impuls 34343325 Switch Slide for Cordless Drill Metabo BS-SB 18 LTX Quick-Impuls €2.49
12
 photo_cameraImage coming soon 31605165 Switch slide compl. €2.25
13
 photo_cameraImage coming soon 14111318 Self-tap. fill. h. screw €1.57
14
 photo_cameraImage coming soon 31605138 Gear-box compl.,SB €91.08
15
 Armature Ass'y 18 V for Cordless Drill Metabo SB-BS 18 LTX Quick-Impuls 31001116 Armature Ass'y 18 V for Cordless Drill Metabo SB-BS 18 LTX Quick-Impuls €91.39
16
 photo_cameraImage coming soon 34170194 Cheese-head screw €1.71
17
 photo_cameraImage coming soon 33805936 Rating plate €1.85
22
 photo_cameraImage coming soon 33812450 Indication label,Ultra M €1.22
30
 photo_cameraImage coming soon 31400103 Side support handle compl. €12.50
31
 photo_cameraImage coming soon 31605212 hook €3.38
32
 photo_cameraImage coming soon 31605213 Bit holding sleeves right €2.25
40
 Carbon Brushes Holder for Cordless Drill Metabo SB 18 LTX - Impuls 34300118 Carbon Brushes Holder for Cordless Drill Metabo SB 18 LTX - Impuls €34.78
41
 photo_cameraImage coming soon 34308361 Selector wheel compl. €18.08
42
 photo_cameraImage coming soon 34340970 Switch Ass'y = New Part Num. 31605384 €138.06
43
 photo_cameraImage coming soon 14316012 TOROIDAL FERRITE €1.85
99
 photo_cameraImage coming soon 33812451 Indication label,Warning €1.27

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Cordless Drill SB 18 LTX Impuls

Fix Your Cordless Drill SB 18 LTX Impuls/02192000. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Cordless Drill and the respective parts of the code.
SB 18 LTX Impuls - 02192000

Cordless Drill SB 18 LTX Impuls/02192000
# Part Num. Description
3 31101179 Field coil compl.,4 pol.
7 34343247 Housing w.cover
8 34339479 Switch slide
9 34339477 Pressure plate
10 34202167 Spring clip
11 34343325 Switch slide,R/L
12 31605165 Switch slide compl.
13 14111318 Self-tap. fill. h. screw
14 31605138 Gear-box compl.,SB
15 31001116 Armature compl.,18 V
16 34170194 Cheese-head screw
17 33805936 Rating plate
22 33812450 Indication label,Ultra M
30 31400103 Side support handle compl.
31 31605212 Hook
32 31605213 Bit holding sleeves right
40 34300118 Brush holder compl.,4 pol.
41 34308361 Selector wheel compl.
42 34340970 Switch Ass'y = New Part Num. 31605384
43 14316012 Toroidal Ferrite
99 33812451 Indication label,Warning
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited./div>
SB 18 LTX Impuls - 02192000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo SB 18 LTX Impuls

Diagram Metabo SB 18 LTX Impuls

Download (172.83KB)
