Metabo Spare Parts for Cordless Drill SB 18 Li

SKU: SB 18 Li - 02190000
€1.66
VAT included

Metabo Spare Parts for Cordless Drill SB 18 Li

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Cordless Drill SB 18 Li - 02190000
Metabo Spare Parts for Cordless Drill SB 18 Li
  • Metabo Spare Parts for Cordless Drill SB 18 Li
  • Metabo Spare Parts for Cordless Drill SB 18 Li/LT
Metabo

Metabo Spare Parts for Cordless Drill SB 18 Li

SKU: SB 18 Li - 02190000 Condition: New
€1.66
VAT included

Metabo Spare Parts for Cordless Drill SB 18 Li

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Cordless Drill SB 18 Li - 02190000
settings 39 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
39 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

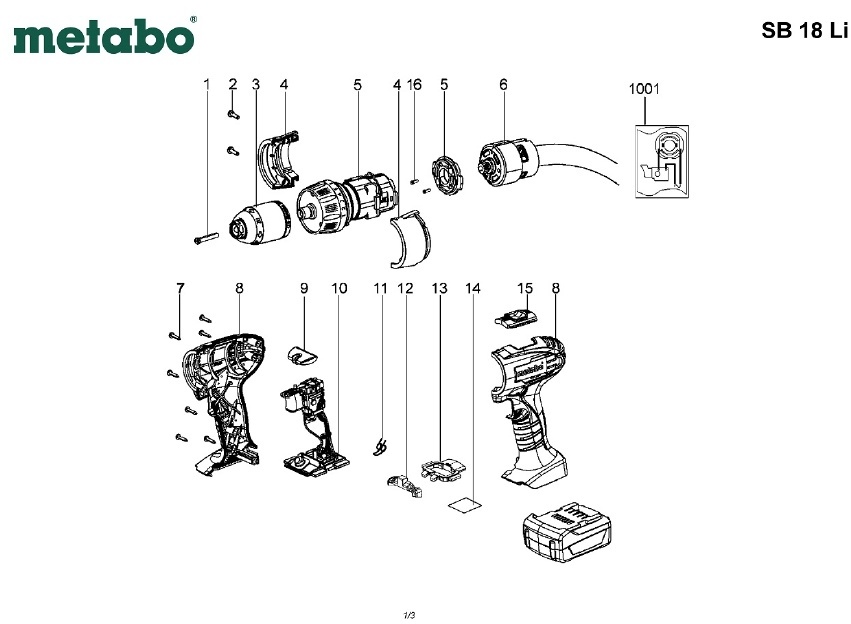

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31400054 Handle cpl. €12.25
1
 photo_cameraImage coming soon 34170194 Cheese-head screw €1.71
2
 photo_cameraImage coming soon 31604061 Spindle stop compl. €3.40
3
 Gear Box for Angle Grinder Metabo W 720 31604607 Gear Box for Angle Grinder Metabo W 720 €31.45
4
 photo_cameraImage coming soon 34110094 Hexagon nut w.recess €2.02
5
 Crown and Pinion for Angle Grinder Metabo W 820-720-WP 820-115 31605103 Crown and Pinion for Angle Grinder Metabo W 820-720-WP 820-115 €24.79
6
 photo_cameraImage coming soon 14111046 Fillister head screw €1.66
6
 Motor for Cordless Drill Metabo BS 18 Li-SB 18 Li 31700365 Motor for Cordless Drill Metabo BS 18 Li-SB 18 Li €41.44
7
 photo_cameraImage coming soon 14111318 Self-tap. fill. h. screw €1.57
7
 photo_cameraImage coming soon 14311542 Ball bearing, 8x22x7 €6.28
8
 photo_cameraImage coming soon 31541749 Fixed bearing cover €1.66
9
 Armature Sealing Washer for Angle Grinder Metabo W 6-115 34339274 Armature Sealing Washer for Angle Grinder Metabo W 6-115 €5.18
9
 Switch Slide for Cordless Drill Metabo SB 18 Li 34339507 Switch Slide for Cordless Drill Metabo SB 18 Li €2.49
10
 photo_cameraImage coming soon 14311504 Ball bearing, 6x19x6 €4.61
11
 photo_cameraImage coming soon 31001072 Armature cpl. 230 V €79.87
11
 photo_cameraImage coming soon 34202167 METABO Spring clip €1.80
12
 photo_cameraImage coming soon 34339799 Pressure plate €1.50
12
 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm 34409526 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm €2.08
13
 Slider Switch for Cordless Drill Metabo BS-SB 34339479 Slider Switch for Cordless Drill Metabo BS-SB €2.49
15
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
16
 photo_cameraImage coming soon 14112222 Fillister head screw €1.74
16
 photo_cameraImage coming soon 34409755 O-ring 48 x 1 €1.62
17
 photo_cameraImage coming soon 34116115 Spindle M14 €7.65
18
 photo_cameraImage coming soon 14319254 O-ring €1.66
19
 Metabo W 720-115 Flange Assy 34103223 Metabo W 720-115 Flange Assy €42.55
20
 photo_cameraImage coming soon 14112007 Fill. head screw €1.66
21
 photo_cameraImage coming soon 34110690 Flange nut €9.91
22
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
23
 photo_cameraImage coming soon 14112406 Fillister head screw €1.73
24
 Wheel Guard for Angle Grinder Metabo W 750-115 33920366 Wheel Guard for Angle Grinder Metabo W 750-115 €11.91
25
 photo_cameraImage coming soon 33812216 M-Label,08 52x22 €1.74
28
 photo_cameraImage coming soon 34336249 Cable clip €2.02
35
 photo_cameraImage coming soon 34301295 Brush holder €2.63
36
 photo_cameraImage coming soon 14112394 Self-tap. fill. h. screw €1.50
38
 photo_cameraImage coming soon 34409736 Cable sleeve €1.66
39
 photo_cameraImage coming soon 34449842 Cable with plug €7.34
40
 photo_cameraImage coming soon 34416392 Pin spanner €5.32
41
 photo_cameraImage coming soon 31604967 Carbon brush €10.92
880
 photo_cameraImage coming soon 34413091 Grease 100G €15.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Cordless Drill SB 18 Li

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Cordless Drill SB 18 Li - 02190000

In the following table, look for the model of the Cordless Drill and the respective parts of the code.


Cordless Drill SB 18 Li/02190000
1 34170194 Cheese-head screw
2 34170461 Fillister head screw
3 30100315 Keyless chuck,1,5-13
4 34300104 Cover compl.
5 31604057 Gear-box compl.
6 31700365 DC-motor,18 V
7 14111318 Self-tap. fill. h. screw
8 34339513 Housing w.cover
9 34339507 Switch slide,R/L
10 34340866 Electronic switch 18 V
11 34202167 Spring clip
12 34339799 Pressure plate
13 34339479 Switch slide
14 33805620 Rating plate
15 34339512 Switch slide,H/L
16 14112222 Fillister head screw

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SB 18 Li - 02190000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo SB 18 Li

Diagram Metabo SB 18 Li

Download (150.68KB)
