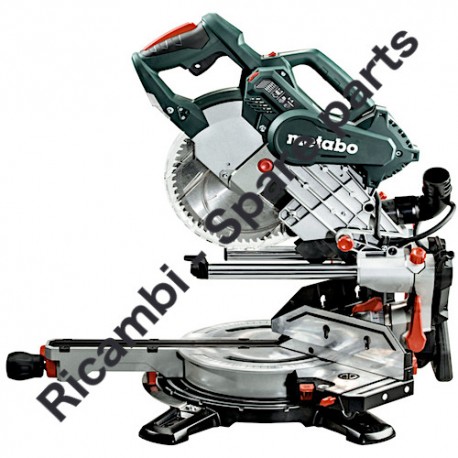

Metabo Mitre Saw KGSV 72 Xact SYM Parts

SKU: Metabo KGSV 72 Xact SYM
€129.79
VAT included

Metabo Spare Parts for Mitre Saw KGSV 72 Xact SYM

Metabo original spare parts for to replace broken parts for to fix Mitre Saw KGSV 72 Xact SYM - 12216000.

Mitre Saw KGSV 72 Xact SYM - 12216000
Metabo Mitre Saw KGSV 72 Xact SYM Parts
  • Metabo Mitre Saw KGSV 72 Xact SYM Parts
  • Metabo Mitre Saw KGSV 72 Xact SYM Parts Drawing
  • Metabo Mitre Saw KGSV 72 Xact SYM Parts Drawing - 1
  • Metabo Mitre Saw KGSV 72 Xact SYM Parts Drawing - 2
Metabo

Metabo Mitre Saw KGSV 72 Xact SYM Parts

SKU: Metabo KGSV 72 Xact SYM Condition: New
€129.79
VAT included

Metabo Spare Parts for Mitre Saw KGSV 72 Xact SYM

Metabo original spare parts for to replace broken parts for to fix Mitre Saw KGSV 72 Xact SYM - 12216000.

Mitre Saw KGSV 72 Xact SYM - 12216000
settings 124 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
124 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

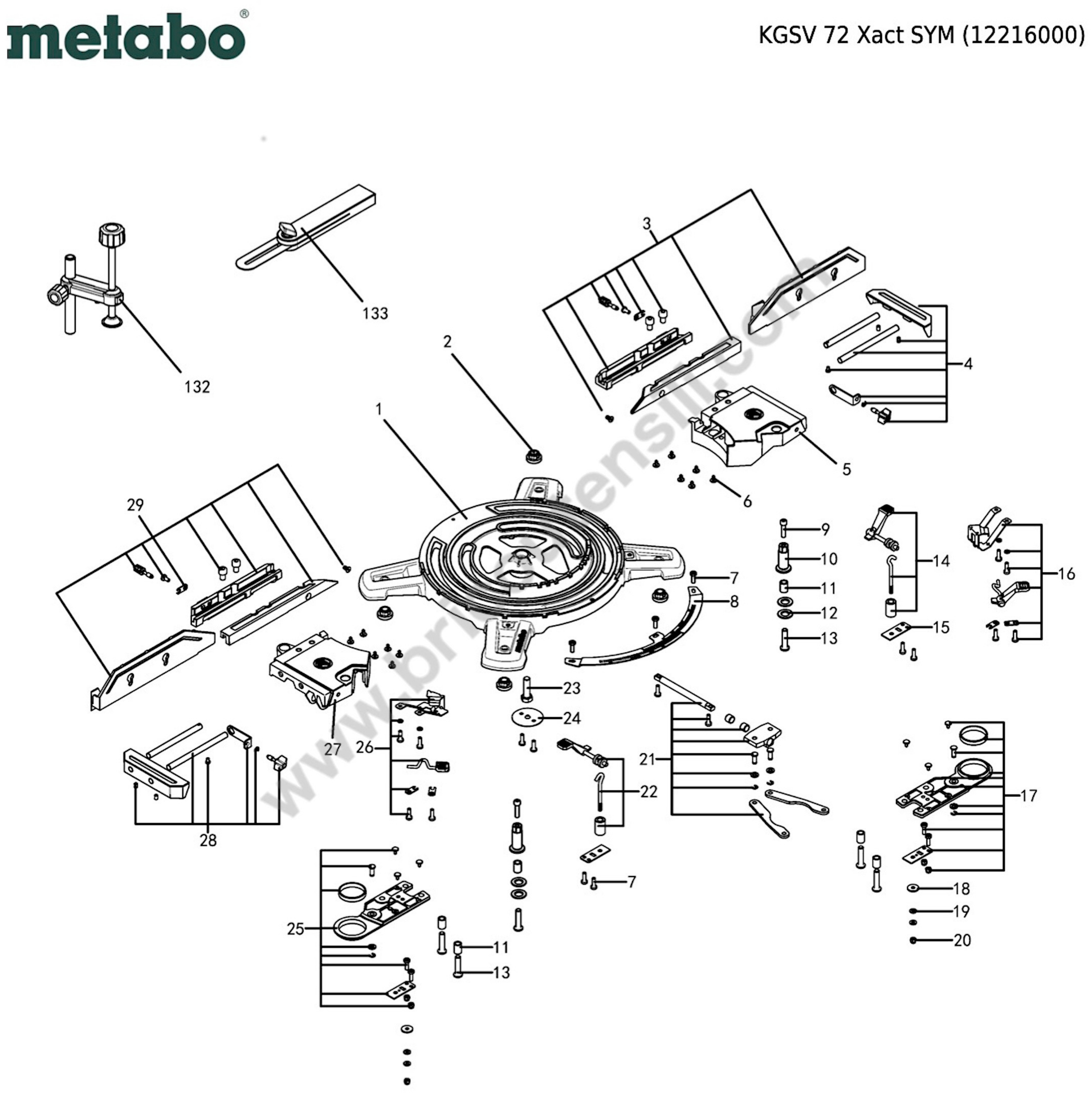

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 315419350 Base €129.79
2
 photo_cameraImage coming soon 343442110 Rubber foot €1.61
3
 photo_cameraImage coming soon 316094350 Right moving fence comp. €100.81
4
 photo_cameraImage coming soon 316094360 Right extension table comp. €34.63
5
 photo_cameraImage coming soon 315419370 Moving Table Right €34.63
6
 photo_cameraImage coming soon 343442550 Table pad €1.61
7
 photo_cameraImage coming soon 141121640 Fill. head screw (DIN 7985) €1.61
8
 photo_cameraImage coming soon 339137430 Scale front €10.42
9
 photo_cameraImage coming soon 141113890 Cap screw €1.77
10
 photo_cameraImage coming soon 341165970 Fence support bushing €8.93
11
 photo_cameraImage coming soon 341165960 Table support bushing €3.11
12
 photo_cameraImage coming soon 343442560 Fence Bushing Pad €1.61
13
 photo_cameraImage coming soon 341705360 HexS BH Screw €1.61
14
 photo_cameraImage coming soon 316094370 Right fence lock comp. €17.45
15
 photo_cameraImage coming soon 339147900 Fence Lock Washer €1.61
16
 photo_cameraImage coming soon 316094380 Right detent lock comp. €14.61
17
 photo_cameraImage coming soon 316094390 Right moving table plate comp. €51.95
18
 photo_cameraImage coming soon 339007860 Washer €1.61
19
 photo_cameraImage coming soon 141156750 Conical spring washer €1.61
20
 photo_cameraImage coming soon 141132040 Hexagonal lock nut €1.61
21
 photo_cameraImage coming soon 316094400 Symmetric Slider Support cpl. €34.63
22
 photo_cameraImage coming soon 316094420 Left fence lock comp. €17.45
23
 photo_cameraImage coming soon 141124590 HEXAGON HEAD SCREW M 10X40 VERZ. €1.61
24
 photo_cameraImage coming soon 337002290 Base Bottom Washer €1.61
25
 photo_cameraImage coming soon 316094440 Left moving table plate comp. €51.95
26
 photo_cameraImage coming soon 316094430 Left detent lock comp. €14.61
27
 photo_cameraImage coming soon 315419360 Moving Table Left €34.63
28
 photo_cameraImage coming soon 316094410 Left extension table comp. €34.63
29
 photo_cameraImage coming soon 316094450 Left moving fence comp. €100.81
30
 photo_cameraImage coming soon 316094480 Miter lock comp. €51.95
31
 photo_cameraImage coming soon 343442180 Bevel Lock €13.26
32
 photo_cameraImage coming soon 343442310 Bevel Cover €8.93
33
 photo_cameraImage coming soon 316094490 Carry handle comp. €20.29
34
 photo_cameraImage coming soon 316094530 Bevel release knob comp. €100.81
35
 photo_cameraImage coming soon 141132060 Hexagonal lock nut €2.36
36
 photo_cameraImage coming soon 341162160 Spring washer €1.61
37
 photo_cameraImage coming soon 141156740 Washer €1.61
38
 photo_cameraImage coming soon 316094540 Bevel clamping comp. €13.26
40
 photo_cameraImage coming soon 344199210 allen key €1.61
41
 photo_cameraImage coming soon 341705340 Fillister head screw €1.61
42
 photo_cameraImage coming soon 343442350 Cable Big Holder €1.61
43
 photo_cameraImage coming soon 316094520 Bevel indication comp. €8.93
44
 photo_cameraImage coming soon 316094510 Bevel detent comp. €20.29
45
 photo_cameraImage coming soon 339147960 Bevel Washer Plate €2.36
46
 photo_cameraImage coming soon 316094460 Turning table comp. €188.35
47
 photo_cameraImage coming soon 316094470 Bevel lock comp. €10.42
48
 photo_cameraImage coming soon 141130100 Hexagonal nut €1.61
49
 photo_cameraImage coming soon 141124610 HEX. SOCKET SET SCREW, FLAT PT VER €1.61
50
 photo_cameraImage coming soon 339137440 Pointer €1.77
51
 photo_cameraImage coming soon 343443260 Foot in the front €1.77
52
 photo_cameraImage coming soon 339137280 miter angle scale €5.20
53
 photo_cameraImage coming soon 343442280 Turning Table Cover €4.61
54
 photo_cameraImage coming soon 341722850 Flat headed screw €1.61
55
 photo_cameraImage coming soon 339007880 Plain Washer €1.61
56
 photo_cameraImage coming soon 141153300 Cup spring €1.61
57
 photo_cameraImage coming soon 141132050 Hexagonal lock nut €1.61
59
 photo_cameraImage coming soon 141151940 Washer €1.98
60
 photo_cameraImage coming soon 343442330 Long Bar End €1.77
61
 photo_cameraImage coming soon 343442340 Short Bar Bumper €1.61
62
 photo_cameraImage coming soon 316094500 Bevel bracket comp. €121.87
63
 photo_cameraImage coming soon 316094550 Slider bracket comp. €107.97
65
 photo_cameraImage coming soon 339137290 bevel angle scale €2.36
66
 photo_cameraImage coming soon 316094580 Depth control plate comp. €8.93
67
 photo_cameraImage coming soon 316094570 Swivel level comp. €34.63
68
 photo_cameraImage coming soon 316094560 Saw head lock comp. €8.93
69
 photo_cameraImage coming soon 141124660 Fillister head screw €1.61
70
 photo_cameraImage coming soon 343362490 Cable clip €1.77
71
 photo_cameraImage coming soon 343442190 Slider lock €2.36
72
 photo_cameraImage coming soon 341570940 Upper Guard Shaft €1.77
73
 photo_cameraImage coming soon 342024080 Big Torque Spring €8.93
74
 photo_cameraImage coming soon 339148010 Spring Bushing €1.61
75
 photo_cameraImage coming soon 343442530 Motor End Cap €5.20
76
 photo_cameraImage coming soon 316094600 Carbon brush comp. €11.62
77
 photo_cameraImage coming soon 338065330 Rating plate €1.61
78
 photo_cameraImage coming soon 143115800 Ball bearing, 8x22x7 €2.36
79
 photo_cameraImage coming soon 310011850 Armature €57.78
80
 photo_cameraImage coming soon 143115860 Ball bearing €3.11
81
 photo_cameraImage coming soon 343442540 Motor Air Guide Sleeve €1.61
82
 photo_cameraImage coming soon 316094590 Motor comp. €172.95
83
 photo_cameraImage coming soon 343438930 Extraction tube €3.85
84
 photo_cameraImage coming soon 316094710 Extraction tube comp. €17.45
85
 photo_cameraImage coming soon 316094690 Moving guard comp. €34.63
86
 photo_cameraImage coming soon 344113310 Rubber Extractor €3.11
87
 photo_cameraImage coming soon 315419510 Upper Guard €121.87
88
 photo_cameraImage coming soon 316094620 Roller cpl. €7.29
89
 photo_cameraImage coming soon 316094640 Output shaft comp. €26.12
90
 photo_cameraImage coming soon 316094610 Depth adjustment comp. €13.26
91
 photo_cameraImage coming soon 316094630 Intermediate pully comp. €23.28
92
 photo_cameraImage coming soon 315419560 Big Pulley €13.26
93
 photo_cameraImage coming soon 344260410 Ribbed Belt €14.61
94
 photo_cameraImage coming soon 341203210 Small Pulley €8.93
95
 photo_cameraImage coming soon 315419540 Upper Guard Cover B €8.93
96
 photo_cameraImage coming soon 315419530 Upper Guard Cover A €14.61
97
 photo_cameraImage coming soon 316094650 Spindle lock comp. €8.93
98
 photo_cameraImage coming soon 343255020 Capacitor €1.77
99
 photo_cameraImage coming soon 316094660 Guard level comp. €13.26
100
 photo_cameraImage coming soon 141124640 Cap screw €1.61
101
 photo_cameraImage coming soon 343442490 Laser Bracket €1.77
102
 photo_cameraImage coming soon 342024110 Laser Spring €1.61
103
 photo_cameraImage coming soon 315419520 Upper Guard Logo Cover €28.95
104
 photo_cameraImage coming soon 316094700 Flange comp. €14.61
105
 photo_cameraImage coming soon 344260400 Synchronous Belt €13.26
106
 photo_cameraImage coming soon 343442410 Handle €20.29
107
 photo_cameraImage coming soon 341705350 Flat headed screw €1.61
108
 photo_cameraImage coming soon 338126980 Indication label laser radiation KGS 216 €1.61
109
 photo_cameraImage coming soon 343050340 Terminal €1.61
110
 photo_cameraImage coming soon 344530370 inner cable €1.77
111
 photo_cameraImage coming soon 343085340 TRANSFORMER €8.93
112
 photo_cameraImage coming soon 343085350 Cable terminal €1.61
114
 photo_cameraImage coming soon 343411290 Switch f. Laser €1.77
115
 photo_cameraImage coming soon 343411180 LED Switch €1.77
117
 photo_cameraImage coming soon 338126970 Indication label speed step KGS 216 Com €1.61
118
 photo_cameraImage coming soon 343442470 Upper Guard Cover P €8.93
119
 photo_cameraImage coming soon 343084510 Electronic unit,230V 50/60Hz €51.95
120
 photo_cameraImage coming soon 141123890 Fillister head screw,(DIN 7985) €1.61
121
 photo_cameraImage coming soon 316094680 Guard button comp. €11.62
122
 photo_cameraImage coming soon 316094670 Main switch comp. €26.12
123
 photo_cameraImage coming soon 343085330 LED compl. €20.29
124
 photo_cameraImage coming soon 344113320 Cable sleeve €1.61
125
 photo_cameraImage coming soon 344530360 Power Cable €14.61
126
 photo_cameraImage coming soon 141116020 Self-tap fill h screw €1.77
131
 photo_cameraImage coming soon 338126960 Indication label Warning KGS 216 Compact €1.61
132
 Metabo Workpiece Holder Compl. for KGSV 216 MC 316075690 Metabo Workpiece Holder Compl. for KGSV 216 MC €19.78
133
 photo_cameraImage coming soon 339148190 Angle square €23.28
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
30
 photo_cameraImage coming soon 316094480 Miter lock comp. €51.95
31
 photo_cameraImage coming soon 343442180 Bevel Lock €13.26
32
 photo_cameraImage coming soon 343442310 Bevel Cover €8.93
33
 photo_cameraImage coming soon 316094490 Carry handle comp. €20.29
34
 photo_cameraImage coming soon 316094530 Bevel release knob comp. €100.81
35
 photo_cameraImage coming soon 141132060 Hexagonal lock nut €2.36
36
 photo_cameraImage coming soon 341162160 Spring washer €1.61
37
 photo_cameraImage coming soon 141156740 Washer €1.61
38
 photo_cameraImage coming soon 316094540 Bevel clamping comp. €13.26
40
 photo_cameraImage coming soon 344199210 allen key €1.61
41
 photo_cameraImage coming soon 341705340 Fillister head screw €1.61
42
 photo_cameraImage coming soon 343442350 Cable Big Holder €1.61
43
 photo_cameraImage coming soon 316094520 Bevel indication comp. €8.93
44
 photo_cameraImage coming soon 316094510 Bevel detent comp. €20.29
45
 photo_cameraImage coming soon 339147960 Bevel Washer Plate €2.36
46
 photo_cameraImage coming soon 316094460 Turning table comp. €188.35
47
 photo_cameraImage coming soon 316094470 Bevel lock comp. €10.42
48
 photo_cameraImage coming soon 141130100 Hexagonal nut €1.61
49
 photo_cameraImage coming soon 141124610 HEX. SOCKET SET SCREW, FLAT PT VER €1.61
50
 photo_cameraImage coming soon 339137440 Pointer €1.77
51
 photo_cameraImage coming soon 343443260 Foot in the front €1.77
52
 photo_cameraImage coming soon 339137280 miter angle scale €5.20
53
 photo_cameraImage coming soon 343442280 Turning Table Cover €4.61
54
 photo_cameraImage coming soon 341722850 Flat headed screw €1.61
55
 photo_cameraImage coming soon 339007880 Plain Washer €1.61
56
 photo_cameraImage coming soon 141153300 Cup spring €1.61
57
 photo_cameraImage coming soon 141132050 Hexagonal lock nut €1.61
59
 photo_cameraImage coming soon 141151940 Washer €1.98
60
 photo_cameraImage coming soon 343442330 Long Bar End €1.77
61
 photo_cameraImage coming soon 343442340 Short Bar Bumper €1.61
62
 photo_cameraImage coming soon 316094500 Bevel bracket comp. €121.87
63
 photo_cameraImage coming soon 316094550 Slider bracket comp. €107.97
65
 photo_cameraImage coming soon 339137290 bevel angle scale €2.36
66
 photo_cameraImage coming soon 316094580 Depth control plate comp. €8.93
67
 photo_cameraImage coming soon 316094570 Swivel level comp. €34.63
68
 photo_cameraImage coming soon 316094560 Saw head lock comp. €8.93
69
 photo_cameraImage coming soon 141124660 Fillister head screw €1.61
70
 photo_cameraImage coming soon 343362490 Cable clip €1.77
71
 photo_cameraImage coming soon 343442190 Slider lock €2.36
72
 photo_cameraImage coming soon 341570940 Upper Guard Shaft €1.77
73
 photo_cameraImage coming soon 342024080 Big Torque Spring €8.93
74
 photo_cameraImage coming soon 339148010 Spring Bushing €1.61

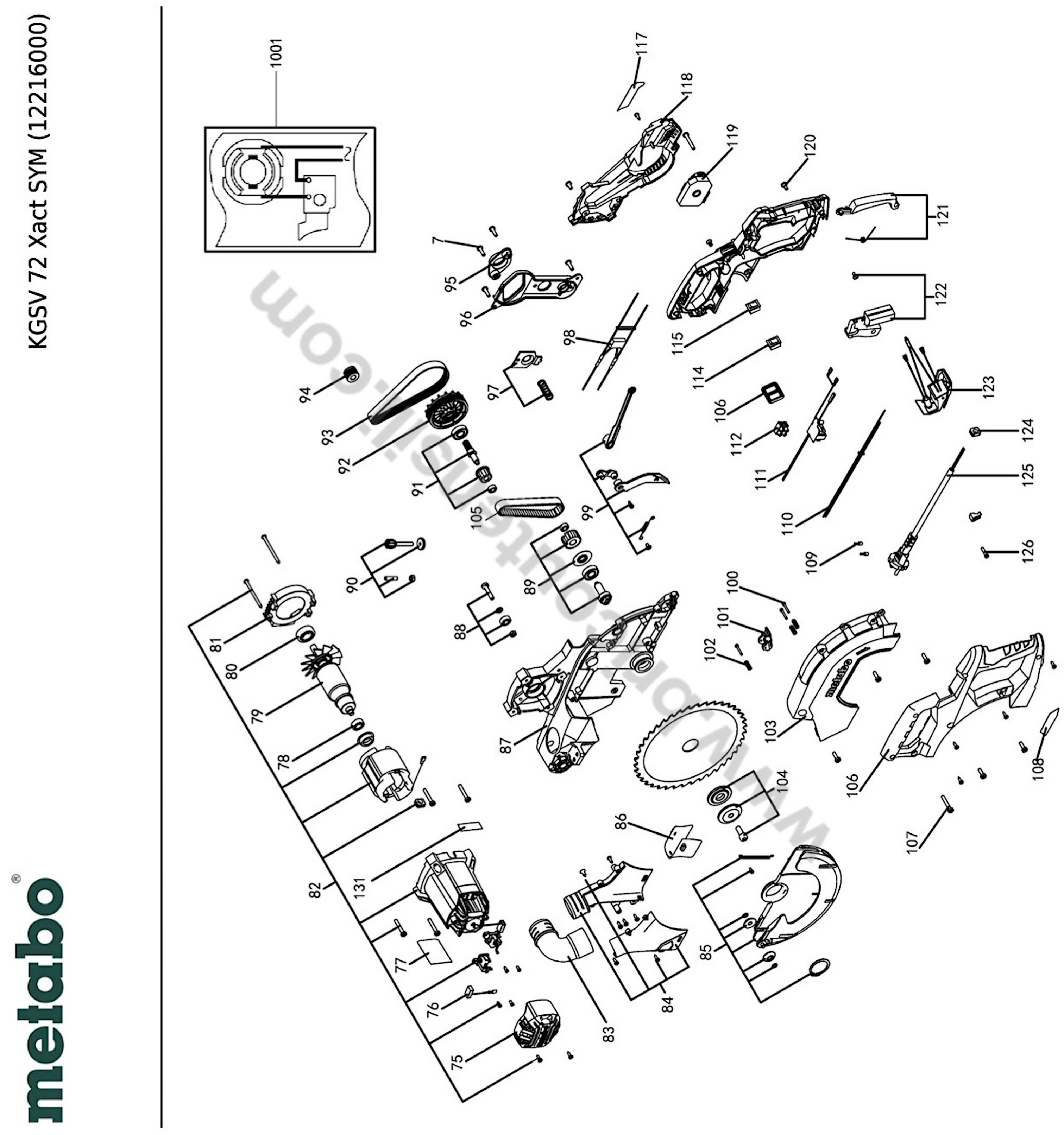

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
75
 photo_cameraImage coming soon 343442530 Motor End Cap €5.20
76
 photo_cameraImage coming soon 316094600 Carbon brush comp. €11.62
77
 photo_cameraImage coming soon 338065330 Rating plate €1.61
78
 photo_cameraImage coming soon 143115800 Ball bearing, 8x22x7 €2.36
79
 photo_cameraImage coming soon 310011850 Armature €57.78
80
 photo_cameraImage coming soon 143115860 Ball bearing €3.11
81
 photo_cameraImage coming soon 343442540 Motor Air Guide Sleeve €1.61
82
 photo_cameraImage coming soon 316094590 Motor comp. €172.95
83
 photo_cameraImage coming soon 343438930 Extraction tube €3.85
84
 photo_cameraImage coming soon 316094710 Extraction tube comp. €17.45
85
 photo_cameraImage coming soon 316094690 Moving guard comp. €34.63
86
 photo_cameraImage coming soon 344113310 Rubber Extractor €3.11
87
 photo_cameraImage coming soon 315419510 Upper Guard €121.87
88
 photo_cameraImage coming soon 316094620 Roller cpl. €7.29
89
 photo_cameraImage coming soon 316094640 Output shaft comp. €26.12
90
 photo_cameraImage coming soon 316094610 Depth adjustment comp. €13.26
91
 photo_cameraImage coming soon 316094630 Intermediate pully comp. €23.28
92
 photo_cameraImage coming soon 315419560 Big Pulley €13.26
93
 photo_cameraImage coming soon 344260410 Ribbed Belt €14.61
94
 photo_cameraImage coming soon 341203210 Small Pulley €8.93
95
 photo_cameraImage coming soon 315419540 Upper Guard Cover B €8.93
96
 photo_cameraImage coming soon 315419530 Upper Guard Cover A €14.61
97
 photo_cameraImage coming soon 316094650 Spindle lock comp. €8.93
98
 photo_cameraImage coming soon 343255020 Capacitor €1.77
99
 photo_cameraImage coming soon 316094660 Guard level comp. €13.26
100
 photo_cameraImage coming soon 141124640 Cap screw €1.61
101
 photo_cameraImage coming soon 343442490 Laser Bracket €1.77
102
 photo_cameraImage coming soon 342024110 Laser Spring €1.61
103
 photo_cameraImage coming soon 315419520 Upper Guard Logo Cover €28.95
104
 photo_cameraImage coming soon 316094700 Flange comp. €14.61
105
 photo_cameraImage coming soon 344260400 Synchronous Belt €13.26
106
 photo_cameraImage coming soon 343442410 Handle €20.29
107
 photo_cameraImage coming soon 341705350 Flat headed screw €1.61
108
 photo_cameraImage coming soon 338126980 Indication label laser radiation KGS 216 €1.61
109
 photo_cameraImage coming soon 343050340 Terminal €1.61
110
 photo_cameraImage coming soon 344530370 inner cable €1.77
111
 photo_cameraImage coming soon 343085340 TRANSFORMER €8.93
112
 photo_cameraImage coming soon 343085350 Cable terminal €1.61
114
 photo_cameraImage coming soon 343411290 Switch f. Laser €1.77
115
 photo_cameraImage coming soon 343411180 LED Switch €1.77
117
 photo_cameraImage coming soon 338126970 Indication label speed step KGS 216 Com €1.61
118
 photo_cameraImage coming soon 343442470 Upper Guard Cover P €8.93
119
 photo_cameraImage coming soon 343084510 Electronic unit,230V 50/60Hz €51.95
120
 photo_cameraImage coming soon 141123890 Fillister head screw,(DIN 7985) €1.61
121
 photo_cameraImage coming soon 316094680 Guard button comp. €11.62
122
 photo_cameraImage coming soon 316094670 Main switch comp. €26.12
123
 photo_cameraImage coming soon 343085330 LED compl. €20.29
124
 photo_cameraImage coming soon 344113320 Cable sleeve €1.61
125
 photo_cameraImage coming soon 344530360 Power Cable €14.61
126
 photo_cameraImage coming soon 141116020 Self-tap fill h screw €1.77
131
 photo_cameraImage coming soon 338126960 Indication label Warning KGS 216 Compact €1.61

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Mitre Saw KGSV 72 Xact SYM

Metabo original spare parts for to replace broken parts for to fix Mitre Saw KGSV 72 Xact SYM - 12216000.

In the following table, look for the model of the Mitre Saw and the respective parts of the code.
METABO KGSV 72 Xact SYM - 12216000

METABO KGSV 72 Xact SYM - 12216000
# Part Num Description
1 315419350 Base
2 343442110 Rubber foot
3 316094350 Right moving fence comp.
4 316094360 Right extension table comp.
5 315419370 Moving Table Right
6 343442550 Table pad
7 141121640 Fill. head screw(DIN 7985)
8 339137430 Scale front
9 141113890 Cap screw
10 341165970 Fence support bushing
11 341165960 Table support bushing
12 343442560 Fence Bushing Pad
13 341705360 HexS BH Screw
14 316094370 Right fence lock comp.
15 339147900 Fence Lock Washer
16 316094380 Right detent lock comp.
17 316094390 Right moving table plate comp.
18 339007860 Washer
19 141156750 Conical spring washer
20 141132040 Hexagonal lock nut
21 316094400 Symmetric Slider Support cpl.
22 316094420 Left fence lock comp.
23 141124590 HEXAGON HEAD SCREW M 10X40 VERZ.
24 337002290 Base Bottom Washer
25 316094440 Left moving table plate comp.
26 316094430 Left detent lock comp.
27 315419360 Moving Table Left
28 316094410 Left extension table comp.
29 316094450 Left moving fence comp.
30 316094480 Miter lock comp.
31 343442180 Bevel Lock
32 343442310 Bevel Cover
33 316094490 Carry handle comp.
34 316094530 Bevel release knob comp.
35 141132060 Hexagonal lock nut
36 341162160 Spring washer
37 141156740 Washer
38 316094540 Bevel clamping comp.
40 344199210 allen key
41 341705340 Fillister head screw
42 343442350 Cable Big Holder
43 316094520 Bevel indication comp.
44 316094510 Bevel detent comp.
45 339147960 Bevel Washer Plate
46 316094460 Turning table comp.
47 316094470 Bevel lock comp.
48 141130100 Hexagonal nut
49 141124610 HEX. SOCKET SET SCREW, FLAT PT VER
50 339137440 Pointer
51 343443260 Foot in the front
52 339137280 miter angle scale
53 343442280 Turning Table Cover
54 341722850 Flat headed screw
55 339007880 Plain Washer
56 141153300 Cup spring
57 141132050 Hexagonal lock nut
59 141151940 Washer
60 343442330 Long Bar End
61 343442340 Short Bar Bumper
62 316094500 Bevel bracket comp.
63 316094550 Slider bracket comp.
65 339137290 bevel angle scale
66 316094580 Depth control plate comp.
67 316094570 Swivel level comp.
68 316094560 Saw head lock comp.
69 141124660 Fillister head screw
70 343362490 Cable clip
71 343442190 Slider lock
72 341570940 Upper Guard Shaft
73 342024080 Big Torque Spring
74 339148010 Spring Bushing
75 343442530 Motor End Cap
76 316094600 Carbon brush comp.
77 338065330 Rating plate
78 143115800 Ball bearing, 8x22x7
79 310011850 Armature
80 143115860 Ball bearing
81 343442540 Motor Air Guide Sleeve
82 316094590 Motor comp.
83 343438930 Extraction tube
84 316094710 Extraction tube comp.
85 316094690 Moving guard comp.
86 344113310 Rubber Extractor
87 315419510 Upper Guard
88 316094620 Roller cpl.
89 316094640 Output shaft comp.
90 316094610 Depth adjustment comp.
91 316094630 Intermediate pully comp.
92 315419560 Big Pulley
93 344260410 Ribbed Belt
94 341203210 Small Pulley
95 315419540 Upper Guard Cover B
96 315419530 Upper Guard Cover A
97 316094650 Spindle lock comp.
98 343255020 Capacitor
99 316094660 Guard level comp.
100 141124640 Cap screw
101 343442490 Laser Bracket
102 342024110 Laser Spring
103 315419520 Upper Guard Logo Cover
104 316094700 Flange comp.
105 344260400 Synchronous Belt
106 343442410 Handle
107 341705350 Flat headed screw
108 338126980 Indication label laser radiation KGS 216
109 343050340 Terminal
110 344530370 inner cable
111 343085340 TRANSFORMER
112 343085350 Cable terminal
114 343411290 Switch f. Laser
115 343411180 LED Switch
117 338126970 Indication label speed step KGS 216 Com
118 343442470 Upper Guard Cover P
119 343084510 Electronic unit,230V 50/60Hz
120 141123890 Fillister head screw,(DIN 7985)
121 316094680 Guard button comp.
122 316094670 Main switch comp.
123 343085330 LED compl.
124 344113320 Cable sleeve
125 344530360 Power Cable
126 141116020 Self-tap fill h screw
131 338126960 Indication label Warning KGS 216 Compact
132 316075690 Workpiece holder compl.
133 339148190 Angle square
1001 338506220 Diagram
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo KGSV 72 Xact SYM
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Metabo KGSV 72 Parts Drawing

Metabo KGSV 72 Parts Drawing

Download (1.31MB)

You might also like

Auxiliary Guide Complete for Mitre Saw Metabo KS 254 Plus
Metabo SKU: 1010737210
Auxiliary Guide Complete for Mitre Saw Metabo KS 254 Plus
Auxiliary Guide Complete for Mitre Saw Metabo KS 254 Plus Original Spare Part Metabo, Auxiliary Guide Complete for Mitre Saws KS 254 Plus - KS 305 Plus - KGS 315 Plus. Part for the following products: - Mitre Saw KS 254...
AVAILABLE €48.72
Details
Work Clamp Ass'y for Mitre Saw Metabo KS 254 Plus
Metabo SKU: 1010737440
Work Clamp Ass'y for Mitre Saw Metabo KS 254 Plus
Work Clamp Ass'y for Mitre Saw Metabo KS 254 Plus Original Spare Part Metabo, Work Clamp Ass'y Complete for Mitre Saws KS 254 Plus - KS 305 Plus - KGS 315 Plus. Part for the following products: - Mitre Saw KS 254 Plus/0102540100 -...
AVAILABLE €68.26
Details
Rip Fence for Mitre Saw Metabo KS 254 Plus
Metabo SKU: 1010736427
Rip Fence for Mitre Saw Metabo KS 254 Plus
Rip Fence for Mitre Saw Metabo KS 254 Plus Original Spare Part Metabo, Rip Fence for Mitre Saws KS 254 Plus - KS 305 Plus - KGS 315 Plus. Part for the following products: -  Mitre Saw KS 254 Plus/0102540100 -  Mitre Saw KS 305...
Last items in stock €70.00
Details
Carbon Brush Set for Mitre Saw Metabo KS 254 Plus
Metabo SKU: 1010737385
Carbon Brush Set for Mitre Saw Metabo KS 254 Plus
Carbon Brush Set for Mitre Saw Metabo KS 254 Plus Original Spare Part Metabo, Carbon Brush Set 230V for Mitre Saws KS 254 Plus - KS 305 Plus. Part for the following products: -  Mitre Saw KS 254 Plus - 0102540100 -  Mitre Saw KS 305...
on 7/10 Business Days Approx €27.17
Details
Metabo KS 254 Plus Switch
Metabo SKU: 8111737712
Metabo KS 254 Plus ON-OFF Switch
Metabo KS 254 Plus ON-OFF Switch Original Spare Parts Metabo, ON-OFF Switch for Mitre Saws KS 254 Plus - KS 305 Plus - KGS 315 Plus.s. Part for the following aproducts: - Mitre Saw KS 254 Plus - 0102540100 10 - Mitre Saw KS 305...
on 7/10 Business Days Approx. €26.02
Details
Comments (0)
