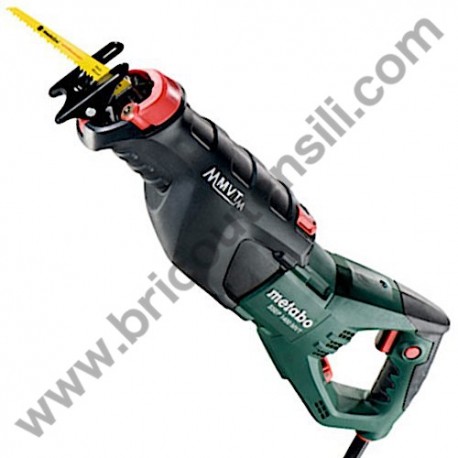

Metabo SSEP 1400 MVT Spare Parts
€45.82
VAT included
Metabo Spare Parts for Reciprocating Saw SSEP 1400 MVT
Metabo genuine spare parts for replacing or to fix Reciprocating Saw SSEP 1400 MVT - 06178000.
Metabo SSEP 1400 MVT Spare Parts
€45.82
VAT included
Metabo Spare Parts for Reciprocating Saw SSEP 1400 MVT
Metabo genuine spare parts for replacing or to fix Reciprocating Saw SSEP 1400 MVT - 06178000.
settings
60 spare parts
description
1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
60 spare parts
Page 1
zoom_in View exploded
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Metabo Spare Parts for Reciprocating Saw SSEP 1400 MVT
Metabo genuine spare parts for replacing or to fix Reciprocating Saw SSEP 1400 MVT - 06178000.In the following table, look for the model of the Reciprocating Saw and the respective parts of the code.
| METABO SSEP 1400 MVT 06178000 Spare Parts | ||
| # | Part Num. | Description |
| 1 | 34453044 | Cable with plug |
| 2 | 34411337 | Cable with plug |
| 3 | 34411338 | Cable with plug |
| 4 | 14111680 | Self-tap. Fill. H. Screw |
| 5 | 34344295 | CABLE CLAMP |
| 8 | 34172243 | Self-tap. Fill. H. Screw |
| 9 | 34344297 | Switch |
| 12 | 34308546 | Locking device |
| 13 | 34325499 | Choke |
| 14 | 34172244 | Self-tap. fill. h. screw |
| 15 | 31609354 | Carbon brush |
| 16 | 34411339 | Brush Cover |
| 17 | 14113007 | Hexagonal nut |
| 18 | 14112456 | RAISED CHEESE HEAD SCREW |
| 21 | 31101245 | Field |
| 22 | 34172245 | Self-tap. fill. h. screw |
| 23 | 34344300 | Blank faceplate |
| 24 | 32005418 | Bearing sleeve |
| 27 | 32005419 | ball bearing |
| 34 | 32005420 | ball bearing |
| 37 | 34172246 | Self-tap. fill. h. screw with disc |
| 38 | 34110903 | Washer |
| 39 | 34172247 | Self-tap. fill. h. screw with disc |
| 41 | 32005421 | ball bearing |
| 42 | 34116618 | Ring |
| 45 | 34116611 | Gear case |
| 48 | 32005422 | ball bearing |
| 55 | 34411340 | rubber bushing |
| 62 | 33914810 | Corner |
| 63 | 34411341 | Coverage |
| 64 | 34172249 | Screw |
| 65 | 34116612 | Ring (airproof) |
| 66 | 34453050 | Power Supply Board |
| 67 | 34411342 | Middle cover |
| 68 | 33914811 | Counterweight |
| 69 | 33900938 | Washer |
| 70 | 34172248 | Self-tap. fill. h. screw with disc |
| 71 | 33914812 | Pressure plate |
| 72 | 33914813 | Pressure plate cpl. |
| 73 | 33901301 | Bearing block |
| 74 | 34116614 | Pinion shaft |
| 75 | 32005423 | Needle bearing |
| 93 | 34201093 | Pressure spring |
| 97 | 31609366 | Screw compl. |
| 98 | 34202416 | sealing ring |
| 100 | 34116616 | Shaft |
| 101 | 34172250 | Screw |
| 102 | 34116617 | Ring (airproof) |
| 103 | 33806519 | Rating plate |
| 112 | 34172278 | Washer |
| 201 | 31609355 | Housing compl. |
| 202 | 31001187 | Armature compl. |
| 203 | 31609356 | Base plate |
| 204 | 31015007 | Rotor ASSEMBLY fixing kit |
| 208 | 31609357 | clamp kit cpl. |
| 209 | 31609358 | Supporing Angle compl. |
| 212 | 31609365 | change-over switch cpl. |
| 213 | 31609359 | Clamping lever cpl. |
| 214 | 31609663 | Speed assembly with grip |
| 215 | 31607649 | Housing compl. |
| 1001 | 33851014 | Wiring diagram |
