Metabo

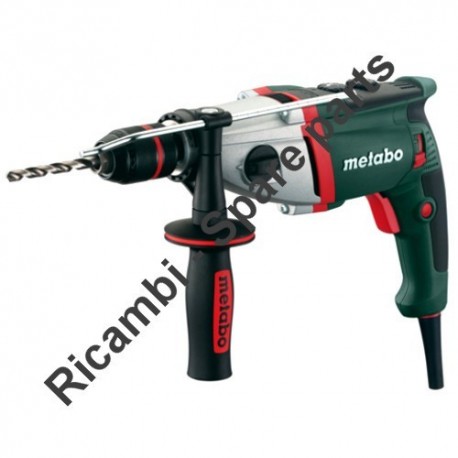

Metabo SBE 850 IMPULS Spare Parts

SKU: SBE 850 IMPULS - 00849001
€1.85
VAT included

Metabo Percussion Drill SBE 850 IMPULS Spare Parts

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Percussion Drill SBE 850 IMPULS - 00849001.

Percussion Drill SBE 850 IMPULS - 00849001
Metabo SBE 850 IMPULS Spare Parts
  • Metabo SBE 850 IMPULS Spare Parts
  • Metabo SBE 850 IMPULS Spare Parts - Drawing
Metabo

Metabo SBE 850 IMPULS Spare Parts

SKU: SBE 850 IMPULS - 00849001 Condition: New
€1.85
VAT included

Metabo Percussion Drill SBE 850 IMPULS Spare Parts

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Percussion Drill SBE 850 IMPULS - 00849001.

Percussion Drill SBE 850 IMPULS - 00849001
settings 41 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
41 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

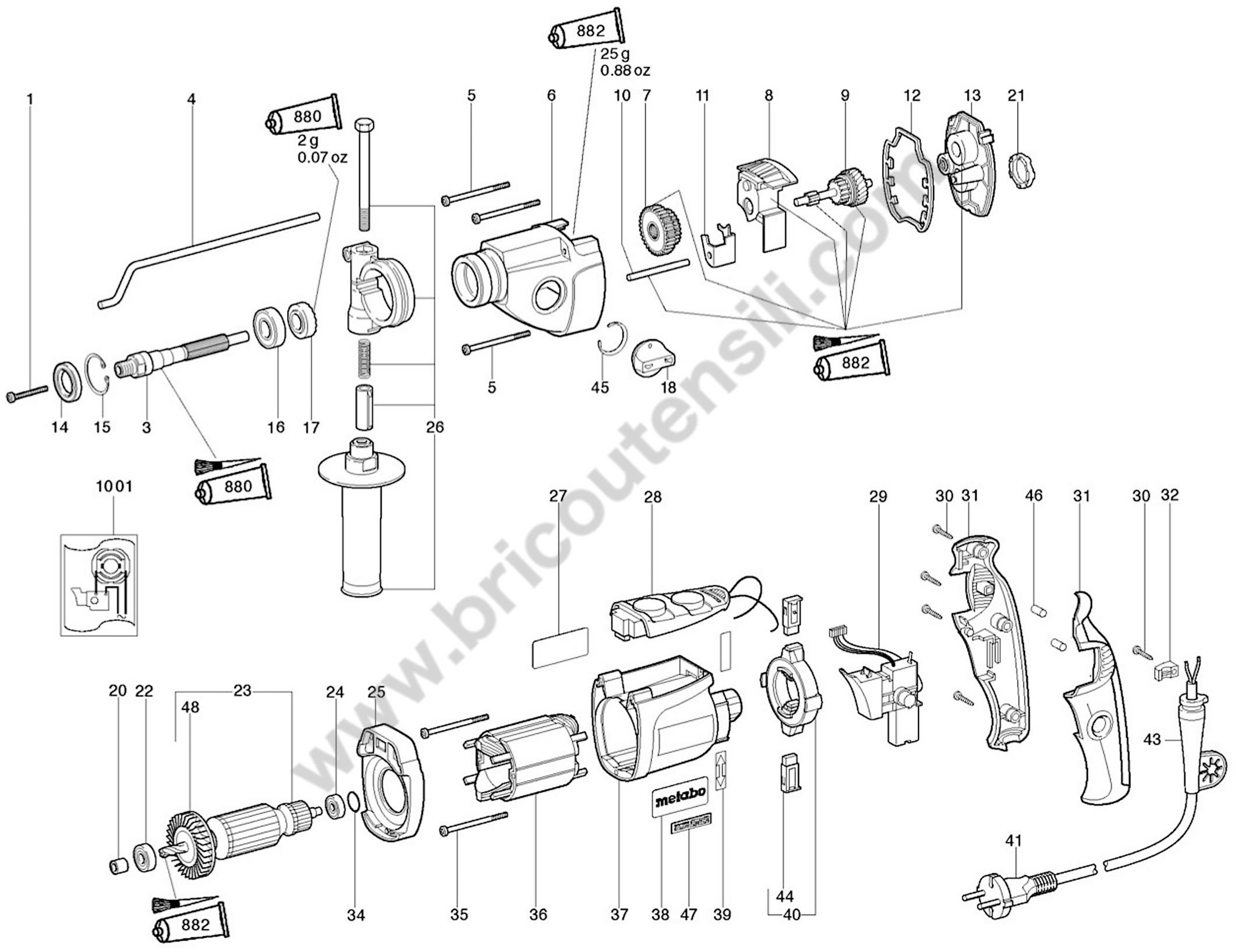

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 34170194 Cheese-head screw €1.71
3
 Metabo SBE 705 Chuck Spindle 34160364 Metabo SBE 705 Chuck Spindle €27.50
4
 Deth Rod for Rotary Hammer Metabo BH E 6020 S 34151163 Deth Rod for Rotary Hammer Metabo BH E 6020 S €5.00
5
 photo_cameraImage coming soon 14112249 Self-tap. fill. h. screw €1.75
6
 photo_cameraImage coming soon 31603099 Gear Housing CPL. €51.31
7
 Sliding Block for Impact Drill Metabo BE 751 34000401 Sliding Block for Impact Drill Metabo BE 751 €14.94
8
 photo_cameraImage coming soon 31602771 Switch Housing Compl. €11.24
9
 photo_cameraImage coming soon 31603038 Intermediate Gear €63.68
10
 photo_cameraImage coming soon 34154001 Guide bolt €4.35
11
 photo_cameraImage coming soon 33912927 Shift fork €1.71
12
 photo_cameraImage coming soon 34409591 Seal €1.71
13
 photo_cameraImage coming soon 31603100 Gear Flange CPL. €56.60
14
 photo_cameraImage coming soon 33921083 Shaft Sealing Ring €2.42
15
 photo_cameraImage coming soon 14118168 Retaining ring €1.53
16
 photo_cameraImage coming soon 14311022 BALL BEARING, 15X32X9 €20.72
17
 photo_cameraImage coming soon 34105565 Slotted disc €3.65
18
 photo_cameraImage coming soon 31602953 Control Knob CPL. €3.12
20
 photo_cameraImage coming soon 34337604 Sealing ring €1.98
21
 photo_cameraImage coming soon 34409592 Rubber buffer €1.81
22
 photo_cameraImage coming soon 14311340 Ball bearing, 8x22x7 €11.17
23
 photo_cameraImage coming soon 31000812 Armature cpl. 230 V €75.54
24
 photo_cameraImage coming soon 14311475 Ball bearing, 6X 19X 6 €10.30
25
 Intermediate Flange for Rotary Hammer Metabo UHE 20 34337427 Intermediate Flange for Rotary Hammer Metabo UHE 20 €12.41
26
 Support Handle for Rotary Hammer Metabo UHE 28 Multi 31400077 Support Handle for Rotary Hammer Metabo UHE 28 Multi €32.13
28
 Metabo SBE 850 IMPULS Electronic Unit 34307795 Metabo SBE 850 IMPULS Electronic Unit €80.34 Not available for order
29
 Switch 230V for Hammer Metabo UHE 28 Plus 34340688 Switch 230V for Hammer Metabo UHE 28 Plus €30.94
30
 photo_cameraImage coming soon 14111706 Self-tap. fill. h. screw €1.98
31
 photo_cameraImage coming soon 34339303 Drill Handle w/overmold green SBE €10.13
32
 photo_cameraImage coming soon 34336249 Cable clip €2.02
34
 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 14319243 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 €1.88
35
 photo_cameraImage coming soon 14111826 Self-tap. fill. h. screw €1.81
36
 230/240V Stator for Rotary Hammer Metabo UHE 28 Plus 31100981 230/240V Stator for Rotary Hammer Metabo UHE 28 Plus €27.59
37
 photo_cameraImage coming soon 31501265 Motor housing €14.48
39
 photo_cameraImage coming soon 33811541 Indication label €1.58
41
 photo_cameraImage coming soon 34449318 Cable with plug €23.87
43
 photo_cameraImage coming soon 34410116 Cable sleeve €2.42
45
 photo_cameraImage coming soon 14115581 Ring €1.53
46
 photo_cameraImage coming soon 34409222 Rubber plug €1.60
48
 photo_cameraImage coming soon 31603573 Fan W. Prot. Grid €5.86
880
 photo_cameraImage coming soon 34413093 Grease 50Gr 1,8oz €34.48
882
 photo_cameraImage coming soon 34413097 Grease 50Gr 1,8oz €11.31

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Percussion Drill SBE 850 IMPULS Spare Parts

We are METABO original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Percussion Drill SBE 850 IMPULS - 00849001.

In the following table, look for the model of the Percussion Drill and the respective parts of the code.
Metabo 00849001 SBE 850 IMPULS

METABO 00849001 SBE 850 IMPULS EU 13mm 850w Impact Drill 230V Spare Parts
# Part Num. Description
1 34170194 SCREW L.H. 6 X 36
3 34160364 SPINDLE SBE
4 34151163 DEPTH GAUGE SB 620/2s
5 14112249 SCREW SELF TAP UHE
6 31603099 Gear housing cpl.
7 34000401 Sliding block
8 31602771 SWITCH HOUSING SBE
9 31603038 INTERMEDIATE GEAR
10 34154001 GUIDE PIN SB 620/2 S
11 33912927 SHIFT FORK SBE
12 34409591 GASKET SBE
13 31603100 GEAR FLANGE SBE
14 33921083 GASKET UHE
15 14118168 CIRCLIP BE 720/2 R+L
16 14311022 BEARING 15x32x9
17 34105565 IMPACT DISC
18 31602953 CONTROL KNOB CPL
20 34337604 SEALING RING
21 34409592 RUBBER BUFFER
22 14311340 BEARING KGSE 1670
23 31000812 ARMATURE SBE
24 14311475 BEARING 6x19x6
25 34337427 INTERMIDIATE FLANGE
26 31400077 HANDLE BHE 6028 S
27 33804012 Rating plate
28 34307795 VC ELECTRONIC
29 34340688 SWITCH UHE28
30 14111706 F/H S/T SCREW 4.2x22
31 34339303 Drill Handle w/overmold green SBE
32 34336249 CABLE CLAMP PBE 701/2
34 14319243 O-RING SE 4430 R+L
35 14111826 F/H S/T SCREW 3.5x61
36 31100981 FIELD UHE 28
37 31501265 MOTOR HOUSING UHE 28
38 33811554 Metabo label
39 33811541 LABEL (ARROW)
40 31603201 BRUSH HOLDER MOD
41 34449318 Cable with plug
43 34410116 CABLE GUARD
44 31603455 Brush set 230V/120V (316034940)
45 14115581 CIRCLIP SBE
46 34409222 PLUG BAE 0876 SIG.
47 39999999 Part not needed
48 31603573 FAN W PROT GRID
880 34413093 GREASE 50 G
882 34413097 GREASE
1001 33850245 Diagram
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SBE 850 IMPULS - 00849001
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Metabo SBE 850 IMPULS Drawing

Metabo SBE 850 IMPULS Drawing

Download (368.95KB)
