Metabo

Metabo Circular Saw KSE1678S Spares Parts

SKU: Metabo KSE1678S 601677000
€1.92
VAT included

Metabo Circular Saw KSE1678S Spares Parts

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Circular Saw KSE1678S 601677000.
Metabo Circular Saw KSE1678S Spares Parts
  • Metabo Circular Saw KSE1678S Spares Parts
Metabo

Metabo Circular Saw KSE1678S Spares Parts

SKU: Metabo KSE1678S 601677000 Condition: New
€1.92
VAT included

Metabo Circular Saw KSE1678S Spares Parts

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Circular Saw KSE1678S 601677000.
settings 41 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
41 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

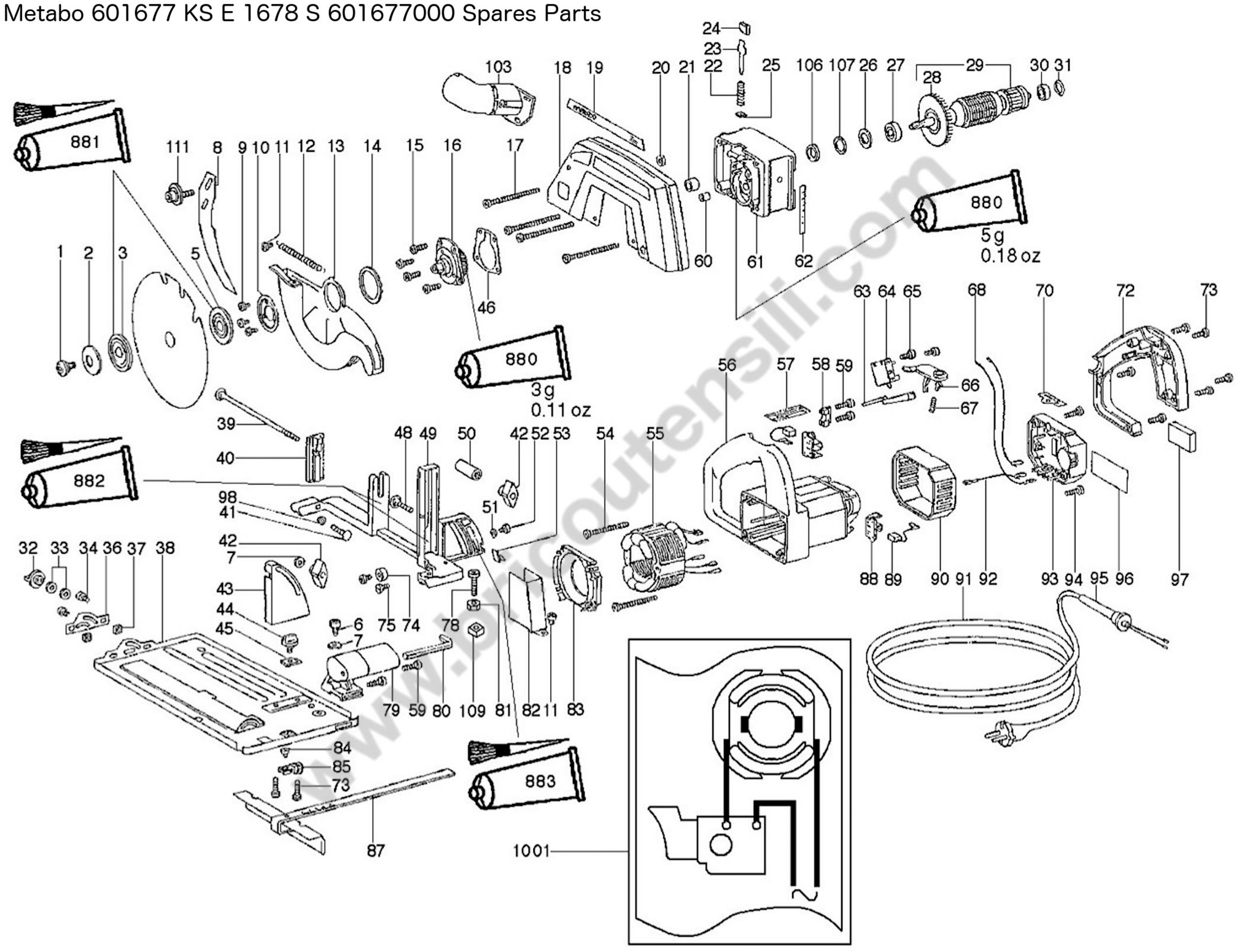

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
6
 photo_cameraImage coming soon 14111384 Cap screw €1.82
7
 photo_cameraImage coming soon 14115194 Washer €1.75
9
 photo_cameraImage coming soon 14111990 Self-tapp. fill. h. screw €1.65
15
 photo_cameraImage coming soon 14111944 Fill. head screw(DIN 7985) €1.65
20
 photo_cameraImage coming soon 14113010 Hexagonal nut €1.70
22
 photo_cameraImage coming soon 34200780 Pressure spring €1.77
25
 photo_cameraImage coming soon 34407060 Felt €1.61
26
 photo_cameraImage coming soon 14115148 Washer €1.77
30
 photo_cameraImage coming soon 14311340 Ball bearing, 8x22x7 €11.17
31
 photo_cameraImage coming soon 14319213 O-ring €1.77
32
 photo_cameraImage coming soon 34111189 Thumb-nut €1.77
33
 photo_cameraImage coming soon 14115012 Washer €1.61
34
 photo_cameraImage coming soon 14112019 Fillister head screw €1.61
37
 photo_cameraImage coming soon 14113121 Square Nut €1.61
41
 photo_cameraImage coming soon 14111151 Truss Head Screw €1.77
44
 photo_cameraImage coming soon 34111192 Thumbscrew €2.37
51
 photo_cameraImage coming soon 33900129 Butting Washer €1.61
54
 photo_cameraImage coming soon 14111870 Self-tap. fill. h. screw €1.77
58
 photo_cameraImage coming soon 34337171 Cable holder €1.48
59
 photo_cameraImage coming soon 14111680 Self-tap. fill. h. screw €1.70
60
 photo_cameraImage coming soon 14311224 Needle bushing €3.71
64
 Metabo Circular Saw KS 66 Switch 34340626 Metabo Circular Saw KS 66 Switch €17.37
65
 photo_cameraImage coming soon 14111697 Fillister head screw €1.87
67
 photo_cameraImage coming soon 34200107 Pressure spring €1.61
73
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
74
 photo_cameraImage coming soon 33904062 Rubber Ring €1.77
75
 photo_cameraImage coming soon 14111957 Fill. head screw(DIN 7985) €1.61
78
 photo_cameraImage coming soon 14111596 FILLISTER HEAD SCREW €1.82
80
 photo_cameraImage coming soon 34416152 Cranked wrench key €1.77
81
 photo_cameraImage coming soon 14113009 Hexagonal nut €1.61
84
 photo_cameraImage coming soon 14111051 Fillister Head Screw €1.61
91
 photo_cameraImage coming soon 34448853 Cable with plug €24.77
95
 photo_cameraImage coming soon 34409318 Cable sleeve €2.85
97
 photo_cameraImage coming soon 34410300 Insert €1.61
98
 photo_cameraImage coming soon 14115080 Washer €1.61
107
 photo_cameraImage coming soon 33901134 Washer €1.61
109
 photo_cameraImage coming soon 14113066 SQUARE NUT €1.61
111
 photo_cameraImage coming soon 14112283 Cylinder head screw €1.77
880
 photo_cameraImage coming soon 34413092 Grease 100G €40.13
881
 photo_cameraImage coming soon 34413056 Grease SF 011 50Gr 1,8oz €37.66
882
 photo_cameraImage coming soon 34413013 Grease SF 016 50Gr 1,8oz €27.61

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Circular Saw KSE1678S Spares Parts

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Circular Saw KSE1678S 601677000.

In the following table, look for the model of the Circular Saw and the respective parts of the code.
Metabo Circular Saw KSE1678S 601677000 Spares Parts

Metabo Circular Saw KSE1678S 601677000 Spares Parts
# Part Num. Description
1 34170198 Screw
2 14115406 Cup Spring
3 34103173 Clamping Flange
5 34103147 Flange
6 14111384 Cap screw
7 14115194 Washer
8 33912383 Riving Knife
9 14111990 Self-tapp. Fill. H. Screw
10 33900467 Washer
11 14111679 Self-tap. Fill. H. Screw
12 34201090 Tension Spring
13 31601877 Wheel Guard Cpl.
14 14115414 Washer
15 14111944 Fill. Head Screw(din 7985)
16 31601998 Bearing Flange Cpl.
17 14112040 Fill. Head Screw Plast. 45
18 31602011 Saw Housing Cpl.
19 33811686 Metabo Plate
20 14113010 Hexagonal nut
21 34105405 Bush
22 34200780 Pressure Spring
23 33912372 Locking Lever
24 34336243 Knob
25 34407060 Felt
26 14115148 Washer
27 14311108 Ball Bearing, 12x28x8
28 33000094 Fan
29 31000583 Armature Cpl. 220 V
30 14311340 Ball Bearing, 8x22x7
31 14319213 O-ring
32 34111189 Thumb-nut
33 14115012 Washer
34 14112019 Fillister Head Screw
36 34336309 Swivelling Segment
37 14113121 Square Nut
38 33912373 Guide Plate
39 14112025 Truss Head Screw
40 31541227 Clamping Piece
41 14111151 Truss Head Screw
42 34110097 Thumb-nut
43 34336263 Angle
44 34111192 Thumbscrew
45 33912388 Pressure Sheet
46 33901124 Gasket
48 14111156 Truss Head Screw
49 31602472 Cutting Height Guide
50 34105308 Spacer Sleeve
51 33900129 Butting Washer
53 34336285 Pointer
54 14111870 Self-tap. Fill. H. Screw
55 31100788 Field Coil 230 V
56 34336258 Motor Housing
57 33802299 Rating Plate
58 34337171 Cable Clip
59 14111680 Self-tap. Fill. H. Screw
60 14311224 Needle Bushing
61 31602008 Gear Flange Cpl.
62 33810652 Scale
63 34336307 Switch Trigger
64 34340626 Switch
65 14111697 Fillister Head Screw
66 34336274 Switch-on Lock
67 34200107 Pressure Spring
68 34449027 Strand Cpl. Awg16sw
70 33811218 Sticker
72 34336259 Handle Cover
73 14111602 Self-tap. Fill. H. Screw
74 33904062 Rubber Ring
75 14111957 Fill. Head Screw(din 7985)
78 14111596 Fillister Head Screw
79 34111198 Handle
80 34416152 Cranked Wrench Key
81 14113009 Hexagonal nut
82 33912418 Sheet Cover
83 33915082 Baffle
84 14111051 Fillister Head Screw
85 34336308 Cut Indicator
87 33105047 Parallel Guide
88 34300054 Brush Holder Cpl.
89 31603371 Carbon Brush
90 34336357 Intermediate Piece
91 34448853 Cable With Plug
92 34449029 Strand Cpl. Awgi6sw
93 34307084 Electronic Unit 230 V
94 14111603 Self-tap. Fill. H. Screw
95 34409318 Cable Sleeve
96 33811219 Indication Label
97 34410300 Insert
98 14115080 Washer
103 31602446 Exhaust Nozzle
106 34407062 Felt Ring
107 33901134 Washer
109 14113066 Square Nut
111 14112283 Cylinder Head Screw
880 34413092 Grease 100g
881 34413056 Grease Sf 011 50gr 1,80z
882 34413013 Grease Sf 016 50gr 1,80z
883 34413017 Grease Kf 010
100 33850082 Diagram

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo KSE1678S 601677000
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Metabo KSE1678S Drawing

Metabo KSE1678S Drawing

Download (504.15KB)
