Metabo

Metabo Spares for Angle Grinder WEV 15-150 Quick 00472000

SKU: Metabo WEV 15-150 Quick 00472000
€79.19
VAT included

Metabo Spares for Angle Grinder WEV 15-150 Quick 00472000

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder WEV 15-150 Quick EU 1500w 125mm 00472000.

METABO 00472000 WEV 15-150 QUICK EU 1500w
Metabo Spares for Angle Grinder WEV 15-150 Quick 00472000
  • Metabo Spares for Angle Grinder WEV 15-150 Quick 00472000
  • Metabo Spares for Angle Grinder WEV 15-150 Quick 00472000
Metabo

Metabo Spares for Angle Grinder WEV 15-150 Quick 00472000

SKU: Metabo WEV 15-150 Quick 00472000 Condition: New
€79.19
VAT included

Metabo Spares for Angle Grinder WEV 15-150 Quick 00472000

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder WEV 15-150 Quick EU 1500w 125mm 00472000.

METABO 00472000 WEV 15-150 QUICK EU 1500w
settings 59 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
59 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

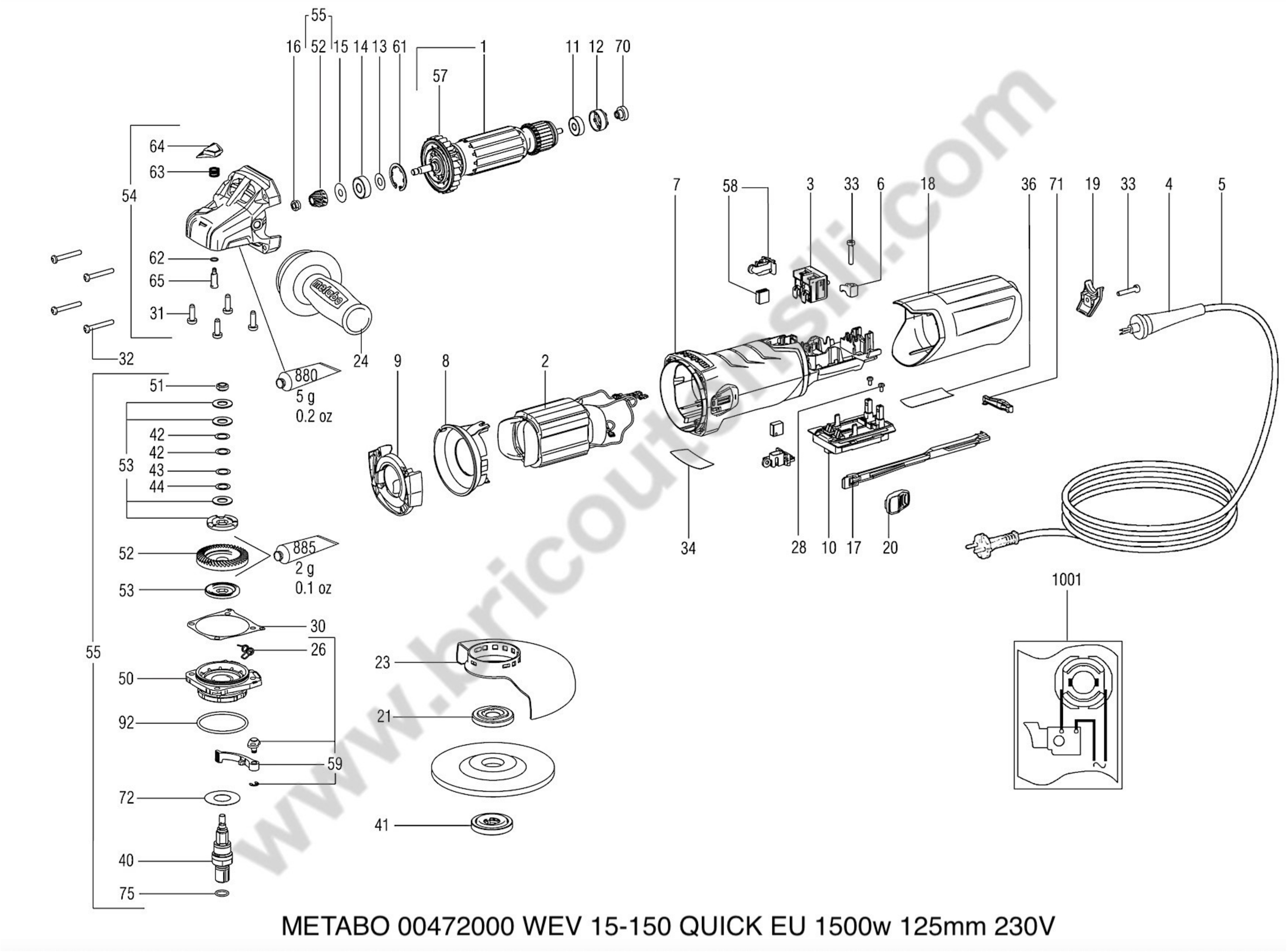

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31001099 Armature compl., 230V €74.65
2
 photo_cameraImage coming soon 31101218 Field coil w.field coil,230 V €54.29
3
 photo_cameraImage coming soon 34341012 Switch 2-pole,X2 €10.67
4
 photo_cameraImage coming soon 34410097 Cable sleeve €1.79
5
 photo_cameraImage coming soon 34449957 Cable w.CEE plug  €15.92
6
 photo_cameraImage coming soon 34336249 Cable clip €2.02
7
 photo_cameraImage coming soon 31501352 Motor housing 2 part €10.67
8
 photo_cameraImage coming soon 33915118 Baffle €1.76
9
 photo_cameraImage coming soon 33915120 Baffle €1.76
10
 Metabo Grinder WEV 15-150 QUICK Electronic Unit 34308289 Metabo Grinder WEV 15-150 QUICK Electronic Unit €51.52
11
 Ball Bearing 6x19x6 mm for Angle Grinders Metabo W 7-8-9-115 14311517 Ball Bearing 6x19x6 mm for Angle Grinders Metabo W 7-8-9-115 €7.95
12
 photo_cameraImage coming soon 34409787 Rubber bushing €1.76
13
 photo_cameraImage coming soon 33913306 Washer,8,05x17x0,4 €1.76
14
 photo_cameraImage coming soon 14311518 Ball bearing,8x22x7 €3.92
15
 photo_cameraImage coming soon 33900639 Washer,7,05x19,5x0,2 €1.76
16
 photo_cameraImage coming soon 34110094 Hexagon nut w.recess €2.02
17
 Metabo Rod for Angle Grinder W12-125 34343307 Metabo Rod for Angle Grinder W12-125 €2.50
18
 photo_cameraImage coming soon 34343303 Cap €3.94
19
 photo_cameraImage coming soon 34343310 End cap €1.76
20
 photo_cameraImage coming soon 34343710 Switch slide €1.76
21
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
23
 photo_cameraImage coming soon 33920451 Wheel guard,D150  €9.44
24
 photo_cameraImage coming soon 31400097 Anti-vibration handle,M 8 €15.03
26
 photo_cameraImage coming soon 34202249 Torsion spring €1.71
28
 photo_cameraImage coming soon 14112143 Fill. head screw(DIN 7985) €1.76
30
 photo_cameraImage coming soon 33901197 Gasket €1.75
31
 photo_cameraImage coming soon 14112164 Fill. head screw(DIN 7985) €1.76
32
 photo_cameraImage coming soon 14111698 Self-tap. fill. h. screw €1.76
33
 photo_cameraImage coming soon 14111706 Self-tap. fill. h. screw €1.98
34
 photo_cameraImage coming soon 33806028 Rating plate  €1.45
40
 photo_cameraImage coming soon 34160442 Spindle M14 €13.76
41
 photo_cameraImage coming soon 31605535 Clamping nut compl.,M14 €11.94
42
 photo_cameraImage coming soon 14115112 Washer 10,2 X 14,8X 0,2 €1.74
43
 photo_cameraImage coming soon 14115230 Washer 10,2 X 14,8X 0,1 €1.91
44
 photo_cameraImage coming soon 14115392 Washer 10,2 X 14,8X 0,5 €1.79
50
 Flange Complete for Angle Grinder Metabo W 9-115 34343328 Flange Complete for Angle Grinder Metabo W 9-115 €19.52
51
 Nut EW 6114 S for Wall Chaser Metabo MFE 40 34110246 Nut EW 6114 S for Wall Chaser Metabo MFE 40 €2.76
52
 Bevel Gear with Pinion for Wall Chaser Metabo MFE 40 31605498 Bevel Gear with Pinion for Wall Chaser Metabo MFE 40 €20.36
53
 Friction Washer Set Complete for Wall Chaser Metabo MFE 40 31605508 Friction Washer Set Complete for Wall Chaser Metabo MFE 40 €17.95
54
 photo_cameraImage coming soon 31605510 Gear housing compl. €54.65
55
 photo_cameraImage coming soon 31605426 Safety clutch w.pinion €81.93
56
 photo_cameraImage coming soon 31605705 Brush holder compl. (older model) €10.61
56
 photo_cameraImage coming soon 31606542 Brush holder set €13.36
57
 photo_cameraImage coming soon 31605485 Fan w. dust guard €3.94
58
 Metabo WEV 17-125 Quick Brush Pair + Brusholder 31606717 Metabo WEV 17-125 Quick Brush Pair + Brusholder €25.38
59
 photo_cameraImage coming soon 31606604 Clamping lever compl. €11.60
61
 photo_cameraImage coming soon 14115665 Retaining ring €1.76
62
 photo_cameraImage coming soon 14319365 O-ring €1.45
63
 photo_cameraImage coming soon 34200339 Pressure spring €1.76
64
 photo_cameraImage coming soon 34343313 Push button €1.76
65
 photo_cameraImage coming soon 34151564 Bolt €1.76
70
 Tacho Disc for Wall Chaser Metabo MFE 40 34343306 Tacho Disc for Wall Chaser Metabo MFE 40 €3.17
71
 photo_cameraImage coming soon 34343309 Pivoting switch €1.76
72
 photo_cameraImage coming soon 33900780 Washer €1.76
75
 photo_cameraImage coming soon 14319249 O-ring €1.94
92
 photo_cameraImage coming soon 14319564 O-ring €1.76
880
 photo_cameraImage coming soon 34413092 Grease 100G €40.13
885
 photo_cameraImage coming soon 34413056 Grease SF 011 50Gr 1,8oz €37.66
1005
 photo_cameraImage coming soon 31606732 Cable with sleeve €29.07

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spares for Angle Grinder WEV 15-150 Quick 00472000

We are METABO original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder WEV 15-150 Quick EU 1500w 125mm 00472000.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Metabo WEV 15-150 Quick 00472000

METABO 00472000 WEV 15-150 QUICK EU 1500w 125mm
Angle Grinder 230V
# Part Num. Description
1 31001099 Armature compl., 230V
2 31101218 Field coil w.field coil,230 V
3 34341012 Switch 2-pole
4 34410097 CABLE SLEEVE HS 8345
5 34449957 Cable w.CEE plug
6 34336249 CABLE CLAMP PBE 701/2
7 31501352 Motor housing 2 part
8 33915118 Baffle
9 33915120 Baffle
10 34308289 Electronic unit,230V 50/60Hz
11 14311517 Ball bearing,6x19x6
12 34409787 Rubber bushing
13 33913306 Washer,8,05x17x0,4
14 14311518 Ball bearing,8x22x7
15 33900639 WASHER W 7-115
16 34110094 HEX NUT EW 6114 S
17 34343307 Switch rod
18 34343303 Cap
19 34343310 End cap
20 34343710 Switch slide
21 34103116 Clamping flange
23 33920451 Wheel guard,D150
24 31400097 HANDLE ANTI-V SML
26 34202249 Spring clip
28 14112143 Fill. head screw(DIN 7985)
30 33901197 Gasket
31 14112164 SCREW W 2530
32 14111698 Self-tap. fill. h. screw
33 14111706 F/H S/T SCREW 4.2x22
34 33806028 Rating plate
36 39999999 Part not needed
40 34160442 Spindle M14
41 31605535 QUICK NUT -SMALL (NEW)
42 14115112 WASHER 10.2x14.8x0.2
43 14115230 Washer 10,2 X 14,8x 0,1
44 14115392 WASHER 10.2x14.8x0.5
50 34343328 Flange compl.
51 34110246 Nut
52 31605498 Bevel gear w.pinion
53 31605508 Friction washer set compl.
54 31605510 Gear housing compl.
55 31605426 Safety clutch w.pinion
56 31606542 Brush holder compl. (newer model)
56 31605705 Brush holder compl. (older model)
57 31605485 Fan w. dust guard
58 31606717 Carbon brush set cut-off
59 31606604 Clamping lever compl.
61 14115665 Retaining ring
62 14319365 O RING
63 34200339 Pressure spring
64 34343313 Push button
65 34151564 Bolt
70 34343306 Tacho disc
71 34343309 Pivoting switch
72 33900780 Washer
75 14319249 O-RING 6345/2 el
92 14319564 O-RING
880 34413092 Grease 100G
885 34413056 GREASE SF 011
1001 33850578 Diagram
1005 31606732 CABLE WITH SLEEVE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo WEV 15-150 Quick 00472000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo WEV 15-150 Quick

Diagram Metabo WEV 15-150 Quick

Download (248.92KB)
