Metabo Spare Parts for Band Saw BAS 316 G WNB

SKU: BAS 316 G WNB - 0090431609 10
€1.57
VAT included

Metabo Spare Parts for Band Saw BAS 316 G WNB - 0090431609 10

Metabo original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Band SawBAS 316 G WNB - 0090431609 10 - EU 230V.

Fix Your Band Saw BAS 316 G WNB. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Band Saw BAS 316 G WNB
Metabo Spare Parts for Band Saw BAS 316 G WNB
  • Metabo Spare Parts for Band Saw BAS 316 G WNB
  • Metabo Spare Parts for Band Saw BAS 316 G WNB
  • Metabo Spare Parts for Band Saw BAS 316 G WNB

Metabo Spare Parts for Band Saw BAS 316 G WNB

SKU: BAS 316 G WNB - 0090431609 10 Condition: New
€1.57
VAT included

Metabo Spare Parts for Band Saw BAS 316 G WNB - 0090431609 10

Metabo original spare parts for the replacement of damaged parts or to repair electrical or mechanical components of the Band SawBAS 316 G WNB - 0090431609 10 - EU 230V.

Fix Your Band Saw BAS 316 G WNB. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

Band Saw BAS 316 G WNB
settings 54 spare parts

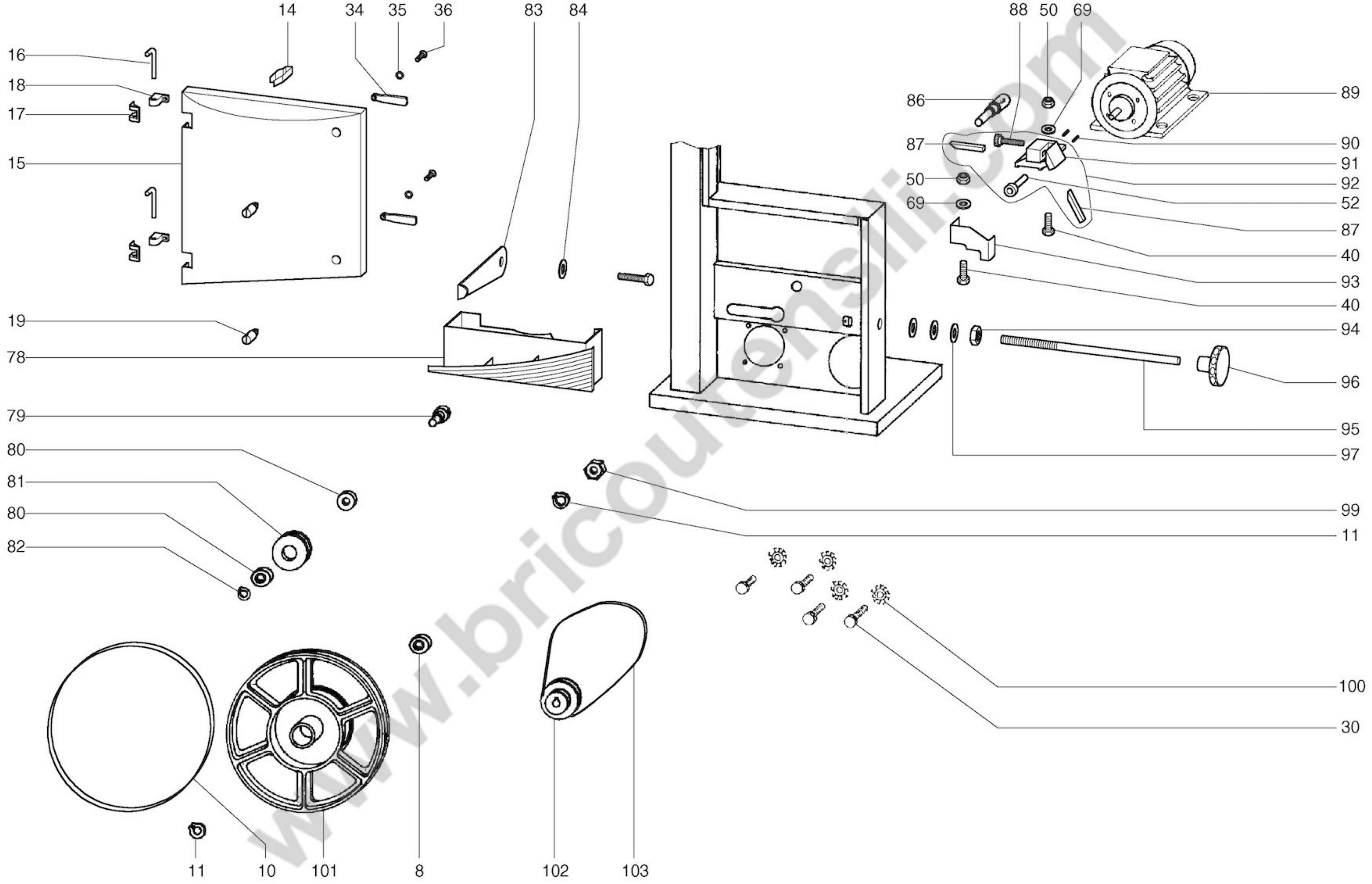

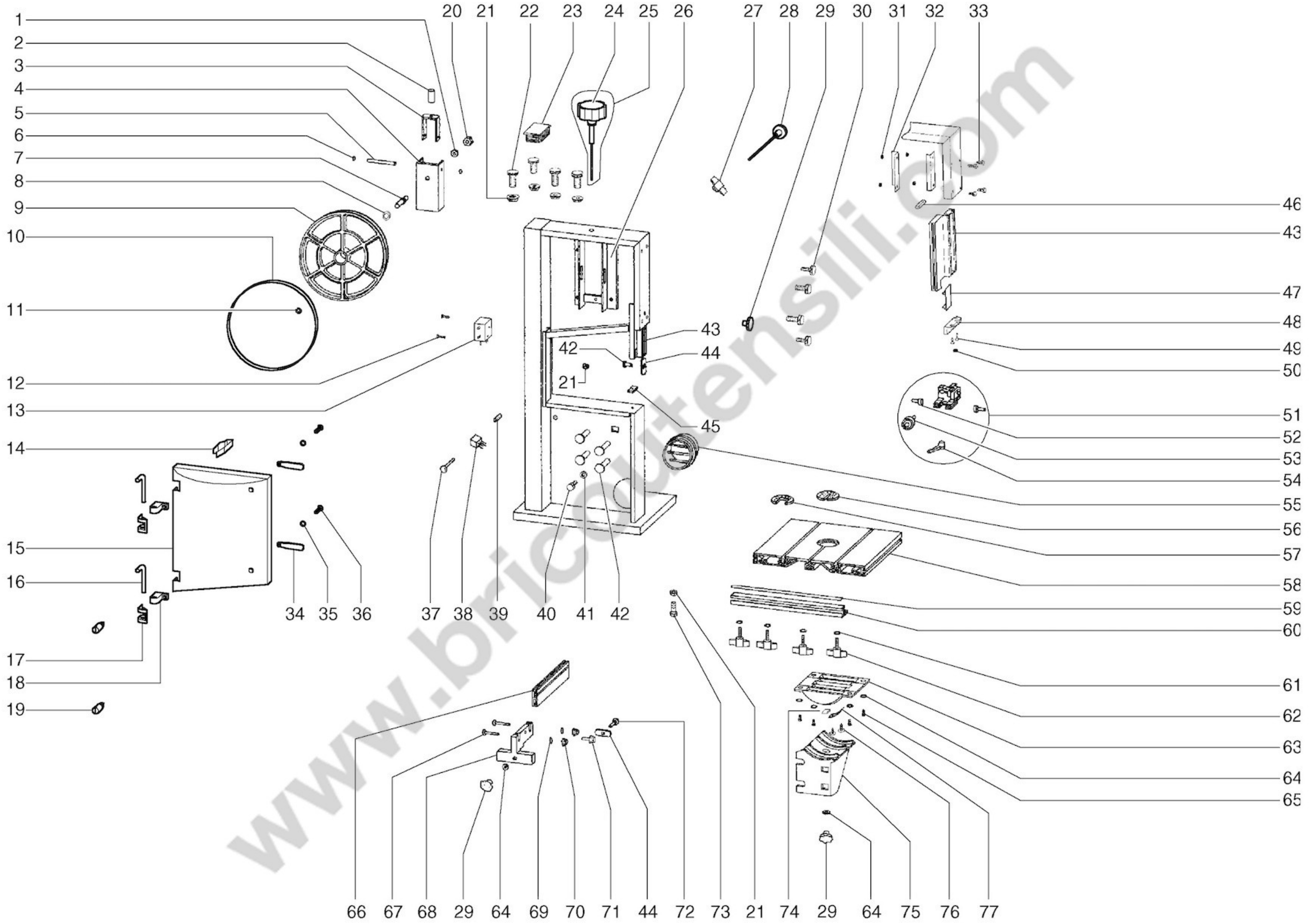

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

54 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1.
photo_cameraImage coming soon 6301000292 SPRING LOCK WASHER B 16 VERZ. (86301000292) €1.59
2.
photo_cameraImage coming soon 6442084635 SPACER SLEEVE RD 11/8,5X40 VERZ. (86442084635) €2.07
5.
photo_cameraImage coming soon 6500087283 PARALLEL PIN 10 h11X100 (86500087283) €3.80
6.
photo_cameraImage coming soon 7016050711 STARLOCK (87016050711) €1.59
8.
photo_cameraImage coming soon 7100047254 BEARING 6000 ZZ €9.63
9.
photo_cameraImage coming soon 1380421360 BANDSAW WHEEL, UPPER (81380421360) €82.28
20.
photo_cameraImage coming soon 6200050477 HEXAGON NUT M 16X1,5 VERZ. (86200050477) €1.59
21.
photo_cameraImage coming soon 6209110995 NUT M8 €1.73
22.
photo_cameraImage coming soon 6103001178 Hex head screw €1.66
24.
photo_cameraImage coming soon 6241133255 HANDWHEEL €5.44
27.
photo_cameraImage coming soon 7005135529 KNOB HELIX BAS €1.82
28.
photo_cameraImage coming soon 7001047374 SCREW €4.08
29.
photo_cameraImage coming soon 7000028937 STARKNOB NUT M 8 (DIN 934) VERZINKT €2.46
30.
photo_cameraImage coming soon 6103001127 Hex head screw €1.73
31.
photo_cameraImage coming soon 6209114230 Flange nut €1.66
33.
photo_cameraImage coming soon 6103015675 Hex head screw €1.66
35.
photo_cameraImage coming soon 6302085941 WAVE SPRING WASHER B 12 VERZ. (86302085941) €1.32
36.
photo_cameraImage coming soon 6103041013 HEXAGON HEAD SCREW M 6X10 VERZ.FLECKBESC €1.66
37.
photo_cameraImage coming soon 6110082701 CUP SQUARE NECK SCREW M 8X100 VERZ. (86110082701) €1.77
38.
photo_cameraImage coming soon 9132081414 CARBON BRUSH €9.91
39.
photo_cameraImage coming soon 6442084643 BUSH €4.94
41.
photo_cameraImage coming soon 6300016365 Washer €1.66
42.
photo_cameraImage coming soon 6110017942 TRUSS HEAD SCREW €1.59
44.
photo_cameraImage coming soon 1382083667 BOLT GUIDE BL 1,5X22X60 (81382083667) €1.59
49.
photo_cameraImage coming soon 6172001830 Fillister head screw (86172001830) €1.32
50.
photo_cameraImage coming soon 6202002291 HEXAGON NUT, PREV. TORQUE TYPE €1.66
54.
photo_cameraImage coming soon 7006072385 Clamping lever (87006072385) €4.90
55.
photo_cameraImage coming soon 1381053489 CONNECTOR RD 100 SPA 1000 €7.64
56.
Metabo BAS 316 G WNB Table Insert 1381404400 Metabo BAS 316 G WNB Table Insert €3.21
58.
photo_cameraImage coming soon 1380421212 TABLE TOP BAS315 / 316 €442.85
61.
photo_cameraImage coming soon 6304001745 SERRATED LOCK WASHER €1.33
62.
photo_cameraImage coming soon 6150421509 SCREW €4.62
67.
photo_cameraImage coming soon 6110000616 CUP SQUARE NECK SCREW M 6X40 VERZ. (86110000616) €1.32
70.
photo_cameraImage coming soon 6241125058 KNURLED NUT €1.78
71.
photo_cameraImage coming soon 7001087775 STARKNOB SCREW RD40/M6X28 (DIN 933) VERZ (87001087775) €1.47
72.
photo_cameraImage coming soon 6110080245 CUP SQUARE NECK SCREW M 8X50 VERZ. (86110080245) €1.32
74.
photo_cameraImage coming soon 1381092115 GLIDE SEGMENT 20,5X20,5X8 TISCHVERSTELLU (81381092115) €2.07
76.
photo_cameraImage coming soon 6172028215 SCREW €1.53
78.
photo_cameraImage coming soon 1381666324 BOX HARVESTING CHIP €41.07
79.
photo_cameraImage coming soon 1485400172 BOLT SLIDING €35.27
80.
photo_cameraImage coming soon 7100086764 BALL BEARING 6001 ZZ €9.63
81.
photo_cameraImage coming soon 1485400180 TENSION ROLLER RD 35X28 (81485400180) €23.72
83.
photo_cameraImage coming soon 1382666301 SAFETY LEVER ET €3.30
86.
photo_cameraImage coming soon 1485051518 PULLEY SHAFT €35.27
88.
photo_cameraImage coming soon 6143071144 KNURLED THUMB SCREW M 6X25 VERZ. €1.85
89.
photo_cameraImage coming soon 1009003602 MOTOR, BANDSAW BAS 0,74 WNB 1X230 V €431.54
90.
Hex Socket Screw M6X12 for Band Saw BAS 505 Precision WNB 6161050910 Hex Socket Screw M6X12 for Band Saw BAS 505 Precision WNB €1.81
94.
photo_cameraImage coming soon 6205084779 HEXAGON THIN NUT (86205084779) €1.36
95.
photo_cameraImage coming soon 1482666317 PIN €7.41
96.
photo_cameraImage coming soon 7000074122 KNOB €3.30
99.
photo_cameraImage coming soon 6200046208 HEXAGON NUT M 20X1,5 VERZ. (86200046208) €1.77
101.
photo_cameraImage coming soon 1380421352 PULLEY LOWER BAS €146.60
102.
photo_cameraImage coming soon 7240419429 PULLEY BAS 316/317 €47.12
103.
Belt for Band Saw Metabo BAS 317 Precision DNB 7233190017 Belt for Band Saw Metabo BAS 317 Precision DNB €21.46

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Band Saw BAS 316 G WNB - 0090431609 10

Fix Your Band SawBAS 316 G WNB - 0090431609 10 - EU 230V. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Band Saw and the respective parts of the code.
BAS 316 G WNB - 0090431609 10
BAS 316 G WNB - 0090431609 10 - EU 230V
# Part Num. Description
1. 6301000292 SPRING LOCK WASHER B 16 VERZ. (86301000292)
2. 6442084635 SPACER SLEEVE RD 11/8,5X40 VERZ. (86442084635)
3. 1382421333 TENSION BRACKET FL 25X5X175 (81382421333)
4. 1382051390 ROLLER GUIDE BL 2,99X128X165 (81382051390)
5. 6500087283 PARALLEL PIN 10 h11X100 (86500087283)
6. 7016050711 STARLOCK (87016050711)
7. 1485051453 BEARING SHAFT RD 21X75 ET (81485051453)
8. 7100047254 DEEP GROOVE BALL BEARING 17X40X12 6203-2 (87100047254)
9. 1380421360 BANDSAW WHEEL, UPPER (81380421360)
10. 7232055833 BANDSAW TYRE 310X2,5X20 70 +/-5 SHORE old cod 7232055833 (344101930)
11. 6400047357 RETAINING RING FOR SHAFTS 17X1 (86400047357)
13. 1009003955 SWITCH WN WN (81009003955)
14. 7052215689 LEAF SPRING (87052215689)
15. 1383666364 DOOR ET (81383666364)
16. 1381666359 Welding Hinge
17. 1381666332 WELDING HINGE ET (81381666332)
18. 1381666340 WELDING HINGE ET (81381666340)
19. 7014666391 Latch Actuator Assembly
20. 6200050477 HEXAGON NUT M 16X1,5 VERZ. (86200050477)
21. 6209110995 Flange nut (6209110995)
22. 6103001178 Hex head screw (86103001178)
23. 1381144590 LAMELLAR PLUG 100X60X3,2 VL SCHWARZ (81381144590)
24. 6241133255 KNURLED THUMB NUT RD 62,5 M 8 (86241133255)
25. 1009010820 BLADE TENSIONER (81009010820)
26. 1009010323 Tension Bracket
27. 7005135529 Thumb-nut (87005135529)
28. 7001047374 STARKNOB SCREW M 8X65 (DIN 558) VERZINKT (87001047374)
29. 7000028937 STARKNOB NUT M 8 (DIN 934) VERZINKT (87000028937)
30. 6103001127 Hex head screw (86103001127)
31. 6209114230 Flange nut (86209114230)
32. 1382421260 GUIDE BRACKET BL 1,50X25,0X135,0 (81382421260)
33. 6103015675 Hex head screw (86103015675)
34. 7014140071 LATCH SCHMAL (87014140071)
35. 6302085941 WAVE SPRING WASHER B 12 VERZ. (86302085941)
36. 6103041013 HEXAGON HEAD SCREW M 6X10 VERZ.FLECKBESC (86103041013)
37. 6110082701 CUP SQUARE NECK SCREW M 8X100 VERZ. (86110082701)
38. 9132081414 BRUSH STRIP (89132081414)
39. 6442084643 SPACER SLEEVE RD 10,7/8,5X50 VERZ. (86442084643)
40. 6103001135 Hex head screw (86103001135)
41. 6300016365 Washer (86300016365)
42. 6110017942 Truss head screw (86110017942)
43. 1383421370 BLADE GUIDE TUBE EXTRUSION 360 MM (81383421370)
44. 1382083667 BOLT GUIDE BL 1,5X22X60 (81382083667)
45. 1482071003 PIN GUIDE SEAT FL 20X5X44 (81482071003)
46. 1382421341 GUIDE PLATE BL 2X16X53,5 (81382421341)
47. 1381421259 LATERAL SLIDE 45X95 (81381421259)
48. 2380113662 PIPE ADAPTOR (82380113662)
49. 6172001830 Fillister head screw (86172001830)
50. 6202002291 HEXAGON NUT, PREV. TORQUE TYPE (86202002291)
51. 1009018022 THREE-ROLLER GUIDE SCHIEBEROHRPROFIL (81009018022)
52. 1009010935 THRUST BEARING ET (81009010935)
53. 1009010951 THRUST BEARING, HEAVY-DUTY DREIROLLENF. (81009010951)
54. 7006072385 Clamping lever (87006072385)
55. 1381053489 CONNECTOR RD 100 SPA 1000 (81381053489)
56. 1381404400 TABLE INSERT RD 70X5 SCHMALER SCHLITZ (81381404400)
57. 1381404419 TABLE INSERT RD 70X5 BREITER SCHLITZ (81381404419)
58. 1380421212 BANDSAW TABLE 400X548 ET (81380421212)
59. 1141086363 ADHESIVE LABEL WHITE/BLACK 270X195 SKALA (81141086363)
60. 1383421388 GUIDE EXTRUSION 548 MM (81383421388)
61. 6304001745 Serrated lock washer (86304001745)
62. 6150421509 THUMB SCREW RED M 8X18 (86150421509)
63. 2380414310 TABLE TRUNNION, UPPER F?R MONTAGE M. SK (82380414310)
64. 6300016322 Washer (86300016322)
65. 6103001186 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186)
66. 1393005307 FENCE EXTRUSION 450 MM (81393005307)
67. 6110000616 CUP SQUARE NECK SCREW M 6X40 VERZ. (86110000616)
68. 1380081896 FENCE GUIDE 145X130X98 L?NGS (81380081896)
69. 6305002087 Washer (86305002087)
70. 6241125058 Knurled nut (86241125058)
71. 7001087775 STARKNOB SCREW RD40/M6X28 (DIN 933) VERZ (87001087775)
72. 6110080245 CUP SQUARE NECK SCREW M 8X50 VERZ. (86110080245)
73. 6103001208 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208)
74. 1381092115 GLIDE SEGMENT 20,5X20,5X8 TISCHVERSTELLU (81381092115)
75. 2380414301 TABLE TRUNNION, LOWER F?R MONTAGE M. SK (82380414301)
76. 6172028215 Fillister head screw (86172028215)
77. 1142414291 Angle Scale
78. 1381666324 CHIP CASE ET (81381666324)
79. 1485400172 SLIDING BOLT RD 30X47 (81485400172)
80. 7100086764 DEEP GROOVE BALL BEARING 12X28X8 6001-2Z (87100086764)
81. 1485400180 TENSION ROLLER RD 35X28 (81485400180)
82. 6400009935 RETAINING RING FOR SHAFTS (86400009935)
83. 1382666301 SAFETY LEVER ET (81382666301)
84. 6307128940 WASHER R 6,6 VERZ. (86307128940)
86. 1485051518 BEARING SHAFT RD 25X124 UNTEN (81485051518)
87. 1382052818 PILOT PIN 6,9X5,9X35 (81382052818)
88. 6143071144 KNURLED THUMB SCREW M 6X25 VERZ. (86143071144)
89. 1009003602 MOTOR, BANDSAW BAS 0,74 WNB 1X230 V (81009003602)
90. 6161050910 HEX. SOCKET SET SCREW, FLAT PT M 6X12 VE (86161050910)
91. 1380044990 GUIDE SUPPORT (81380044990)
92. 1009009570 PILOT PIN GUIDE (81009009570)
93. 1382666387 SAWBAND GUARD ET (81382666387)
94. 6205084779 HEXAGON THIN NUT (86205084779)
95. 1482666317 SPANNER SCHAFT ET (81482666317)
96. 7000074122 STARKNOB NUT M 10 / RD 63 VERZINKT (87000074122)
97. 6300016349 MEDIUM WASHER (86300016349)
99. 6200046208 HEXAGON NUT M 20X1,5 VERZ. (86200046208)
100. 6304084047 Serrated lock washer (86304084047)
101. 1380421352 BANDSAW WHEEL, LOWER (81380421352)
102. 7240419429 POLY-RIB PULLEY 4JX62 / RDA 62X47,5 RDI (87240419429)
103. 7233190017 POLY-RIB BELT 4 PJ 610 (87233190017)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
BAS 316 G WNB - 0090431609 10
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo BAS 316 G WNB

Diagram Metabo BAS 316 G WNB

Download (440.68KB)

You might also like

Metabo SKU: 7233190017
Belt for Band Saw Metabo BAS 317 Precision DNB Genuine Spare Parts Metabo, Belt 4 PJ 610 for Band Saw Metabo BAS 317 Precision DNB. Parts for the following products: -  Band Saw Metabo BAS 317 Precision DNB - 0090317100...
on 7/10 Business Days Approx €21.46
Metabo SKU: 009.031.7100
Band Saw Metabo BAS 317 DNB Features: - High precision and stability for professional use - Two cutting speeds for various applications and materials - Quick-clamping lever for changing the blade, and to transform the machine into a...
Last items in stock €704.62
Metabo SKU: 1009719829
Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB Genuine Spare Part Metabo, Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB - WNB - BAS 505 Precision DNB - WNB.  Parts for the following...
on 7/10 Business Days Approx. €12.01
Metabo SKU: 6161050910
Hex Socket Screw M6X12 for Band Saw Metabo BAS 505 Precision WNB Metabo Original replacement part, Hex Socket Screw, Flat PT M 6X12 VE for Band Saws BAS 505 Precision WNB - DNB - BAS 250 - BAS 316 G...
on 7/10 Business Days Approx €1.81
Metabo SKU: 1381404400
Metabo BAS 316 G WNB Table Insert Genuine Spare Parts Metabo, Work Table Insert RD 70X5 SCHMALER SCHLITZ (81381404400) for Wood Band Saw Metabo BAS 316 G WNB. Parts for the following products: -  Band Saw BAS 316 G WNB -...
Last items in stock €3.21
Comments (0)
