Metabo Spare Parts for Angle Grinder WE 9-125 SP

SKU: Metabo WE 9-125 SP - 00924001
€12.25
VAT included

Metabo Spare Parts for Angle Grinder WE 9-125 SP

Metabo Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Angle Grinder WE 9-125 SP - 00924001.
Metabo Spare Parts for Angle Grinder WE 9-125 SP
  • Metabo Spare Parts for Angle Grinder WE 9-125 SP
  • Metabo Spare Parts for Angle Grinder WE 9-125 SP
Metabo

Metabo Spare Parts for Angle Grinder WE 9-125 SP

SKU: Metabo WE 9-125 SP - 00924001 Condition: New
€12.25
VAT included

Metabo Spare Parts for Angle Grinder WE 9-125 SP

Metabo Original spare parts sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Angle Grinder WE 9-125 SP - 00924001.
settings 48 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
48 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

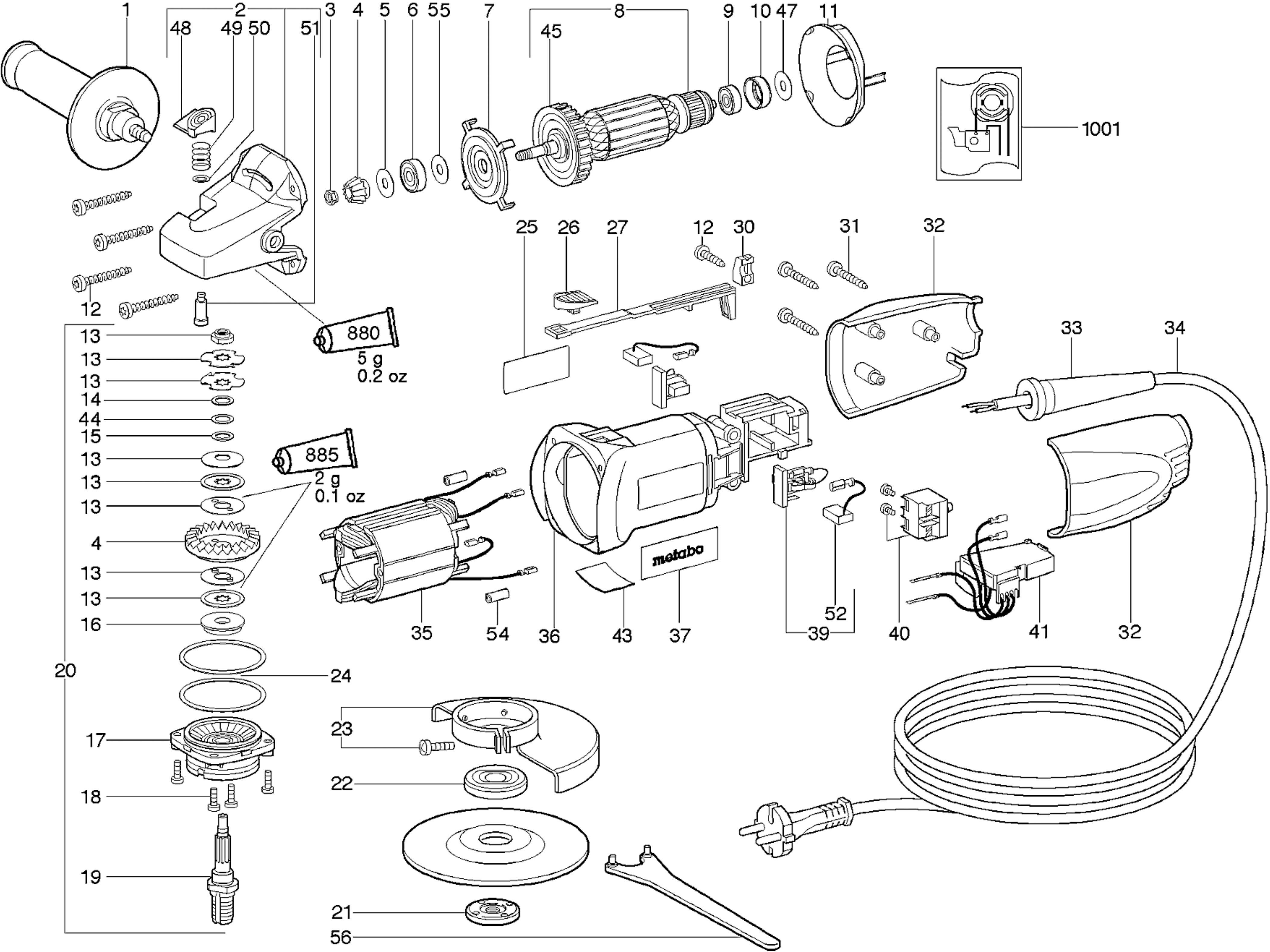

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31400054 Handle cpl. €12.25
2
 photo_cameraImage coming soon 31602931 Gear housing cpl. €51.70
3
 photo_cameraImage coming soon 34110094 Hexagon nut w.recess €2.02
4
 Crown and Pinion for Angle Grinder Metabo W 7-115 31602947 Crown and Pinion for Angle Grinder Metabo W 7-115 €34.71
5
 photo_cameraImage coming soon 33900681 Washer €1.26
6
 photo_cameraImage coming soon 14311518 Ball bearing,8x22x7 €3.92
7
 Armature Front Cover for Angle Grinder Metabo W 7-115 34337367 Armature Front Cover for Angle Grinder Metabo W 7-115 €2.75
8
 photo_cameraImage coming soon 31000772 Armature cpl. 230 V El €107.62
9
 Ball Bearing 6x19x6 mm for Angle Grinders Metabo W 7-8-9-115 14311517 Ball Bearing 6x19x6 mm for Angle Grinders Metabo W 7-8-9-115 €7.95
10
 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm 34409526 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm €2.08
11
 photo_cameraImage coming soon 33915088 Baffle €1.46
12
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
13
 photo_cameraImage coming soon 31602948 Friction washer cpl. €12.08
14
 photo_cameraImage coming soon 14115392 Washer 10,2 X 14,8X 0,5 €1.79
15
 photo_cameraImage coming soon 14115112 Washer 10,2 X 14,8X 0,2 €1.74
16
 photo_cameraImage coming soon 34105148 Intermediate piece €2.30
17
 photo_cameraImage coming soon 34337721 Flange complete €12.08
18
 photo_cameraImage coming soon 14111986 Fillister head screw €1.79
19
 photo_cameraImage coming soon 34116103 Spindle shaft €23.80
20
 photo_cameraImage coming soon 31603926 Veiligheidskoppeling,230v-900w €65.90
21
 photo_cameraImage coming soon 34110690 Flange nut €9.91
22
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
23
 photo_cameraImage coming soon 31603571 Wheel guard cpl. €27.92
24
 photo_cameraImage coming soon 33906016 Compensating Washer €1.82
26
 photo_cameraImage coming soon 34339418 Switch slide €1.65
27
 photo_cameraImage coming soon 34337364 Switch rod €1.79
30
 photo_cameraImage coming soon 34336249 Cable clip €2.02
31
 photo_cameraImage coming soon 14111699 Self-tap. fill. h. screw €1.98
33
 photo_cameraImage coming soon 34410097 Cable sleeve €1.79
34
 photo_cameraImage coming soon 34449318 Cable with plug €23.87
35
 photo_cameraImage coming soon 31101023 Field coil assembly w.field coil,230V €47.85
36
 photo_cameraImage coming soon 31501262 Motor housing €13.08
37
 photo_cameraImage coming soon 33812216 M-Label,08 52x22 €1.74
39
 photo_cameraImage coming soon 31603548 Brush holder cpl. €12.08
40
 Switch for Angle Grinder Metabo W 7-115 34340673 Switch for Angle Grinder Metabo W 7-115 €20.55
44
 photo_cameraImage coming soon 14115230 Washer 10,2 X 14,8X 0,1 €1.91
45
 Fan with Dust Protection for Angle Grinder Metabo W 7-115 31603121 Fan with Dust Protection for Angle Grinder Metabo W 7-115 €13.14
47
 photo_cameraImage coming soon 14115334 Washer €6.12
48
 photo_cameraImage coming soon 34337372 Push button black €1.48
49
 photo_cameraImage coming soon 34200155 Pressure spring €1.59
50
 photo_cameraImage coming soon 33900652 Sealing washer €1.59
51
 photo_cameraImage coming soon 34151379 Bolt €3.85
52
 Carbon Brushes for Angle Grinder Metabo W 7-115 31603551 Carbon Brushes for Angle Grinder Metabo W 7-115 €19.80
54
 photo_cameraImage coming soon 34409692 Shrink hose €1.46
55
 photo_cameraImage coming soon 33913228 Washer €1.59
56
 photo_cameraImage coming soon 34416392 Pin spanner €5.32
880
 photo_cameraImage coming soon 34413084 Special grease 100Gr 3,6oz €14.81
885
 photo_cameraImage coming soon 34413056 Grease SF 011 50Gr 1,8oz €37.66

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Angle Grinder WE 9-125 SP

Metabo Original spare parts

 sourced from the manufacturer, at the lowest price on the web, with after-sales service, for to make maintenance or repair broken parts for Angle Grinder WE 9-125 SP - 00924001.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Metabo WE 9-125 SP - 00924001

Angle Grinder Metabo WE 9-125 SP - 00924001
# Part Num. Description
1 31400054 Handle cpl.
2 31602931 Gear housing cpl.
3 34110094 Hexagon nut w.recess
4 31602947 Bevel gear
5 33900681 Washer
6 14311518 Ball bearing,8x22x7
7 34337367 Cover
8 31000772 Armature cpl. 230 V El
9 14311517 Ball bearing,6x19x6
10 34409526 Rubber bushing
11 33915088 Baffle
12 14111602 Self-tap fill h screw
13 31602948 Friction washer cpl.
14 14115392 Washer 10,2 X 14,8X 0,5
15 14115112 Washer 10,2 X 14,8X 0,2
16 34105148 Intermediate piece
17 34337721 Flange complete
18 14111986 Fillister head screw
19 34116103 Spindle shaft
20 31603926 Veiligheidskoppeling,230v-900w
21 34110690 Flange nut
22 34103116 Clamping flange
23 31603571 Wheel guard cpl.
24 33906016 Compensating Washer
25 33804638 No longer available
26 34339418 Switch slide
27 34337364 Switch rod
30 34336249 Cable clip
31 14111699 Self-tap. fill. h. screw
32 34337368 No longer available
33 34410097 Cable sleeve
34 34449318 Cable with plug
35 31101023 Field coil assembly w.field coil,230V
36 31501262 Motor housing
37 33812216 M-Label,08 52x22
39 31603548 Brush holder cpl.
40 34340673 Switch
41 34308024 No longer available
43 39999999 No longer available
44 14115230 Washer 10,2 X 14,8X 0,1
45 31603121 Fan w. prot. Grid
47 14115334 Washer
48 34337372 Push button black
49 34200155 Pressure spring
50 33900652 Sealing washer
51 34151379 Bolt
52 31603551 Carbon brush set
54 34409692 Shrink hose
55 33913228 Washer
56 34416392 Pin spanner
880 34413084 Special grease 100Gr 3,6oz
885 34413056 Grease SF 011 50Gr 1,8oz
