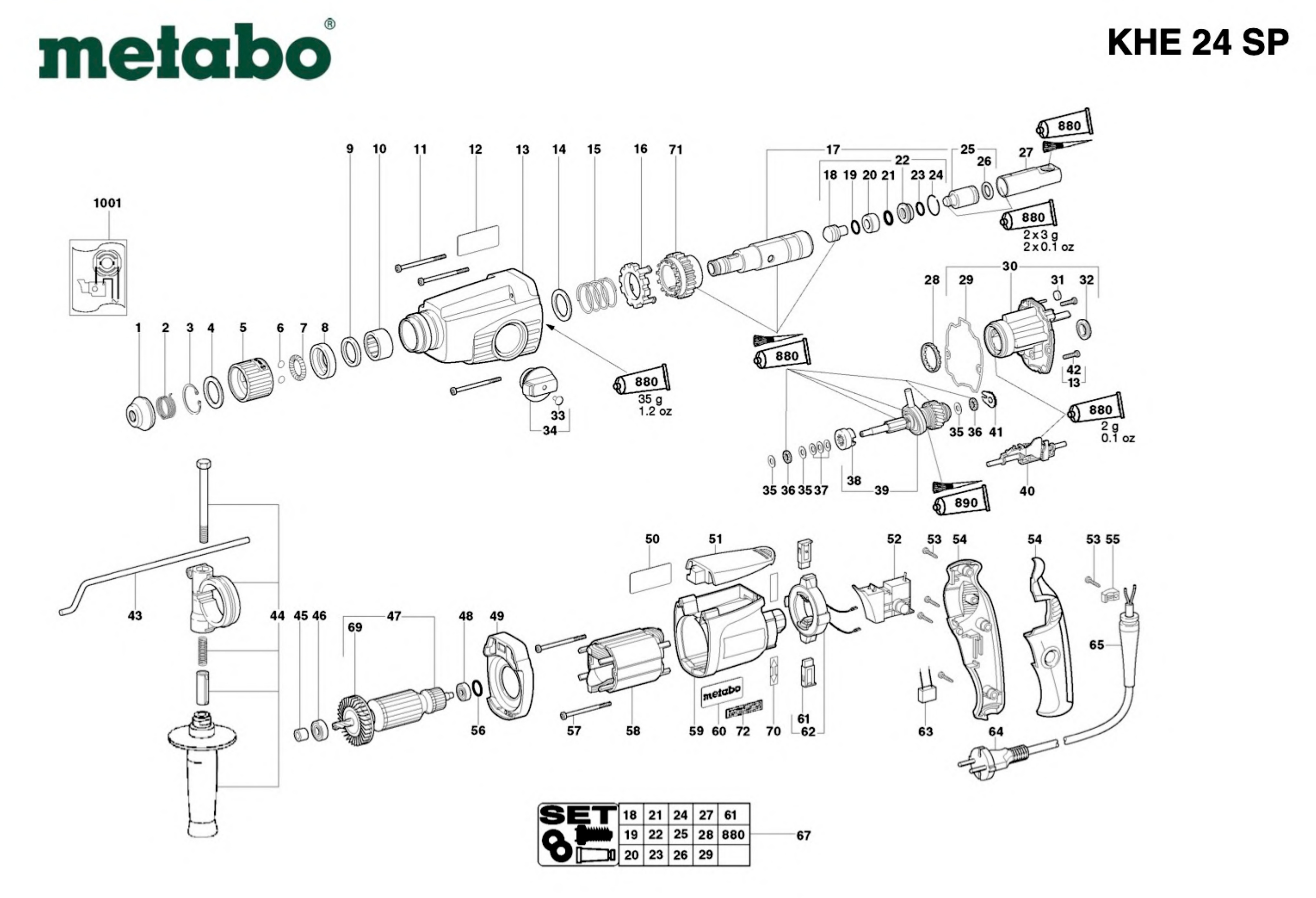

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 34343009 Rubber cap €2.29
2
 Torsion Spring for Rotary Hammer Metabo BH E 6020 S 34202104 Torsion Spring for Rotary Hammer Metabo BH E 6020 S €1.94
3
 photo_cameraImage coming soon 14115546 Retaining ring €1.50
4
 photo_cameraImage coming soon 14115547 Washer €1.40
5
 photo_cameraImage coming soon 34337455 Adjusting Ring €5.58
6
 Steel Ball for Rotary Hammer Metabo BH E 6020 S 14312032 Steel Ball for Rotary Hammer Metabo BH E 6020 S €1.73
7
 Tension-Spring Ring for Rotary Hammer Metabo BH E 6020 S 34200156 Tension-Spring Ring for Rotary Hammer Metabo BH E 6020 S €3.57
8
 photo_cameraImage coming soon 34336169 Spacer Ring €1.63
9
 photo_cameraImage coming soon 14319491 Shaft sealing ring €1.74
10
 photo_cameraImage coming soon 14311383 Needle sleeve €19.99
11
 photo_cameraImage coming soon 14112249 Self-tap. fill. h. screw €1.75
12
 photo_cameraImage coming soon 33811449 Indication Label €1.74
13
 photo_cameraImage coming soon 31603185 Gear Housing Cpl. €72.34
14
 photo_cameraImage coming soon 14115375 Supporting disc €1.76
15
 Gear Case Spring for Rotary Hammer Metabo UHE 20 34200269 Gear Case Spring for Rotary Hammer Metabo UHE 20 €6.96
16
 photo_cameraImage coming soon 34337444 Retaining ring €1.56
17
 photo_cameraImage coming soon 31603521 Drill Driving Sleeve Cpl. €94.34
18
 photo_cameraImage coming soon 31603189 Intermediate Striker Cpl. €10.59
19
 photo_cameraImage coming soon 14319240 O-ring €1.76
20
 photo_cameraImage coming soon 34101261 Supporting Ring €3.38
21
 photo_cameraImage coming soon 14319391 O-ring €1.74
22
 photo_cameraImage coming soon 31603194 Catching Sleeve Cpl. €18.66
23
 photo_cameraImage coming soon 14319392 O-ring €5.95
24
 photo_cameraImage coming soon 14118184 Circlip €1.81
25
 photo_cameraImage coming soon 31604079 Striker cpl. €14.48
26
 photo_cameraImage coming soon 34409314 Sealing ring €5.17
27
 photo_cameraImage coming soon 34105816 Exciter sleeve compl. €19.12
28
 photo_cameraImage coming soon 32005048 Ball holder €3.49
29
 photo_cameraImage coming soon 34409557 Seal €1.74
30
 photo_cameraImage coming soon 31603054 Gear flange cpl. €52.48
31
 photo_cameraImage coming soon 34407067 Felt seal €1.81
32
 photo_cameraImage coming soon 34409592 Rubber buffer €1.81
33
 Control Knob Hole Cover for Rotary Hammer Metabo KHE 22 SP 34337675 Control Knob Hole Cover for Rotary Hammer Metabo KHE 22 SP €1.93
34
 Control Knob Complete for Rotary Hammer Metabo KHE 22 SP 31603264 Control Knob Complete for Rotary Hammer Metabo KHE 22 SP €16.59
35
 photo_cameraImage coming soon 33912961 Washer €1.81
36
 Axial Needle Bearing for Rotary Hammer Metabo UHE 28 Plus 14311428 Axial Needle Bearing for Rotary Hammer Metabo UHE 28 Plus €6.71
37
 photo_cameraImage coming soon 14115492 Cup spring €1.77
38
 photo_cameraImage coming soon 34000322 Coupling Sleeve €7.17
39
 photo_cameraImage coming soon 31603488 Intermediate Gear Cpl. €106.36
40
 Metabo KHE 22 SP Switch Element 31603137 Metabo KHE 22 SP Switch Element €12.56
41
 photo_cameraImage coming soon 33913098 Butting sheet €1.56
42
 photo_cameraImage coming soon 14111944 Fill. head screw(DIN 7985) €1.65
43
 Deth Rod for Rotary Hammer Metabo BH E 6020 S 34151163 Deth Rod for Rotary Hammer Metabo BH E 6020 S €5.00
44
 photo_cameraImage coming soon 31400063 Supporting Handle Cpl. €17.90
45
 photo_cameraImage coming soon 34337604 Sealing ring €1.98
46
 photo_cameraImage coming soon 14311488 Ball bearing, 8x22x7 €7.22
47
 photo_cameraImage coming soon 31000812 Armature cpl. 230 V €75.54
48
 photo_cameraImage coming soon 14311475 Ball bearing, 6X 19X 6 €10.30
49
 Intermediate Flange for Rotary Hammer Metabo UHE 20 34337427 Intermediate Flange for Rotary Hammer Metabo UHE 20 €12.41
50
 photo_cameraImage coming soon 33804478 Rating plate €1.43
51
 photo_cameraImage coming soon 34337428 Cover W.O. Electronic €5.86
52
 photo_cameraImage coming soon 34340720 Electronic Switch W/O Wheel €26.55
53
 photo_cameraImage coming soon 14111706 Self-tap. fill. h. screw €1.98
54
 Motor Housing + Grip for Rotary Hammer Metabo UHE 28 Plus 31604106 Motor Housing + Grip for Rotary Hammer Metabo UHE 28 Plus €39.58
55
 photo_cameraImage coming soon 34336249 Cable clip €2.02
56
 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 14319243 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 €1.88
57
 photo_cameraImage coming soon 14111826 Self-tap. fill. h. screw €1.81
58
 photo_cameraImage coming soon 31100980 Field coil 230V €20.77
59
 photo_cameraImage coming soon 31501265 Motor housing €14.48
60
 photo_cameraImage coming soon 33812216 M-Label,08 52x22 €1.74
62
 Metabo KHE22SP Brush Holder Assy 31602810 Metabo KHE22SP Brush Holder Assy €26.02
63
 Metabo SBE 705 Nois Suppressor 34325378 Metabo SBE 705 Nois Suppressor €4.93
64
 Cord CEE Plug for Rotary Hammer Metabo UHE 2250 Multi 34448673 Cord CEE Plug for Rotary Hammer Metabo UHE 2250 Multi €22.87
65
 photo_cameraImage coming soon 34410114 Cable sleeve €2.55
67
 photo_cameraImage coming soon 31604100 Maintenance kit €107.44
69
 photo_cameraImage coming soon 31603573 Fan W. Prot. Grid €5.86
70
 photo_cameraImage coming soon 33811541 Indication label €1.58
71
 Sliding Sleeve Complete for Rotary Hammer Metabo KHE 22 SP 31603150 Sliding Sleeve Complete for Rotary Hammer Metabo KHE 22 SP €27.77
880
 Grease Tube GF 126 for All Metabo Power Tools 34413080 Grease Tube GF 126 for All Metabo Power Tools €22.39
890
 photo_cameraImage coming soon 34413056 Grease SF 011 50Gr 1,8oz €37.66

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Rotary Hammer Drill KHE 24 SP

Metabo Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer Drill Metabo KHE 24 SP - 00230001.

Open PDF file in this page to see all spare parts for Rotary Hammer Drill Metabo KHE 24 SP
Metabo KHE 24 SP - 00230001
Rotary Hammer Drill KHE 24 SP/00230001
# Part Num. Description
1 34343009 Rubber cap
2 34202104 Torsion spring
3 14115546 Retaining ring
4 14115547 Washer
5 34337455 Adjusting ring
6 14312032 Ball
7 34200156 Tension-spring ring
8 34336169 Spacer ring
9 14319491 Shaft sealing ring
10 14311383 Needle sleeve
11 14112249 Self-tap. fill. h. screw
12 33811449 Indication label
13 31603185 Gear housing cpl.
14 14115375 Supporting disc
15 34200269 Pressure spring
16 34337444 Retaining ring
17 31603521 Drill driving sleeve cpl.
18 31603189 Intermediate striker cpl.
19 14319240 O-ring
20 34101261 Supporting ring
21 14319391 O-ring
22 31603194 Catching sleeve cpl.
23 14319392 O-ring
24 14118184 Circlip
25 31604079 Striker cpl.
26 34409314 Sealing ring
27 34105816 Exciter sleeve compl.
28 32005048 Ball holder
29 34409557 Seal
30 31603054 Gear flange cpl.
31 34407067 Felt seal
32 34409592 Rubber buffer
33 34337675 Seal
34 31603264 Control knob cpl.
35 33912961 Washer
36 14311428 Axial needle bearing
37 14115492 Cup spring
38 34000322 Coupling sleeve
39 31603488 Intermediate gear cpl.
40 31603137
 Switch element
41 33913098 Butting sheet
42 14111944 Fill. head screw(DIN 7985)
43 34151163 Depth stop rod
44 31400063 Supporting handle cpl.
45 34337604 Sealing ring
46 14311488 Ball bearing, 8x22x7
47 31000812 Armature cpl. 230 V
48 14311475 Ball bearing, 6X 19X 6
49 34337427 Intermediate flange
50 33804478 Rating plate
51 34337428 Cover w.o. electronic
52 34340720 Electronic switch w/o wheel
53 14111706 Self-tap. fill. h. screw
54 31604106 Drill Handle w/overmold green
55 34336249 Cable clip
56 14319243 O-ring
57 14111826 Self-tap. fill. h. screw
58 31100980 Field coil 230V
59 31501265 Motor housing
60 33812216 M-Label,08 52x22
61 31603455 Brush set 230V/120V
62 31602810 Brush holder module
63 34325378 Interference suppr. cond.
64 34448673 Cord with plug
65 34410114 Cable sleeve
67 31604100 Maintenance kit
69 31603573 Fan w. prot. Grid
70 33811541 Indication label
71 31603150 Sliding sleeve cpl.
880 34413080 Grease FG 126
890 34413056 Grease SF 011 50Gr 1,8oz
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo KHE24SP - 00230001
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram KHE 24 SP

Diagram KHE 24 SP

Download (157.94KB)

You might also like

Axial Needle Bearing for Rotary Hammer Metabo UHE 28 Plus
Metabo SKU: 14311428
Axial Needle Bearing for Rotary Hammer Metabo UHE 28 Plus
Axial Needle Bearing for Rotary Hammer Metabo UHE 28 Plus Genuine part Metabo, Axial Needle Bearing for Rotary Hammers UHE 28 Plus/00363000 - UHE 28 Multi - KHE 22 SP - 2650 - 2851 Parts for the following products: - Rotary Hammer...
AVAILABLE €6.71
Details
Grease Tube GF 126 for All Metabo Power Tools
Bosch SKU: 34413080
Grease Tube GF 126 for All Metabo Power Tools
Grease Tube GF 126 for All Metabo Power Tools Genuine spare part Metabo, Grease Tube GF 126 for All Metabo Power Tools Part for the following produts: - Suitable for All Metabo Power Tools - Code: 34413080
AVAILABLE €22.39
Details
O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710
Metabo SKU: 14319243
O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710
O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 Metabo genuine spare part, O-Ring mm 1,98x15,08x19,06 for Percussion Drills SB 710 - BE 751 - SBE 850 - SBE 1000 - BE 751 -   BE 1100 - BE 1300 Quick - SBE 1100 Plus. Part...
AVAILABLE €1.88
Details
Gear Case Spring for Rotary Hammer Metabo UHE 20
Metabo SKU: 34200269
Gear Case Spring for Rotary Hammer Metabo UHE 20
Gear Case Spring for Rotary Hammer Metabo UHE 20 Genuine replacement part Metabo, Gear Case Spring for Rotary Hammers UHE 20 - UHE 28 Multi - KHE 22 SP. Parts for the following products: - Rotary Hammer UHE 28 Multi/00361000 - Rotary...
AVAILABLE €6.96
Details
Intermediate Flange for Rotary Hammer Metabo UHE 20
Metabo SKU: 34337427
Intermediate Flange for Rotary Hammer Metabo UHE 20
Intermediate Flange for Rotary Hammer Metabo UHE 20 Genuine replacement part Metabo, Intermediate Flange for Rotary Hammers UHE 20 - UHE 28 Multi - KHE 22 SP - UHE 28 Plus. Parts for the following products: - Rotary Hammer UHE 28...
AVAILABLE €12.41
Details
Sliding Sleeve Complete for Rotary Hammer Metabo KHE 22 SP
Metabo SKU: 31603150
Sliding Sleeve Complete for Rotary Hammer Metabo KHE 22 SP
Sliding Sleeve Complete for Rotary Hammer Metabo KHE 22 SP Original Spare Part Metabo, Sliding Sleeve Complete for Rotary Hammers KHE 22 SP - KHE 28 SP. Part for the following products: -...
Usually Ships in: 7/10 Business Days Approx. €27.77
Details
Cord CEE Plug for Rotary Hammer Metabo UHE 2250 Multi
Metabo SKU: 34448673
Cord CEE Plug for Rotary Hammer Metabo UHE 2250 Multi
Cord CEE Plug for Rotary Hammer Metabo UHE 2250 Multi Original Spare Part Metabo, Power Cord with CEE Plug 2x1  4,5 mt for Rotary Hammers UHE 2250 Multi - UHE 2850 Multi - UHE 20 - UHE 28 Plus. Part for the following products: -...
on 7/10 Business Days Approx €22.87
Details
Motor Housing + Grip for Rotary Hammer Metabo UHE 28 Plus
Metabo SKU: 31604106
Motor Housing + Grip for Rotary Hammer Metabo UHE 28 Plus
Motor Housing + Grip for Rotary Hammer Metabo UHE 28 Plus Genuine part Metabo, Motor Housing + Grip for Rotary Hammers UHE 28 Plus - UHE 28 Multi - KHE 28 SP - KHE 24 SP.  Parts for the following products: -  Rotary Hammer UHE 28 Plus...
on 7/10 Business Days Approx €39.58
Details
Torsion Spring for Rotary Hammer Metabo BH E 6020 S
Metabo SKU: 34202104
Torsion Spring for Rotary Hammer Metabo BH E 6020 S
Torsion Spring for Rotary Hammer Metabo BH E 6020 S Genuine part Metabo, Torsion Spring for Rotary Hammers BH E 6020 S R+L - BH E 6024 S - R+L.  Parts for the following products: -  Rotary...
on 7/10 Business Days Approx €1.94
Details
Tension-Spring Ring for Rotary Hammer Metabo BH E 6020 S
Metabo SKU: 34200156
Tension-Spring Ring for Rotary Hammer Metabo BH E 6020 S
Tension-Spring Ring for Rotary Hammer Metabo BH E 6020 S Genuine part Metabo, Tension-Spring Ring for Rotary Hammers BH E 6020 S R+L - BH E 6024 S - R+L.  Parts for the following products: -  Rotary Hammer Metabo BH E 6020 S R+L -...
on 7/10 Business Days Approx €3.57
Details
Deth Stop for Rotary Hammer Metabo BH E 6020 S
Metabo SKU: 34151163
Deth Rod for Rotary Hammer Metabo BH E 6020 S
Deth Rod for Rotary Hammer Metabo BH E 6020 S Genuine part Metabo, Deth Stop Rod for Rotary Hammers BH E 6020 S R+L - BH E 6024 S - R+L.  Parts for the following products: -  Rotary Hammer Metabo BH E 6020 S R+L -  Rotary Hammer...
on 7/10 Business Days Approx €5.00
Details
Steel Ball for Rotary Hammer Metabo BH E 6020 S
Metabo SKU: 14312032
Steel Ball for Rotary Hammer Metabo BH E 6020 S
Steel Ball for Rotary Hammer Metabo BH E 6020 S Genuine part Metabo, Steel Ball mm 7.02 for Rotary Hammers BH E 6020 S R+L - BH E 6024 S - R+L.  Parts for the following products: -  Rotary...
on 7/10 Business Days Approx €1.73
Details
Metabo SBE 705 Nois Suppressor
Metabo SKU: 34325378
Metabo SBE 705 Nois Suppressor
Metabo Percussion Drill SBE 705 Nois Suppressor Capacitor Genuine Spare Parts Metabo, Nois Suppressor Capacitor for Percussion Drill SBE 705 - Rotary Hammer UHE 20 - . Part for the following products: - Percussion Drill SBE 705 -...
Usually Ships in: 10 Business Days Approx. €4.93
Details
Metabo KHE22SP Brush Holder Assy
Metabo SKU: 31602810
Metabo KHE22SP Brush Holder Assy
Metabo Brush Holder Assembly for Rotary Hammer KHE 22 SP Genuine part Metabo, Brush Holder Assembly for Rotary Hammers KHE 22 SP - UHE 20 - KHE 24 SP - Hammer Drill SBE 705. Parts for the following products: - Metabo KHE 22 SP...
Usually Ships on 7/10 Business Days Approx €26.02
Details
Comments (0)
