Metabo

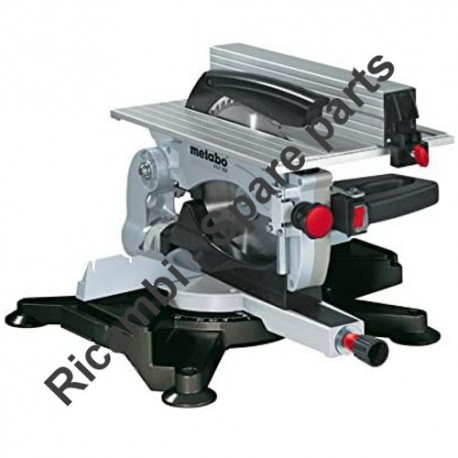

Metabo Spare Parts for Mitre Saw KGT 300

SKU: Metabo KGT300 0103300000 11
€1.66
VAT included

Metabo Spare Parts for Mitre Saw KGT 300

We are Dealers of METABO original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Mitre Saw KGT 300 - 0103300000 11.

Metabo KGT300 0103300000 11
Metabo Spare Parts for Mitre Saw KGT 300
  • Metabo Spare Parts for Mitre Saw KGT 300
  • Metabo Spare Parts for Mitre Saw KGT 300
  • Metabo Spare Parts for Mitre Saw KGT 300
  • Metabo Spare Parts for Mitre Saw KGT 300
  • Metabo Spare Parts for Mitre Saw KGT 300
Metabo

Metabo Spare Parts for Mitre Saw KGT 300

SKU: Metabo KGT300 0103300000 11 Condition: New
€1.66
VAT included

Metabo Spare Parts for Mitre Saw KGT 300

We are Dealers of METABO original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Mitre Saw KGT 300 - 0103300000 11.

Metabo KGT300 0103300000 11
settings 112 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
112 spare parts

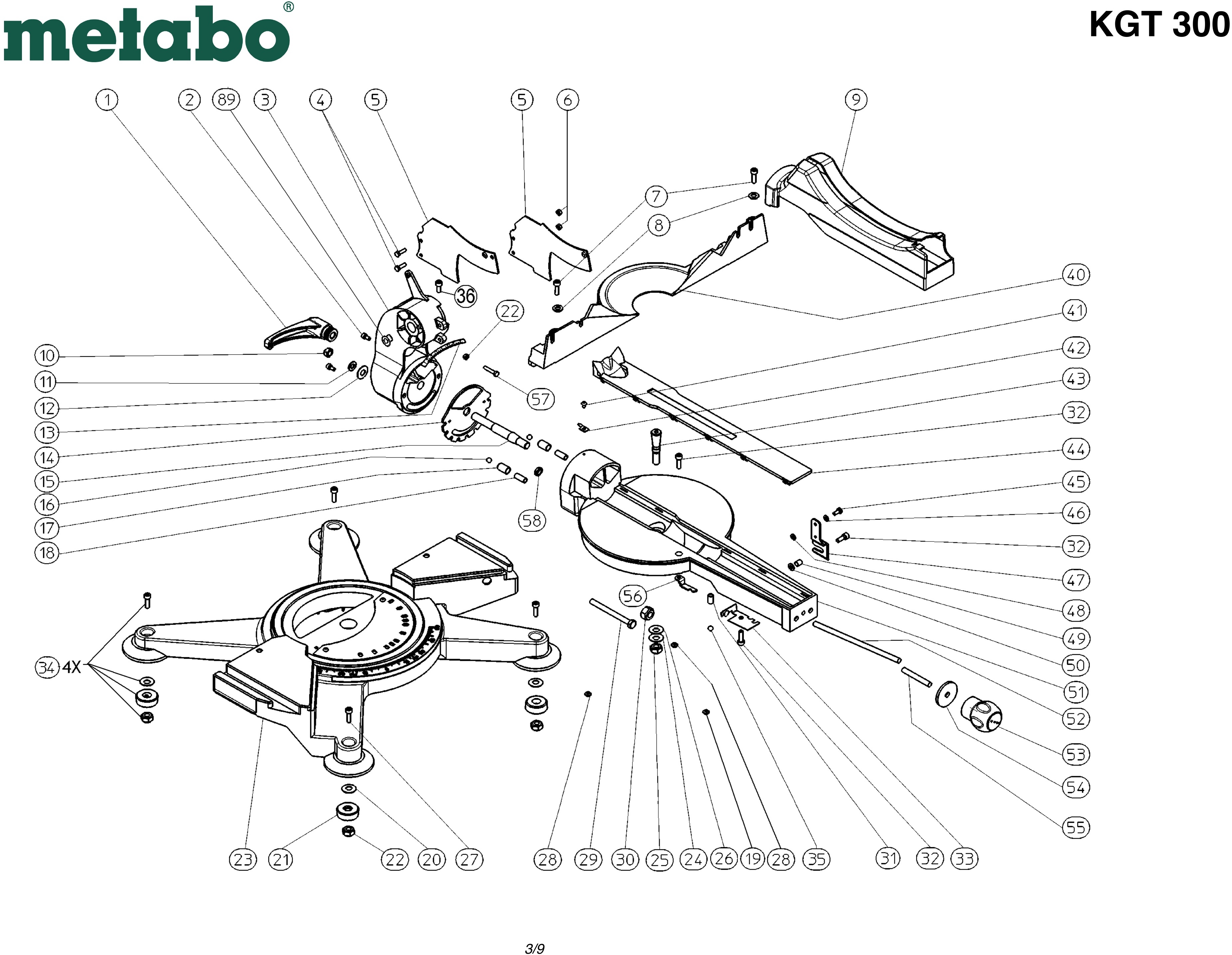

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6121121296 HEXAGON SOCKET HEAD CAP SCREW €1.53
3
 photo_cameraImage coming soon 1380703498 Pivot KGT 300 €132.49
4
 Hex Head Screw M5x16 for Mitre Saw Metabo KGT 300 14111024 Hex Head Screw M5x16 for Mitre Saw Metabo KGT 300 €1.74
5
 Metabo KGT 300 Guard Plate 1382703517 Metabo KGT 300 Guard Plate €19.01 Not available for order
7
 photo_cameraImage coming soon 6143076260 THREAD ROLLING SCREW M 8X35 - ST VERZ./G €2.42
8
 photo_cameraImage coming soon 6306017266 SHIM RING 8X14X1 VERZ. €1.53
9
 photo_cameraImage coming soon 1381704013 SIDE PANEL KGT300 €22.18
10
 photo_cameraImage coming soon 6208073395 CAP NUT, SELF-LOCKING €1.53
11
 photo_cameraImage coming soon 6300686603 SPRING  €1.53
12
 photo_cameraImage coming soon 6305002508 WASHER B 13 VERZ. €1.53
13
 photo_cameraImage coming soon 1142703978 ANGLE SCALE 0,08X7,5X92 48-0-48 GRAD €4.35
14
 photo_cameraImage coming soon 1482683769 SHIM PLATE BL3,00 KGS303 €33.48
15
 photo_cameraImage coming soon 1385681999 Swivel arm bold RD 16,3/M12X122 KGS303 €12.83
16
 photo_cameraImage coming soon 7123148635 STEEL BALL RD 7,938 €1.53
17
 photo_cameraImage coming soon 1485215979 LOCK BOLT €3.65
18
 photo_cameraImage coming soon 7051683751 PRESSURE SPRING RDA=8,5 LO=25,6 8,5 WIND €3.65
19
 photo_cameraImage coming soon 7637712815 SLIDE BUSHING 18X20X22 MIT BUND €4.35
21
 photo_cameraImage coming soon 7057208753 RUBBER FOOT RD 30X17,5 80 SHORE €1.71
22
 photo_cameraImage coming soon 14113010 Hexagonal nut €1.70
23
 photo_cameraImage coming soon 1010712676 TABLE M.JUSTIERBLECH ET KGT 300 €277.21
24
 photo_cameraImage coming soon 14115054 SAUCER SPRING €1.59
25
 photo_cameraImage coming soon 14113203 Hex nut €1.59
26
 photo_cameraImage coming soon 14115005 Washer €1.68
27
 photo_cameraImage coming soon 14111387 Cap screw €1.78
28
 photo_cameraImage coming soon 2391202772 GLIDE PIECE €1.53
29
 photo_cameraImage coming soon 6103122986 HEXAGON HEAD SCREW M 8X85 VERZ. €1.71
30
 photo_cameraImage coming soon 6202024139 HEXAGON NUT, PREV. TORQUE TYPE €1.53
31
 photo_cameraImage coming soon 7051683611 PRESSURE SPRING RDA=8,5 LO=17,7 5,5 WIND €1.53
32
 photo_cameraImage coming soon 6143075247 Cap screw w.internal hexagon €1.71
33
 photo_cameraImage coming soon 1482682029 CLAMPING PLATE BL 2,00X35X68,5 KGS303 €2.42
35
 photo_cameraImage coming soon 7123716854 STEEL BALL RD 12 KGT300 €1.71
36
 photo_cameraImage coming soon 2391203906 PLUG-IN BUFFER €1.53
40
 photo_cameraImage coming soon 1380703960 FENC KGT300 €70.71
41
 photo_cameraImage coming soon 6172028215 SCREW €1.53
42
 photo_cameraImage coming soon 1482681987 ANGLE POINTER BL 1,50X10X21,5 KGS303 €1.71
43
 photo_cameraImage coming soon 1385682006 DREHTELLERBOLZEN KGS303 RD 16/M10X63 €22.54
44
 photo_cameraImage coming soon 1381704005 TABLE INSERT KGT300 €8.60
45
 photo_cameraImage coming soon 6123612815 RAISED CHEESE HEAD SCREW €1.53
46
 photo_cameraImage coming soon 7053711590 CUP SPRING 10X5,2X0,5 FORM A €1.53
47
 photo_cameraImage coming soon 1482711584 LOCKING PLATE BL 2,50X31,5X90 KGT300 €10.01
49
 photo_cameraImage coming soon 6442059304 SPACER SLEEVE €1.53
50
 photo_cameraImage coming soon 14115194 Washer €1.75
51
 Metabo KGT 300 Turntable 1380712713 Metabo KGT 300 Turntable €152.48
52
 photo_cameraImage coming soon 1385682014 CLAMPING ROD RD 8X185,5 KGS303 €3.12
53
 Metabo KGT 300 Knob RED 1388698264 Metabo KGT 300 Knob RED €8.40
55
 photo_cameraImage coming soon 14112446 HEX. SOCKET SET SCREW FLAT PT €1.71
56
 photo_cameraImage coming soon 1482681979 POINTER BL 2,00X12X46 KGS303 €2.42
57
 photo_cameraImage coming soon 14111028 Hexagon Head Screw €1.53
58
 photo_cameraImage coming soon 6205029131 HEXAGON THIN NUT (86205084779) €1.53
60
 photo_cameraImage coming soon 6103703636 HEXAGON HEAD SCREW M 4X12 VERZ. €1.53
61
 photo_cameraImage coming soon 14115011 Washer €1.59
62
 photo_cameraImage coming soon 14111813 Self-tap. fill. h. screw €1.84
63
 photo_cameraImage coming soon 7100083463 DEEP GROOVE BALL BEARING €8.88
64
 photo_cameraImage coming soon 6442706377 SPACER SLEEVE RD 8/6,4X18 VERZ. €1.71
65
 photo_cameraImage coming soon 1381106094 PLUG RD 21,9 €1.53
66
 Cogged Belt for Mitre Saw Metabo KGS 315 Plus 7231703351 Cogged Belt for Mitre Saw Metabo KGS 315 Plus €32.11
67
 photo_cameraImage coming soon 1482681839 Spindle lock €7.01
68
 photo_cameraImage coming soon 7051074232 TENSION SPRING €1.71
70
 photo_cameraImage coming soon 6143661561 FILLISTER HEAD SCREW W.FLANGE €1.62
71
 photo_cameraImage coming soon 14111394 Hexagon Socket Head Cap Screw €1.53
73
 photo_cameraImage coming soon 1010703383 ELECTRIC MOTOR 1,8KW 230/1/50 KGT300 €418.41
74
 photo_cameraImage coming soon 1010712684 RETRACTABLE BLADE GUARD KPL. KGT 300 €56.60
75
 photo_cameraImage coming soon 14115001 Washer €1.59
77
 photo_cameraImage coming soon 1382703622 Zugblech BL 1,50x10x290,5 KGT-300 €5.76
80
 photo_cameraImage coming soon 1385703526 MOTOR HEAD AXLE RD22,8X102,5 /M12 KGT300 €14.06
81
 photo_cameraImage coming soon 1382716961 REIBBLECH KGT 300 RD 72/52,2X1,0 €8.60
82
 photo_cameraImage coming soon 7051703558 TORSION SPRING KGT300 €28.00
83
 photo_cameraImage coming soon 630071433 WASHER 13X26X2,5 VERZINKT €1.53
85
 photo_cameraImage coming soon 14113093 Hexagon Nut, Prev. Torque Type €1.53
86
 photo_cameraImage coming soon 6410178646 SHAFT COLLA A 14 / I-6KT VERZ. €4.35
87
 photo_cameraImage coming soon 6143088225 HEX. HEAD THREAD ROLLING SCREW M 4X8 (GE €1.53
88
 photo_cameraImage coming soon 1382706389 CLAMPING PLATE BL 0,88X13,5X22 KGT300 €11.24
89
 photo_cameraImage coming soon 7637712815 SLIDE BUSHING 18X20X22 MIT BUND €4.35
90
 photo_cameraImage coming soon 34111275 Thumbscrew,M6 x 12 €1.59
91
 photo_cameraImage coming soon 7051711623 PRESSURE Spring €1.62
92
 photo_cameraImage coming soon 6205028046 HEXAGON THIN NUT (86205084779) €1.59
93
 photo_cameraImage coming soon 6143099472 THREAD ROLLING SCREW E M 6X30 - ST VERZ. €1.71
94
 photo_cameraImage coming soon 1380703374 MOTOR CARRIER KGT300 €77.78
95
 Metabo KGT 300 Poly-Rib Belt 7233707699 Metabo KGT 300 Poly-Rib Belt €30.05
97
 Gearbox Enclosure for Mitre Saw Metabo KGT 300 1380703323 Gearbox Enclosure for Mitre Saw Metabo KGT 300 €176.30 Not available for order
100
 photo_cameraImage coming soon 6121703686 HEXAGON SOCKET HEAD CAP SCREW M10X25 LIN €5.07
101
 Metabo KGT 300 Blade Collar Outer 1380703676 Metabo KGT 300 Blade Collar Outer €10.52
103
 photo_cameraImage coming soon 6401041131 CIRCLIP FOR BORE 55X2 €2.42
105
 Retractable Blade Guard for Mitre Saw Metabo KGT 300 1010719441 Retractable Blade Guard for Mitre Saw Metabo KGT 300 €33.10
106
 photo_cameraImage coming soon 14118074 Circlip For Bores €1.53
110
 photo_cameraImage coming soon 1010717252 SAEGEBLATTWELLE KPL. KGT300 €91.90
120
 photo_cameraImage coming soon 6104220876 HEX FIT BOLT €3.30
121
 photo_cameraImage coming soon 1482703581 BOLT BL 2,99X23,5X66 KGT300 €3.65
124
 photo_cameraImage coming soon 14111677 Fillister head screw €1.78
125
 photo_cameraImage coming soon 6172001791 Fillister head screw w. cross head €1.53
127
 photo_cameraImage coming soon 7051074232 TENSION SPRING €1.71
129
 photo_cameraImage coming soon 14113009 Hexagonal nut €1.61
131
 photo_cameraImage coming soon 1381703467 HANDLE KGT300 €14.06
132
 Metabo KGT 300 On/Off Switch 8111703451 Metabo KGT 300 On/Off Switch €30.80
133
 photo_cameraImage coming soon 6186602763 Fillister head screw w.fill. head screw €1.53
139
 Push Stick for Wood Mitre Saw Metabo KGT 305 M 34343318 Push Stick for Wood Mitre Saw Metabo KGT 305 M €8.23
141
 photo_cameraImage coming soon 1482711606 ADAPTOR PLATE BL 4,00X15X40 KGT300 €8.60
142
 photo_cameraImage coming soon 6132661454 HEX.SOCKET COUNTERS.HEAD SCREW €1.53
143
 photo_cameraImage coming soon 1382703479 SPLITTING BLADE KGT300 €8.60
144
 photo_cameraImage coming soon 1010703995 SAW BLADE GUARD ASSEMBLY KGT300 €8.60
145
 photo_cameraImage coming soon 6172075604 CROSS REC'D PAN HEAD TAP.SCREW ST 3,9X16 €1.53
148
 photo_cameraImage coming soon 1482703905 TENSION PLATE BL 0,88X55X95 KGT300 €16.88
149
 photo_cameraImage coming soon 14113101 Hexagonal nut €1.68
150
 photo_cameraImage coming soon 6150669454 THUMB SCREW M 8X40 VERZ. €10.01
153
 photo_cameraImage coming soon 1142703919 SCALE 0,25X10X340,5 10,30-0/0-23,50 CM €3.65
155
 photo_cameraImage coming soon 1385703828 GUIDE BAR RD 14X99 KGT300 €7.01
156
 photo_cameraImage coming soon 1380711571 DISC GUARD KGT300 €70.71
158
 photo_cameraImage coming soon 7637711444 SLIDE BUSHING 14X16X12 MIT BUND €3.12
160
 photo_cameraImage coming soon 1010712692 GEARWHEEL SHAFT KPL. €33.48
164
 photo_cameraImage coming soon 14112447 CROSS REC'D PAN HEAD TAP.SCREW ST 4,2X9, €1.53
165
 photo_cameraImage coming soon 1381720353 PROTECTION COVER KGT300 €8.60
166
 photo_cameraImage coming soon 1485711615 GUIDE BAR RD 10X156 KGT300 €8.60
169
 photo_cameraImage coming soon 1010704142 TABLE ASSEMBLY KGT300 €181.91
170
 Upper Rip Fence for Mitre Saw Metabo KGT 300 1010712706 Upper Rip Fence for Mitre Saw Metabo KGT 300 €111.36

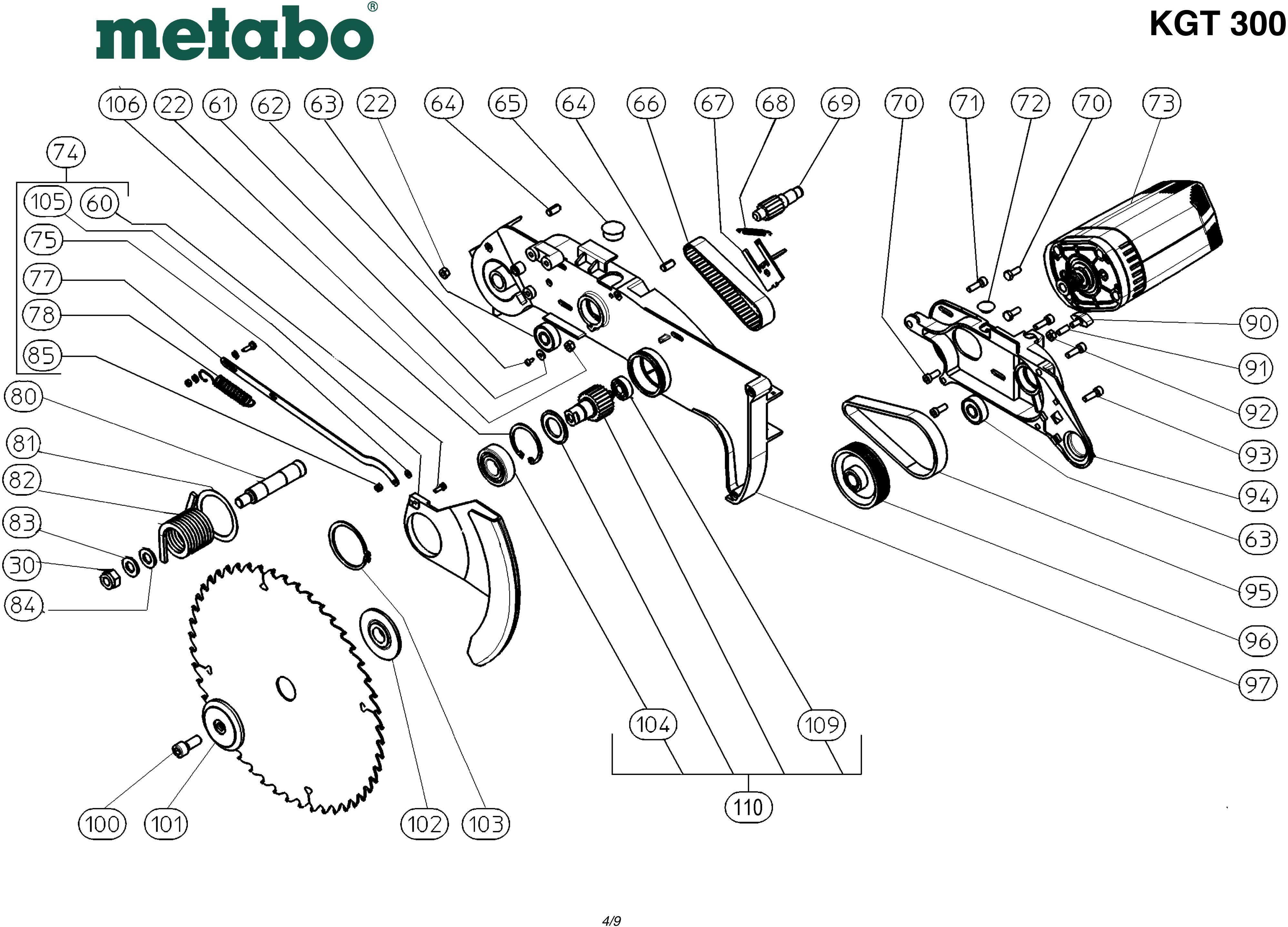

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
60
 photo_cameraImage coming soon 6103703636 HEXAGON HEAD SCREW M 4X12 VERZ. €1.53
61
 photo_cameraImage coming soon 14115011 Washer €1.59
62
 photo_cameraImage coming soon 14111813 Self-tap. fill. h. screw €1.84
63
 photo_cameraImage coming soon 7100083463 DEEP GROOVE BALL BEARING €8.88
64
 photo_cameraImage coming soon 6442706377 SPACER SLEEVE RD 8/6,4X18 VERZ. €1.71
65
 photo_cameraImage coming soon 1381106094 PLUG RD 21,9 €1.53
66
 Cogged Belt for Mitre Saw Metabo KGS 315 Plus 7231703351 Cogged Belt for Mitre Saw Metabo KGS 315 Plus €32.11
67
 photo_cameraImage coming soon 1482681839 Spindle lock €7.01
68
 photo_cameraImage coming soon 7051074232 TENSION SPRING €1.71
70
 photo_cameraImage coming soon 6143661561 FILLISTER HEAD SCREW W.FLANGE €1.62
71
 photo_cameraImage coming soon 14111394 Hexagon Socket Head Cap Screw €1.53
73
 photo_cameraImage coming soon 1010703383 ELECTRIC MOTOR 1,8KW 230/1/50 KGT300 €418.41
74
 photo_cameraImage coming soon 1010712684 RETRACTABLE BLADE GUARD KPL. KGT 300 €56.60
75
 photo_cameraImage coming soon 14115001 Washer €1.59
77
 photo_cameraImage coming soon 1382703622 Zugblech BL 1,50x10x290,5 KGT-300 €5.76
80
 photo_cameraImage coming soon 1385703526 MOTOR HEAD AXLE RD22,8X102,5 /M12 KGT300 €14.06
81
 photo_cameraImage coming soon 1382716961 REIBBLECH KGT 300 RD 72/52,2X1,0 €8.60
82
 photo_cameraImage coming soon 7051703558 TORSION SPRING KGT300 €28.00
83
 photo_cameraImage coming soon 630071433 WASHER 13X26X2,5 VERZINKT €1.53
85
 photo_cameraImage coming soon 14113093 Hexagon Nut, Prev. Torque Type €1.53
90
 photo_cameraImage coming soon 34111275 Thumbscrew,M6 x 12 €1.59
91
 photo_cameraImage coming soon 7051711623 PRESSURE Spring €1.62
92
 photo_cameraImage coming soon 6205028046 HEXAGON THIN NUT (86205084779) €1.59
93
 photo_cameraImage coming soon 6143099472 THREAD ROLLING SCREW E M 6X30 - ST VERZ. €1.71
94
 photo_cameraImage coming soon 1380703374 MOTOR CARRIER KGT300 €77.78
95
 Metabo KGT 300 Poly-Rib Belt 7233707699 Metabo KGT 300 Poly-Rib Belt €30.05
97
 Gearbox Enclosure for Mitre Saw Metabo KGT 300 1380703323 Gearbox Enclosure for Mitre Saw Metabo KGT 300 €176.30 Not available for order
100
 photo_cameraImage coming soon 6121703686 HEXAGON SOCKET HEAD CAP SCREW M10X25 LIN €5.07
101
 Metabo KGT 300 Blade Collar Outer 1380703676 Metabo KGT 300 Blade Collar Outer €10.52
103
 photo_cameraImage coming soon 6401041131 CIRCLIP FOR BORE 55X2 €2.42
105
 Retractable Blade Guard for Mitre Saw Metabo KGT 300 1010719441 Retractable Blade Guard for Mitre Saw Metabo KGT 300 €33.10
106
 photo_cameraImage coming soon 14118074 Circlip For Bores €1.53
110
 photo_cameraImage coming soon 1010717252 SAEGEBLATTWELLE KPL. KGT300 €91.90

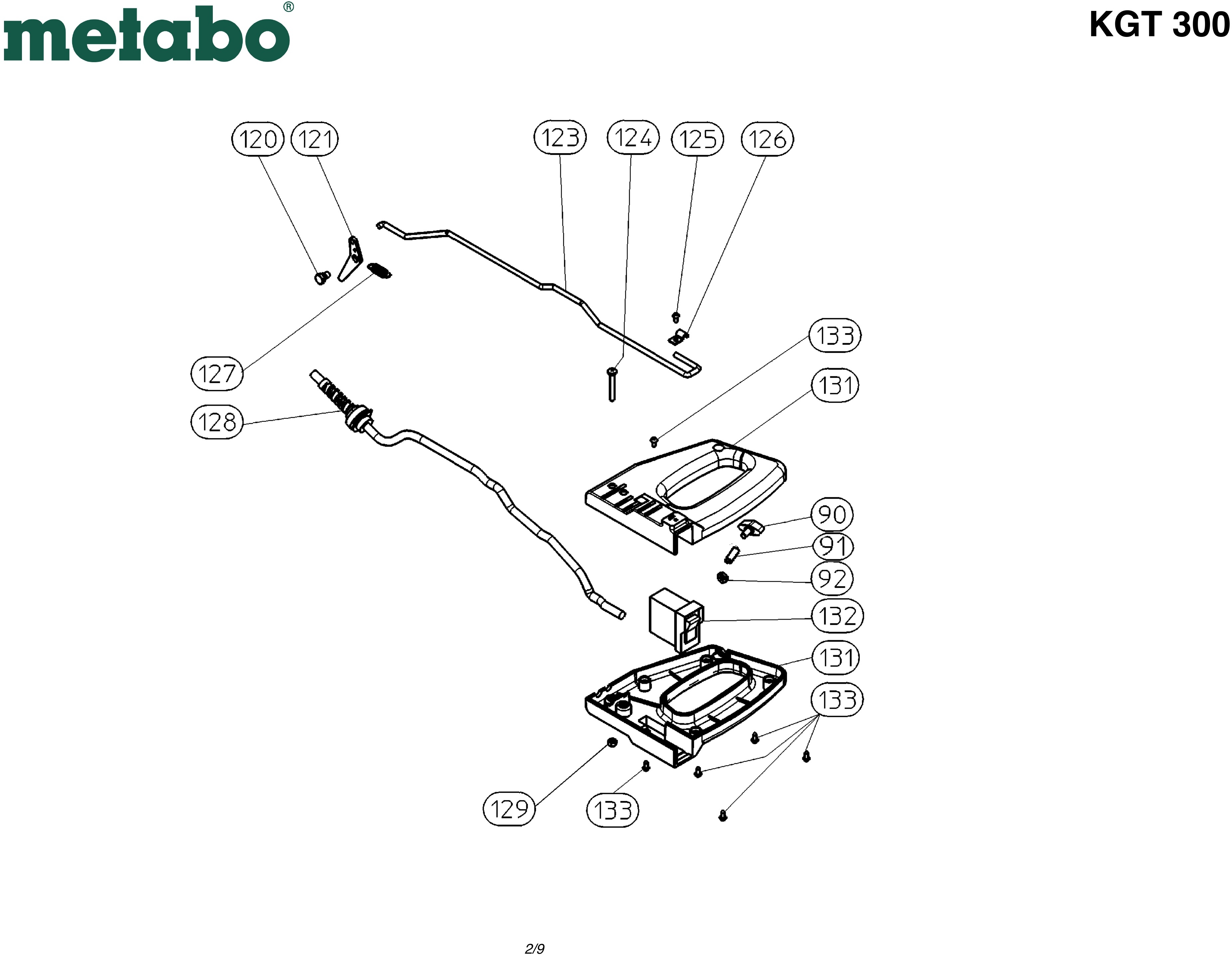

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
120
 photo_cameraImage coming soon 6104220876 HEX FIT BOLT €3.30
121
 photo_cameraImage coming soon 1482703581 BOLT BL 2,99X23,5X66 KGT300 €3.65
124
 photo_cameraImage coming soon 14111677 Fillister head screw €1.78
125
 photo_cameraImage coming soon 6172001791 Fillister head screw w. cross head €1.53
129
 photo_cameraImage coming soon 14113009 Hexagonal nut €1.61
131
 photo_cameraImage coming soon 1381703467 HANDLE KGT300 €14.06
132
 Metabo KGT 300 On/Off Switch 8111703451 Metabo KGT 300 On/Off Switch €30.80
133
 photo_cameraImage coming soon 6186602763 Fillister head screw w.fill. head screw €1.53

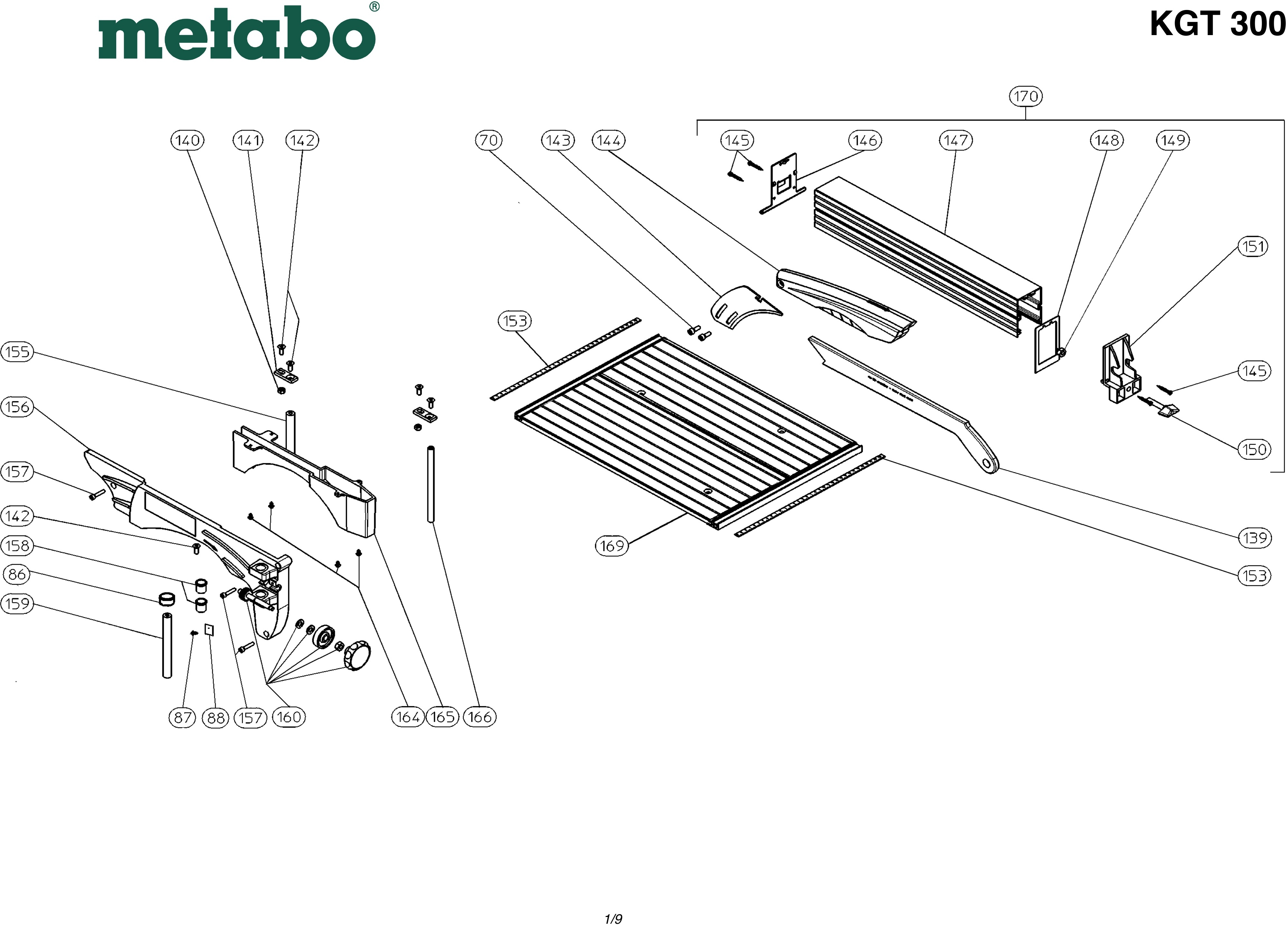

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
86
 photo_cameraImage coming soon 6410178646 SHAFT COLLA A 14 / I-6KT VERZ. €4.35
87
 photo_cameraImage coming soon 6143088225 HEX. HEAD THREAD ROLLING SCREW M 4X8 (GE €1.53
88
 photo_cameraImage coming soon 1382706389 CLAMPING PLATE BL 0,88X13,5X22 KGT300 €11.24
139
 Push Stick for Wood Mitre Saw Metabo KGT 305 M 34343318 Push Stick for Wood Mitre Saw Metabo KGT 305 M €8.23
141
 photo_cameraImage coming soon 1482711606 ADAPTOR PLATE BL 4,00X15X40 KGT300 €8.60
142
 photo_cameraImage coming soon 6132661454 HEX.SOCKET COUNTERS.HEAD SCREW €1.53
143
 photo_cameraImage coming soon 1382703479 SPLITTING BLADE KGT300 €8.60
144
 photo_cameraImage coming soon 1010703995 SAW BLADE GUARD ASSEMBLY KGT300 €8.60
145
 photo_cameraImage coming soon 6172075604 CROSS REC'D PAN HEAD TAP.SCREW ST 3,9X16 €1.53
148
 photo_cameraImage coming soon 1482703905 TENSION PLATE BL 0,88X55X95 KGT300 €16.88
149
 photo_cameraImage coming soon 14113101 Hexagonal nut €1.68
150
 photo_cameraImage coming soon 6150669454 THUMB SCREW M 8X40 VERZ. €10.01
153
 photo_cameraImage coming soon 1142703919 SCALE 0,25X10X340,5 10,30-0/0-23,50 CM €3.65
155
 photo_cameraImage coming soon 1385703828 GUIDE BAR RD 14X99 KGT300 €7.01
156
 photo_cameraImage coming soon 1380711571 DISC GUARD KGT300 €70.71
158
 photo_cameraImage coming soon 7637711444 SLIDE BUSHING 14X16X12 MIT BUND €3.12
160
 photo_cameraImage coming soon 1010712692 GEARWHEEL SHAFT KPL. €33.48
164
 photo_cameraImage coming soon 14112447 CROSS REC'D PAN HEAD TAP.SCREW ST 4,2X9, €1.53
165
 photo_cameraImage coming soon 1381720353 PROTECTION COVER KGT300 €8.60
166
 photo_cameraImage coming soon 1485711615 GUIDE BAR RD 10X156 KGT300 €8.60
169
 photo_cameraImage coming soon 1010704142 TABLE ASSEMBLY KGT300 €181.91
170
 Upper Rip Fence for Mitre Saw Metabo KGT 300 1010712706 Upper Rip Fence for Mitre Saw Metabo KGT 300 €111.36
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

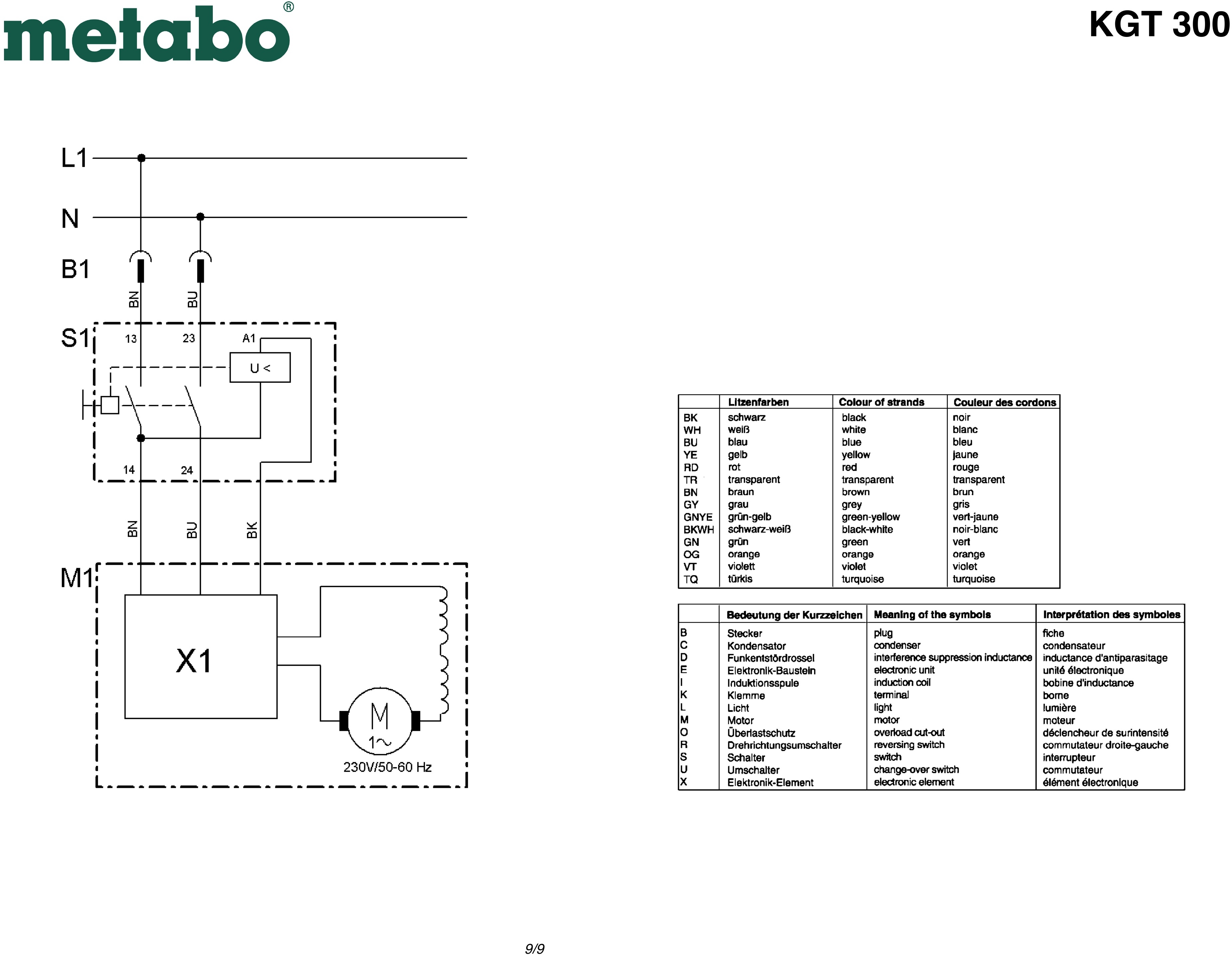

Esploso pagina 5
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Mitre Saw KGT 300

We are Dealers of METABO original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Mitre Saw KGT 300 - 0103300000 11.

In the following table, look for the model of the Miter Saw and the respective parts of the code.
Metabo KGT 300 0103300000 11

Crosscut, Mitre and Table Saw KGT 300, 1800 W/230 V, 0103300000 11
# Part Num. Description
1 700602822 Clamping lever
2 6121121296 HEXAGON SOCKET HEAD CAP SCREW
3 1380703498 Pivot KGT 300
4 14111024 Hexagon Head Screw
5 1382703517 GUARD PLATE BL 2,00X106,8X187,7 KGT300
6 620901846 NUT AND WASHER ASSEMBLY
7 6143076260 THREAD ROLLING SCREW M 8X35 - ST VERZ./G
8 6306017266 SHIM RING 8X14X1 VERZ.
9 1381704013 SIDE PANEL KGT300
10 6208073395 CAP NUT, SELF-LOCKING
11 6300686603 WASHER
12 6305002508 WASHER B 13 VERZ.
13 1142703978 ANGLE SCALE 0,08X7,5X92 48-0-48 GRAD
14 1482683769 SHIM PLATE BL3,00 KGS303
15 1385681999 Swivel arm bold RD 16,3/M12X122 KGS303
16 7123148635 STEEL BALL RD 7,938
17 1485215979 LOCK BOLT
18 7051683751 PRESSURE SPRING RDA=8,5 LO=25,6 8,5 WIND
19 7637712815 SLIDE BUSHING 18X20X22 MIT BUND
20 6305002486 WASHER
21 7057208753 RUBBER FOOT RD 30X17,5 80 SHORE
22 14113010 HEX NUT
23 1010712676 TABLE M.JUSTIERBLECH ET KGT 300
24 14115054 FLAT SPRING
25 14113203 HEX NUT
26 14115005 WASHER
27 14111387 SCREW
28 2391202772 GLIDE PIECE
29 6103122986 HEXAGON HEAD SCREW M 8X85 VERZ.
30 6202024139 HEXAGON NUT, PREV. TORQUE TYPE
31 7051683611 PRESSURE SPRING RDA=8,5 LO=17,7 5,5 WIND
32 6143075247 Cap screw w.internal hexagon
33 1482682029 CLAMPING PLATE BL 2,00X35X68,5 KGS303
34 101071340 ACCESSORY BA GUMMIFÜßE KGT 300
35 7123716854 STEEL BALL RD 12 KGT300
36 2391203906 PLUG-IN BUFFER
40 1380703960 FENC KGT300
41 6172028215 SCREW
42 1482681987 ANGLE POINTER BL 1,50X10X21,5 KGS303
43 1385682006 DREHTELLERBOLZEN KGS303 RD 16/M10X63
44 1381704005 TABLE INSERT KGT300
45 6123612815 RAISED CHEESE HEAD SCREW
46 7053711590 CUP SPRING 10X5,2X0,5 FORM A
47 1482711584 LOCKING PLATE BL 2,50X31,5X90 KGT300
48 141150120 WASHER
49 6442059304 SPACER SLEEVE
50 14115194 WASHER
51 1380712713 TURNTABLE KGT300
52 1385682014 CLAMPING ROD RD 8X185,5 KGS303
53 1388698264 KNOB, RED
54 148568384 WASHER RDA44XRDI9X4 KGS 303
55 14112446 HEX. SOCKET SET SCREW, FLAT PT
56 1482681979 POINTER BL 2,00X12X46 KGS303
57 14111028 Hexagon Head Screw
58 6205029131 HEXAGON THIN NUT
60 6103703636 HEXAGON HEAD SCREW M 4X12 VERZ.
61 14115011 WASHER
62 14111813 SCREW
63 7100083463 DEEP GROOVE BALL BEARING
64 6442706377 SPACER SLEEVE RD 8/6,4X18 VERZ.
65 1381106094 PLUG RD 21,9
66 7231703351 COGGED BELT HTD 300-5M-20 CXP KGT300
67 1482681839 Spindle lock
68 7051074232 TENSION SPRING
69 138570341 SHAFT 14HTD5M20 RD21X70 KGT300
70 6143661561 Fillister head screw w.flange
71 14111394
Hexagon Socket Head Cap Screw
72 1381738805 PLUG RD 13
73 1010703383 ELECTRIC MOTOR 1,8KW 230/1/50 KGT300
74 1010712684 RETRACTABLE BLADE GUARD KPL. KGT 300
75 14115001 WASHER
77 1382703622 Zugblech BL 1,50x10x290,5 KGT-300
78 705170359 TENSION SPRING RDA 14X49,75X1,5 11 WINDU
80 1385703526 MOTOR HEAD AXLE RD22,8X102,5 /M12 KGT300
81 1382716961 REIBBLECH KGT 300 RD 72/52,2X1,0
82 7051703558 TORSION SPRING KGT300
83 630071433 WASHER 13X26X2,5 VERZINKT
84 7053063343 CUP SPRING
85 14113093 Hexagon Nut, Prev. Torque Type
86 6410178646 SHAFT COLLA A 14 / I-6KT VERZ.
87 6143088225 HEX. HEAD THREAD ROLLING SCREW M 4X8 (GE
88 1382706389 CLAMPING PLATE BL 0,88X13,5X22 KGT300
89 7637712815 SLIDE BUSHING 18X20X22 MIT BUND
90 34111275 Thumb Screw
91 7051711623 Pressure spring
92 6205028046 HEXAGON THIN NUT
93 6143099472 THREAD ROLLING SCREW E M 6X30 - ST VERZ.
94 1380703374 MOTOR CARRIER KGT300
95 7233707699 POLY-RIB BELT 7 PJ 356 RIEMENHÖHE 4,0
96 138070342 POLY-RIB PULLEY 7J / RDA 74,9X25 KGT300
97 1380703323 GEARBOX ENCLOSURE KGT300
100 6121703686 HEXAGON SOCKET HEAD CAP SCREW M10X25 LIN
101 1380703676 BLADE COLLAR, OUTER RD 63/10X8 KGT300
102 138070365 BLADE COLLAR RD 63/19X10,45 KGT300
103 6401041131 CIRCLIP FOR BORE 55X2
104 710001682 DEEP GROOVE BALL BEARING 20X47X14 6204-2
105 1010719441 RETRACTABLE BLADE GUARD M.GLEITFÜßE KGT
106 14118074 Circlip For Bores
109 710001018 DEEP GROOVE BALL BEARING
110 1010717252 SAEGEBLATTWELLE KPL. KGT300
120 6104220876 Hex fit bolt
121 1482703581 BOLT BL 2,99X23,5X66 KGT300
123 138870356 RELEASE LEVER RD 5 KGT300
124 14111677 SCREW
125 6172001791 Fillister head screw w. cross head
126 824270360 CABLE CLIP RD6
127 7051074232 TENSION SPRING
128 840270344 CABLE WITH PLUG 2X1,0X2353/2XFH KGT300
129 14113009 HEX NUT
131 1381703467 HANDLE KGT300
132 8111703451 Switch On/Of 2-Polig UM 230V 10A KGT300
133 6186602763 Fillister head screw w.fill. head screw
139 34343318 PUSH STICK
140 620911423 Flange nut
141 1482711606 ADAPTOR PLATE BL 4,00X15X40 KGT300
142 6132661454 HEX.SOCKET COUNTERS.HEAD SCREW
143 1382703479 SPLITTING BLADE KGT300
144 1010703995 SAW BLADE GUARD ASSEMBLY KGT300
145 6172075604 CROSS REC'D PAN HEAD TAP.SCREW ST 3,9X16
146 138270386 END CAP BL 2,00X97,5X56 KGT300
147 138370388 FENCE EXTRUSION 474,5 MM KGT300
148 1482703905 TENSION PLATE BL 0,88X55X95 KGT300
149 14113101 Hexagon Nut
150 6150669454 THUMB SCREW M 8X40 VERZ.
151 138170384 END CAP KGT300
153 1142703919 SCALE 0,25X10X340,5 10,30-0/0-23,50 CM
155 1385703828 GUIDE BAR RD 14X99 KGT300
156 1380711571 DISC GUARD KGT300
157 614370371 HEXAGON SOCKET HEAD CAP SCREW E M 5X25 -
158 7637711444 SLIDE BUSHING 14X16X12 MIT BUND
159 138570381 TOOTHED RACK RD 14h9X168 KGT300
160 1010712692 GEARWHEEL SHAFT KPL.
164 14112447 CROSS REC'D PAN HEAD TAP.SCREW ST 4,2X9,
165 1381720353 PROTECTION COVER KGT300
166 1485711615 GUIDE BAR RD 10X156 KGT300
169 1010704142 TABLE ASSEMBLY KGT300
170 1010712706 UPPER RIP FENCE ASS'Y KGT 300
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo KGT300 0103300000 11
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Drawing Metabo KGT 300

Drawing Metabo KGT 300

Download (516.74KB)

You might also like

ON/OFF Switch for Wood Mitre Saw Metabo KGT 305 M
Metabo SKU: 34341145
ON/OFF Switch for Wood Mitre Saw Metabo KGT 305 M
ON/OFF Switch for Wood Mitre Saw Metabo KGT 305 M Original Spare Part Metabo, ON/OFF Switch for Wood Mitre Saw With Upper Work Table KGT 305 M. Part for the following products: -  Wood Mitre Saw Metabo...
Last items in stock €30.00
Details
Chip Suction Pipe for Wood Mitre Saw Metabo KGT 305 M
Metabo SKU: 34344345
Chip Suction Pipe for Wood Mitre Saw Metabo KGT 305 M
Chip Suction Pipe for Wood Mitre Saw Metabo KGT 305 M Original Spare Part Metabo, Chip Suction Pipe for Wood Mitre Saw With Upper Work Table KGT 305 M. Part for the following products: -  Wood Mitre Saw Metabo KGT 305 M - Code :...
AVAILABLE €6.83
Details
Push Stick for Wood Mitre Saw Metabo KGT 305 M
Metabo SKU: 34343318
Push Stick for Wood Mitre Saw Metabo KGT 305 M
Push Stick for Wood Mitre Saw Metabo KGT 305 M Original Spare Part Metabo, Push Stick for Wood Mitre Saw With Upper Work Table KGT 305 M. Part for the following products: -  Wood Mitre...
Last items in stock €8.23
Details
Armature 230V Assy for Wood Mitre Saw Metabo KGT 305 M
Metabo SKU: 31001217
Armature 230V Assy for Wood Mitre Saw Metabo KGT 305 M
Armature 230V Assy for Wood Mitre Saw Metabo KGT 305 M Original Spare Part Metabo, Armature 230V Assy for Wood Mitre Saw With Upper Work Table KGT 305 M. Part for the following products: -  Wood Mitre Saw Metabo KGT 305 M - Code :...
Last items in stock €159.02
Details
Carbon Brush Set for Wood Mitre Saw Metabo KGT 305 M
Metabo SKU: 31609369
Carbon Brush Set for Wood Mitre Saw Metabo KGT 305 M
Carbon Brush Set for Wood Mitre Saw Metabo KGT 305 M Original Spare Part Metabo, Carbon Brush Set for Wood Mitre Saw With Upper Work Table KGT 305 M. Part for the following products: -  Wood Mitre Saw Metabo KGT 305 M - Code : 31609369
Last items in stock €18.85
Details
Field Assy for Wood Mitre Saw Metabo KGT 305 M
Metabo SKU: 31001216
Field Assy for Wood Mitre Saw Metabo KGT 305 M
Field Assy for Wood Mitre Saw Metabo KGT 305 M Original Spare Part Metabo, Field (Stator) 230V Assy for Wood Mitre Saw With Upper Work Table KGT 305 M. Part for the following products: -  Wood Mitre Saw Metabo KGT 305 M - Code :...
Last items in stock €118.81
Details
Retractable Blade Guard for Mitre Saw Metabo KGS 305 M
Metabo SKU: 1010719441
Retractable Blade Guard for Mitre Saw Metabo KGT 300
Retractable Blade Guard for Mitre Saw Metabo KGT 300 Genuine part Metabo, Retractable Blade Guard for Mitre Saw Metabo KGT 300 - 0103300000 11 Parts for the following products: -  Mitre Saw Metabo KGT...
Last items in stock €33.10
Details
Hex Head Screw M5x16 for Mitre Saw Metabo KGT 300
Metabo SKU: 14111024
Hex Head Screw M5x16 for Mitre Saw Metabo KGT 300
Hex Head Screw M5x16 for Mitre Saw Metabo KGT 300 Genuine part Metabo, Hexagon Head Screw M5x16 for Mitre Saw Metabo KGT 300 - 0103300000 11 Parts for the following products: -  Mitre Saw Metabo KGT 300 - 0103300000 11 - Code : 14111024
on 10 Business Days Approx €1.74
Details
Cogged Belt for Mitre Saw Metabo KGS 315 Plus
Metabo SKU: 7231703351
Cogged Belt for Mitre Saw Metabo KGS 315 Plus
Cogged Belt for Mitre Saw Metabo KGS 315 Plus Original Spare Part Metabo, Cogged Belt HTD 300-5M-20 CXP for Mitre Saw KGS 315 Plus - KGT 300 Part for the following products: -  Mitre...
Last items in stock €32.11
Details
Upper Rip Fence for Mitre Saw Metabo KGT 300
Metabo SKU: 1010712706
Upper Rip Fence for Mitre Saw Metabo KGT 300
Upper Rip Fence for Mitre Saw Metabo KGT 300 Genuine part Metabo, Upper Rip Fence Assembly for Mitre Saw Metabo KGT 300 - 0103300000 11.  Parts for the following products: -  Mitre Saw Metabo KGT 300 - 0103300000 11 - Code : 1010712706
Last items in stock €111.36
Details
Gearbox Enclosure for Mitre Saw Metabo KGT 300
Metabo SKU: 1380703323
Gearbox Enclosure for Mitre Saw Metabo KGT 300
Gearbox Enclosure for Mitre Saw Metabo KGT 300 Genuine part Metabo, Gearbox Enclosure for Mitre Saw Metabo KGT 300 - 0103300000 11 Parts for the following products: -  Mitre Saw Metabo KGT 300 - 0103300000 11 - Code : 1380703323
Last items in stock €176.30
Details
Metabo KGT 300 On/Off Switch
Metabo SKU: 8111703451
Metabo KGT 300 On/Off Switch
Metabo KGT 300 On/Off Switch Genuine part Metabo, Switch On/Off 2-Poli UM 230V 10A for Mitre Saw Metabo KGT 300 - 0103300000 11 Parts for the following products: -  Mitre Saw Metabo KGT 300 -...
Last items in stock €30.80
Details
Metabo KGT 300 Turntable
Metabo SKU: 1380712713
Metabo KGT 300 Turntable
Metabo KGT 300 Turntable Genuine part Metabo, Turntable for Mitre Saw Metabo KGT 300 - 0103300000 11 Parts for the following products: -  Mitre Saw Metabo KGT 300 - 0103300000 11 - Code : 1380712713
Last items in stock €152.48
Details
Metabo KGT 300 Guard Plate
Metabo SKU: 1382703517
Metabo KGT 300 Guard Plate
Metabo KGT 300 Guard Plate Genuine part Metabo, Guard Plate BL 2,00X106,8X187,7 for Mitre Saw Metabo KGT 300 - 0103300000 11 Parts for the following products: -  Mitre Saw Metabo KGT 300 - 0103300000 11 -...
Out-of-Stock €19.01
Details
Metabo KGT 300 Knob RED
Metabo SKU: 1388698264
Metabo KGT 300 Knob RED
Metabo KGT 300 Knob, RED Genuine part Metabo, Knob, RED for Mitre Saw Metabo KGT 300 - 0103300000 11 Parts for the following products: -  Mitre Saw Metabo KGT 300 - 0103300000 11 - BAS 505 Precision WNB -...
Last items in stock €8.40
Details
Metabo KGT 300 Blade Collar Outer
Metabo SKU: 1380703676
Metabo KGT 300 Blade Collar Outer
Metabo KGT 300 Blade Collar, Outer Genuine part Metabo, Blade Collar, Outer RD 63/10X8 KGT300 for Mitre Saw Metabo KGT 300 - 0103300000 11 Parts for the following products: -  Mitre Saw Metabo KGT 300 - 0103300000...
Last items in stock €10.52
Details
Comments (0)
