Metabo

Metabo Spare Parts for Angle grinder WX 2400-230

SKU: Metabo W 75 X - 606675000
€18.43
VAT included

Metabo Spare Parts for Angle grinder W 75 X - 606675000

We supply original METABO spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 75 X - 606675000.

Angle Grinder W 75 X - 606675000
Metabo Spare Parts for Angle grinder WX 2400-230
  • Metabo Spare Parts for Angle grinder WX 2400-230
  • Metabo Spare Parts for Angle grinder WX 2400-230
Metabo

Metabo Spare Parts for Angle grinder WX 2400-230

SKU: Metabo W 75 X - 606675000 Condition: New
€18.43
VAT included

Metabo Spare Parts for Angle grinder W 75 X - 606675000

We supply original METABO spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 75 X - 606675000.

Angle Grinder W 75 X - 606675000
settings 44 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

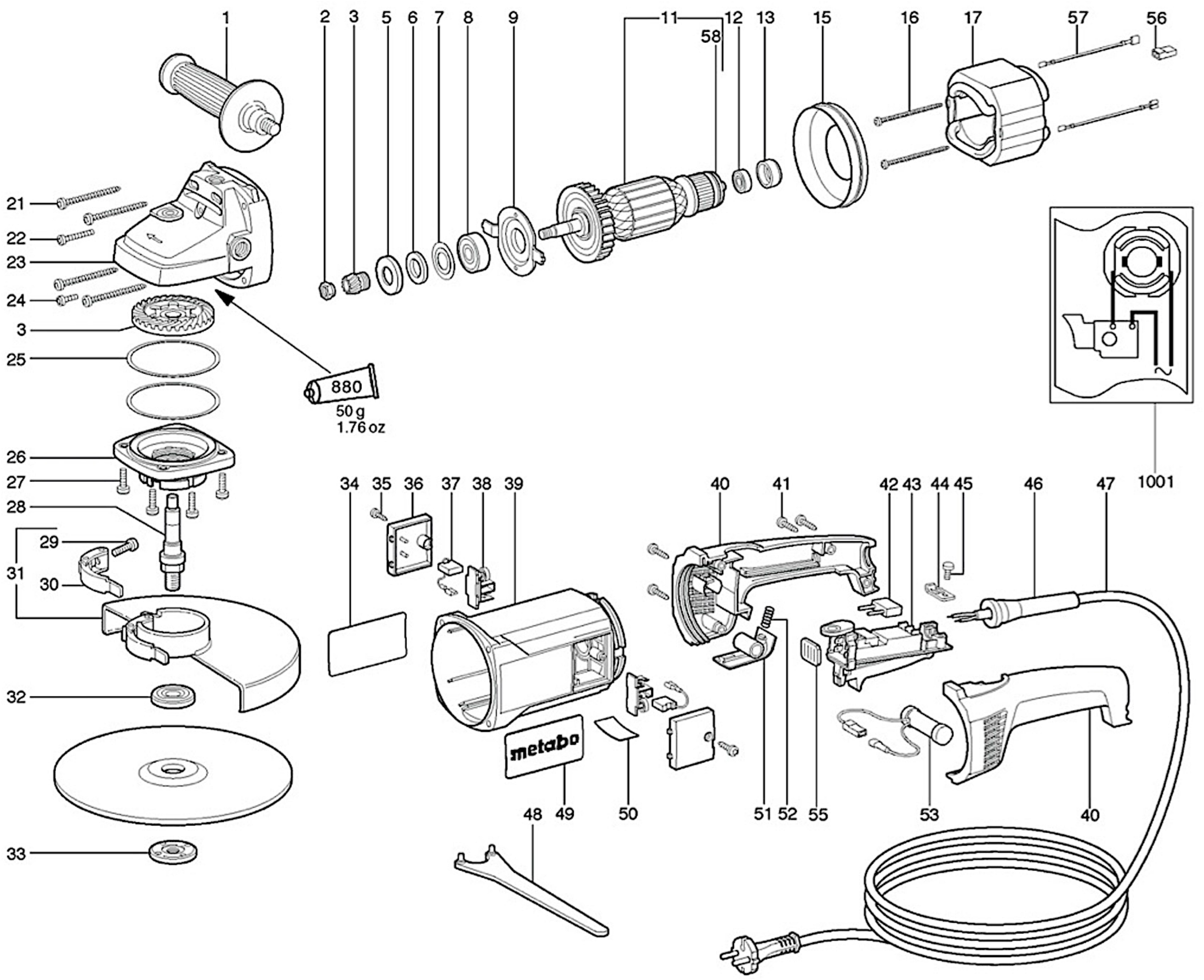

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31400028 Handle €16.95
2
 photo_cameraImage coming soon 34110066 Self locking nut €3.12
3
 Bevel Gear Set for Angle Grinder Metabo W 21-230 31602529 Bevel Gear Set for Angle Grinder Metabo W 21-230 €73.40
5
 photo_cameraImage coming soon 34101151 Spacer ring €5.07
6
 photo_cameraImage coming soon 14319244 elt ring €3.12
7
 photo_cameraImage coming soon 33907008 Cover washer €1.71
8
 photo_cameraImage coming soon 14311067 Ball bearing, 12x37x12 €14.59
9
 photo_cameraImage coming soon 33900592 Bearing cover €2.10
12
 photo_cameraImage coming soon 14311340 Ball bearing, 8x22x7 €11.17
13
 Armature Bearing Rubber Holder for Angle Grinders Metabo 230 mm 34409408 Armature Bearing Rubber Holder for Angle Grinders Metabo 230 mm €2.08
15
 photo_cameraImage coming soon 33915095 Air conveyor €2.71
16
 photo_cameraImage coming soon 14112168 Self-tap. fill. h. screw €1.53
17
 photo_cameraImage coming soon 31100959 Field coil €57.68
21
 photo_cameraImage coming soon 14111937 Self-tap. fill. h. screw €1.34
22
 photo_cameraImage coming soon 14112202 Fillister head screw €1.53
24
 photo_cameraImage coming soon 14111986 Fillister head screw €1.79
25
 photo_cameraImage coming soon 33906014 Sealing ring €1.71
26
 photo_cameraImage coming soon 31602530 Gear flange cpl. €44.29
27
 photo_cameraImage coming soon 14112164 Fill. head screw(DIN 7985) €1.76
28
 photo_cameraImage coming soon 34160298 Spindle shaft €24.18
29
 photo_cameraImage coming soon 14111133 Cap Screw €1.34
30
 photo_cameraImage coming soon 31602545 Clamping Lever Cpl. €9.71
31
 photo_cameraImage coming soon 31602274 Wheel guard cpl. €44.50
32
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
33
 photo_cameraImage coming soon 34110690 Flange nut €9.91
35
 photo_cameraImage coming soon 14112233 Self-tap. Fill. H. Screw €1.28
38
 photo_cameraImage coming soon 34300077 Brush guide €5.76
40
 photo_cameraImage coming soon 34336854 Handle (upper+under part) €21.75
41
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
42
 photo_cameraImage coming soon 34325389 Condenser €7.43
43
 photo_cameraImage coming soon 34340413 Switch €37.83
44
 photo_cameraImage coming soon 33912773 Cable clip €1.53
45
 photo_cameraImage coming soon 14111873 Self-tap. fill. h. screw €1.57
46
 photo_cameraImage coming soon 34409455 Cable sleeve €2.42
47
 Power Cord with CEE Plug for Grinder Metabo W 22-230 MVT 34448780 Power Cord with CEE Plug for Grinder Metabo W 22-230 MVT €40.51
48
 photo_cameraImage coming soon 34416084 Pin spanner €5.07
51
 photo_cameraImage coming soon 34336957 Locking lever €2.10
52
 photo_cameraImage coming soon 34200217 Pressure spring €1.34
53
 photo_cameraImage coming soon 34325383 Starting Resistance €11.58
55
 photo_cameraImage coming soon 34409498 Flat Gasket Ring €1.28
56
 photo_cameraImage coming soon 14211009 Insulating Sleeve €1.28
57
 photo_cameraImage coming soon 34449369 Strand €1.49
58
 photo_cameraImage coming soon 34337077 Sealing washer €1.34
880
 photo_cameraImage coming soon 34413091 Grease 100G €15.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Angle grinder W 75 X - 606675000

We supply original METABO spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 75 X - 606675000.

Open PDF Diagram, check your spare part number position and then select it in the following table.
Metabo W 75 X - 606675000

Metabo W 75 X - 606675000
# Part Num. Description
1 31400028 Handle Cpl.
2 34110066 Self Locking Nut
3 31602529 Bevel Gear Set
5 34101151 Spacer Ring
6 14319244 Felt Ring
7 33907008 Cover Washer
8 14311067 Ball Bearing, 12x37x12
9 33900592 Bearing Cover
11 31000702 Armature Cpl.230v
12 14311340 Ball Bearing, 8x22x7
13 34409408 Rubber Bearing
15 33915095 Baffle
16 14112168 Self-tap. Fill. H. Screw
17 31100959 Field Coil
21 14111937 Self-tap. Fill. H. Screw
22 14112202 Fillister Head Screw
23 31602527 Gear Housing Cpl.
24 14111986 Fillister Head Screw
25 33906014 Sealing Ring
26 31602530 Gear Flange Cpl.
27 14112164 Fill. Head Screw(din 7985)
28 34160298 Spindle Shaft
29 14111133 Cap Screw
30 31602545 Clamping Lever Cpl.
31 31602274 Wheel Guard Cpl.
32 34103116 Clamping Flange
33 34110690 Flange Nut
34 33811502 Indication Label
35 14112233 Self-tap. Fill. H. Screw
36 34336855 Cover
37 34301177 Carbon Brush
38 34300077 Brush Guide
39 31501250 Motor Housing
40 34336854 Handle (upper+under Part)
41 14111602 Self-tap. Fill. H. Screw
42 34325389 Condenser
43 34340413 Switch
44 33912773 Cable Clip
45 14111873 Self-tap. Fill. H. Screw
46 34409455 Cable Sleeve
47 34448780 Cable With Plug
48 34416084 Pin Spanner
49 33811504 Metabo Label
50 33803883 Rating Plate
51 34336957 Locking Lever
52 34200217 Pressure Spring
53 34325383 Starting Resistance
55 34409498 Flat Gasket Ring
56 14211009 Insulating Sleeve
57 34449369 Strand
58 34337077 Sealing Washer
880 34413091 Grease 100g
1001 33850181 Diagram

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo W 75 X - 606675000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo W 75 X-606675000

Diagram Metabo W 75 X-606675000

Download (780.14KB)
