Metabo Spare Parts for Rotary Hammer BH E 6024 S - R+L

SKU: Metabo BH E 6024 S R+L 606024001
€27.50
VAT included

Metabo Spare Parts for Rotary Hammer BH E 6024 S - R+L

Metabo Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer Metabo BH E 6024 S - R+L - 606024001.

Metabo BH E 6024 S R+L 606024001
Metabo Spare Parts for Rotary Hammer BH E 6024 S - R+L
  • Metabo Spare Parts for Rotary Hammer BH E 6024 S - R+L
  • Metabo Spare Parts for Rotary Hammer BH E 6024 S - R+L
Metabo

Metabo Spare Parts for Rotary Hammer BH E 6024 S - R+L

SKU: Metabo BH E 6024 S R+L 606024001 Condition: New
€27.50
VAT included

Metabo Spare Parts for Rotary Hammer BH E 6024 S - R+L

Metabo Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer Metabo BH E 6024 S - R+L - 606024001.

Metabo BH E 6024 S R+L 606024001
settings 68 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
68 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

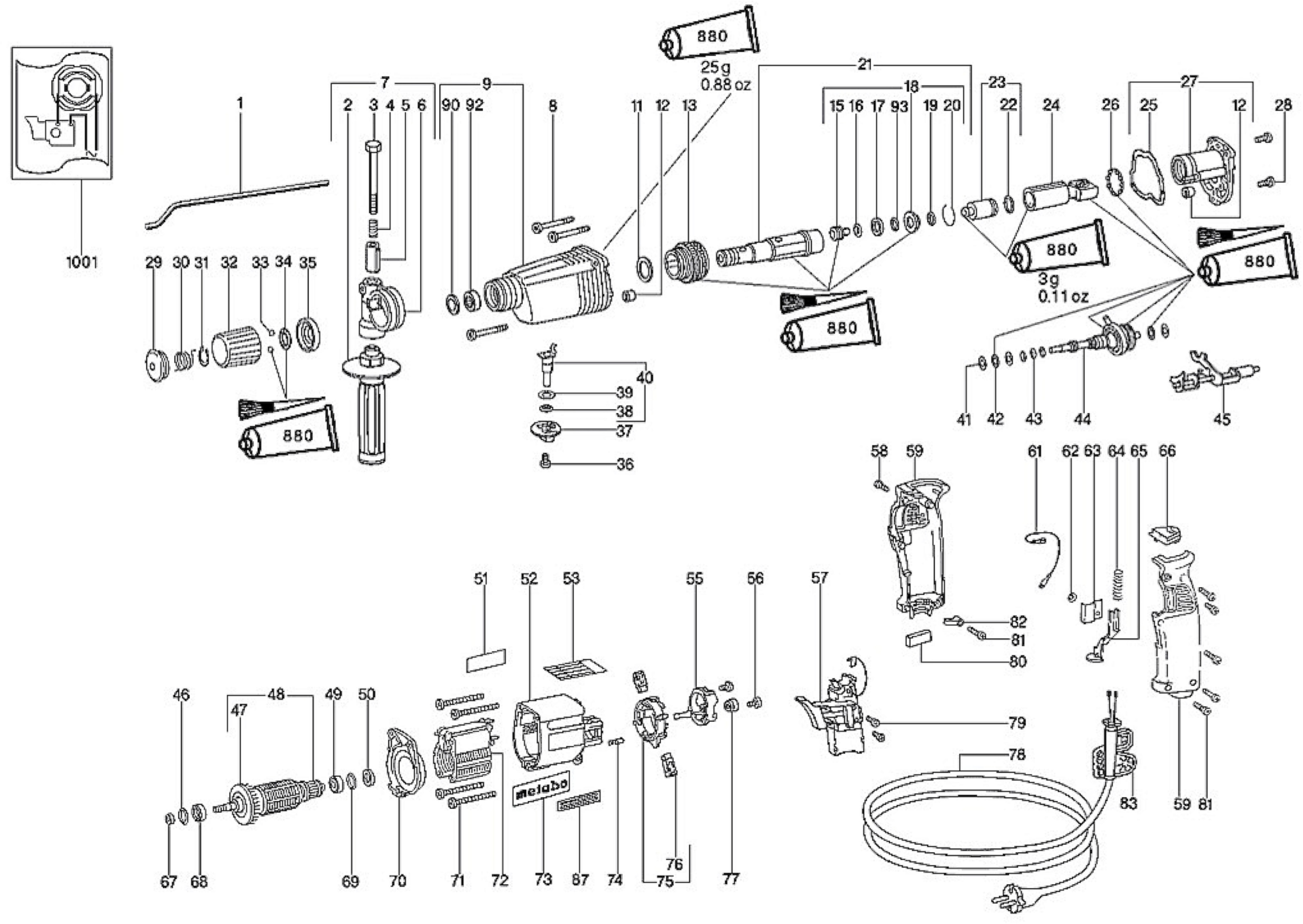

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 62728800 Depth Stop €23.29
2
 Support Handle for Rotary Hammer Metabo UHE 28 Multi 31400077 Support Handle for Rotary Hammer Metabo UHE 28 Multi €32.13
3
 photo_cameraImage coming soon 14111616 Hexagon head screw €1.59
4
 photo_cameraImage coming soon 34200780 Pressure spring €1.77
5
 photo_cameraImage coming soon 34336491 Locking Bushing €1.59
6
 photo_cameraImage coming soon 34335978 Clamping piece €4.69
7
 Support Handle for Rotary Hammer Metabo UHE 28 Multi 31400077 Support Handle for Rotary Hammer Metabo UHE 28 Multi €32.13
8
 photo_cameraImage coming soon 34170219 TIGHT FIR SCREW PLAST.45 €1.59
9
 photo_cameraImage coming soon 31602409 GEAR HOUSING CPL. €96.41
11
 photo_cameraImage coming soon 14115375 Supporting disc €1.76
12
 photo_cameraImage coming soon 14311143 Needle sleeve €5.07
15
 photo_cameraImage coming soon 31602062 PISTON CPL. €18.08
16
 photo_cameraImage coming soon 14319240 O-ring €1.76
17
 photo_cameraImage coming soon 34105596 DAMPING RING €3.39
18
 photo_cameraImage coming soon 31602410 CATCHING SLEEVE CPL. €25.90
19
 photo_cameraImage coming soon 14319392 O-ring €5.95
20
 photo_cameraImage coming soon 14118184 Circlip €1.81
21
 photo_cameraImage coming soon 31602412 DRILLING SLEEVE CPL. €122.51
22
 photo_cameraImage coming soon 34409314 Sealing ring €5.17
23
 photo_cameraImage coming soon 31601766 Striker cpl. €34.48
25
 photo_cameraImage coming soon 34409502 SEAL €3.39
26
 photo_cameraImage coming soon 32005020 ball holder €3.39
27
 photo_cameraImage coming soon 31602614 GEAR FLANGE CPL. €58.87
28
 photo_cameraImage coming soon 14111944 Fill. head screw(DIN 7985) €1.65
30
 Torsion Spring for Rotary Hammer Metabo BH E 6020 S 34202104 Torsion Spring for Rotary Hammer Metabo BH E 6020 S €1.94
31
 photo_cameraImage coming soon 14118012 Retaining ring €1.71
32
 Adjustable Ring for Rotary Hammer Metabo BH E 6020 S 34336168 Adjustable Ring for Rotary Hammer Metabo BH E 6020 S €6.07
33
 Steel Ball for Rotary Hammer Metabo BH E 6020 S 14312032 Steel Ball for Rotary Hammer Metabo BH E 6020 S €1.73
34
 Tension-Spring Ring for Rotary Hammer Metabo BH E 6020 S 34200156 Tension-Spring Ring for Rotary Hammer Metabo BH E 6020 S €3.57
35
 photo_cameraImage coming soon 34336169 Spacer Ring €1.63
36
 photo_cameraImage coming soon 34170238 Cylindrical screw for metal €1.43
37
 photo_cameraImage coming soon 31602385 CONTROL KNOB CPL. €4.03
38
 photo_cameraImage coming soon 14319006 O-ring €1.62
39
 photo_cameraImage coming soon 14115113 WASHER €1.59
41
 photo_cameraImage coming soon 33912378 WASHER €1.43
42
 Axial Needle Bearing for Rotary Hammer Metabo UHE 28 Plus 14311428 Axial Needle Bearing for Rotary Hammer Metabo UHE 28 Plus €6.71
43
 photo_cameraImage coming soon 14115492 Cup spring €1.77
44
 photo_cameraImage coming soon 31602387 INTERMEDIATE GEAR CPL. €129.05
46
 photo_cameraImage coming soon 14319257 O-ring €1.59
47
 photo_cameraImage coming soon 33000106 Fan cpl. €4.03
49
 photo_cameraImage coming soon 14311223 Ball bearing, 6x19x6 €11.23
50
 photo_cameraImage coming soon 14115340 Washer €1.76
52
 photo_cameraImage coming soon 31501232 Motor housing €25.90
55
 photo_cameraImage coming soon 31602102 Pressure plate cpl. €10.40
56
 photo_cameraImage coming soon 14111684 Self-tap. fill. h. screw €1.43
58
 photo_cameraImage coming soon 34170205 Screw €1.53
59
 photo_cameraImage coming soon 34336235 Pistol grip €18.08
61
 photo_cameraImage coming soon 34449015 Strand cpl. AWG18SW €2.25
62
 photo_cameraImage coming soon 14118176 Circlip €1.43
63
 photo_cameraImage coming soon 33911102 Cover €1.43
64
 photo_cameraImage coming soon 34200121 Pressure spring €1.43
65
 photo_cameraImage coming soon 34336246 Locking catch €1.43
66
 photo_cameraImage coming soon 34336177 Cover €1.59
67
 photo_cameraImage coming soon 34336472 SEALING WASHER €1.43
68
 photo_cameraImage coming soon 14311488 Ball bearing, 8x22x7 €7.22
69
 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 14319243 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 €1.88
70
 photo_cameraImage coming soon 34336179 FLANGE €4.69
71
 photo_cameraImage coming soon 14111609 Self-tap. fill. h. screw €1.43
74
 photo_cameraImage coming soon 34200114 Index bolt €1.71
78
 photo_cameraImage coming soon 34449364 CABLE WITH PLUG €23.29
79
 photo_cameraImage coming soon 14111697 Fillister head screw €1.87
80
 photo_cameraImage coming soon 34410075 Insert €1.27
81
 photo_cameraImage coming soon 14112034 Fill. Head Screw Plast. 45 €1.43
82
 photo_cameraImage coming soon 34336249 Cable clip €2.02
83
 photo_cameraImage coming soon 34410059 Cable sleeve €2.25
90
 photo_cameraImage coming soon 14319406 SEAL €2.25
92
 photo_cameraImage coming soon 14311394 NEEDLE SLEEVE €10.40
93
 photo_cameraImage coming soon 14319464 O-ring €1.77
880
 Grease Tube GF 126 for All Metabo Power Tools 34413080 Grease Tube GF 126 for All Metabo Power Tools €22.39

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Rotary Hammer BH E 6024 S - R+L

Metabo Original spare parts  at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer Metabo BH E 6024 S - R+L - 606024001.

In the following table, look for the model of the Drill and the respective parts of the code.
Metabo BH E 6024 S R+L 606024001
Rotary Hammer Metabo BH E 6024 S - R+L - 606024001
# Part Num. Description
1 62728800 DEPTH STOP
2 31400077 SUPPORT HANDLE CPL.
3 14111616 HEXAGON HEAD SCREW
4 34200780 PRESSURE SPRING
5 34336491 LOCKING BUSHING
6 34335978 CLAMPING PIECE
7 31400077 SUPPORT HANDLE CPL.
8 34170219 TIGHT FIR SCREW PLAST.45
9 31602409 GEAR HOUSING CPL.
11 14115375 SUPPORTING DISC
12 14311143 NEEDLE SLEEVE
13 31602411 INTERMEDIATE GEAR CPL.
15 31602062 PISTON CPL.
16 14319240 O-RING
17 34105596 DAMPING RING
18 31602410 CATCHING SLEEVE CPL.
19 14319392 O-RING
20 14118184 CIRCLIP
21 31602412 DRILLING SLEEVE CPL.
22 34409314 SEALING RING
23 31601766 STRIKER CPL.
24 34105415 EXCITER SLEEVE
25 34409502 SEAL
26 32005020 BALL HOLDER
27 31602614 GEAR FLANGE CPL.
28 14111944 FILL. HEAD SCREW(DIN 7985)
29 34409295 RUBBER CAP
30 34202104 TORSION SPRING
31 14118012 RETAINING RING
32 34336168 ADJUSTING RING
33 14312032 BALL
34 34200156 TENSION-SPRING RING
35 34336169 SPACER RING
36 34170238 CAP SCREW
37 31602385 CONTROL KNOB CPL.
38 14319006 O-RING
39 14115113 WASHER
40 31602415 SHIFT BOLT CPL.
41 33912378 WASHER
42 14311428 AXIAL NEEDLE BEARING
43 14115492 CUP SPRING
44 31602387 INTERMEDIATE GEAR CPL.
45 31602386 SHIFT ELEMENT
46 14319257 O-RING
47 33000106 FAN CPL.
48 31000553 ARMATURE CPL. 220 V
49 14311223 BALL BEARING. 6X19X6
50 14115340 WASHER
51 33803187 RATING PLATE
52 31501232 MOTOR HOUSING
53 33810916 INDICATION LABEL
55 31602102 PRESSURE PLATE CPL.
56 14111684 SELF TAPPING SCREW
57 34307567 ELECTRONIC UNIT 220 V
58 34170205 SCREW
59 34336235 PISTOL GRIP
61 34449015 STRAND CPL. AWG18SW
62 14118176 CIRCLIP
63 33911102 COVER
64 34200121 PRESSURE SPRING
65 34336246 LOCKING CATCH
66 34336177 COVER
67 34336472 SEALING WASHER
68 14311488 BALL BEARING. 8X22X7
69 14319243 O-RING
70 34336179 FLANGE
71 14111609 SELF TAPPING SCREW
72 31100809 FIELD COIL 230 V
73 33811563 METABO LABEL
74 34200114 INDEX BOLT
75 31602939 SETTING RING CPL.
76 31603385 BRUSH WITH HOLDER
77 39999999 PART NOT NEEDED
78 34449364 CABLE WITH PLUG
79 14111697 FILLISTER HEAD SCREW
80 34410075 INSERT
81 14112034 SCREW
82 34336249 CABLE CLIP
83 34410059 CABLE SLEEVE
87 39999999 PART NOT NEEDED
90 14319406 SEAL
92 14311394 NEEDLE SLEEVE
93 14319464 O-RING
880 34413080 GREASE FG 126
1001 33850064 DIAGRAM
