Metabo

Metabo Spare Parts for Paint Remover LF 724 S

SKU: Metabo LF 724 S - 00724000
€1.84
VAT included

Metabo Spare Parts for Paint Remover LF 724 S

Metabo original spare parts for to replace broken parts for to fix Paint Remover LF724S - 00724000.

Only from Metabo: the problem solver for renovation work. Saves up to 70% of time when compared to conventional working methods
Paint Remover LF 724 S - 00724000
Metabo Spare Parts for Paint Remover LF 724 S
  • Metabo Spare Parts for Paint Remover LF 724 S
  • Metabo Spare Parts for Paint Remover LF 724 S
Metabo

Metabo Spare Parts for Paint Remover LF 724 S

SKU: Metabo LF 724 S - 00724000 Condition: New
€1.84
VAT included

Metabo Spare Parts for Paint Remover LF 724 S

Metabo original spare parts for to replace broken parts for to fix Paint Remover LF724S - 00724000.

Only from Metabo: the problem solver for renovation work. Saves up to 70% of time when compared to conventional working methods
Paint Remover LF 724 S - 00724000
settings 70 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
70 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 34111254 HANDLE COVER COMPL. €8.48
3
 photo_cameraImage coming soon 34170149 Tight-fit screw €1.65
4
 photo_cameraImage coming soon 31602873 Gear housing cpl. €53.42
5
 photo_cameraImage coming soon 14112176 Countersunk screw €1.42
6
 photo_cameraImage coming soon 34110094 Hexagon nut w.recess €2.02
7
 photo_cameraImage coming soon 31601815 Bevel gear €53.42
8
 photo_cameraImage coming soon 33900681 Washer €1.26
9
 photo_cameraImage coming soon 14311488 Ball bearing, 8x22x7 €7.22
10
 photo_cameraImage coming soon 34160362 Bush €4.88
11
 photo_cameraImage coming soon 31000814 Armature cpl.230V €100.96
12
 photo_cameraImage coming soon 14311566 Ball bearing, 6x19x6 €2.48
13
 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm 34409526 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm €2.08
14
 photo_cameraImage coming soon 14115334 Washer €6.12
15
 photo_cameraImage coming soon 34339418 Switch slide €1.65
16
 photo_cameraImage coming soon 34337364 Switch rod €1.79
17
 photo_cameraImage coming soon 14111699 Self-tap. fill. h. screw €1.98
18
 photo_cameraImage coming soon 34337441 Housing with cover €5.15
19
 photo_cameraImage coming soon 34410114 Cable sleeve €2.55
20
 photo_cameraImage coming soon 33812216 M-Label,08 52x22 €1.74
21
 Complete Carbon Brush Holder for Angle Grinder Metabo W 7-115 31603550 Complete Carbon Brush Holder for Angle Grinder Metabo W 7-115 €10.98
22
 photo_cameraImage coming soon 34449396 Cable strand €1.79
23
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
24
 photo_cameraImage coming soon 34336249 Cable clip €2.02
25
 photo_cameraImage coming soon 33915093 Baffle €1.79
26
 photo_cameraImage coming soon 31100996 Field coil 230V €20.78
27
 photo_cameraImage coming soon 33804093 Rating plate €1.56
28
 photo_cameraImage coming soon 31501268 Motor housing €11.39
29
 photo_cameraImage coming soon 34449395 Strand €1.42
30
 photo_cameraImage coming soon 34449397 Strand €1.42
31
 Switch for Angle Grinder Metabo W 7-115 34340673 Switch for Angle Grinder Metabo W 7-115 €20.55
32
 photo_cameraImage coming soon 34337442 Housing with cover €4.30
33
 photo_cameraImage coming soon 34449318 Cable with plug €23.87
34
 photo_cameraImage coming soon 33812125 Indication label €1.42
35
 photo_cameraImage coming soon 34110138 Nut €3.72
36
 photo_cameraImage coming soon 34207035 Cup spring €3.15
37
 photo_cameraImage coming soon 14115230 Washer 10,2 X 14,8X 0,1 €1.91
38
 photo_cameraImage coming soon 14115112 Washer 10,2 X 14,8X 0,2 €1.74
39
 photo_cameraImage coming soon 34207032 Cup spring €3.15
40
 photo_cameraImage coming soon 33903279 Friction washer €1.56
41
 photo_cameraImage coming soon 33903415 Friction washer €1.56
42
 photo_cameraImage coming soon 34105148 Intermediate piece €2.30
43
 photo_cameraImage coming soon 33919063 Bearing cover €2.57
44
 photo_cameraImage coming soon 14311388 Ball bearing, 10x26x8 €10.93
45
 photo_cameraImage coming soon 33900401 Washer €1.42
46
 photo_cameraImage coming soon 34407023 Felt ring €1.56
47
 photo_cameraImage coming soon 33906016 Compensating Washer €1.82
49
 photo_cameraImage coming soon 34160350 Spindle €100.96
50
 photo_cameraImage coming soon 31602894 Safety clutch €187.40
51
 photo_cameraImage coming soon 34170280 Adjusting screw €4.30
52
 photo_cameraImage coming soon 34170290 Flat headed screw €1.99
53
 photo_cameraImage coming soon 63166000 Revers.solid tungsten carb.blades(10pcs) €49.92
54
 photo_cameraImage coming soon 34170281 Countersunk screw €4.30
55
 photo_cameraImage coming soon 34207055 Cup spring €3.15
56
 photo_cameraImage coming soon 31602677 KNIFE HOLDER COMPL. €200.36
57
 photo_cameraImage coming soon 14111986 Fillister head screw €1.79
58
 photo_cameraImage coming soon 34337406 Protecting cap €2.57
59
 photo_cameraImage coming soon 34200268 Pressure spring €1.42
60
 photo_cameraImage coming soon 34152004 Pin €1.42
61
 photo_cameraImage coming soon 34337138 Extraction cover €2.57
62
 photo_cameraImage coming soon 14111059 Fillister head screw €1.57
63
 photo_cameraImage coming soon 31602895 Table cpl. €89.44
65
 photo_cameraImage coming soon 34416254 Pick w. handle €2.57
66
 photo_cameraImage coming soon 34416245 Universal spanner €14.38
67
 photo_cameraImage coming soon 34339419 Push button, red €1.52
68
 photo_cameraImage coming soon 34200155 Pressure spring €1.59
69
 photo_cameraImage coming soon 33900652 Sealing washer €1.59
70
 photo_cameraImage coming soon 34151379 Bolt €3.85
72
 Carbon Brushes for Angle Grinder Metabo W 7-115 31603551 Carbon Brushes for Angle Grinder Metabo W 7-115 €19.80
880
 photo_cameraImage coming soon 34413056 Grease SF 011 50Gr 1,8oz €37.66
882
 photo_cameraImage coming soon 34413084 Special grease 100Gr 3,6oz €14.81

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Paint Remover LF724S

Metabo original spare parts for to replace broken parts for to fix Paint Remover LF724S - 00724000.

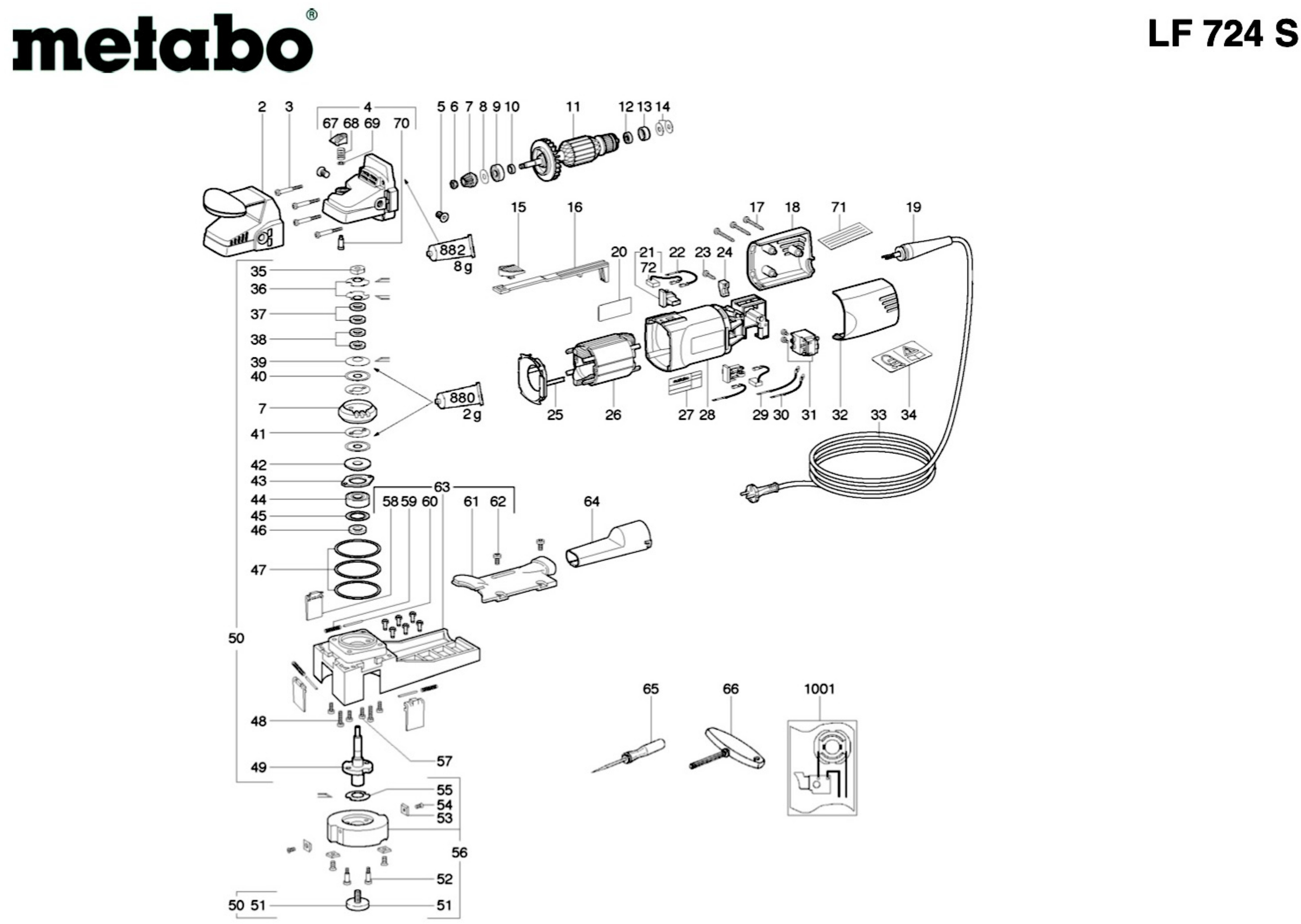

Open PDF Diagram, check your spare part number position and then select it in the following table.
Paint Remover LF 724 S - 00724000

Paint Remover LF 724 S
# Part Num. Description
2 34111254 HANDLE COVER COMPL.
3 34170149 Tight-fit screw
4 31602873 Gear housing cpl.
5 14112176 Countersunk screw
6 34110094 Hexagon nut w.recess
7 31601815 Bevel gear
8 33900681 Washer
9 14311488 Ball bearing, 8x22x7
10 34160362 Bush
11 31000814 Armature cpl.230V
12 14311566 Ball bearing, 6x19x6
13 34409526 Rubber bushing
14 14115334 Washer
15 34339418 Switch slide
16 34337364 Switch rod
17 14111699 Self-tap. fill. h. screw
18 34337441 Housing with cover
19 34410114 Cable sleeve
20 33812216 M-Label,08 52x22
21 31603550 Brush holder cpl.
22 34449396 Cable strand
23 14111602 Self-tap fill h screw
24 34336249 Cable clip
25 33915093 Baffle
26 31100996 Field coil 230V
27 33804093 Rating plate
28 31501268 Motor housing
29 34449395 Strand
30 34449397 Strand
31 34340673 Switch
32 34337442 Housing with cover
33 34449318 Cable with plug
34 33812125 Indication label
35 34110138 Nut
36 34207035 Cup spring
37 14115230 Washer 10,2 X 14,8X 0,1
38 14115112 Washer 10,2 X 14,8X 0,2
39 34207032 Cup spring
40 33903279 Friction washer
41 33903415 Friction washer
42 34105148 Intermediate piece
43 33919063 Bearing cover
44 14311388 Ball bearing, 10x26x8
45 33900401 Washer
46 34407023 Felt ring
47 33906016 Compensating Washer
48 14111987 Fillister head screw
49 34160350 Spindle
50 31602894 Safety clutch
51 34170280 Adjusting screw
52 34170290 Flat headed screw
53 63166000 Revers.solid tungsten carb.blades(10pcs)
54 34170281 Countersunk screw
55 34207055 Cup spring
56 31602677 KNIFE HOLDER COMPL.
57 14111986 Fillister head screw
58 34337406 Protecting cap
59 34200268 Pressure spring
60 34152004 Pin
61 34337138 Extraction cover
62 14111059 Fillister head screw
63 31602895 Table cpl.
64 34337139 Exhaust nozzle
65 34416254 Pick w. handle
66 34416245 Universal spanner
67 34339419 Push button, red
68 34200155 Pressure spring
69 33900652 Sealing washer
70 34151379 Bolt
72 31603551 Carbon brush
880 34413056 Grease SF 011 50Gr 1,8oz
882 34413084 Special grease 100Gr 3,6oz
