Metabo Spare Parts for Orbital Sander SR 2185

SKU: Metabo SR 2185 00441000
€157.20
VAT included

Metabo Spare Parts for Orbital Sander SR 2185

Metabo original spare parts for to replace broken parts for to fix Orbital Sander for Wood SR 2185 - 00441000.

Light, handy and perfectly ergonomic sander
Excellent sanding pattern without circles or lines for professional surface processing
Handle with non-slip Softgrip surface
Orbital Sander for Wood SR 2185
Metabo Spare Parts for Orbital Sander SR 2185
  • Metabo Spare Parts for Orbital Sander SR 2185
  • Metabo Spare Parts for Orbital Sander SR 2185

Metabo Spare Parts for Orbital Sander SR 2185

SKU: Metabo SR 2185 00441000 Condition: New
€157.20
VAT included

Metabo Spare Parts for Orbital Sander SR 2185

Metabo original spare parts for to replace broken parts for to fix Orbital Sander for Wood SR 2185 - 00441000.

Light, handy and perfectly ergonomic sander
Excellent sanding pattern without circles or lines for professional surface processing
Handle with non-slip Softgrip surface
Orbital Sander for Wood SR 2185
settings 46 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

46 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
2
photo_cameraImage coming soon 34343640 Housing €18.00
3
photo_cameraImage coming soon 34449842 Cable with plug €7.34
4
photo_cameraImage coming soon 34410114 Cable sleeve €2.55
5
photo_cameraImage coming soon 34336249 Cable clip €2.02
6
Metabo Switch for SXE 3125 34341054 Metabo Switch for SXE 3125 €10.21
7
photo_cameraImage coming soon 14111697 Fillister head screw €1.87
10
photo_cameraImage coming soon 34409222 Rubber plug €1.60
11
photo_cameraImage coming soon 14311223 Ball bearing, 6x19x6 €11.23
12
photo_cameraImage coming soon 34343639 Insulating washer €1.75
13
photo_cameraImage coming soon 31001124 Armature €54.29
14
photo_cameraImage coming soon 31700454 Armature compl.,230V (pad sander) €66.93
15
Metabo SR2185 Carbon Brush Set 34301277 Metabo SR2185 Carbon Brush Set €18.58
16
photo_cameraImage coming soon 34300134 Brush holder €5.36
17
Carbon brush set 31606055 Carbon brush set €17.54
18
photo_cameraImage coming soon 31101221 Field coil €14.93
19
photo_cameraImage coming soon 14112007 Fill. head screw €1.66
20
photo_cameraImage coming soon 14118037 Retaining ring €1.75
21
photo_cameraImage coming soon 32005082 Ball bearing €4.64
22
photo_cameraImage coming soon 31530203 Bearing flange €18.00
23
photo_cameraImage coming soon 31606049 Flange compl. €26.66
24
photo_cameraImage coming soon 33806409 Rating plate €1.75
25
photo_cameraImage coming soon 34343643 Fan €1.93
26
photo_cameraImage coming soon 34343644 Cover f. fan €3.19
27
photo_cameraImage coming soon 14112453 Cheese-head screw €1.75
28
photo_cameraImage coming soon 34407099 Felt ring f. fan cover €1.75
29
photo_cameraImage coming soon 34409125 Swivel pin €4.64
30
photo_cameraImage coming soon 34337875 Pressure lever cpl. €4.64
31
photo_cameraImage coming soon 34409637 Pressure plate €1.75
32
photo_cameraImage coming soon 34152006 Rivet €1.98
33
photo_cameraImage coming soon 33913172 Plate €1.75
34
photo_cameraImage coming soon 31606056 Clamping piece cpl. €7.34
35
photo_cameraImage coming soon 31541866 Oscillating plate €18.00
36
photo_cameraImage coming soon 34407109 Felt ring €1.75
37
photo_cameraImage coming soon 14311203 Ball bearing, 15x32x9 €20.89
38
photo_cameraImage coming soon 31541867 Counterweight €11.86
39
photo_cameraImage coming soon 31606050 Sanding base plate compl. €48.87
40
photo_cameraImage coming soon 14112020 Countersunk screw €1.75
41
photo_cameraImage coming soon 33913681 Dust cover €1.75
42
Metabo SR2185 Base Plate 34343645 Metabo SR2185 Base Plate €25.22
45
photo_cameraImage coming soon 34325495 capacitor €1.93
46
photo_cameraImage coming soon 33900934 Washer €1.75
47
photo_cameraImage coming soon 34410141 Dust bag €14.07
48
photo_cameraImage coming soon 33900756 Washer €1.80
880
photo_cameraImage coming soon 13601170 Grease €148.18
900
photo_cameraImage coming soon 624490000 Sander paer 93x230 mm €12.77

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Orbital Sander SR 2185

Metabo original spare parts for to replace broken parts for to fix Wood Orbital Sander SR 2185 - 00441000.

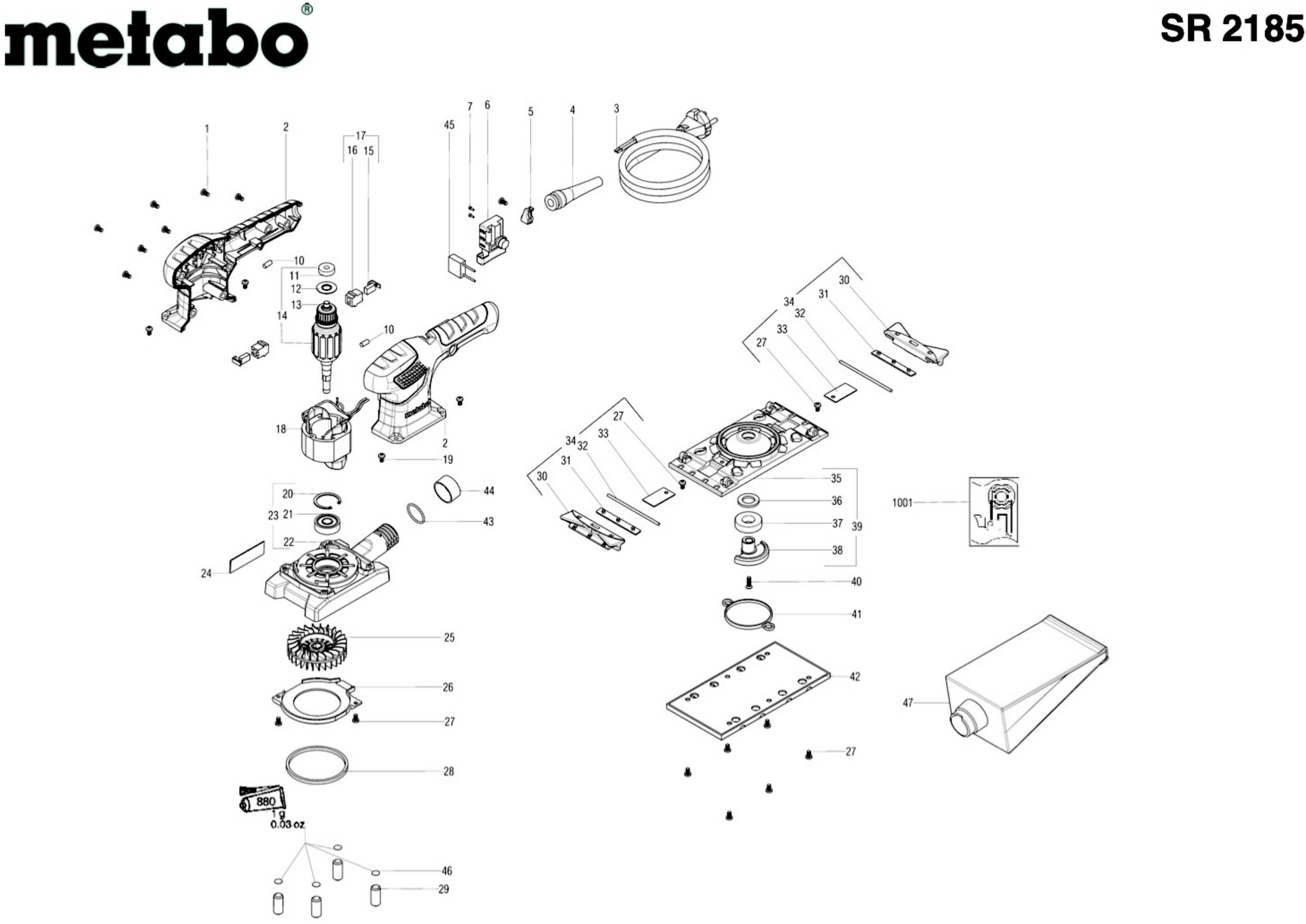

Open PDF Diagram, check your spare part number position and then select it in the following table.
Wood Orbital Sander SR 2185 - 00441000

Orbital Sander SR 2185
# Part Num. Description
1 14111602 Self-tap fill h screw
2 34343640 Housing
3 34449842 Cable with plug
4 34410114 Cable sleeve
5 34336249 Cable clip
6 34341054 Switch
7 14111697 Fillister head screw
10 34409222 Rubber plug
11 14311223 Ball bearing, 6x19x6
12 34343639 Insulating washer
13 31001124 Armature
14 31700454 Armature compl.,230V (pad sander)
15 34301277 Carbon brush
16 34300134 Brush holder
17 31606055 Carbon brush set
18 31101221 Field coil
19 14112007 Fill. head screw
20 14118037 Retaining ring
21 32005082 Ball bearing
22 31530203 Bearing flange
23 31606049 Flange compl.
24 33806409 Rating plate
25 34343643 Fan
26 34343644 Cover f. fan
27 14112453 Cheese-head screw
28 34407099 Felt ring f. fan cover
29 34409125 Swivel pin
30 34337875 Pressure lever cpl.
31 34409637 Pressure plate
32 34152006 Rivet
33 33913172 Plate
34 31606056 Clamping piece cpl.
35 31541866 Oscillating plate
36 34407109 Felt ring
37 14311203 Ball bearing, 15x32x9
38 31541867 Counterweight
39 31606050 Sanding base plate compl.
40 14112020 Countersunk screw
41 33913681 Dust cover
42 34343645 Base plate
45 34325495 capacitor
46 33900934 Washer
47 34410141 Dust bag
48 33900756 Washer
880 13601170 Grease
900 624490000 Sander paer 93x230 mm
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo SR 2185 00441000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo SR 2185

Diagram Metabo SR 2185

Download (163.58KB)
