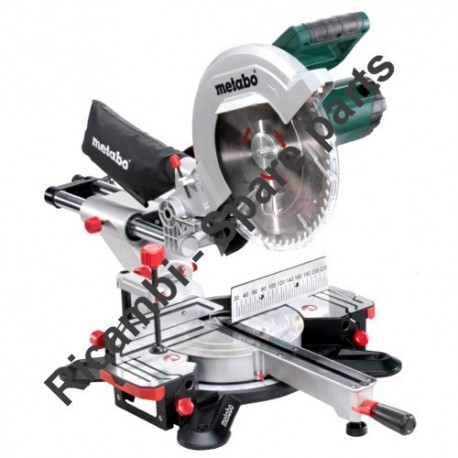

Metabo Spare Parts for Mitre Saw KGS 254 - 0102540000 11 - EU 230V

SKU: KGS254 - 0102540000 11
€5.52
VAT included

Metabo Spare Parts for Mitre Saw KGS 254 - 0102540000 11 - EU 230V

Metabo genuine spare parts or replacement parts for to repair Slide Compound Mitre Saw KGS254 / 0102540000 11 / EU 230.

Slide Compound Mitre Saw KGS254
Metabo Spare Parts for Mitre Saw KGS 254 - 0102540000 11 - EU 230V
  • Metabo Spare Parts for Mitre Saw KGS 254 - 0102540000 11 - EU 230V
  • Metabo Spare Parts for Mitre Saw KGS 254 - 0102540000 11 - EU 230V
Metabo

Metabo Spare Parts for Mitre Saw KGS 254 - 0102540000 11 - EU 230V

SKU: KGS254 - 0102540000 11 Condition: New
€5.52
VAT included

Metabo Spare Parts for Mitre Saw KGS 254 - 0102540000 11 - EU 230V

Metabo genuine spare parts or replacement parts for to repair Slide Compound Mitre Saw KGS254 / 0102540000 11 / EU 230.

Slide Compound Mitre Saw KGS254
settings 88 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
88 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

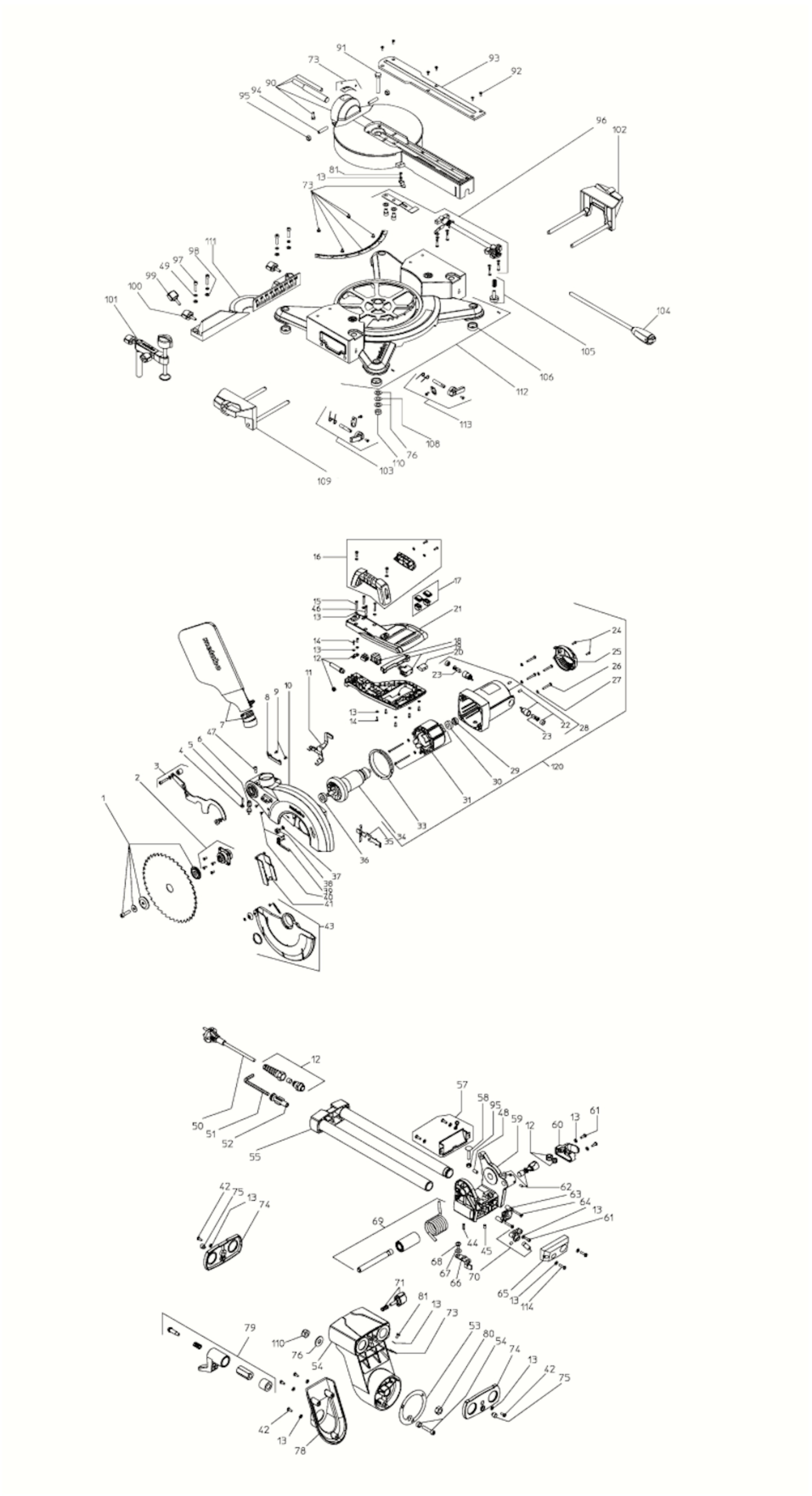

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1010734653 FLANGE COMPLETE €4.18
2
 photo_cameraImage coming soon 1010734610 GEAR-BOX COMPLETE €18.54
3
 photo_cameraImage coming soon 1010734149 SWIVEL LEVER COMPLETE €5.78
4
 photo_cameraImage coming soon 141130100 Hexagonal nut €1.61
6
 photo_cameraImage coming soon 1010734564 Depth stop compl. €1.64
8
 photo_cameraImage coming soon 1381735083 COVER CABLE DUCT €1.33
10
 photo_cameraImage coming soon 1010734599 WHEEL GUARD COMPLETE €32.02
11
 photo_cameraImage coming soon 1010734556 RELEASE LEVER COMPLETE €1.48
12
 photo_cameraImage coming soon 1010734165 STRAIN RELIEF COMPLETE €3.91
13
 photo_cameraImage coming soon 141150010 Washer €1.98
14
 photo_cameraImage coming soon 6172001821 Fillister head screw €1.59
15
 photo_cameraImage coming soon 141111430 FILLISTER HEAD SCREW €3.33
16
 photo_cameraImage coming soon 1010734190 Handle compl. €13.75
17
 Switch Set for Mitre Saw Metabo KGS 216 M 1010734203 Switch Set for Mitre Saw Metabo KGS 216 M €6.83
18
 Power Supply Pack for Mitre Saw Metabo KS 216 M Lasercut 8106734071 Power Supply Pack for Mitre Saw Metabo KS 216 M Lasercut €20.79
19
 photo_cameraImage coming soon 1010734092 SWITCH COMPLETE €4.76
20
 photo_cameraImage coming soon 8050734103 Condenser €2.77
21
 photo_cameraImage coming soon 1010734181 HANDLE COMPLETE €11.58
22
 photo_cameraImage coming soon 1010733991 CARBON BRUSH HOLDER COMPLETE €2.01
23
 Metabo KGS254M Carbon Brush Set 31609233 Metabo KGS254M Carbon Brush Set €15.64
24
 photo_cameraImage coming soon 6172015687 CROSS REC D PAN HEAD TAP.SCREW €1.64
25
 photo_cameraImage coming soon 1381733978 MOTOR COVER €2.01
26
 photo_cameraImage coming soon 141116770 Fillister head screw €2.79
27
 photo_cameraImage coming soon 141150020 Washer €1.98
28
 photo_cameraImage coming soon 1010734017 MOTOR HOUSING COMPL €13.90
29
 photo_cameraImage coming soon 7057734854 RUBBER BUSHING €1.33
30
 photo_cameraImage coming soon 143111440 BALL BEARING 12X28X8 €32.72
31
 photo_cameraImage coming soon 8014734067 STATOR €58.13
33
 photo_cameraImage coming soon 1331734876 AIR GUIDE COVER €1.33
34
 photo_cameraImage coming soon 8014734903 ARMATURE €37.83
35
 photo_cameraImage coming soon 1010734823 SPINDLE LOCK COMPLETE €1.33
36
 photo_cameraImage coming soon 7100083463 DEEP GROOVE BALL BEARING €8.88
37
 photo_cameraImage coming soon 141151940 Washer €1.98
38
 photo_cameraImage coming soon 1010734807 Bearing compl. €1.83
41
 photo_cameraImage coming soon 1381734796 EXTRACTION CHANNEL €1.33
43
 photo_cameraImage coming soon 1010734637 SAFETY GUARD COMPLETE €18.25
44
 photo_cameraImage coming soon 141161150 Tightening pin €1.98
45
 photo_cameraImage coming soon 141124510 HEX. SOCKET SET SCREW FLAT PT M 6X8 VER €3.38
46
 photo_cameraImage coming soon 6172682314 CROSS REC D PAN HEAD TAP.SCRE ST 4 2X38 €1.33
47
 photo_cameraImage coming soon 6127059193 HEXAGON SOCKET HEAD CAP SCREW €1.33
48
 photo_cameraImage coming soon 341701070 Grub screw €7.76
49
 photo_cameraImage coming soon 6304001745 SERRATED LOCK WASHER €1.33
50
 photo_cameraImage coming soon 8402734940 CABLE WITH PLUG €10.74
51
 photo_cameraImage coming soon 9102689833 ALLEN HEXAGON KEY €4.67
52
 photo_cameraImage coming soon 1381734834 Tool holder €1.64
53
 photo_cameraImage coming soon 1382735095 SLIDING SHEET €1.64
54
 photo_cameraImage coming soon 1010734432 PIVOT COMPLETE €63.94
57
 photo_cameraImage coming soon 1010734700 COVER COMPLETE €1.33
58
 photo_cameraImage coming soon 6110000640 CUP SQUARE NECK SCREW M 8X25 VERZ. €1.33
59
 photo_cameraImage coming soon 1010734505 MOTOR BRACKET COMPLETE €23.03
60
 photo_cameraImage coming soon 1381734710 CABLE HOOK €1.64
61
 photo_cameraImage coming soon 141113040 Fillister head screw €1.98
62
 photo_cameraImage coming soon 1010734530 TRANSPORT LOCK COMPLETE €1.64
63
 photo_cameraImage coming soon 8602734766 LED-LAMP €7.52
64
 photo_cameraImage coming soon 6123084703 RAISED CHEESE HEAD SCREW M 4X20 VERZ. €1.64
65
 photo_cameraImage coming soon 1381734974 COVER LIGHTING €1.64
66
 photo_cameraImage coming soon 1482734738 Stop sheet €1.64
67
 photo_cameraImage coming soon 141150750 Lock washer €1.98
68
 photo_cameraImage coming soon 6110000632 CUP SQUARE NECK SCREW M 8X16 VERZ. €1.64
69
 photo_cameraImage coming soon 1010734670 MOTOR HEAD AXLE COMPLETE €18.25
71
 photo_cameraImage coming soon 343437020 THUMBSCREW COMPLETE €3.49
73
 photo_cameraImage coming soon 1010734416 SCALE SET COMPLETE €14.18
74
 photo_cameraImage coming soon 1010734459 COVER PIVOT €2.01
75
 photo_cameraImage coming soon 7056734753 Plug in buffer €1.64
76
 photo_cameraImage coming soon 141150050 Washer €1.98
78
 photo_cameraImage coming soon 1381734931 COVER PIVOT €1.33
81
 photo_cameraImage coming soon 6143025088 RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO €1.64
90
 photo_cameraImage coming soon 1010734386 TURNTABLE COMPLETE €75.96
91
 photo_cameraImage coming soon 141113440 Hexagon head screw €3.33
92
 photo_cameraImage coming soon 141112180 Countersunk screw €2.33
93
 Table Insert for Slider Mitre Saw Metabo KGS 216 M - 0102160400 1381734966 Table Insert for Slider Mitre Saw Metabo KGS 216 M - 0102160400 €13.80
95
 photo_cameraImage coming soon 141131010 Hexagonal nut €1.98
96
 Detent Compl. for Slider Mitre Saw Metabo KGS 216 M - 0102160400 1010734211 Detent Compl. for Slider Mitre Saw Metabo KGS 216 M - 0102160400 €14.74
97
 photo_cameraImage coming soon 141114000 CAP SCREW €3.33
98
 photo_cameraImage coming soon 141151340 WASHER €1.98
99
 photo_cameraImage coming soon 341111630 Thumbscrew €3.33
100
 photo_cameraImage coming soon 341112750 Thumbscrew,M6 x 12 €1.98
101
 photo_cameraImage coming soon 1010734351 Workpiece holder compl. €27.04
102
 photo_cameraImage coming soon 1010734327 TABLE SIDE EXTENSION RIGHT €23.03
103
 photo_cameraImage coming soon 1010734335 Clamping lever compl. left €1.83
105
 photo_cameraImage coming soon 1010734912 SET SCREW COMPLETE €1.64
106
 photo_cameraImage coming soon 1010734122 FOOT SET €1.33
108
 photo_cameraImage coming soon 141150390 Lock washer €1.98
109
 photo_cameraImage coming soon 1010734297 TABLE SIDE EXTENSION LEFT €23.03
112
 photo_cameraImage coming soon 1010734262 TABLE COMPLETE €91.49
113
 photo_cameraImage coming soon 1010734343 Clamping lever compl. right €1.83
114
 photo_cameraImage coming soon 141113200 Fillister head screw €1.98
120
 photo_cameraImage coming soon 1010735617 MOTOR ASSEMBLY 230V KGS 254 €126.31

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Mitre Saw KGS 254 - 0102540000 11 - EU 230V

Fix Your Slide Compound Mitre Saw KGS254 / 0102540000 11 / EU 230V. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Traction Mitre Saw and the respective parts of the code.
KGS 254 / 0102540000 11

Metabo KGS254 / 0102540000 11 / EU 230V
# Part Num. Description
1 1010734653 FLANGE COMPLETE
2 1010734610 GEAR-BOX COMPLETE
3 1010734149 SWIVEL LEVER COMPLETE
4 141130100 HEXAGONAL NUT
5 141124480 HEX. SOCKET SET SCREW FLAT PT M 6X20 VE
6 1010734564 DEPTH STOP COMPLETE MET-1010734564.A2
7 1010734572 DUST ETRACTION KIT COMPLETE
8 1381735083 COVER CABLE DUCT
9 6131001531 CROSS RECESSED FLAT HEAD SCREW M 4X8 VER
10 1010734599 WHEEL GUARD COMPLETE
11 1010734556 RELEASE LEVER COMPLETE
12 1010734165 STRAIN RELIEF COMPLETE
13 141150010 WASHER
14 6172001821 FILLISTER HEAD SCREW
15 141111430 FILLISTER HEAD SCREW
16 1010734190 HANDLE COMPLETE
17 1010734203 SWITCH SET
18 8106734071 POWER SUPPLY PACK
19 1010734092 SWITCH COMPLETE
20 8050734103 CONDENSER
21 1010734181 HANDLE COMPLETE
22 1010733991 CARBON BRUSH HOLDER COMPLETE
23 31609233 CARBON BRUSH
24 6172015687 CROSS REC D PAN HEAD TAP.SCREW
25 1381733978 MOTOR COVER
26 141116770 FILLISTER HEAD SCREW
27 141150020 WASHER
28 1010734017 MOTOR HOUSING COMPL
29 7057734854 RUBBER BUSHING
30 143111440 BALL BEARING 12X28X8
31 8014734067 STATOR
33 1331734876 AIR GUIDE COVER
34 8014734903 ARMATURE
35 1010734823 SPINDLE LOCK COMPLETE
36 7100083463 DEEP GROOVE BALL BEARING
37 141151940 WASHER
38 1010734807 BEARING COMPLETE
39 1381735660 COVER SPRING
40 6174188961 COUNTERSUNK HEAD TAPPING SCREW ST 2 9X9
41 1381734796 EXTRACTION CHANNEL
42 141124560 RAISED CHEESE HEAD SCREW
43 1010734637 SAFETY GUARD COMPLETE
44 141161150 TIGHTENING PIN
45 141124510 HEX. SOCKET SET SCREW FLAT PT M 6X8 VER
46 6172682314 CROSS REC D PAN HEAD TAP.SCRE ST 4 2X38
47 6127059193 HEXAGON SOCKET HEAD CAP SCREW
48 341701070 GRUB SCREW
49 6304001745 SERRATED LOCK WASHER
50 8402734940 CABLE WITH PLUG
51 9102689833 ALLEN HEXAGON KEY
52 1381734834 TOOL HOLDER
53 1382735095 SLIDING SHEET
54 1010734432 PIVOT COMPLETE
55 1010734521 FEED ROD COMPLETE
57 1010734700 COVER COMPLETE
58 6110000640 CUP SQUARE NECK SCREW M 8X25 VERZ.
59 1010734505 MOTOR BRACKET COMPLETE
60 1381734710 CABLE HOOK
61 141113040 FILLISTER HEAD SCREW
62 1010734530 TRANSPORT LOCK COMPLETE
63 8602734766 LED-LAMP
64 6123084703 RAISED CHEESE HEAD SCREW M 4X20 VERZ.
65 1381734974 COVER LIGHTING
66 1482734738 STOP SHEET
67 141150750 LOCK WASHER
68 6110000632 CUP SQUARE NECK SCREW M 8X16 VERZ.
69 1010734670 MOTOR HEAD AXLE COMPLETE
70 1010734467 LASER WITH HOLDER
71 343437020 THUMBSCREW COMPLETE
73 1010734416 SCALE SET COMPLETE
74 1010734459 COVER PIVOT
75 7056734753 PLUG IN BUFFER
76 141150050 WASHER
78 1381734931 COVER PIVOT
79 1010734378 CLAMPING LEVER COMPLETE
80 141130130 HEXAGONAL NUT
81 6143025088 RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO
90 1010734386 TURNTABLE COMPLETE
91 141113440 HEXAGON HEAD SCREW
92 141112180 COUNTERSUNK SCREW
93 1381734966 TABLE INSERT
94 141124460 HEX. SOCKET SET SCREW FLAT PT
95 141131010 HEXAGONAL NUT
96 1010734211 DETENT COMPLETE
97 141114000 CAP SCREW
98 141151340 WASHER
99 341111630 THUMB SCREW
100 341112750 THUMBSCREW M6 X 12
101 1010734351 WORKPIECE HOLDER COMPLETE
102 1010734327 TABLE SIDE EXTENSION RIGHT
103 1010734335 CLAMPING LEVER COMPLETE LEFT
104 1010734238 CONTROL GRIP COMPLETE
105 1010734912 SET SCREW COMPLETE
106 1010734122 FOOT SET
108 141150390 LOCK WASHER
109 1010734297 TABLE SIDE EXTENSION LEFT
110 141132030 HEX NUT
111 1010734998 COMPLETE RIP FENCE
112 1010734262 TABLE COMPLETE
113 1010734343 CLAMPING LEVER COMPLETE RIGHT
114 141113200 FILLISTER HEAD SCREW
120 1010735617 MOTOR ASSEMBLY 230V KGS 254
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
KGS254 - 0102540000 11
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram KGS 254 0102540000 11

Diagram KGS 254 0102540000 11

Download (439.87KB)

You might also like

Safety Guard Complete for Mitre Saw Metabo KGS 254
Metabo SKU: 31606347
Safety Guard Complete for Mitre Saw Metabo KGS 254
Safety Guard Complete for Mitre Saw Metabo KGS 254 Genuine part Metabo, Safety Guard Complete for Mitre Saw Metabo KG S254 M/02540000. Parts for the following products: -  Mitre Saw Metabo KGS 254 M/02540000 - Code : 31606347
Last items in stock €38.11
Details
Safety Guard Complete for Mitre Saw Metabo KGS 305 M
Metabo SKU: 31605633
Safety Guard Complete for Mitre Saw Metabo KGS 305 M
Safety Guard Complete for Mitre Saw Metabo KGS 305 M Genuine part Metabo, Safety Guard Complete for Mitre Saw Metabo KGS 305 M/19305000. Parts for the following products: -  Mitre Saw Metabo KGS 305 M - 19305000 - Code : 31605633
on 7/10 Business Days Approx €38.11
Details
Gear Housing Ass'y for Mitre Saw Metabo KGS 254 M
Metabo SKU: 31606070
Gear Housing Ass'y for Mitre Saw Metabo KGS 254 M
Gear Housing Ass'y for Mitre Saw Metabo KGS 254 M Genuine part Metabo, Gear Housing Assembly for Mitre Saw Metabo KGS 254 M/02540000 Parts for the following products: - Wood Mitre Saw Metabo KGS 254 M/02540000 - Code : 31606070
AVAILABLE €33.12
Details
Laser with Holder for Mitre Saw Metabo KGS 216 M
Metabo SKU: 34343607
Laser with Holder for Mitre Saw Metabo KGS 216 M
Laser with Holder for Mitre Saw Metabo KGS 216 M Genuine part Metabo, Laser with Holder for Mitre SawsKS 216 M Lasercut - KGS 216 M/19260000 - KGS 254 M - KGS 305 M - KGS 18 LTX 216 - 19001000 Part for the following products: -  Mitre...
Last items in stock €22.49
Details
Rip Fence Complete for Mitre Saw Metabo KGS 254
Metabo SKU: 31605600
Rip Fence Complete for Mitre Saw Metabo KGS 254
Rip Fence Complete for Mitre Saw Metabo KGS 254 Genuine part Metabo, Rip Fence Complete for Mitre Saw Metabo KG S254 M/02540000. Parts for the following products: -  Mitre Saw Metabo KGS 254 M/02540000 - Code...
Last items in stock €61.75
Details
Extraction Funnel for Mitre Saw Metabo KGS 254 M
Metabo SKU: 34343627
Extraction Funnel for Mitre Saw Metabo KGS 254 M
Extraction Funnel for Mitre Saw Metabo KGS 254 M Genuine replacement part Metabo, Extraction Funnel for Mitre Saw Metabo KGS 254 M/02540000. Parts for the following products: - Wood Mitre Saw Metabo KGS 254 M/02540000 - Code : 34343627
AVAILABLE €5.43
Details
Power Supply Pack for Mitre Saw Metabo KS 216 M Lasercut
Metabo SKU: 8106734071
Power Supply Pack for Mitre Saw Metabo KS 216 M Lasercut
Power Supply Pack for Mitre Saw Metabo KS 216 M Lasercut Genuine part Metabo, Power Supply Pack for Mitre Saw Metabo Metabo KS 216 M Lasercut - KGS 216 M - Slide Compound Mitre Saw Metabo KGS 254/0102540000. Parts for the following...
Last items in stock €20.79
Details
Metabo KGS254M Carbon Brush Set
Metabo SKU: 31609233
Metabo KGS254M Carbon Brush Set
Metabo KGS 254 M Carbon Brush Set Genuine part Metabo, Carbon Brush Set for Slide Compound Mitre Saw KGS254M - KGS305M. Parts for the following products: - Slide Compound Mitre Saw KGS254 - Slide Compound Mitre Saw Metabo KGS...
Last items in stock €15.64
Details
Comments (0)
