Metabo

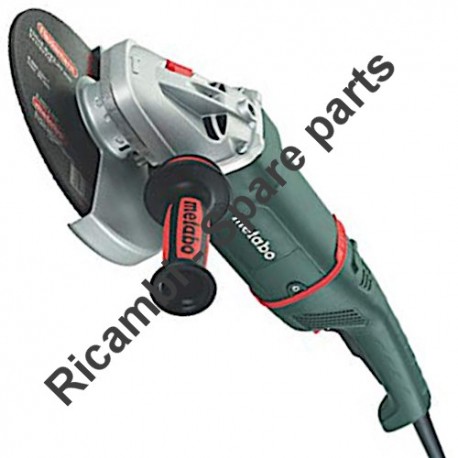

Metabo Spare Parts for Angle Grinder WX 22-230 - 06459001

SKU: Metabo WX 22-230 - 06459001
€29.03
VAT included

Metabo Spare Parts for Angle Grinder WX 22-230 - 06459001

Metabo genuine replacement parts for to replace broken parts for to fix Angle Grinder WX 22-230 - 06459001.

Angle Grinder WX 22-230 - 06459001
Metabo Spare Parts for Angle Grinder WX 22-230 - 06459001
  • Metabo Spare Parts for Angle Grinder WX 22-230 - 06459001
  • Metabo Spare Parts for Angle Grinder WX 22-230 - 06459001
Metabo

Metabo Spare Parts for Angle Grinder WX 22-230 - 06459001

SKU: Metabo WX 22-230 - 06459001 Condition: New
€29.03
VAT included

Metabo Spare Parts for Angle Grinder WX 22-230 - 06459001

Metabo genuine replacement parts for to replace broken parts for to fix Angle Grinder WX 22-230 - 06459001.

Angle Grinder WX 22-230 - 06459001
settings 51 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
51 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

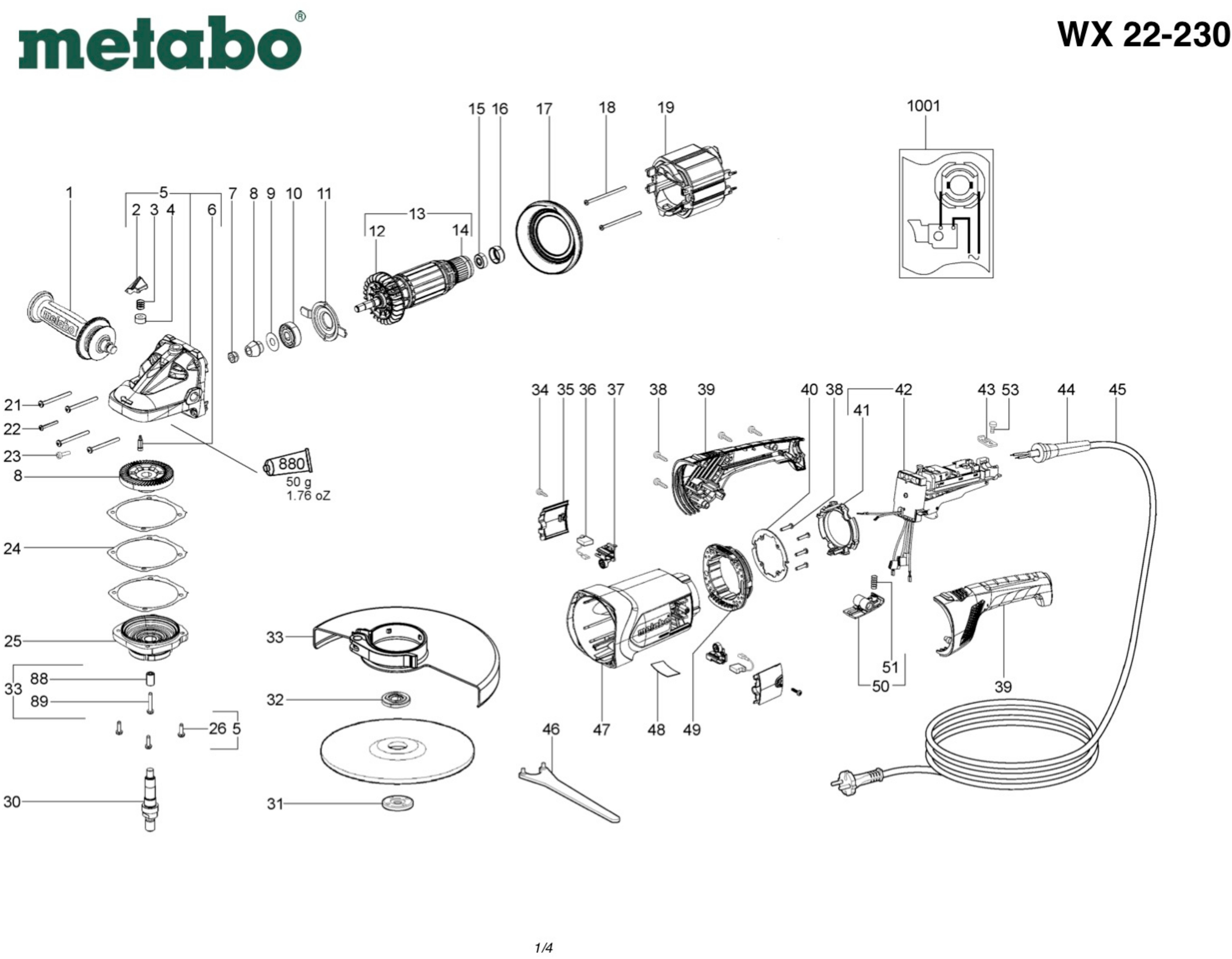

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31400096 Anti-vibration handle,M 14 €22.95
2
 photo_cameraImage coming soon 34339979 Push button black €1.28
3
 photo_cameraImage coming soon 34200339 Pressure spring €1.76
4
 photo_cameraImage coming soon 34100583 Guide bush €3.26
5
 Gear Box for Angle Grinder Metabo W 22-230 MVT 31604550 Gear Box for Angle Grinder Metabo W 22-230 MVT €85.48
6
 photo_cameraImage coming soon 34151543 Bolt €1.34
7
 photo_cameraImage coming soon 34110066 Self locking nut €3.12
8
 photo_cameraImage coming soon 31604553 Bevel gear €51.09
9
 photo_cameraImage coming soon 14112387 Washer €1.34
10
 photo_cameraImage coming soon 14311551 Ball bearing, 12x37x12 €3.92
11
 photo_cameraImage coming soon 33900728 Fixed bearing cover €2.99
12
 Fan with Dust Protection for Angle Grinder Metabo W 22-230 MVT 31604556 Fan with Dust Protection for Angle Grinder Metabo W 22-230 MVT €14.81
13
 photo_cameraImage coming soon 31001133 Armature compl.,230 V €122.03
14
 Armature Sealing Washer for Angle Grinders Metabo 230 mm 34339063 Armature Sealing Washer for Angle Grinders Metabo 230 mm €1.75
15
 photo_cameraImage coming soon 14311340 Ball bearing, 8x22x7 €11.17
16
 Armature Bearing Rubber Holder for Angle Grinders Metabo 230 mm 34409408 Armature Bearing Rubber Holder for Angle Grinders Metabo 230 mm €2.08
17
 photo_cameraImage coming soon 33915113 Baffle €1.34
18
 photo_cameraImage coming soon 14112168 Self-tap. fill. h. screw €1.53
19
 photo_cameraImage coming soon 31100959 Field coil €57.68
21
 photo_cameraImage coming soon 14111937 Self-tap. fill. h. screw €1.34
22
 photo_cameraImage coming soon 14112202 Fillister head screw €1.53
23
 photo_cameraImage coming soon 14111985 Fillister head screw €1.53
24
 photo_cameraImage coming soon 33901181 Gasket €1.34
25
 photo_cameraImage coming soon 31604555 Gear flange cpl. €46.15
29
 photo_cameraImage coming soon 14118150 Circlip €1.34
30
 photo_cameraImage coming soon 34160298 Spindle shaft €24.18
31
 photo_cameraImage coming soon 34110690 Flange nut €9.91
32
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
33
 photo_cameraImage coming soon 31605351 Wheel guard compl. €57.69
34
 photo_cameraImage coming soon 34170205 Screw €1.53
35
 photo_cameraImage coming soon 34339553 Brush holder cover €1.34
36
 Carbon Brushes for Angle Grinders Metabo W 22-230 MVT 31604557 Carbon Brushes for Angle Grinders Metabo W 22-230 MVT €28.12
37
 photo_cameraImage coming soon 34300095 Brush guide €6.22
38
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
39
 photo_cameraImage coming soon 34339551 Upper and lower handle €18.25
40
 photo_cameraImage coming soon 33900732 Retaining sheet €1.44
41
 photo_cameraImage coming soon 34339980 Edge protection €1.28
42
 Metabo Electronic Switch Set for WE 24-230 MVT 31605218 Metabo Electronic Switch Set for WE 24-230 MVT €89.74
43
 photo_cameraImage coming soon 33912773 Cable clip €1.53
44
 photo_cameraImage coming soon 34409455 Cable sleeve €2.42
45
 Power Cord with CEE Plug for Grinder Metabo W 22-230 MVT 34448780 Power Cord with CEE Plug for Grinder Metabo W 22-230 MVT €40.51
46
 photo_cameraImage coming soon 34416084 Pin spanner €5.07
47
 photo_cameraImage coming soon 31501330 Motor housing €18.92
48
 photo_cameraImage coming soon 33805391 Plate €1.28
49
 photo_cameraImage coming soon 34339749 Damper €7.71
50
 photo_cameraImage coming soon 34339552 Locking lever €1.44
51
 photo_cameraImage coming soon 34200217 Pressure spring €1.34
53
 photo_cameraImage coming soon 14111680 Self-tap. fill. h. screw €1.70
88
 photo_cameraImage coming soon 34100609 Spacer bush €1.34
89
 photo_cameraImage coming soon 14111134 Cap screw €1.34
880
 photo_cameraImage coming soon 34413091 Grease 100G €15.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Angle Grinder WX 22-230 - 06459001

Metabo genuine replacement parts for to replace broken parts for to fix Angle Grinder WX 22-230 - 06459001.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Metabo WX 22-230 - 06459001

Angle Grinder Metabo WX 22-230 06459001
# Part Num. Description
1 31400096 Anti-vibration handle, M 14
2 34339979 button Yellow black
3 34200339 Spring
4 34100583 Guide bush
5 31604550 Gearbox
6 34151543 Pin
7 34110066 Hexagonal nut with collar
8 31604553 Crown Gear and pinion Gear
9 14112387 Washer
10 14311551 Bearing 12x37x12
11 33900728 Fixed bearing cover
12 31604556 Fan with dust cover
13 31001133 Complete armature, 230 V
14 34339063 Centrifugal lubrication washer
15 14311340 Bearing 8x 22x 7
16 34409408 Rubber support
17 33915113 Air conveyor
18 14112168 Screw
19 31100959 Stator - Field 230V
21 14111937 Screw
22 14112202 Head screw with mik shell
23 14111985 Head screw with mik shell
24 33901181 seal
25 31604555 Gearbox flange
29 14118150 Safety washer
30 34160298 Grinding shaft
31 34110690 Nut with flange
32 34103116 Clamping flange
33 31605351 Complete protection cap
34 34170205 Screw
35 34339553 Cover
36 31604557 Carbon Bush set - Self-locking, 230 V
37 34300095 Carbon Bush Guide
38 14111602 Screw
39 34339551 Upper and lower handle
40 33900732 retaining washer
41 34339980 Corner protection
42 31605218 Electronic switch set, Defond 230V
43 33912773 Cable holder
44 34409455 Cable protection
45 34448780 Cable with CEE plug
46 34416084 Key with two pins
47 31501330 Engine casing
48 33805391 Plate
49 34339749 Damper
50 34339552 Locking lever
51 34200217 Spring
53 14111680 Screw
88 34100609 Spacer bushing
89 14111134 Cylindrical screw
880 34413091 100G GREASE TUBE
1001 33850567 Verdrahtungsplan
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo WX 22-230 - 06459001
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Drawing WX 22-230 06459001

Drawing WX 22-230 06459001

Download (215.75KB)
