Metabo

Metabo Spare Parts for Angle Grinder W 780 - 06701000

SKU: Metabo W 780 - 06701000
€12.25
VAT included

Metabo Spare Parts for Angle Grinder W 780 - 06701000

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 780 - 06701000.

Angle Grinder W 780 - 06701000
Metabo Spare Parts for Angle Grinder W 780 - 06701000
  • Metabo Spare Parts for Angle Grinder W 780 - 06701000
  • Metabo Spare Parts for Angle Grinder W 780 - 06701000
Metabo

Metabo Spare Parts for Angle Grinder W 780 - 06701000

SKU: Metabo W 780 - 06701000 Condition: New
€12.25
VAT included

Metabo Spare Parts for Angle Grinder W 780 - 06701000

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 780 - 06701000.

Angle Grinder W 780 - 06701000
settings 40 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
40 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

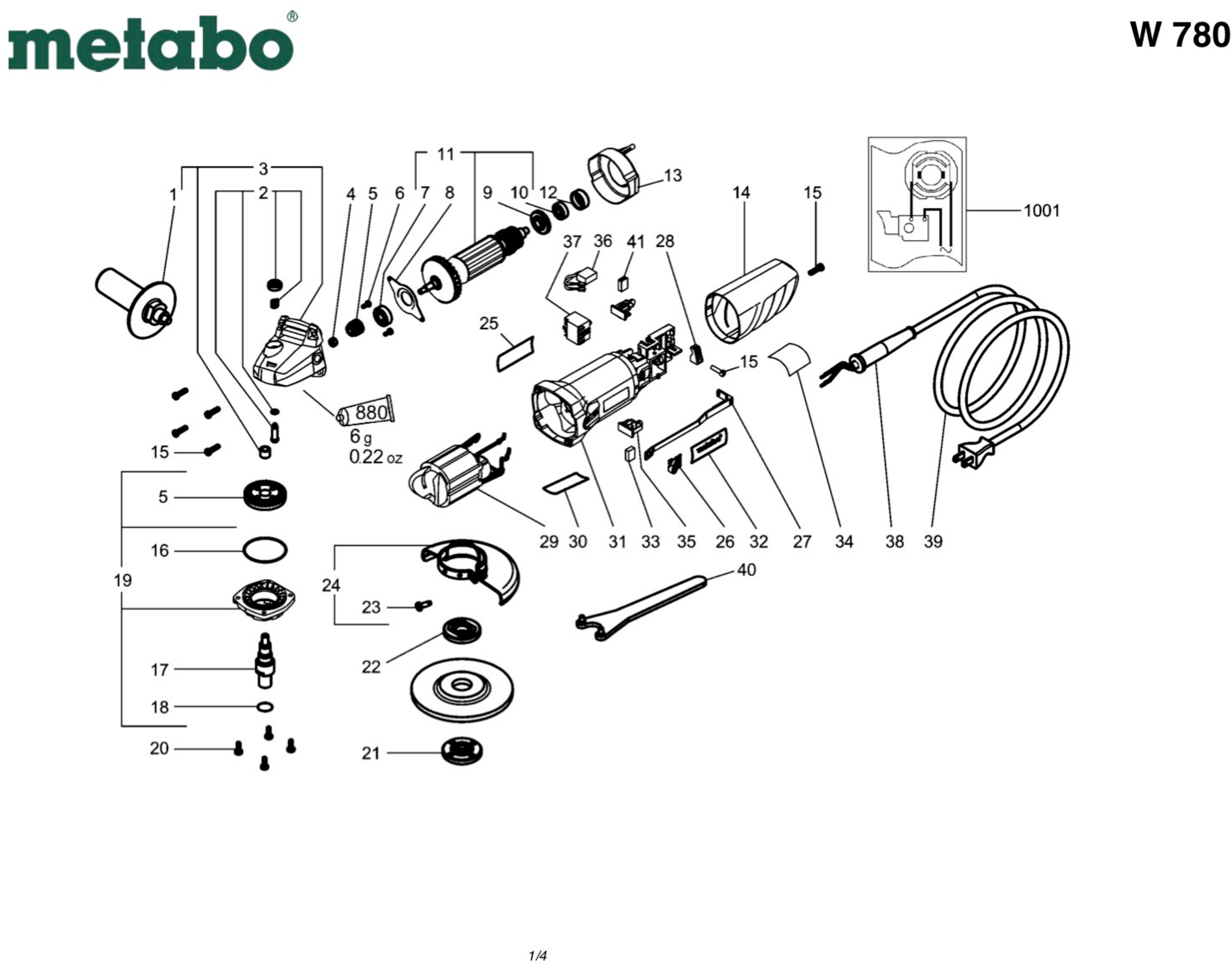

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31400054 Handle cpl. €12.25
2
 photo_cameraImage coming soon 31604061 Spindle stop compl. €3.40
3
 Gear Box for Angle Grinder Metabo W 720 31604607 Gear Box for Angle Grinder Metabo W 720 €31.45
4
 photo_cameraImage coming soon 14113010 Hexagonal nut €1.70
5
 Crown and Pinion for Angle Grinder Metabo W 820-720-WP 820-115 31605103 Crown and Pinion for Angle Grinder Metabo W 820-720-WP 820-115 €24.79
6
 photo_cameraImage coming soon 14111046 Fillister head screw €1.66
7
 photo_cameraImage coming soon 14311542 Ball bearing, 8x22x7 €6.28
8
 photo_cameraImage coming soon 31541749 Fixed bearing cover €1.66
9
 Armature Sealing Washer for Angle Grinder Metabo W 6-115 34339274 Armature Sealing Washer for Angle Grinder Metabo W 6-115 €5.18
10
 photo_cameraImage coming soon 14311587 Ball bearing, 6x19x6 €3.98
11
 photo_cameraImage coming soon 31000977 Complete armature, 230V €52.85
12
 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm 34409526 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm €2.08
13
 photo_cameraImage coming soon 34339920 Baffle €1.57
14
 photo_cameraImage coming soon 34339919 Motor cap €3.76
15
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
16
 photo_cameraImage coming soon 34409755 O-ring 48 x 1 €1.62
17
 photo_cameraImage coming soon 34116115 Spindle M14 €7.65
18
 photo_cameraImage coming soon 14319254 O-ring €1.66
19
 Metabo W 720-115 Flange Assy 34103223 Metabo W 720-115 Flange Assy €42.55
20
 photo_cameraImage coming soon 14112007 Fill. head screw €1.66
21
 photo_cameraImage coming soon 34110690 Flange nut €9.91
22
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
23
 photo_cameraImage coming soon 14112164 Fill. head screw(DIN 7985) €1.76
24
 Wheel Guard for Angle Grinder Metabo W 750-115 33920366 Wheel Guard for Angle Grinder Metabo W 750-115 €11.91
25
 photo_cameraImage coming soon 33812216 M-Label,08 52x22 €1.74
26
 photo_cameraImage coming soon 34340981 Complete switch €2.49
27
 photo_cameraImage coming soon 34339917 Switch rod €1.88
28
 photo_cameraImage coming soon 34336249 Cable clip €2.02
29
 photo_cameraImage coming soon 31101123 Complete field 230V €30.95
30
 photo_cameraImage coming soon 33805419 Data plate €1.57
31
 photo_cameraImage coming soon 34339918 Motor housing €21.39
32
 photo_cameraImage coming soon 33812254 Metabo plate €1.66
33
 Carbon Brushes for Angle Grinder Metabo W 820-115 31604744 Carbon Brushes for Angle Grinder Metabo W 820-115 €11.48
35
 photo_cameraImage coming soon 34301295 METABO Brush holder €3.50
36
 photo_cameraImage coming soon 34325429 Condenser €1.66
37
 Switch for Angle Grinders Metabo W 820-720-6-115 34340826 Switch for Angle Grinders Metabo W 820-720-6-115 €8.15
38
 photo_cameraImage coming soon 34409736 Cable sleeve €1.66
39
 photo_cameraImage coming soon 34449842 Cable with plug €7.34
40
 photo_cameraImage coming soon 34416392 Pin spanner €5.32
41
 photo_cameraImage coming soon 31604967 Carbon brush €10.92

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Angle Grinder W 780 - 06701000

We are METABO original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 780 - 06701000.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Metabo W 780 - 06701000

Angle Grinder Metabo W 780 06701000
# Part Num. Description
1 31400054 Handle
2 31604061 Lock Pin
3 31604607 Gear case compl.
4 14113010 Hex nut
5 31605103 Crown Gear and pinion Gear
6 14111046 Screw
7 14311542 Bearing 8x 22x 7
8 31541749 Fixed bearing cover
9 34339274 Centrifugal lubrication washer
10 14311587 Bearing 6x 19x 6
11 31000977 Complete armature, 230V
12 34409526 Rubber bushing
13 34339920 Air conveyor
14 34339919 Engine cover
15 14111602 Screw
16 34409755 OR-ring 48 x 1
17 34116115 reducer shaft M14
18 14319254 O-Ring
19 34103223 Complete flange
20 14112007 Screw
21 34110690 Nut with flange
22 34103116 Clamping flange
23 14112164 Screw (DIN 7985)
24 33920366 Wheel Guard cpl. Ø115
25 33812216 Metabo label, 08 52x22
26 34340981 Complete switch
27 34339917 Gear shift rod
28 34336249 Cable holder
29 31101123 Complete field 230V
30 33805419 Data plate
31 34339918 Engine casing
32 33812254 Metabo label
33 31604744 Detachable self-locking brushes
34 39999999 DETAIL NOT NECESSARY
35 34301295 Brush Holder
36 34325429 Capacitor
37 34340826 Switch
38 34409736 Cable protection
39 34449842 Cable with plug
40 34416392 Key with two pins
41 31604967 Self-sticking brushes
880 344130910 100G GREASE TUBE
1001 338504470 Data plate
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo W 780 - 06701000
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Drawing Metabo W 780 06701000

Drawing Metabo W 780 06701000

Download (201.08KB)
