Metabo Spare Parts for Electric Stapler TA E 2019
We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Stapler TA E 2019 - 02019000.
Metabo Spare Parts for Electric Stapler TA E 2019
€2.03
VAT included
Metabo Spare Parts for Electric Stapler TA E 2019
We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Stapler TA E 2019 - 02019000.
settings
14 spare parts
description

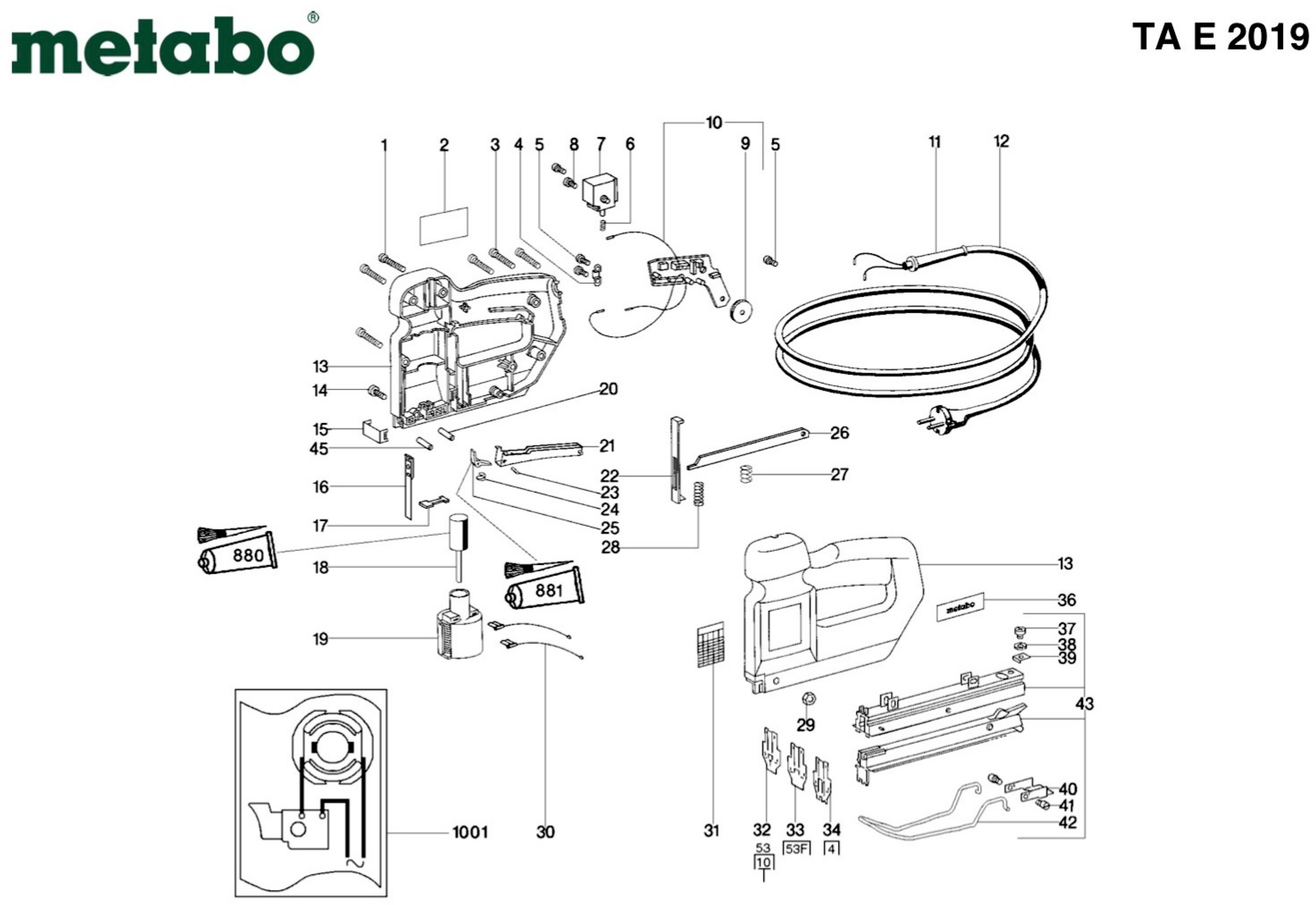

1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
14 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in: 10 BUSYNESS DAYS
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
3
|
photo_cameraImage coming soon | 34170170 Self-tap. fill. h. screw | €4.30 | |
|
4
|
photo_cameraImage coming soon | 33918007 Cable clip | €1.56 | |
|
6
|
photo_cameraImage coming soon | 34200142 Pressure spring | €4.30 | |
|
7
|
photo_cameraImage coming soon | 34340339 Switch | €16.69 | |
|
8
|
photo_cameraImage coming soon | 14111697 Fillister head screw | €1.87 | |
|
9
|
photo_cameraImage coming soon | 34336092 Selector | €1.56 | |
|
11
|
photo_cameraImage coming soon | 34410033 Cable sleeve | €4.88 | |
|
12
|
|
34448588 Power Cord for Angle Grinder Metabo W 7-115 | €19.80 | |
|
21
|
photo_cameraImage coming soon | 34336095 Tripping device | €3.15 | |
|
23
|
photo_cameraImage coming soon | 34114283 Spindle | €1.42 | |
|
25
|
photo_cameraImage coming soon | 34336093 Pawl | €2.57 | |
|
38
|
photo_cameraImage coming soon | 14115026 Spring washer | €1.54 | |
|
880
|
photo_cameraImage coming soon | 34413103 Grease 50Gr 1,8oz | €13.97 | |
|
881
|
photo_cameraImage coming soon | 34413027 Grease Sgf 079 | €10.04 |
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Metabo Spare Parts for Electric Stapler TA E 2019
We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Stapler TA E 2019 - 02019000.
In the following table, look for the model of the Electric Stapler and the respective parts of the code.
| Electric Stapler TA E 2019/02019000 | ||
| 1 | 34170185 | Screw |
| 2 | 33802497 | Rating plate |
| 3 | 34170170 | Self-tap. fill. h. screw |
| 4 | 33918007 | Cable clip |
| 5 | 34170137 | Self-tap. fill. h. screw |
| 6 | 34200142 | Pressure spring |
| 7 | 34340339 | Switch |
| 8 | 14111697 | Fillister head screw |
| 9 | 34336092 | Selector |
| 10 | 34307412 | Electronic unit |
| 11 | 34410033 | Cable sleeve |
| 12 | 34448588 | Cable with plug |
| 13 | 34336767 | Housing with cover |
| 14 | 14111685 | Fillister head screw |
| 15 | 33900563 | Terminal |
| 16 | 34114479 | Blade |
| 17 | 34409396 | Impact plate |
| 18 | 34114478 | Ram cpl. |
| 19 | 31100639 | Coil cpl. |
| 20 | 34100453 | Spacing tube |
| 21 | 34336095 | Tripping device |
| 22 | 34336769 | Transmission element |
| 23 | 34114283 | Spindle |
| 24 | 34200149 | Pressure spring |
| 25 | 34336093 | Pawl |
| 26 | 33900399 | Rocker |
| 27 | 34200209 | Pressure spring |
| 28 | 34200211 | Pressure spring |
| 29 | 14113034 | Cap nut |
| 30 | 34449148 | Strand |
| 31 | 33810761 | Indication label |
| 32 | 33912544 | Front plate |
| 33 | 33912545 | Front plate |
| 34 | 33912546 | Front plate |
| 36 | 33811837 | Metabo Label 99 |
| 37 | 14111102 | Cap screw |
| 38 | 14115026 | Spring washer |
| 39 | 33912593 | Angle |
| 40 | 33912595 | Clamping lever |
| 41 | 34170248 | Trunnion screw |
| 42 | 33912594 | Clamping strap |
| 43 | 34114427 | Front plate cpl. |
| 45 | 14116397 | Cylindrical pin |
| 880 | 34413103 | Grease 50Gr 1,8oz |
| 881 | 34413027 | Grease SGF 079 |
