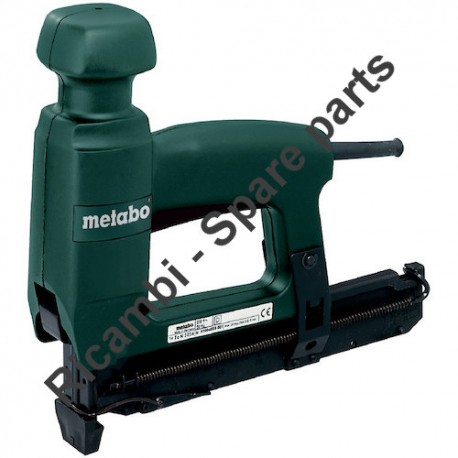

Metabo Spare Parts for Electric Stapler TA M 3034
€1.92
VAT included
Metabo Spare Parts for Electric Stapler TA M 3034
Metabo genuine spare parts for replacing or repairing Electric Stapler TA M 3034/03034000.
Metabo Spare Parts for Electric Stapler TA M 3034
€1.92
VAT included
Metabo Spare Parts for Electric Stapler TA M 3034
Metabo genuine spare parts for replacing or repairing Electric Stapler TA M 3034/03034000.
settings
43 spare parts
description
1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
43 spare parts
Page 1
zoom_in View exploded
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Metabo Spare Parts for Electric Stapler TA M 3034
Metabo genuine spare parts for replacing or repairing Electric Stapler TA M 3034/03034000.In the following table, look for the model of the Electric Stapler and the respective parts of the code.
| Electric Stapler TA M 3034/03034000 | ||
| # | Part Num. | Description |
| 1 | 34114318 | Ram cpl. |
| 2 | 34200141 | Pressure spring |
| 3 | 34114278 | Circlip |
| 4 | 34409276 | Buffer |
| 5 | 14113122 | Hexagonal lock nut |
| 6 | 34170170 | Self-tap. fill. h. screw |
| 7 | 34336091 | Housing with cover |
| 8 | 33918007 | Cable clip |
| 9 | 34170137 | Self-tap. fill. h. screw |
| 10 | 34200142 | Pressure spring |
| 11 | 34340339 | Switch |
| 12 | 14111697 | Fillister head screw |
| 13 | 34336092 | Selector |
| 14 | 34307141 | Electronic unit 220 V |
| 15 | 34170163 | Cap screw |
| 16 | 34100358 | Spacing tube |
| 17 | 34200139 | Pressure spring |
| 18 | 34151368 | Bolt |
| 19 | 34449318 | Cable with plug |
| 20 | 34410033 | Cable sleeve |
| 21 | 34114411 | Stopper |
| 22 | 34409286 | Bumper |
| 23 | 34409277 | Intermediate layer |
| 24 | 33912259 | Pan |
| 25 | 31100751 | Coil cpl. |
| 26 | 34336093 | Pawl |
| 27 | 34336094 | Transmission pin |
| 28 | 34200144 | Spring |
| 29 | 34200143 | Pressure spring |
| 30 | 34114283 | Spindle |
| 31 | 34336095 | Tripping device |
| 32 | 14111814 | Fillister head screw |
| 33 | 34170169 | Hexagon head screw |
| 34 | 34205033 | Compression Spring |
| 35 | 33912245 | Front plate |
| 36 | 34114277 | Channel |
| 37 | 34114281 | Slide cpl. |
| 38 | 34114282 | Channel cpl. |
| 39 | 14118171 | Circlip |
| 40 | 33810682 | Indication label |
| 41 | 33812241 | Metabo label |
| 43 | 33802192 | Rating plate |
| 44 | 33911117 | Insulation |
| 880 | 34413103 | Grease 50Gr 1,8oz |
| 881 | 34413027 | Grease SGF 079 |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
