Metabo Spare Parts for Cordless Hammer KHA 36 LTX

SKU: Metabo KHA36LTX - 00795000
€174.44
VAT included

Metabo Spare Parts for Cordless Hammer KHA 36 LTX

METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Hammer KHA 36 LTX - 00795000.

Cordless Hammer KHA 36 LTX
Metabo Spare Parts for Cordless Hammer KHA 36 LTX
  • Metabo Spare Parts for Cordless Hammer KHA 36 LTX
  • Metabo Spare Parts for Cordless Hammer KHA 36 LTX
Metabo

Metabo Spare Parts for Cordless Hammer KHA 36 LTX

SKU: Metabo KHA36LTX - 00795000 Condition: New
€174.44
VAT included

Metabo Spare Parts for Cordless Hammer KHA 36 LTX

METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless Hammer KHA 36 LTX - 00795000.

Cordless Hammer KHA 36 LTX
settings 55 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
55 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

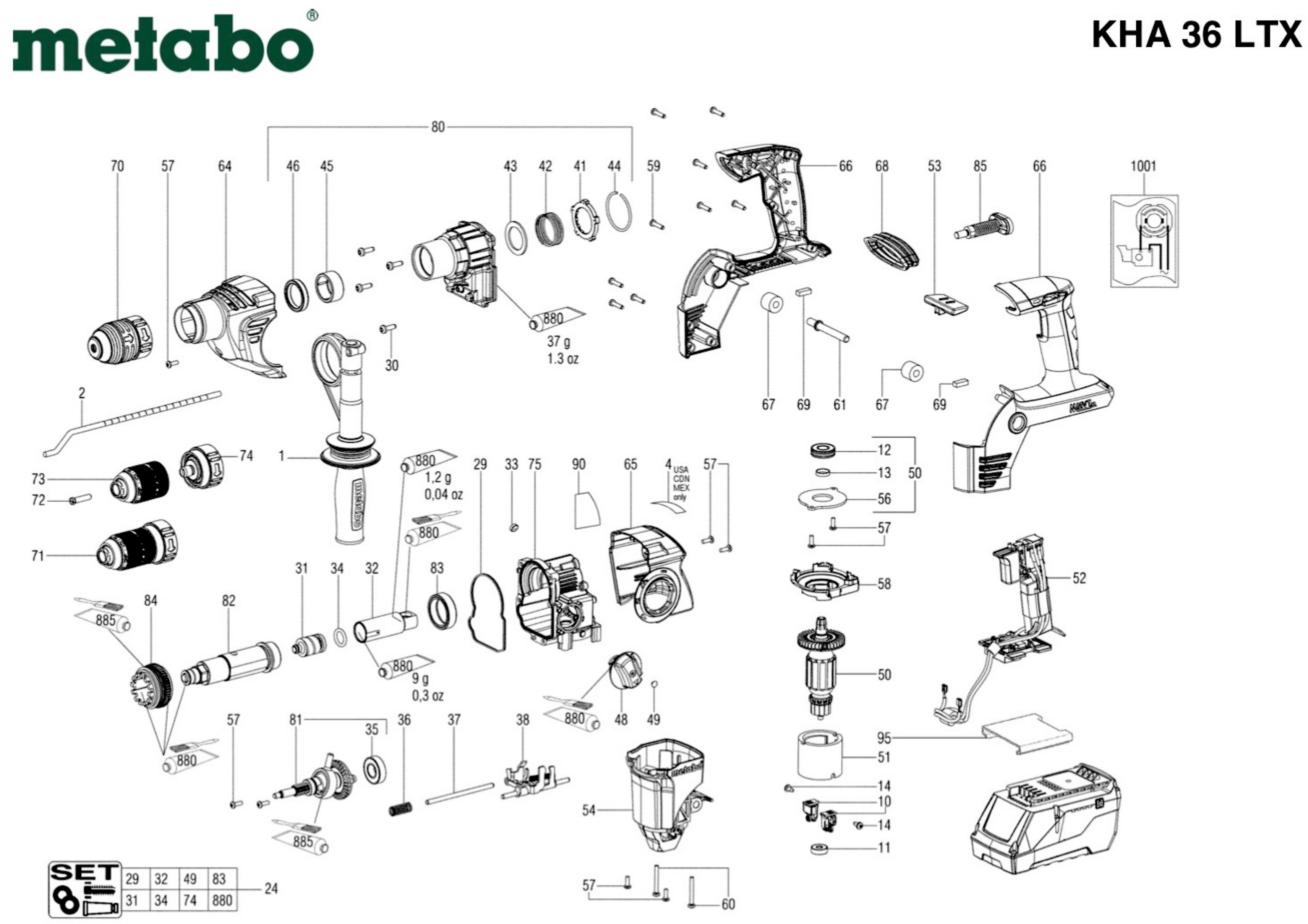

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31400138 Support handle compl. €21.39
2
 Deth Rod for Rotary Hammer Metabo BH E 6020 S 34151163 Deth Rod for Rotary Hammer Metabo BH E 6020 S €5.00
4
 photo_cameraImage coming soon 33812175 Warning Label serial 40x14 €1.75
7
 photo_cameraImage coming soon 31800158 Gear-box compl. €514.72
10
 Metabo KHA 36 LTX Brush holder Assy 31605183 Metabo KHA 36 LTX Brush holder Assy €11.23
11
 photo_cameraImage coming soon 31606716 Ball bearing set €14.93
12
 photo_cameraImage coming soon 14311536 Ball bearing,12X 28X 8 €6.19
13
 Spacer Sleeve for Rotary Hammer Metabo KHE 3250 34100605 Spacer Sleeve for Rotary Hammer Metabo KHE 3250 €4.32
14
 photo_cameraImage coming soon 14111613 Self-tap. fill. h. screw €1.80
24
 photo_cameraImage coming soon 31605404 Wartungsset €133.74
29
 photo_cameraImage coming soon 34409885 SEAL €2.59
30
 photo_cameraImage coming soon 14112164 Fill. head screw(DIN 7985) €1.76
31
 Metabo Striker for KHA 36 LTX 34105952 Metabo Striker for KHA 36 LTX €15.83
32
 Metabo Exciter Sleeve for KHA 36 LTX 34105962 Metabo Exciter Sleeve for KHA 36 LTX €19.57
33
 photo_cameraImage coming soon 34407067 Felt seal €1.81
34
 photo_cameraImage coming soon 14319535 O-ring €1.75
35
 photo_cameraImage coming soon 14311579 BALL BEARING, 15x32x9 €3.91
36
 photo_cameraImage coming soon 34200279 Pressure spring €1.75
38
 photo_cameraImage coming soon 31604791 Shift element compl. €21.39
41
 photo_cameraImage coming soon 34339954 Retaining ring €1.75
42
 photo_cameraImage coming soon 34200349 Pressure spring,34,7x38,3x1,8x27,7 €1.81
43
 photo_cameraImage coming soon 14115559 Supporting disc €1.75
44
 photo_cameraImage coming soon 14115654 Circlip €1.75
45
 photo_cameraImage coming soon 14311469 Needle sleeve €5.44
46
 photo_cameraImage coming soon 14319534 Shaft sealing ring €1.75
48
 photo_cameraImage coming soon 31604734 Control knob compl. €9.92
49
 Control Knob Hole Cover for Rotary Hammer Metabo KHE 22 SP 34337675 Control Knob Hole Cover for Rotary Hammer Metabo KHE 22 SP €1.93
50
 Armature Assy for Cordless Rotary Hammer Metabo KHA 36 LTX 31001270 Armature Assy for Cordless Rotary Hammer Metabo KHA 36 LTX €98.69
51
 photo_cameraImage coming soon 31101176 Field coil €48.87
52
 photo_cameraImage coming soon 34308310 Electronic switch compl. €112.07
53
 photo_cameraImage coming soon 34343209 Switch slide,R+L €2.47
54
 photo_cameraImage coming soon 31501347 Motor housing €23.77
56
 photo_cameraImage coming soon 33900736 Fixed bearing cover €1.93
57
 photo_cameraImage coming soon 14112007 Fill. head screw €1.66
58
 photo_cameraImage coming soon 34343210 Baffle €2.47
59
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
60
 photo_cameraImage coming soon 14112400 Fillister head screw €1.75
61
 photo_cameraImage coming soon 34121028 Bearing bolt €3.91
64
 photo_cameraImage coming soon 34343007 Housing in the front €7.52
65
 photo_cameraImage coming soon 34343008 Housing rear €6.19
66
 photo_cameraImage coming soon 34343208 Handle €41.65
67
 photo_cameraImage coming soon 34409879 Damping ring €12.13
68
 photo_cameraImage coming soon 34409892 Bellows €5.44
69
 photo_cameraImage coming soon 34409940 Gummipuffer €1.75
70
 photo_cameraImage coming soon 31604735 Adaptor SDS -PLUS €66.93
75
 photo_cameraImage coming soon 31510493 Gear housing rear €43.25
80
 photo_cameraImage coming soon 31604996 Gear housing cpl. €68.84
81
 photo_cameraImage coming soon 31605402 Pinion shaft compl. €140.96
82
 photo_cameraImage coming soon 31604994 Drill driving sleeve compl. €142.31
83
 photo_cameraImage coming soon 31605002 Bearing ring compl. €30.45
84
 photo_cameraImage coming soon 31604790 Intermediate gear cpl. €55.10
85
 photo_cameraImage coming soon 31604884 Spring-locked connecting pin compl. €27.49
90
 photo_cameraImage coming soon 33805814 Rating plate €1.75
880
 Grease Tube GF 126 for All Metabo Power Tools 34413080 Grease Tube GF 126 for All Metabo Power Tools €22.39
885
 photo_cameraImage coming soon 13601209 Grease €164.43

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Cordless Hammer KHA 36 LTX

METABO Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Cordless HammerKHA 36 LTX - 00795000.

In the following table, look for the model of the Hammer and the respective parts of the code.
Metabo KHA 36 LTX - 00795000

Cordless Hammer KHA 36 LTX/00795000
# Part Num. Description
1 31400138 Support handle compl.
2 34151163 Depth stop
4 33812175 Warning Label serial 40x14
7 31800158 Gear-box compl.
8 31800137 KHA 36
10 31605183 Brush holder assy.
11 31606716 Ball bearing set
12 14311536 Ball bearing,12X 28X 8
13 34100605 Spacer sleeve
14 14111613 Self-tap. fill. h. screw
24 31605404 Wartungsset
29 34409885 SEAL
30 14112164 Fill. head screw(DIN 7985)
31 34105952 Striker
32 34105962 Exciter sleeve
33 34407067 Felt seal
34 14319535 O-ring
35 14311579 BALL BEARING, 15x32x9
36 34200279 Pressure spring
37 34154014 shift bolt
38 31604791 Shift element compl.
41 34339954 Retaining ring
42 34200349 Pressure spring,34,7x38,3x1,8x27,7
43 14115559 Supporting disc
44 14115654 Circlip
45 14311469 Needle sleeve
46 14319534 Shaft sealing ring
48 31604734 Control knob compl.
49 34337675 Seal
50 31001270 Armature compl.,36V
51 31101176 Field coil
52 34308310 Electronic switch compl.
53 34343209 Switch slide,R+L
54 31501347 Motor housing
56 33900736 Fixed bearing cover
57 14112007 Fill. head screw
58 34343210 Baffle
59 14111602 Self-tap fill h screw
60 14112400 Fillister head screw
61 34121028 Bearing bolt
64 34343007 Housing in the front
65 34343008 Housing rear
66 34343208 Handle
67 34409879 Damping ring
68 34409892 Bellows
69 34409940 Gummipuffer
70 31604735 Adaptor SDS -PLUS
75 31510493 Gear housing rear
80 31604996 Gear housing cpl.
81 31605402 Pinion shaft compl.
82 31604994 Drill driving sleeve compl.
83 31605002 Bearing ring compl.
84 31604790 Intermediate gear cpl.
85 31604884 Spring-locked connecting pin compl.
90 33805814 Rating plate
880 34413080 Grease FG 126
885 13601209 Grease
1001 33850579 Diagram
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo KHA36LTX - 00795000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo KHA 36 LTX

Diagram Metabo KHA 36 LTX

Download (238.65KB)
