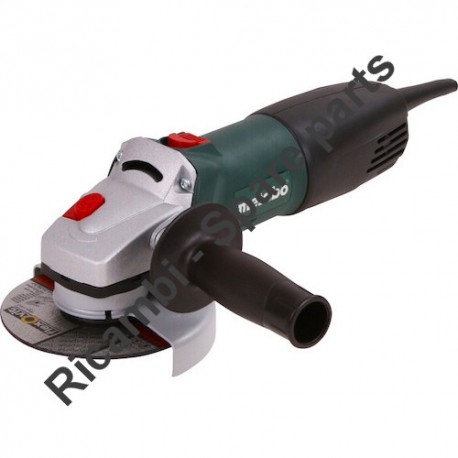

Metabo Spare Parts for Angle Grinder WQ 1000

SKU: Metabo WQ1000 - 20035001
€1.65
VAT included

Metabo Spare Parts for Angle Grinder WQ 1000

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder WQ 1000 - 20035001.

Angle Grinder WQ 1000 - 20035001
Metabo Spare Parts for Angle Grinder WQ 1000
  • Metabo Spare Parts for Angle Grinder WQ 1000
  • Metabo Spare Parts for Angle Grinder WQ 1000
Metabo

Metabo Spare Parts for Angle Grinder WQ 1000

SKU: Metabo WQ1000 - 20035001 Condition: New
€1.65
VAT included

Metabo Spare Parts for Angle Grinder WQ 1000

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder WQ 1000 - 20035001.

Angle Grinder WQ 1000 - 20035001
settings 50 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
50 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

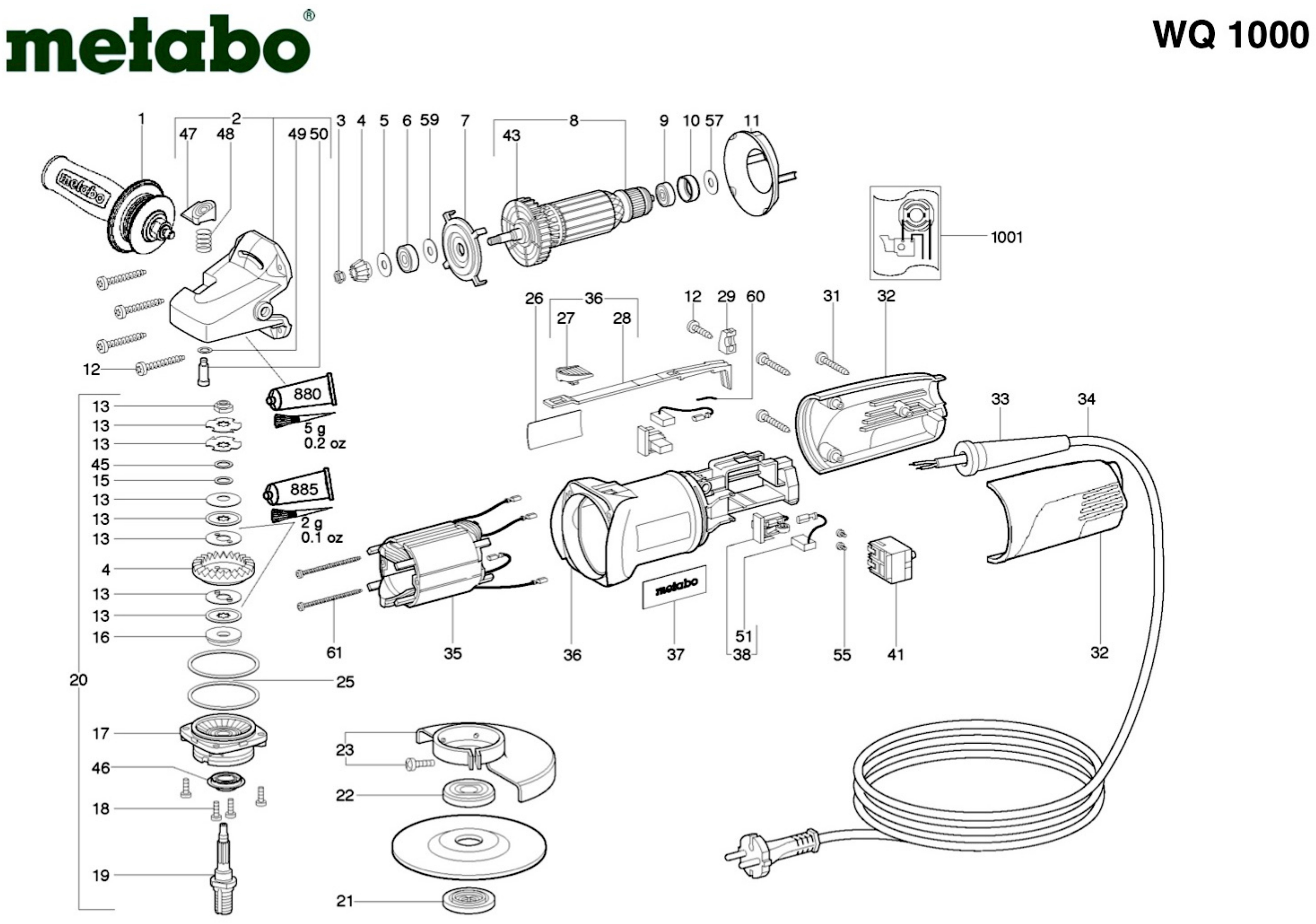

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31400097 Anti-vibration handle,M 8 €15.03
2
 photo_cameraImage coming soon 31602918 Gear housing cpl. €50.96
3
 photo_cameraImage coming soon 34110094 Hexagon nut w.recess €2.02
4
 Crown and Pinion for Angle Grinder Metabo W 7-115 31602947 Crown and Pinion for Angle Grinder Metabo W 7-115 €34.71
5
 photo_cameraImage coming soon 33900639 Washer,7,05x19,5x0,2 €1.76
6
 photo_cameraImage coming soon 14311570 Ball bearing,8x22x7 €3.10
7
 Armature Front Cover for Angle Grinder Metabo W 7-115 34337367 Armature Front Cover for Angle Grinder Metabo W 7-115 €2.75
8
 photo_cameraImage coming soon 31000774 Armature 230 V €70.24
9
 photo_cameraImage coming soon 14311569 Ball bearing,6x19x6 €2.40
10
 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm 34409526 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm €2.08
11
 photo_cameraImage coming soon 33915089 Baffle €1.70
12
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
13
 photo_cameraImage coming soon 31602948 Friction washer cpl. €12.08
15
 photo_cameraImage coming soon 14115112 Washer 10,2 X 14,8X 0,2 €1.74
16
 photo_cameraImage coming soon 34105148 Intermediate piece €2.30
17
 photo_cameraImage coming soon 34337721 Flange complete €12.08
18
 photo_cameraImage coming soon 14111986 Fillister head screw €1.79
19
 photo_cameraImage coming soon 34116103 Spindle shaft €23.80
20
 photo_cameraImage coming soon 31603932 Intermediate Gear €77.25
21
 photo_cameraImage coming soon 31602366 Clamping nut compl.,M14 €16.78
22
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
23
 photo_cameraImage coming soon 31604612 Wheel guard cpl. €27.82
25
 photo_cameraImage coming soon 33906016 Compensating Washer €1.82
26
 photo_cameraImage coming soon 33805047 Rating lable €1.52
27
 photo_cameraImage coming soon 34339418 Switch slide €1.65
28
 photo_cameraImage coming soon 34339188 Switch rod €1.52
29
 photo_cameraImage coming soon 34336249 Cable clip €2.02
31
 photo_cameraImage coming soon 14111699 Self-tap. fill. h. screw €1.98
32
 photo_cameraImage coming soon 34337569 2 part motor cap €5.73
33
 photo_cameraImage coming soon 34410097 Cable sleeve €1.79
34
 photo_cameraImage coming soon 34449318 Cable with plug €23.87
35
 photo_cameraImage coming soon 31101019 Field coil assembly w.field coil,230V €63.23
36
 Burnishing Machine SE 12-115 Motor Housing 31605220 Burnishing Machine SE 12-115 Motor Housing €22.68
37
 photo_cameraImage coming soon 33812216 M-Label,08 52x22 €1.74
38
 photo_cameraImage coming soon 31603548 Brush holder cpl. €12.08
41
 Switch for Angle Grinder Metabo WQ 1000 34341111 Switch for Angle Grinder Metabo WQ 1000 €24.97
43
 Fan with Dust Protection for Angle Grinder Metabo W 7-115 31603121 Fan with Dust Protection for Angle Grinder Metabo W 7-115 €13.14
45
 photo_cameraImage coming soon 14115555 Washer 10,2 X 14,8X 1,0 €1.82
46
 photo_cameraImage coming soon 34337554 Sealing washer €1.52
47
 photo_cameraImage coming soon 34339419 Push button, red €1.52
48
 photo_cameraImage coming soon 34200155 Pressure spring €1.59
49
 photo_cameraImage coming soon 33900652 Sealing washer €1.59
50
 photo_cameraImage coming soon 34151379 Bolt €3.85
51
 Carbon Brushes for Angle Grinder Metabo W 7-115 31603551 Carbon Brushes for Angle Grinder Metabo W 7-115 €19.80
55
 photo_cameraImage coming soon 14111578 Fillister head screw €1.52
57
 photo_cameraImage coming soon 14115334 Washer €6.12
59
 photo_cameraImage coming soon 33913228 Washer €1.59
60
 photo_cameraImage coming soon 34409744 Foam rubber cord €1.52
880
 photo_cameraImage coming soon 34413084 Special grease 100Gr 3,6oz €14.81
885
 photo_cameraImage coming soon 34413056 Grease SF 011 50Gr 1,8oz €37.66

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Angle Grinder WQ 1000

We are METABO original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder WQ 1000 - 20035001.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Angle Grinder WQ 1000 - 20035001

Angle Grinder WQ 1000
# Part Num. Description
1 31400097 Anti-vibration handle,M 8
2 31602918 Gear housing cpl.
3 34110094 Hexagon nut w.recess
4 31602947 Bevel gear
5 33900639 Washer,7,05x19,5x0,2
6 14311570 Ball bearing,8x22x7
7 34337367 Cover
8 31000774 Armature 230 V
9 14311569 Ball bearing,6x19x6
10 34409526 Rubber bushing
11 33915089 Baffle
12 14111602 Self-tap fill h screw
13 31602948 Friction washer cpl.
15 14115112 Washer 10,2 X 14,8X 0,2
16 34105148 Intermediate piece
17 34337721 Flange complete
18 14111986 Fillister head screw
19 34116103 Spindle shaft
20 31603932 Intermediate Gear
21 31602366 Clamping nut compl.,M14
22 34103116 Clamping flange
23 31604612 Wheel guard cpl.
25 33906016 Compensating Washer
26 33805047 Rating lable
27 34339418 Switch slide
28 34339188 Switch rod
29 34336249 Cable clip
31 14111699 Self-tap. fill. h. screw
32 34337569 2 part motor cap
33 34410097 Cable sleeve
34 34449318 Cable with plug
35 31101019 Field coil assembly w.field coil,230V
36 31605220 Motor housing
37 33812216 M-Label,08 52x22
38 31603548 Brush holder cpl.
41 34341111 Switch, FPCe 230 V
43 31603121 Fan w. prot. Grid
45 14115555 Washer 10,2 X 14,8X 1,0
46 34337554 Sealing washer
47 34339419 Push button, red
48 34200155 Pressure spring
49 33900652 Sealing washer
50 34151379 Bolt
51 31603551 Carbon brush
55 14111578 Fillister head screw
57 14115334 Washer
59 33913228 Washer
60 34409744 Foam rubber cord
61 39999999 Part not needed
880 34413084 Special grease 100Gr 3,6oz
885 34413056 Grease SF 011 50Gr 1,8oz
1001 33850198 Diagram
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo WQ1000 - 20035001
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo WQ 1000

Diagram Metabo WQ 1000

Download (248.1KB)
