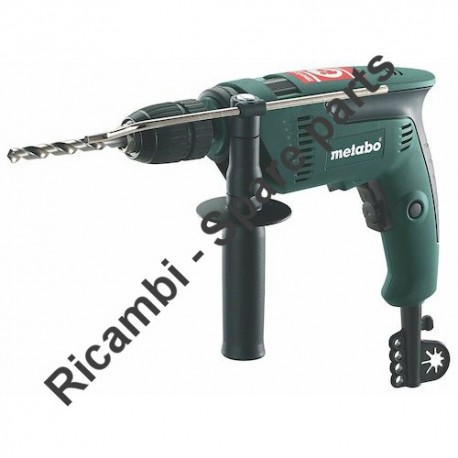

Metabo Spare Parts for Percussion Drill SBE 550 00536000
Metabo original spare parts for to replace broken parts for to fix Percussion Drill SBE 550 00536000 EU 230V.Fix Your Percussion Drill. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
Metabo Spare Parts for Percussion Drill SBE 550 00536000
€4.75
VAT included
Metabo Spare Parts for Percussion Drill SBE 550 00536000
Metabo original spare parts for to replace broken parts for to fix Percussion Drill SBE 550 00536000 EU 230V.Fix Your Percussion Drill. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings
37 spare parts
description
1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
37 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in: 10 BUSYNESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Metabo Spare Parts for Percussion Drill SBE 550 00536000
Metabo original spare parts for to replace broken parts for to fix Percussion Drill SBE 550 00536000 EU 230V.
Fix Your Percussion Drill. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
In the following table, look for the model of the Percussion Drill and the respective parts of the code.
| Percussion Drill SBE 550 00536000 EU 230V | ||
| # | Part NUm. | Description |
| 1 | 34151163 | Depth rod |
| 2 | 31400084 | Full handle |
| 3 | 34335978 | Handle Collar |
| 4 | 14111616 | Hexagon head screw |
| 5 | 31400055 | Handle |
| 6 | 34170194 | Cylindrical screw |
| 7 | 63128100 | Clamping sleeve |
| 8 | 34160398 | Spindle shaft |
| 9 | 14311564 | Bearing 12x 28x 8 |
| 10 | 14118006 | Safe ring |
| 11 | 34105465 | Gear |
| 12 | 32005026 | Ball Support |
| 13 | 33900587 | Washer |
| 14 | 34202156 | Spring |
| 15 | 31602522 | Gearbox flange |
| 16 | 34337076 | Switch slider |
| 17 | 14111602 | Screw |
| 18 | 33805057 | Data plate |
| 19 | 39999999 | Partic. UNNECESSARY |
| 20 | 34339342 | Housing w.cover gummed |
| 21 | 33812134 | Information plate Clamp bush |
| 22 | 34409222 | Rubber cap |
| 23 | 34340636 | Electronic switch |
| 24 | 14111697 | Head screw with cap |
| 25 | 34325394 | Anti-interference shielding |
| 26 | 39999999 | Partic. UNNECESSARY |
| 27 | 34410300 | Insert for Box |
| 28 | 14115059 | Flat spring |
| 29 | 14311340 | Bearing 8x 22x 7 |
| 30 | 34105517 | Washer |
| 31 | 31000925 | Armature |
| 32 | 31603387 | Carbon Brush Set |
| 33 | 31101091 | Stator - Field 230 V |
| 34 | 34409335 | Rubber cap |
| 35 | 14311566 | Bearing 6x 19x 6 |
| 36 | 34449314 | Faston contact series |
| 37 | 34325401 | Anti-interference capacitor |
| 38 | 33812216 | Metabo label, 08 52x22 |
| 39 | 34336249 | Cable holder |
| 40 | 34410059 | Cable holder sleeve |
| 41 | 34448588 | Cable with CEE plug |
| 880 | 34413065 | GL 402 grease |
| 1001 | 33850026 | connection scheme |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo SBE 550 - 00536000
6 Items
Data sheet
- SHIPPING IN:
- Usually Ships in: 10 BUSYNESS DAYS
- CHECK ITEM CODE OR S/N:
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK S/N METABO:
- METABO S/N START WITH ( 0 ) and have 8 DIGITS
