Metabo

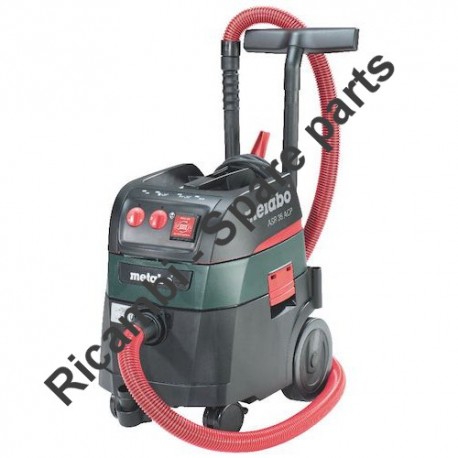

Metabo Spare Parts for Vacuum Cleaner ASR 35 L ACP - 02057000

SKU: ASR 35 L ACP - 02057000
€30.39
VAT included

Metabo Spare Parts for Vacuum Cleaner ASR 35 L ACP - 02057000

METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Wet/Dry Vacuum Cleaner ASR 35 L ACP 02057000 EU 230V.

Aspiratore a Secco/Liquido ASR 35 L ACP 02057000 EU 230V
Metabo Spare Parts for Vacuum Cleaner ASR 35 L ACP - 02057000
  • Online only
  • Metabo Spare Parts for Vacuum Cleaner ASR 35 L ACP - 02057000
  • Metabo Spare Parts for Vacuum Cleaner ASR 35 L ACP - 02057000 - Drawing
Metabo

Metabo Spare Parts for Vacuum Cleaner ASR 35 L ACP - 02057000

SKU: ASR 35 L ACP - 02057000 Condition: New
€30.39
VAT included

Metabo Spare Parts for Vacuum Cleaner ASR 35 L ACP - 02057000

METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Wet/Dry Vacuum Cleaner ASR 35 L ACP 02057000 EU 230V.

Aspiratore a Secco/Liquido ASR 35 L ACP 02057000 EU 230V
settings 54 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
54 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31604904 Knurled screw €26.51
2
 photo_cameraImage coming soon 34449876 Cable w.socket,230V €41.83
3
 photo_cameraImage coming soon 63193400 2 Filter cartidges, Polyester €369.82
4
 photo_cameraImage coming soon 31604903 Complete locking €31.68
5
 photo_cameraImage coming soon 14112013 Chipboard screw €1.83
6
 photo_cameraImage coming soon 34105977 pin €3.46
7
 photo_cameraImage coming soon 31604919 Complete motor plug €2.96
8
 photo_cameraImage coming soon 34151556 Ball Bearing pin €48.53
9
 photo_cameraImage coming soon 34343046 Motor casing €121.58
10
 photo_cameraImage coming soon 34160428 Comm. Axis €6.64
11
 photo_cameraImage coming soon 34200296 Flat spring €2.59
12
 photo_cameraImage coming soon 34337831 Cable clip €1.64
13
 photo_cameraImage coming soon 34343040 Switch pin €13.31
14
 photo_cameraImage coming soon 34160427 Gearbox axis €3.46
15
 photo_cameraImage coming soon 34343043 Switch pin €9.47
16
 photo_cameraImage coming soon 34307232 Lamp rail €10.74
17
 photo_cameraImage coming soon 34205095 Switch spring €9.47
18
 Metabo ASR 35 L ACP Electronic Board 34308423 Metabo ASR 35 L ACP Electronic Board €210.84
19
 photo_cameraImage coming soon 34343041 Cover €91.94
20
 photo_cameraImage coming soon 34449877 Machine socket €66.90
21
 photo_cameraImage coming soon 34343042 Front plate €60.23
22
 photo_cameraImage coming soon 31604900 Magnet €145.37
23
 Vibrator Set for Vacuum Cleaner Metabo ASR 35 L ACP 31604923 Vibrator Set for Vacuum Cleaner Metabo ASR 35 L ACP €134.88
25
 photo_cameraImage coming soon 33806163 Data plate €1.45
26
 photo_cameraImage coming soon 34343044 Washer €3.46
27
 photo_cameraImage coming soon 31604915 Motor intake €23.83
28
 photo_cameraImage coming soon 34409899 coverage €3.46
29
 photo_cameraImage coming soon 34305003 Terminal rail €1.83
30
 photo_cameraImage coming soon 31700403 MOTOR GASKET ET €13.31
31
 photo_cameraImage coming soon 31700299 Blower €386.89
32
 photo_cameraImage coming soon 34343047 Lower case €145.37
33
 photo_cameraImage coming soon 31604920 Complete electrode €18.49
34
 photo_cameraImage coming soon 34409898 Series filter €21.33
35
 photo_cameraImage coming soon 34343050 Neutral plate €5.47
37
 photo_cameraImage coming soon 31604922 COMPLETE WHEEL €36.85
38
 photo_cameraImage coming soon 34409904 COMPLETE ENCLOSURE €36.85
39
 photo_cameraImage coming soon 33913513 contact bracket €21.33
40
 photo_cameraImage coming soon 34343048 closing €8.14
41
 photo_cameraImage coming soon 34409902 Gasket €21.33
42
 photo_cameraImage coming soon 34343045 Carrying plate 46 €132.01
43
 photo_cameraImage coming soon 33913514 Support 18 €5.47
44
 photo_cameraImage coming soon 34409632 Vacuum hose €2.59
45
 photo_cameraImage coming soon 33913134 Contact wire €1.64
46
 photo_cameraImage coming soon 34409905 Complete presser 23 €12.14
49
 photo_cameraImage coming soon 34205096 Contact jumper 15 €3.46
50
 photo_cameraImage coming soon 34343049 Complete container 54 €237.19
52
 photo_cameraImage coming soon 33908084 Contact pin 15 €3.46
54
 photo_cameraImage coming soon 34120108 Steering wheel 24 €13.31
56
 photo_cameraImage coming soon 34160429 Axis 24 €13.31
57
 photo_cameraImage coming soon 63032500 5 PE disposal bags - 35/50 €103.04
58
 photo_cameraImage coming soon 31605885 complete traction rod 26 €18.49
59
 photo_cameraImage coming soon 34308432 pressure sensor 32 €43.53
61
 photo_cameraImage coming soon 34409973 Seal 17 €4.80
70
 photo_cameraImage coming soon 63136200 Suction hose, 35 mm dia. €168.29

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Vacuum Cleaner ASR 35 L ACP - 02057000

METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Wet/Dry Vacuum Cleaner ASR 35 L ACP 02057000 EU 230V.

In the following table, look for the model of the Air Compressor and the respective parts of the code.
ASR 35 L ACP - 02057000

Wet/Dry Vacuum Cleaner ASR 35 L ACP 02057000 EU 230V
# Part Num. Description
1 31604904 Knurled screw
2 34449876 Cable with plug, 230V
3 63193400 Pleated filter
4 31604903 Complete locking
5 14112013 Screw
6 34105977 pin
7 31604919 Complete motor plug
8 34151556 Ball Bearing pin
9 34343046 Motor casing
10 34160428 Comm. Axis
11 34200296 Leaf spring
12 34337831 Cable holder
13 34343040 Switch pin
14 34160427 Gearbox axis
15 34343043 Switch pin
16 34307232 Front for lamp
17 34205095 Switch spring
18 34308423 Electronics
19 34343041 Cover
20 34449877 Machine socket
21 34343042 Front plate
22 31604900 Magnet
23 31604923 Vibrator Set
24 33901236 Gasket
25 33806163 Data plate
26 34343044 Washer
27 31604915 Motor intake
28 34409899 coverage
29 34305003 3-pole terminal block
30 31700403 MOTOR GASKET ET
31 31700299 Fan
32 34343047 Lower case
33 31604920 Complete electrode
34 34409898 Series filter
35 34343050 Neutral plate
36 34409903 Plug
37 31604922 COMPLETE WHEEL
38 34409904 COMPLETE ENCLOSURE
39 33913513 contact bracket
40 34343048 closing
41 34409902 Gasket
42 34343045 Carrying plate 46
43 33913514 Support 18
44 34409632 Tube under pressure 13
45 33913134 contact cable 11
46 34409905 Complete presser 23
47 63031400 2 Suction tubes 0.4m
49 34205096 Contact jumper 15
50 34343049 Complete container 54
52 33908084 Contact pin 15
54 34120108 Steering wheel 24
56 34160429 Axis 24
57 63032500 5 PE disposal bags - 35/50
58 31605885 complete traction rod 26
59 34308432 pressure sensor 32
61 34409973 Seal 17
70 63136200 Flexible hose 3,2 m
71 39999999 DETAIL NOT NECESSARY
100 34344600 Tube support 24
101 14420868 Self-adhesive L 15
1001 33850550 Data plate
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
ASR 35 L ACP - 02057000
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Drawing Metabo ASR 35 L ACP

Drawing Metabo ASR 35 L ACP

Download (313KB)
