Metabo

Metabo Spare Parts for Angle Grinder W 2000 - 06420260

SKU: Metabo W 2000 - 06420260
€18.43
VAT included

Metabo Spare Parts for Angle Grinder W 2000 - 06420260

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 2000 - 06420260.

Angle Grinder W 2000 - 06420260
Metabo Spare Parts for Angle Grinder W 2000 - 06420260
  • Metabo Spare Parts for Angle Grinder W 2000 - 06420260
  • Metabo Spare Parts for Angle Grinder W 2000 - 06420260
Metabo

Metabo Spare Parts for Angle Grinder W 2000 - 06420260

SKU: Metabo W 2000 - 06420260 Condition: New
€18.43
VAT included

Metabo Spare Parts for Angle Grinder W 2000 - 06420260

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 2000 - 06420260.

Angle Grinder W 2000 - 06420260
settings 46 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
46 spare parts

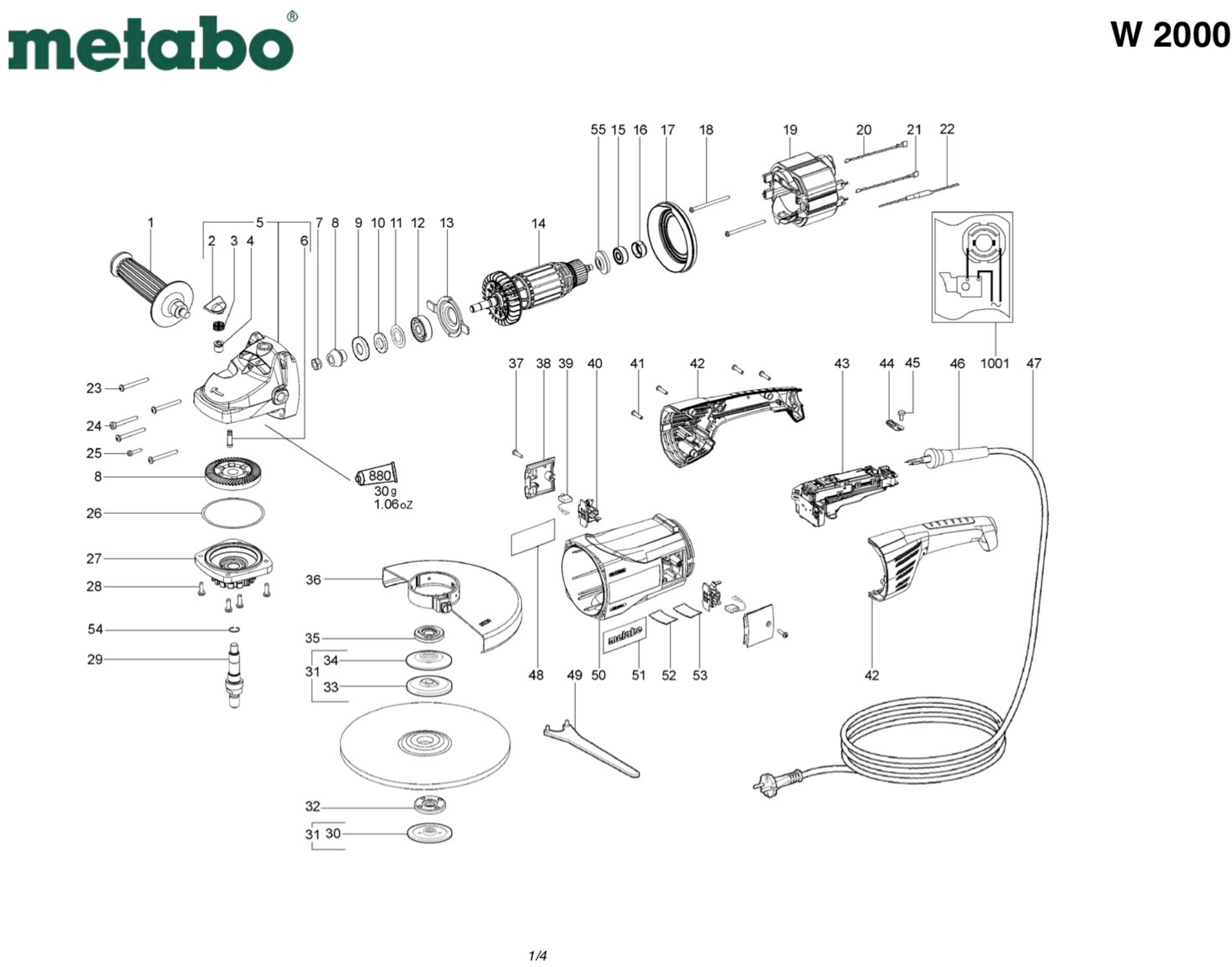

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31400028 Handle €16.95
2
 photo_cameraImage coming soon 34337644 Push button €2.54
3
 photo_cameraImage coming soon 34200173 Pressure spring €1.65
4
 photo_cameraImage coming soon 34100397 Guide bush €3.85
5
 photo_cameraImage coming soon 31603172 Gear housing cpl. €59.73
6
 photo_cameraImage coming soon 34151381 Thrust bolt €1.80
7
 photo_cameraImage coming soon 34110066 Self locking nut €3.12
8
 Bevel Gear Set for Angle Grinder Metabo W 21-230 31602529 Bevel Gear Set for Angle Grinder Metabo W 21-230 €73.40
9
 photo_cameraImage coming soon 34101151 Spacer ring €5.07
10
 photo_cameraImage coming soon 14319244 elt ring €3.12
11
 photo_cameraImage coming soon 33907008 Cover washer €1.71
12
 photo_cameraImage coming soon 14311523 ball Bearing 12x 37x 12 €6.97
13
 photo_cameraImage coming soon 33900728 Fixed bearing cover €2.99
14
 photo_cameraImage coming soon 31609425 Armature Ass'y €83.31
15
 photo_cameraImage coming soon 14311340 Ball bearing, 8x22x7 €11.17
16
 Armature Bearing Rubber Holder for Angle Grinders Metabo 230 mm 34409408 Armature Bearing Rubber Holder for Angle Grinders Metabo 230 mm €2.08
17
 photo_cameraImage coming soon 33915095 Air conveyor €2.71
18
 photo_cameraImage coming soon 14112168 Self-tap. fill. h. screw €1.53
19
 photo_cameraImage coming soon 31101260 Complete Stator (Field) €61.86
20
 photo_cameraImage coming soon 34449369 Strand €1.49
23
 photo_cameraImage coming soon 14111937 Self-tap. fill. h. screw €1.34
24
 photo_cameraImage coming soon 14112202 Fillister head screw €1.53
26
 photo_cameraImage coming soon 33906014 Sealing ring €1.71
27
 photo_cameraImage coming soon 31604747 Complete gearbox flange, D 230 €25.02
28
 photo_cameraImage coming soon 14112164 Fill. head screw(DIN 7985) €1.76
29
 photo_cameraImage coming soon 34160416 Grinding shaft €12.74
32
 photo_cameraImage coming soon 34110690 Flange nut €9.91
35
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
36
 photo_cameraImage coming soon 31604500 Complete protection cap, D 230 €22.39
37
 photo_cameraImage coming soon 34170205 Screw €1.53
38
 photo_cameraImage coming soon 34337643 Cover €1.80
39
 photo_cameraImage coming soon 31604748 Carbon Brush set €14.92
40
 photo_cameraImage coming soon 34300077 Brush guide €5.76
41
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
42
 photo_cameraImage coming soon 34339826 Upper and lower handle 22 €11.17
43
 Switch 230V Assy for Angle Grinder Metabo W 2000 34340918 Switch 230V Assy for Angle Grinder Metabo W 2000 €22.26
44
 photo_cameraImage coming soon 33912773 Cable clip €1.53
45
 photo_cameraImage coming soon 14111680 Self-tap. fill. h. screw €1.70
46
 photo_cameraImage coming soon 34409455 Cable sleeve €2.42
47
 Power Cord with CEE Plug for Grinder Metabo W 22-230 MVT 34448780 Power Cord with CEE Plug for Grinder Metabo W 22-230 MVT €40.51
48
 photo_cameraImage coming soon 33811734 Indication label €1.61
49
 photo_cameraImage coming soon 34416084 Pin spanner €5.07
50
 photo_cameraImage coming soon 31501276 Motor housing €23.77
51
 photo_cameraImage coming soon 33812208 Metabo plate 14 €3.10
54
 photo_cameraImage coming soon 14118009 snap ring €1.70
880
 photo_cameraImage coming soon 34413091 Grease 100G €15.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Angle Grinder W 2000 - 06420260

We are METABO original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 2000 - 06420260.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Angle Grinder W 2000 - 06420260

ANGLE GRINDER METABO W 2000 - 06420260
# Part Num. Description
1 31400028 Handle
2 34337644 Button
3 34200173 Spring
4 34100397 Guide bushing
5 31603172 Gearbox
6 34151381 Pin
7 34110066 Hexagonal nut with collar
8 31602529 Bevel Gear Set
9 34101151 Spacer ring
10 14319244 Impregnated felt ring
11 33907008 Cover disk
12 14311523 ball Bearing 12x 37x 12
13 33900728 Fixed bearing cover
14 31609425 Armature Ass'y
15 14311340 Ball Bearing 8x 22x 7
16 34409408 Rubber support
17 33915095 Air conveyor
18 14112168 Screw
19 31101260 Complete Stator (Field)
20 34449369 Faston
21 39999999 DETAIL NOT NECESSARY
22 39999999 DETAIL NOT NECESSARY
23 14111937 Screw
24 14112202 Screw with mik shell
25 14112480 Screw with cap
26 33906014 Seal ring
27 31604747 Complete gearbox flange, D 230
28 14112164 Screw (DIN 7985)
29 34160416 Grinding shaft
30 39999999 DETAIL NOT NECESSARY
31 39999999 DETAIL NOT NECESSARY
32 34110690 Nut with flange
33 39999999 DETAIL NOT NECESSARY
34 39999999 DETAIL NOT NECESSARY
35 34103116 Clamping flange
36 31604500 Complete protection cap, D 230
37 34170205 Screw
38 34337643 Cover
39 31604748 Carbon Brush set
40 34300077 Carbon Brush guide
41 14111602 Screw
42 34339826 Upper and lower handle 22
43 34340918 Complete switch 26
44 33912773 Cable holder 11
45 14111680 Screw 11
46 34409455 Cable protection 13
47 34448780 Cable with CEE plug 25
48 33811734 Information plate 11
49 34416084 Two pin wrench 17
50 31501276 Motor case 27
51 33812208 Metabo plate 14
52 33805397 Data plate 11
53 39999999 DETAIL NOT NECESSARY
54 14118009 Safety ring 12
55 34343557 Washer with centrifugal lubrication 11
880 34413091 100G GREASE TUBE 24
1001 33850211 Data plate

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo W 2000 - 06420260
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Drawing Metabo W 2000

Drawing Metabo W 2000

Download (202.93KB)
