Metabo Spare Parts for Hammer Drill SBE 2000 - 602001000

SKU: Metabo SBE 2000 - 602001000
€1.85
VAT included

Metabo Spare Parts for Hammer Drill SBE 2000 - 602001000

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Hammer Drill SBE 2000 - 602001000.

Metabo SBE 2000 - 602001000
Metabo Spare Parts for Hammer Drill SBE 2000 - 602001000
  • Metabo Spare Parts for Hammer Drill SBE 2000 - 602001000
  • Metabo Spare Parts for Hammer Drill SBE 2000 - 602001000

Metabo Spare Parts for Hammer Drill SBE 2000 - 602001000

SKU: Metabo SBE 2000 - 602001000 Condition: New
€1.85
VAT included

Metabo Spare Parts for Hammer Drill SBE 2000 - 602001000

We are METABO original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Hammer Drill SBE 2000 - 602001000.

Metabo SBE 2000 - 602001000
settings 74 spare parts

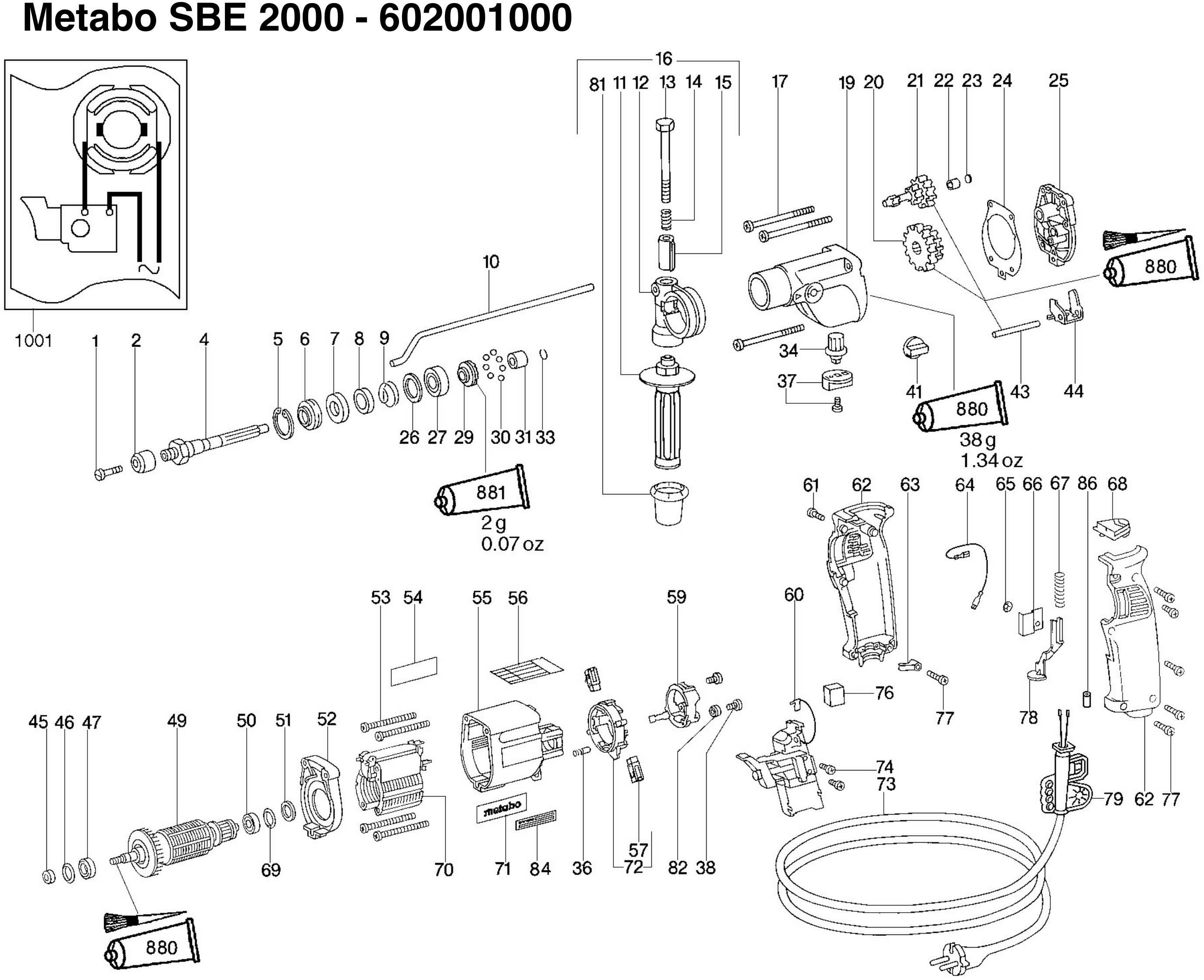

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

54 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 34170194 Cheese-head screw €1.71
5
photo_cameraImage coming soon 14118168 Retaining ring €1.53
6
photo_cameraImage coming soon 34335921 Spacer Ring €2.00
7
photo_cameraImage coming soon 14319370 Felt Ring €1.27
8
photo_cameraImage coming soon 33900266 Spacer Sheet €1.27
10
photo_cameraImage coming soon 62728800 Depth Stop €23.29
12
photo_cameraImage coming soon 34335978 Clamping piece €4.69
13
photo_cameraImage coming soon 14111616 Hexagon head screw €1.59
14
photo_cameraImage coming soon 34200780 Pressure spring €1.77
15
photo_cameraImage coming soon 34336491 Locking Bushing €1.59
17
photo_cameraImage coming soon 34170218 Tight-fit screw plast. 45 €1.41
20
photo_cameraImage coming soon 34000315 Sliding Block €11.36
22
photo_cameraImage coming soon 14311143 Needle sleeve €5.07
23
photo_cameraImage coming soon 33900129 Butting Washer €1.61
24
photo_cameraImage coming soon 33921027 Gasket €2.57
25
photo_cameraImage coming soon 31601922 Gear Flange Cpl. €20.73
26
photo_cameraImage coming soon 14115322 Washer €1.52
27
photo_cameraImage coming soon 14311022 BALL BEARING, 15X32X9 €20.72
30
photo_cameraImage coming soon 14312002 Ball €1.41
34
photo_cameraImage coming soon 31601728 Shift Axle Cpl. €1.85
36
photo_cameraImage coming soon 34200114 Index bolt €1.71
37
photo_cameraImage coming soon 31601238 Control Knob Cpl. €4.73
38
photo_cameraImage coming soon 14111684 Self-tap. fill. h. screw €1.43
41
photo_cameraImage coming soon 31601235 Control Knob Cpl. €4.44
43
photo_cameraImage coming soon 34154001 Guide bolt €4.35
45
photo_cameraImage coming soon 34335650 Sealing ring €1.27
46
photo_cameraImage coming soon 14319257 O-ring €1.59
47
photo_cameraImage coming soon 14311340 Ball bearing, 8x22x7 €11.17
49
Metabo Percussion Drill BE 75-16 Armature 31000663 Metabo Percussion Drill BE 75-16 Armature €128.46
50
photo_cameraImage coming soon 14311223 Ball bearing, 6x19x6 €11.23
51
photo_cameraImage coming soon 14115340 Washer €1.76
52
photo_cameraImage coming soon 34336178 Intermediate flange €4.73
53
photo_cameraImage coming soon 14111826 Self-tap. fill. h. screw €1.81
55
photo_cameraImage coming soon 31501232 Motor housing €25.90
57
Metabo BE 75-16 Carbon Brush Set 31603373 Metabo BE 75-16 Carbon Brush Set €18.32
59
photo_cameraImage coming soon 31602102 Pressure plate cpl. €10.40
61
photo_cameraImage coming soon 34170205 Screw €1.53
62
photo_cameraImage coming soon 34336235 Pistol grip €18.08
63
photo_cameraImage coming soon 34336249 Cable clip €2.02
64
photo_cameraImage coming soon 34449015 Strand cpl. AWG18SW €2.25
65
photo_cameraImage coming soon 14118176 Circlip €1.43
66
photo_cameraImage coming soon 33911102 Cover €1.43
67
photo_cameraImage coming soon 34200121 Pressure spring €1.43
68
photo_cameraImage coming soon 34336177 Cover €1.59
69
O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 14319243 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 €1.88
73
photo_cameraImage coming soon 34448853 Cable with plug €24.77
74
photo_cameraImage coming soon 14111697 Fillister head screw €1.87
76
photo_cameraImage coming soon 34410075 Insert €1.27
77
photo_cameraImage coming soon 14112034 Fill. Head Screw Plast. 45 €1.43
78
photo_cameraImage coming soon 34336246 Locking catch €1.43
79
photo_cameraImage coming soon 34410059 Cable sleeve €2.25
81
photo_cameraImage coming soon 34336108 Cap €1.41
880
photo_cameraImage coming soon 34413027 Grease Sgf 079 €10.04
881
photo_cameraImage coming soon 34413093 Grease 50Gr 1,8oz €34.48

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Hammer Drill SBE 2000 - 602001000

We are METABO original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Hammer Drill SBE 2000 - 602001000.

In the following table, look for the model of the Percussion Drill and the respective parts of the code.
Metabo SBE 2000 - 602001000

Hammer Drill Metabo SBE 2000 - 602001000
# Part Num. Description
1 34170194 Cheese-head Screw
2 63128100 Bit Retaining Bush
4 34160265 Spindle
5 14118168 Retaining Ring
6 34335921 Spacer Ring
7 14319370 Felt Ring
8 33900266 Spacer Sheet
9 34202067 Frustrum Spring
10 62728800 Depth Stop
11 31400066 Knob
12 34335978 Clamping Piece
13 14111616 Hexagon Head Screw
14 34200780 Pressure Spring
15 34336491 Locking Bushing
16 31400078 Support Handle Cpl.
17 34170218 Tight-fit Screw Plast. 45
19 31602298 Gear Housing Cpl.
20 34000315 Sliding Block
21 31601972 Intermediate Gear
22 14311143 Needle Sleeve
23 33900129 Butting Washer
24 33921027 Gasket
25 31601922 Gear Flange Cpl.
26 14115322 Washer
27 14311022 Ball Bearing, 15x32x9
29 34105034 Slotted Disc
30 14312002 Ball
31 34104638 Bush
33 34202021 Circlip
34 31601728 Shift Axle Cpl.
36 34200114 Index Bolt
37 31601238 Control Knob Cpl.
38 14111684 Self-tap. fill. h. screw
41 31601235 Control Knob Cpl.
43 34154001 Guide Bolt
44 33912754 Shift Dog
45 34335650 Sealing Ring
46 14319257 O-ring
47 14311340 Ball Bearing, 8x22x7
49 31000663 Armature Cpl. 220 V
50 14311223 Ball Bearing, 6x19x6
51 14115340 Washer
52 34336178 Intermediate Flange
53 14111826 Self-tap. Fill. H. Screw
54 33804030 Rating Plate
55 31501232 Motor Housing
56 33811584 Indication Label
57 31603373 Carbon Brush Set With Holder
59 31602102 Pressure Plate Cpl.
60 34307581 Electronic Unit 230 V
61 34170205 Screw
62 34336235 Pistol Grip
63 34336249 Cable Clip
64 34449015 Strand Cpl. Awg18sw
65 14118176 Circlip
66 33911102 Cover
67 34200121 Pressure Spring
68 34336177 Cover
69 14319243 O-ring
70 31100885 Field Coil Cpl
71 33811568 Metabo Label
72 31602578 Setting Ring Cpl.
73 34448853 Cable With Plug
74 14111697 Fillister Head Screw
76 34410075 Insert
77 14112034 Fill. Head Screw Plast. 45
78 34336246 Locking Catch
79 34410059 Cable Sleeve
81 34336108 Cap
84 39999999 Part not needed
86 34325388 Ferrite Core 10x6x16
880 34413027 Grease Sgf 079
881 34413093 Grease 50gr 1,8oz
1001 33850033 Diagram
