Metabo Spare Parts for Combination Hammer KHE 55

SKU: Metabo KHE 55 - 00055000
€8.06
VAT included

Metabo Spare Parts for Combination Hammer KHE 55

METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Combination Hammer KHE 55/00055000.

Martello Perforatore Combinato KHE 55/00055000
Metabo Spare Parts for Combination Hammer KHE 55
  • Online only
  • Metabo Spare Parts for Combination Hammer KHE 55
  • Metabo Spare Parts for Combination Hammer KHE 55
Metabo

Metabo Spare Parts for Combination Hammer KHE 55

SKU: Metabo KHE 55 - 00055000 Condition: New
€8.06
VAT included

Metabo Spare Parts for Combination Hammer KHE 55

METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Combination Hammer KHE 55/00055000.

Martello Perforatore Combinato KHE 55/00055000
settings 87 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
87 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

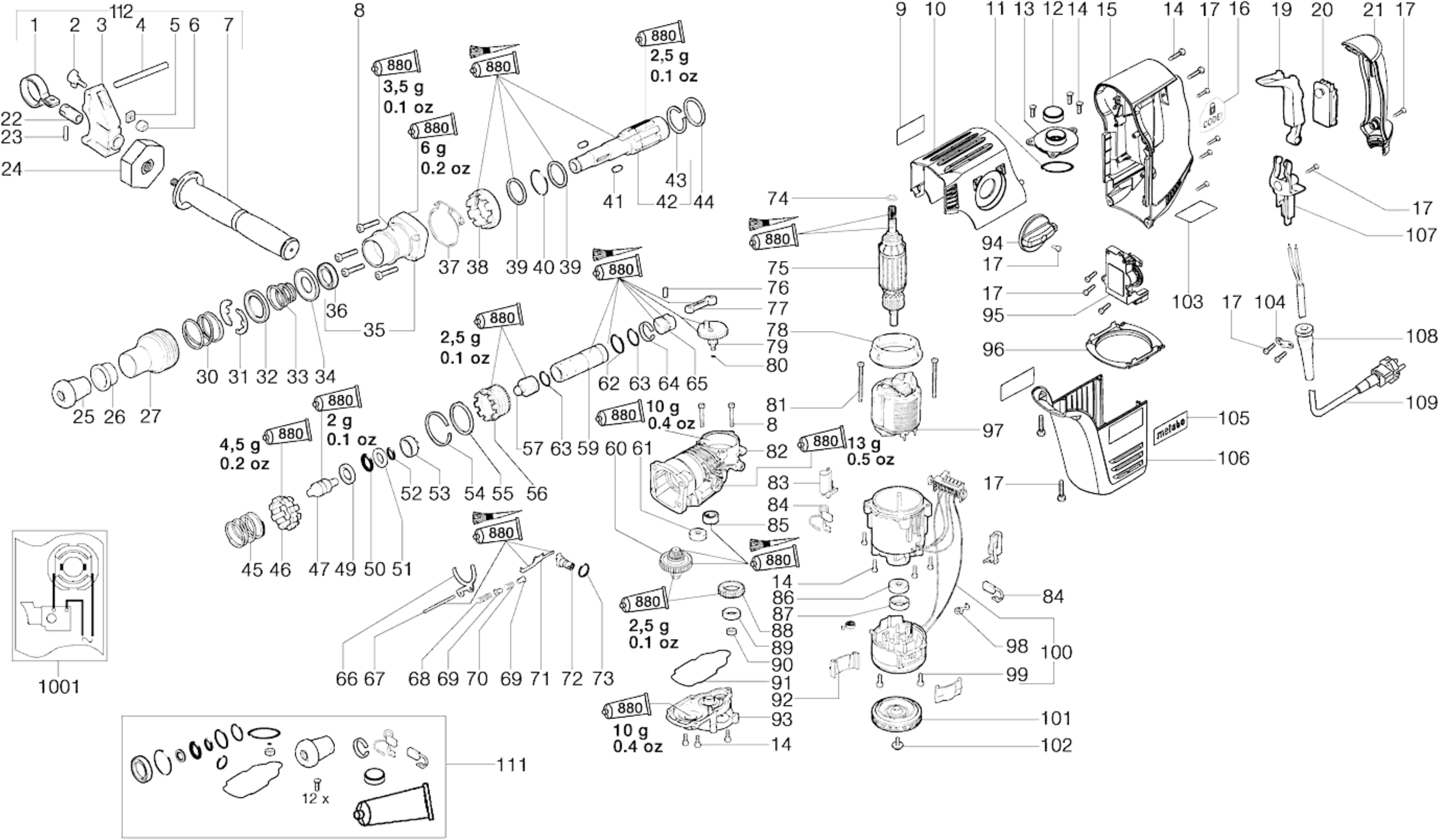

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 33912737 CLAMPING BAND €6.64 Not available for order
2
 photo_cameraImage coming soon 34111165 Thumbscrew €1.85
3
 photo_cameraImage coming soon 34337054 CLAMPING PIECE €10.66 Not available for order
5
 photo_cameraImage coming soon 34110174 SQUARE NUT €2.30 Not available for order
6
 photo_cameraImage coming soon 14113065 HEXAGONAL LOCK NUT €1.80
8
 photo_cameraImage coming soon 14111798 CAP SCREW  €2.96
11
 photo_cameraImage coming soon 34409468 O-RING BHE 6045 S  €1.63 Not available for order
12
 photo_cameraImage coming soon 34407080 FILTER (FELT) €3.47 Not available for order
13
 photo_cameraImage coming soon 34337978 COVER €4.80 Not available for order
14
 photo_cameraImage coming soon 14112161 FILLISTER HEAD SCREW  €1.63
16
 photo_cameraImage coming soon 33811788 Sticker €1.54
17
 photo_cameraImage coming soon 34170272 SCREW 4X18  €1.63
19
 photo_cameraImage coming soon 34336987 SWITCH TRIGGER €1.63 Not available for order
20
 Switch for Demolition Hammer Metabo KHE 55 34340755 Switch for Demolition Hammer Metabo KHE 55 €68.52 Not available for order
25
 photo_cameraImage coming soon 34409458 SEALING LIP €6.64 Not available for order
26
 photo_cameraImage coming soon 34339033 SLEEVE €4.13 Not available for order
27
 photo_cameraImage coming soon 31603598 SLIDING SLEEVE CPL. €36.91 Not available for order
30
 photo_cameraImage coming soon 34200232 PRESSURE SPRING €1.63 Not available for order
32
 photo_cameraImage coming soon 34337396 RETAINING RING €1.63 Not available for order
33
 photo_cameraImage coming soon 34202187 CONICAL SPRING €2.96 Not available for order
35
 photo_cameraImage coming soon 31603740 HOUSING CPL. €92.09 Not available for order
36
 photo_cameraImage coming soon 33921076 SEALING RING €4.13 Not available for order
37
 photo_cameraImage coming soon 34409695 GASKET €4.13 Not available for order
38
 photo_cameraImage coming soon 34100481 TOOTHED SLEEVE €16.01 Not available for order
39
 photo_cameraImage coming soon 33912742 WASHER 41X48X1,8 €2.96 Not available for order
40
 photo_cameraImage coming soon 14319505 O-ring 5 X 1,2  €12.16 Not available for order
41
 photo_cameraImage coming soon 34151448 ROLLER 8X20 €2.96 Not available for order
42
 photo_cameraImage coming soon 34160339 SPINDLE CPL. €252.60 Not available for order
43
 photo_cameraImage coming soon 34202153 CIRCLIP 43FL €1.63 Not available for order
44
 photo_cameraImage coming soon 34101246 WASHER RD 44,4 €3.47 Not available for order
45
 photo_cameraImage coming soon 34200233 PRESSURE SPRING €1.63 Not available for order
46
 photo_cameraImage coming soon 34100482 SHIFT SLEEVE €13.33 Not available for order
47
 photo_cameraImage coming soon 34105746 PISTON €74.30 Not available for order
49
 photo_cameraImage coming soon 34101271 WASHER €8.15 Not available for order
51
 photo_cameraImage coming soon 34101248 WASHER €2.96 Not available for order
52
 photo_cameraImage coming soon 14319493 O-RING MHE/KHE  €4.13 Not available for order
53
 photo_cameraImage coming soon 34337945 BUSH €3.47 Not available for order
54
 photo_cameraImage coming soon 34202155 CIRCLIP 58 €6.64 Not available for order
55
 photo_cameraImage coming soon 34101249 WASHER 50,4X56,6 €4.13 Not available for order
56
 photo_cameraImage coming soon 34003272 BEVEL GEAR €132.21 Not available for order
57
 photo_cameraImage coming soon 34105745 PISTON €53.63 Not available for order
59
 photo_cameraImage coming soon 34105744 CYLINDER €105.46 Not available for order
60
 photo_cameraImage coming soon 31602510 INTERMEDIATE GEAR CPL. €184.05 Not available for order
61
 photo_cameraImage coming soon 14311480 Ball bearing, 12x28x8 €14.35
62
 photo_cameraImage coming soon 14319496 O-ring 5 X 1,2  €4.13 Not available for order
64
 photo_cameraImage coming soon 34114543 PISTON RING €2.30 Not available for order
65
 photo_cameraImage coming soon 34337946 PISTON €16.01 Not available for order
66
 photo_cameraImage coming soon 33912743 SHIFT FORK €6.64 Not available for order
67
 photo_cameraImage coming soon 34151447 CYLINDRICAL PIN 4.7X82.5 €4.13 Not available for order
68
 photo_cameraImage coming soon 34200235 PRESSURE SPRING €1.63 Not available for order
69
 photo_cameraImage coming soon 34105454 TUBULAR RIVET €2.96 Not available for order
70
 photo_cameraImage coming soon 34200234 PRESSURE SPRING €1.63 Not available for order
71
 photo_cameraImage coming soon 33913217 SHIFT STRAP €3.47 Not available for order
72
 photo_cameraImage coming soon 31603738 ECCENTRIC €2.96 Not available for order
73
 photo_cameraImage coming soon 34409474 O-RING BHE6045  €1.63 Not available for order
74
 photo_cameraImage coming soon 34339037 RING €1.46 Not available for order
76
 photo_cameraImage coming soon 32005041 NEEDLE ROLLER 8X24 €5.47 Not available for order
78
 photo_cameraImage coming soon 34337051 INSULATING CAP €5.47 Not available for order
79
 photo_cameraImage coming soon 34105743 CRANK SHAFT €132.21 Not available for order
80
 photo_cameraImage coming soon 34409469 O-RING BHE 6045 S  €1.63 Not available for order
81
 photo_cameraImage coming soon 34170273 SCREW 4X65 €1.63 Not available for order
82
 photo_cameraImage coming soon 31603760 HOUSING W. NEEDLE BEARING €149.51 Not available for order
83
 photo_cameraImage coming soon 34114545 CHOKE HOLDER €10.83 Not available for order
84
 photo_cameraImage coming soon 31603752 CARBON BRUSH 230 V €37.83 Not available for order
85
 photo_cameraImage coming soon 14311403 NEEDLE SLEEVE €12.16 Not available for order
86
 photo_cameraImage coming soon 14311404 Ball bearing, 10x26x8 €11.86
87
 photo_cameraImage coming soon 34409462 RUBBER BUSHING €2.30 Not available for order
88
 photo_cameraImage coming soon 34001192 GEAR WHEEL €92.09 Not available for order
89
 photo_cameraImage coming soon 34105459 Friction bearing €4.90 Not available for order
90
 photo_cameraImage coming soon 34409694 Rubber bushing €9.53 Not available for order
91
 photo_cameraImage coming soon 34409472 Gasket €2.66 Not available for order
92
 photo_cameraImage coming soon 34337062 Cover €1.47 Not available for order
93
 photo_cameraImage coming soon 31603737 Intermediate flange cpl. €71.82 Not available for order
96
 photo_cameraImage coming soon 34337977 Baffle €4.31 Not available for order
97
 photo_cameraImage coming soon 31101031 Field coil 230 V €59.87 Not available for order
98
 photo_cameraImage coming soon 34200237 Brush spring €1.47 Not available for order
99
 photo_cameraImage coming soon 34170386 Screw 4x18 €1.32 Not available for order
100
 photo_cameraImage coming soon 31603754 2 part cap €149.51 Not available for order
102
 photo_cameraImage coming soon 14112159 Fillister head screw €1.47 Not available for order
103
 photo_cameraImage coming soon 14112159 Fillister head screw €1.47 Not available for order
104
 photo_cameraImage coming soon 33804515 Cable clip €1.28 Not available for order
105
 photo_cameraImage coming soon 34337058 CABLE CLIP  €2.66
106
 photo_cameraImage coming soon 33811853 Motor housing €1.28 Not available for order
107
 photo_cameraImage coming soon 34339034 Supporting plate €2.66 Not available for order
108
 photo_cameraImage coming soon 34410095 Cable sleeve €4.90 Not available for order
109
 photo_cameraImage coming soon 34448906 Cable with plug €17.56
111
 photo_cameraImage coming soon 31603758 Service kit €153.99 Not available for order
880
 photo_cameraImage coming soon 34413108 Grease Bit THERMOPLEX €28.36 Not available for order

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Combination Hammer KHE 55

METABO Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Combination Hammer KHE 55/00055000.

In the following table, look for the model of the Hammer and the respective parts of the code.
Metabo KHE 55 - 00055000
Combination Hammer KHE 55/00055000
# Part Num. Description
1 33912737 CLAMPING BAND
2 34111165 THUMBSCREW
3 34337054 CLAMPING PIECE
4 34151445 DEPTH STOP
5 34110174 SQUARE NUT
6 14113065 HEXAGONAL LOCK NUT
7 31400074 HANDLE
8 14111798 CAP SCREW
11 34409468 O-RING 56 X 3
12 34407080 FILTER (FELT)
13 34337978 COVER
14 14112161 FILLISTER HEAD SCREW
15 34339024 HANDLE
16 33811788 STICKER
17 34170272 SCREW 4X18
19 34336987 SWITCH TRIGGER
20 34340755 SWITCH
22 34100479 THREADED BUSHING
23 34151446 CYLINDRICAL PIN 5X30
25 34409458 SEALING LIP
26 34339033 SLEEVE
27 31603598 SLIDING SLEEVE CPL.
30 34200232 PRESSURE SPRING
31 33912739 HOLDER
32 34337396 RETAINING RING
33 34202187 CONICAL SPRING
34 33912741 PLATE GUIDE
35 31603740 HOUSING CPL.
36 33921076 SEALING RING
37 34409695 GASKET
38 34100481 TOOTHED SLEEVE
39 33912742 WASHER 41X48X1,8
40 14319505 O-RING 5 X 1,2
41 34151448 ROLLER 8X20
42 34160339 SPINDLE CPL.
43 34202153 CIRCLIP 43FL
44 34101246 WASHER RD 44,4
45 34200233 PRESSURE SPRING
46 34100482 SHIFT SLEEVE
47 34105746 PISTON
49 34101271 WASHER
50 14319495 O-RING 5
51 34101248 WASHER
52 14319493 O-RING 5
53 34337945 BUSH
54 34202155 CIRCLIP 58
55 34101249 WASHER 50,4X56,6
56 34003272 BEVEL GEAR
57 34105745 PISTON
59 34105744 CYLINDER
60 31602510 INTERMEDIATE GEAR CPL.
61 14311480 BALL BEARING, 12X28X8
62 14319496 O-RING 5 X 1,2
63 14319494 O-RING 5 X 1,2
64 34114543 PISTON RING
65 34337946 PISTON
66 33912743 SHIFT FORK
67 34151447 CYLINDRICAL PIN 4.7X82.5
68 34200235 PRESSURE SPRING
69 34105454 TUBULAR RIVET
70 34200234 PRESSURE SPRING
71 33913217 SHIFT STRAP
72 31603738 ECCENTRIC
73 34409474 O-RING 11,5X 2,4
74 34339037 RING
75 31000865 ARMATURE CPL. 230 V
76 32005041 NEEDLE ROLLER 8X24
77 34337057 CON ROD
78 34337051 INSULATING CAP
79 34105743 CRANK SHAFT
80 34409469 O-RING 5 X 1,2
81 34170273 SCREW 4X65
82 31603760 HOUSING W. NEEDLE BEARING
83 34114545 CHOKE HOLDER
84 31603752 CARBON BRUSH 230 V
85 14311403 NEEDLE SLEEVE
86 14311404 BALL BEARING, 10X26X8
87 34409462 RUBBER BUSHING
88 34001192 GEAR WHEEL
89 34105459 Friction bearing
90 34409694 Rubber bushing
91 34409472 Gasket
92 34337062 Cover
93 31603737 Intermediate flange cpl.
94 31603739 Control lever cpl.
95 34308074 Electronic unit 230V
96 34337977 Baffle
97 31101031 Field coil 230 V
98 34200237 Brush spring
99 34170386 Screw 4x18
100 31603754 2 part cap
101 33000164 Fan cpl.
102 14112159 Fillister head screw
103 14112159 Rating plate
104 33804515 Cable clip
105 34337058 Metabo label
106 33811853 Motor housing
107 34339034 Supporting plate
108 34410095 Cable sleeve
109 34448906 Cable w/plug
111 31603758 Service kit
112 31400075 Handle cpl.
880 34413108 Grease Bit THERMOPLEX
1001 33850427 Diagram
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo KHE 55 - 00055000

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo KHE 55

Diagram Metabo KHE 55

Download (206.06KB)

You might also like

Switch for Demolition Hammer Metabo KHE 55
Metabo SKU: 34340755
Switch for Demolition Hammer Metabo KHE 55
Switch for Demolition Hammer Metabo KHE 55 Genuine part Metabo, Switch for Demolition Hammers KHE 55 - KHE 75 Parts for the following products: -  Demolition Hammer KHE 55 - 00055000...
Only on demand €68.52
Details
Comments (0)
