Metabo

Metabo Spare Parts for Angle Grinder W 25-230 06425260

SKU: Metabo W 25-230 - 06425260
€1.92
VAT included

Metabo Spare Parts for Angle Grinder W 25-230 06425260

We have the original Spares METABO for Angle Grinder W 25-230 06425260, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Angle Grinder W 25-230 06425260
Metabo Spare Parts for Angle Grinder W 25-230 06425260
  • Metabo Spare Parts for Angle Grinder W 25-230 06425260
  • Metabo Spare Parts for Angle Grinder W 25-230 06425260
Metabo

Metabo Spare Parts for Angle Grinder W 25-230 06425260

SKU: Metabo W 25-230 - 06425260 Condition: New
€1.92
VAT included

Metabo Spare Parts for Angle Grinder W 25-230 06425260

We have the original Spares METABO for Angle Grinder W 25-230 06425260, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Angle Grinder W 25-230 06425260
settings 49 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Last items in stock

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
49 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

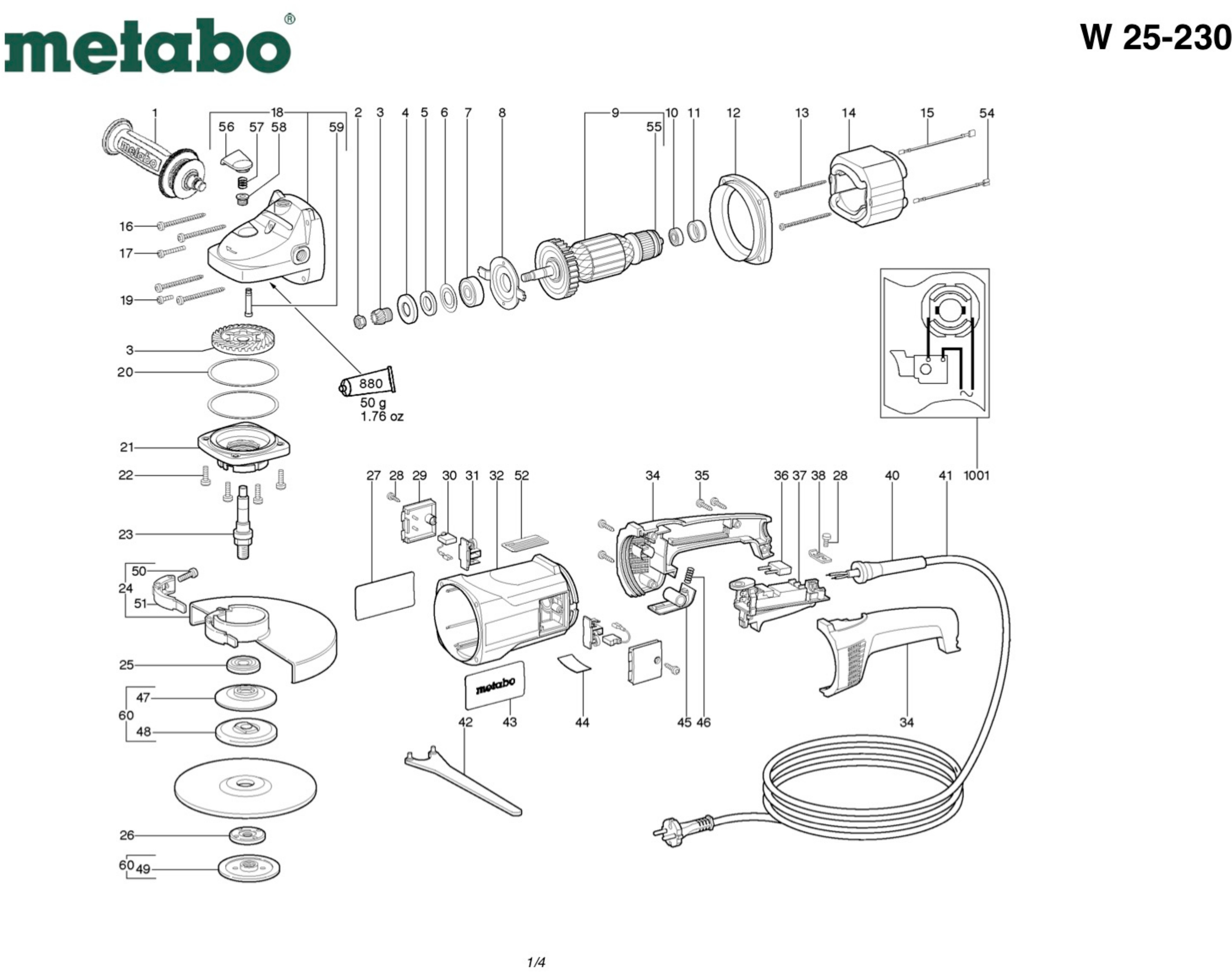

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31400096 Anti-vibration handle,M 14 €22.95
2
 photo_cameraImage coming soon 34110066 Self locking nut €3.12
3
 Bevel Gear Set for Angle Grinder Metabo W 21-230 31602529 Bevel Gear Set for Angle Grinder Metabo W 21-230 €73.40
4
 photo_cameraImage coming soon 34101151 Spacer ring €5.07
5
 photo_cameraImage coming soon 14319244 elt ring €3.12
6
 photo_cameraImage coming soon 33907008 Cover washer €1.71
7
 photo_cameraImage coming soon 14311067 Ball bearing, 12x37x12 €14.59
8
 photo_cameraImage coming soon 33900592 Bearing cover €2.10
9
 photo_cameraImage coming soon 31000990 Armature compl.,230 V €145.53
10
 photo_cameraImage coming soon 14311340 Ball bearing, 8x22x7 €11.17
11
 Armature Bearing Rubber Holder for Angle Grinders Metabo 230 mm 34409408 Armature Bearing Rubber Holder for Angle Grinders Metabo 230 mm €2.08
12
 photo_cameraImage coming soon 34337672 Intermediate flange €6.09
13
 photo_cameraImage coming soon 14111897 Self-tap. fill. h. screw €1.42
14
 photo_cameraImage coming soon 31100958 Field coil €55.23
15
 photo_cameraImage coming soon 34449369 Strand €1.49
16
 photo_cameraImage coming soon 14111881 Self-tap. fill. h. screw €1.34
17
 photo_cameraImage coming soon 14112202 Fillister head screw €1.53
18
 photo_cameraImage coming soon 31603172 Gear housing cpl. €59.73
19
 photo_cameraImage coming soon 14111985 Fillister head screw €1.53
20
 photo_cameraImage coming soon 33906014 Sealing ring €1.71
21
 photo_cameraImage coming soon 31602530 Gear flange cpl. €44.29
22
 photo_cameraImage coming soon 14112164 Fill. head screw(DIN 7985) €1.76
23
 photo_cameraImage coming soon 34160298 Spindle shaft €24.18
24
 photo_cameraImage coming soon 31602274 Wheel guard cpl. €44.50
25
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
26
 photo_cameraImage coming soon 34110690 Flange nut €9.91
27
 photo_cameraImage coming soon 33811734 Indication label €1.61
28
 photo_cameraImage coming soon 34170205 Screw €1.53
29
 photo_cameraImage coming soon 34337643 Cover €1.80
30
 Metabo W 21-230 Carbon Brush Set 31603395 Metabo W 21-230 Carbon Brush Set €19.46
31
 photo_cameraImage coming soon 34300077 Brush guide €5.76
32
 photo_cameraImage coming soon 31501276 Motor housing €23.77
34
 photo_cameraImage coming soon 34336854 Handle (upper+under part) €21.75
35
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
36
 photo_cameraImage coming soon 34325389 Condenser €7.43
37
 photo_cameraImage coming soon 34340622 Switch €24.30
38
 photo_cameraImage coming soon 33912773 Cable clip €1.53
40
 photo_cameraImage coming soon 34409455 Cable sleeve €2.42
41
 Power Cord with CEE Plug for Grinder Metabo W 22-230 MVT 34448780 Power Cord with CEE Plug for Grinder Metabo W 22-230 MVT €40.51
42
 photo_cameraImage coming soon 34416084 Pin spanner €5.07
43
 photo_cameraImage coming soon 33811598 Metabo label €2.11
45
 photo_cameraImage coming soon 34336957 Locking lever €2.10
46
 photo_cameraImage coming soon 34200217 Pressure spring €1.34
55
 photo_cameraImage coming soon 34337077 Sealing washer €1.34
56
 photo_cameraImage coming soon 34337644 Push button €2.54
57
 photo_cameraImage coming soon 34200173 Pressure spring €1.65
58
 photo_cameraImage coming soon 34100397 Guide bush €3.85
59
 photo_cameraImage coming soon 34151381 Thrust bolt €1.80
880
 photo_cameraImage coming soon 34413091 Grease 100G €15.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Angle Grinder W 25-230 06425260

Fix Your Angle Grinder W 25-230 06425260. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Metabo W 25-230 - 06425260

Angle Grinder Metabo W 25-230 06425260
# Part Num. Description
1 31400096 Anti-vibration handle,M 14
2 34110066 Self locking nut
3 31602529 Bevel gear Set
4 34101151 Spacer ring
5 14319244 elt ring
6 33907008 Cover washer
7 14311067 Ball bearing, 12x37x12
8 33900592 Bearing cover
9 31000990 Armature compl.,230 V
10 14311340 Ball bearing, 8x22x7
11 34409408 Rubber bearing
12 34337672 Intermediate flange
13 14111897 Self-tap. fill. h. screw
14 31100958 Field coil
15 34449369 Strand
16 14111881 Self-tap. fill. h. screw
17 14112202 Fillister head screw
18 31603172 Gear housing cpl.
19 14111985 Fillister head screw
20 33906014 Sealing ring
21 31602530 Gear flange cpl.
22 14112164 Fill. head screw(DIN 7985)
23 34160298 Spindle shaft
24 31602274 Wheel guard cpl.
25 34103116 Clamping flange
26 34110690 Flange nut
27 33811734 Indication label
28 34170205 Screw
29 34337643 Cover
30 31603395 Carbon brush
31 34300077 Brush guide
32 31501276 Motor housing
34 34336854 Handle (upper+under part)
35 14111602 Self-tap fill h screw
36 34325389 Condenser
37 34340622 Switch
38 33912773 Cable clip
40 34409455 Cable sleeve
41 34448780 Cable with plug
42 34416084 Pin spanner
43 33811598 Metabo label
44 33804081 Rating plate
45 34336957 Locking lever
46 34200217 Pressure spring
55 34337077 Sealing washer
56 34337644 Push button
57 34200173 Pressure spring
58 34100397 Guide bush
59 34151381 Thrust bolt
880 34413091 Grease 100G
1001 33850211 Diagram
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo W 25-230 - 06425260
2 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Drawing Metabo W 25-230 5260

Drawing Metabo W 25-230 5260

Download (229.15KB)
