Metabo

Metabo Spare Parts for Band Saw BAS 318 Precision WNB

SKU: BAS 318 Precision WNB - 19009000
€1.65
VAT included

Metabo Spare Parts for Band Saw BAS 318 Precision WNB

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Band Saw BAS 318 Precision WNB - 19009000.

Band Saw BAS 318 Precision WNB - 19009000
Metabo Spare Parts for Band Saw BAS 318 Precision WNB
  • Metabo Spare Parts for Band Saw BAS 318 Precision WNB
  • Metabo Spare Parts for Band Saw BAS 318 Precision WNB
  • Metabo Spare Parts for Band Saw BAS 318 Precision WNB
  • Metabo Spare Parts for Band Saw BAS 318 Precision WNB
  • Metabo Spare Parts for Band Saw BAS 318 Precision WNB
Metabo

Metabo Spare Parts for Band Saw BAS 318 Precision WNB

SKU: BAS 318 Precision WNB - 19009000 Condition: New
€1.65
VAT included

Metabo Spare Parts for Band Saw BAS 318 Precision WNB

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Band Saw BAS 318 Precision WNB - 19009000.

Band Saw BAS 318 Precision WNB - 19009000
settings 65 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
65 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

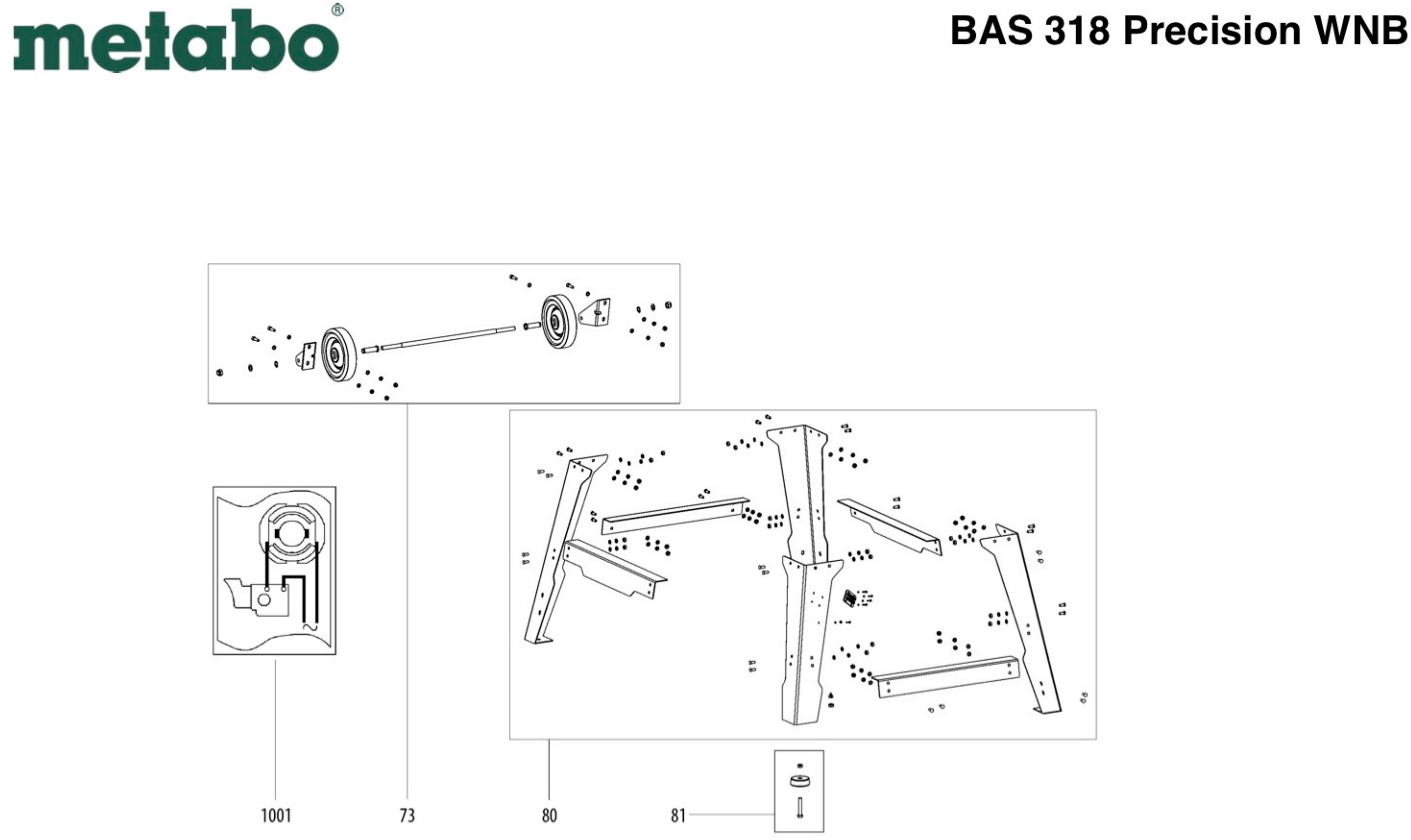

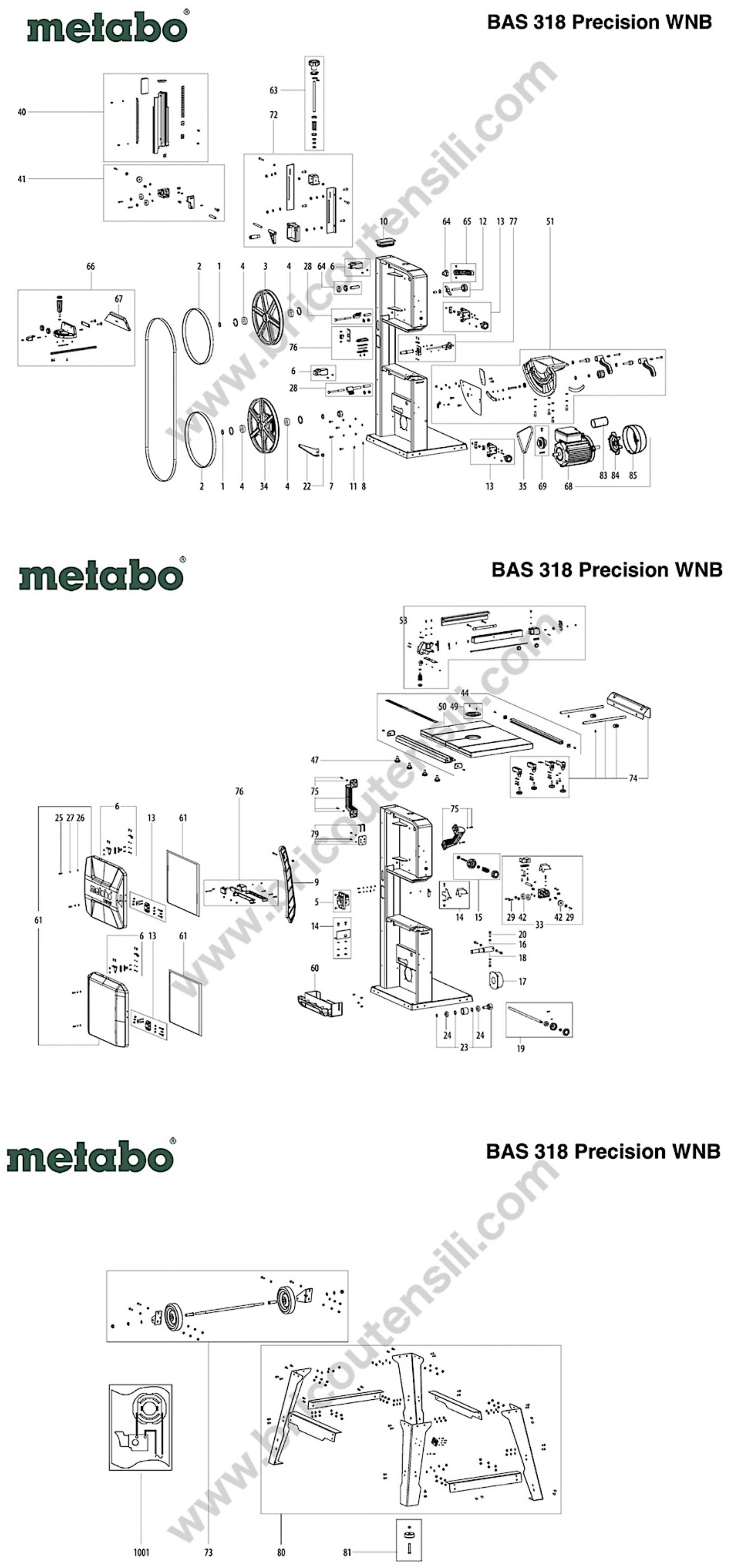

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB 14118011 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB €1.91
2
 Rubber Ring for Pulley Wood Band Saw Metabo BAS 317 Precision DNB 34410193 Rubber Ring for Pulley Wood Band Saw Metabo BAS 317 Precision DNB €9.81
3
 photo_cameraImage coming soon 31541974 BANDSAW WHEEL, UPPER €66.09
4
 photo_cameraImage coming soon 14311446 BALL BEARING €7.37
5
 photo_cameraImage coming soon 34341135 SWITCH €23.60
6
 photo_cameraImage coming soon 34341147 SAFETY SWITCH CPL. €29.51
7
 photo_cameraImage coming soon 14111329 HEXAGON HEAD SCREW €1.61
8
 photo_cameraImage coming soon 14115013 Washer €1.61
9
 Push Stick for Wood Mitre Saw Metabo KGT 305 M 34343318 Push Stick for Wood Mitre Saw Metabo KGT 305 M €8.23
10
 photo_cameraImage coming soon 34344371 COVER CAP €2.54
11
 photo_cameraImage coming soon 14115524 Lock washer €1.80
12
 photo_cameraImage coming soon 31609512 Guard button comp. €5.33
13
 photo_cameraImage coming soon 34116655 DOOR LOCK SYSTEM €11.84
14
 photo_cameraImage coming soon 31609560 SAWBAND GUARD COMPL. €3.84
15
 Height Adjustment Cpl for Band Saw Metabo BAS 318 Precision WNB 31609561 Height Adjustment Cpl for Band Saw Metabo BAS 318 Precision WNB €11.37
16
 photo_cameraImage coming soon 14113010 Hexagonal nut €1.70
17
 photo_cameraImage coming soon 34344382 SUCTION ADAPTOR €4.59
18
 photo_cameraImage coming soon 34151969 BEARING BOLT €9.05
19
 photo_cameraImage coming soon 31609562 CLAMPING DEVICE CPL. €7.37
20
 photo_cameraImage coming soon 14112416 SCREW,M6 X 20 €1.80
21
 photo_cameraImage coming soon 14112456 RAISED CHEESE HEAD SCREW €1.72
22
 photo_cameraImage coming soon 33914850 BEVEL DETENT LOCK HOOK €3.28
23
 photo_cameraImage coming soon 31609563 TENSION ROLLER CPL. €14.81
24
 photo_cameraImage coming soon 14311144 Ball bearing, 12x28x8 €23.75
25
 photo_cameraImage coming soon 14111368 Cap screw €1.80
26
 photo_cameraImage coming soon 14119048 Washer €1.61
27
 photo_cameraImage coming soon 14115027 Spring washer €1.61
28
 photo_cameraImage coming soon 34408175 BRUSH STRIP CPL. €3.28
29
 photo_cameraImage coming soon 14111371 CAP SCREW €1.80
30
 photo_cameraImage coming soon 14113020 HEX NUT €2.54
31
 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB 14118011 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB €1.91
33
 photo_cameraImage coming soon 31609564 THREE-ROLLER GUIDE LOWER CPL. €23.74
34
 photo_cameraImage coming soon 31609565 LOWER PULLEY CPL. €59.64
35
 Belt for Band Saw Metabo BAS 317 Precision DNB 7233190017 Belt for Band Saw Metabo BAS 317 Precision DNB €21.46
40
 photo_cameraImage coming soon 31609566 SAWBAND GUARD COMPL. €29.51
41
 photo_cameraImage coming soon 31609567 THREE-ROLLER GUIDE TOP COMPL. €23.74
42
 photo_cameraImage coming soon 14311109 BALL BEARING, 10X30X9 €14.81
44
 photo_cameraImage coming soon 31609568 GUIDE EXTRUSION CPL. €54.06
47
 photo_cameraImage coming soon 34344377 THUMBSCREW €4.59
49
 Table Insert for Wood Band Saw Metabo BAS 318 Precision WNB 31609569 Table Insert for Wood Band Saw Metabo BAS 318 Precision WNB €4.16
50
 photo_cameraImage coming soon 31609570 BANDSAW TABLE CPL. €575.01
51
 photo_cameraImage coming soon 31609571 TABLE TRUNNION CPL. €204.70
53
 photo_cameraImage coming soon 31609572 PARALLEL GUIDE COMPL. €102.41
60
 photo_cameraImage coming soon 34344383 CHIP CASE €20.58
61
 photo_cameraImage coming soon 31609573 DOOR CPL. €109.85
62
 photo_cameraImage coming soon 34344372 STAR GRIP SCREW €7.37
63
 Blade Tension Set for Band Saw Metabo BAS 318 Precision WNB 31609574 Blade Tension Set for Band Saw Metabo BAS 318 Precision WNB €17.37
64
 photo_cameraImage coming soon 31609575 QUICK RELEASE FUNCTION €20.58
65
 photo_cameraImage coming soon 34116647 OPERATING LEVER €7.37
66
 photo_cameraImage coming soon 31609576 ANGULAR GUIDE COMPL. €29.51
67
 photo_cameraImage coming soon 31609577 FRONT PROFILE CPL. €10.54
68
 photo_cameraImage coming soon 31700479 MOTOR COMPL.,230V €379.52
69
 photo_cameraImage coming soon 31609578 TAPER GROOVE PULLEY CPL. €29.51
72
 Metabo BAS 318 Precision WNB Roller Guide Assy 31609579 Metabo BAS 318 Precision WNB Roller Guide Assy €40.23
73
 photo_cameraImage coming soon 31609580 WHEEL SET CPL. €77.87
74
 Metabo BAS 318 Precision WNB Table Extension 31609511 Metabo BAS 318 Precision WNB Table Extension €42.26
75
 photo_cameraImage coming soon 31609513 CARRY HANDLE COMP. €17.79
76
 photo_cameraImage coming soon 31609581 LED LENSE CPL. €9.05
77
 photo_cameraImage coming soon 34453094 CABLE COMPL. €17.79
79
 photo_cameraImage coming soon 31609582 TOOL HOLDER COL. €1.80
80
 photo_cameraImage coming soon 31609583 WORKSTAND CPL. €232.60
81
 photo_cameraImage coming soon 31609584 SCREW SET COMPL. €23.74
82
 photo_cameraImage coming soon 33806710 RATING PLATE €1.61
83
 photo_cameraImage coming soon 34325513 CAPACITOR €13.51
84
 photo_cameraImage coming soon 34344537 FAN WING €6.07
85
 photo_cameraImage coming soon 33920486 COVER €7.37
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

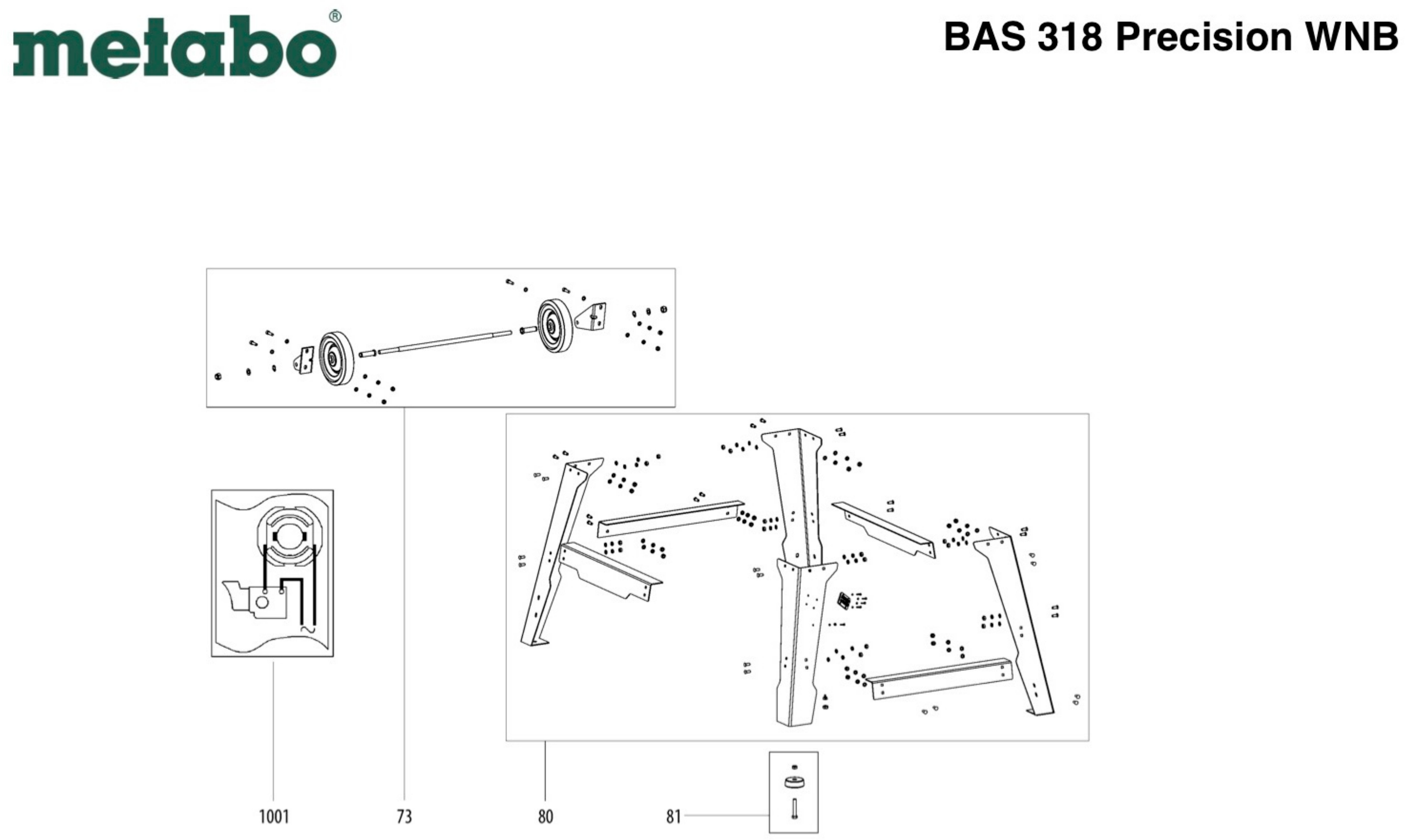

Esploso pagina 2
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

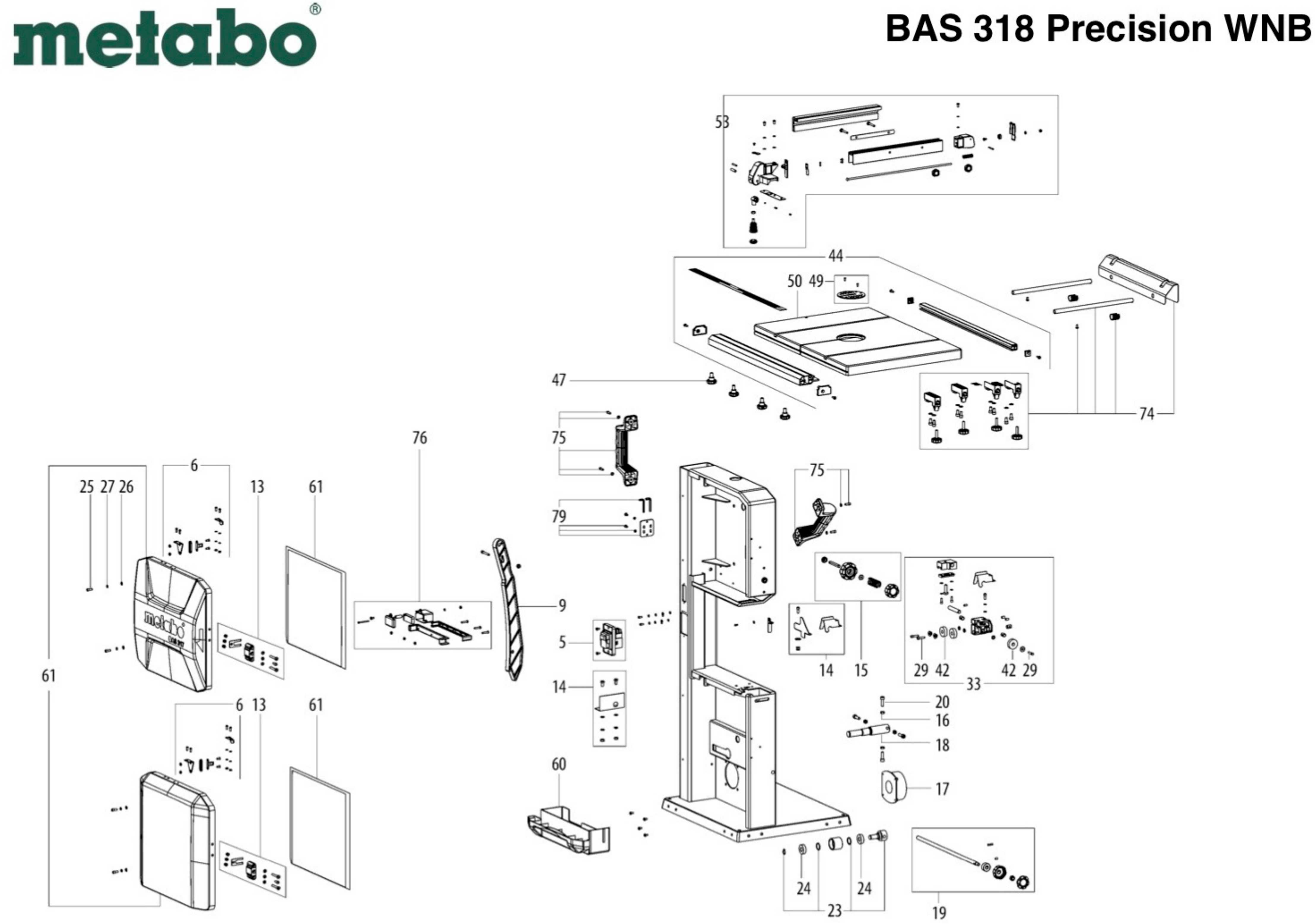

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
5
 photo_cameraImage coming soon 34341135 SWITCH €23.60
6
 photo_cameraImage coming soon 34341147 SAFETY SWITCH CPL. €29.51
9
 Push Stick for Wood Mitre Saw Metabo KGT 305 M 34343318 Push Stick for Wood Mitre Saw Metabo KGT 305 M €8.23
13
 photo_cameraImage coming soon 34116655 DOOR LOCK SYSTEM €11.84
14
 photo_cameraImage coming soon 31609560 SAWBAND GUARD COMPL. €3.84
15
 Height Adjustment Cpl for Band Saw Metabo BAS 318 Precision WNB 31609561 Height Adjustment Cpl for Band Saw Metabo BAS 318 Precision WNB €11.37
16
 photo_cameraImage coming soon 14113010 Hexagonal nut €1.70
17
 photo_cameraImage coming soon 34344382 SUCTION ADAPTOR €4.59
18
 photo_cameraImage coming soon 34151969 BEARING BOLT €9.05
19
 photo_cameraImage coming soon 31609562 CLAMPING DEVICE CPL. €7.37
20
 photo_cameraImage coming soon 14112416 SCREW,M6 X 20 €1.80
23
 photo_cameraImage coming soon 31609563 TENSION ROLLER CPL. €14.81
24
 photo_cameraImage coming soon 14311144 Ball bearing, 12x28x8 €23.75
25
 photo_cameraImage coming soon 14111368 Cap screw €1.80
26
 photo_cameraImage coming soon 14119048 Washer €1.61
27
 photo_cameraImage coming soon 14115027 Spring washer €1.61
29
 photo_cameraImage coming soon 14111371 CAP SCREW €1.80
33
 photo_cameraImage coming soon 31609564 THREE-ROLLER GUIDE LOWER CPL. €23.74
42
 photo_cameraImage coming soon 14311109 BALL BEARING, 10X30X9 €14.81
44
 photo_cameraImage coming soon 31609568 GUIDE EXTRUSION CPL. €54.06
47
 photo_cameraImage coming soon 34344377 THUMBSCREW €4.59
49
 Table Insert for Wood Band Saw Metabo BAS 318 Precision WNB 31609569 Table Insert for Wood Band Saw Metabo BAS 318 Precision WNB €4.16
50
 photo_cameraImage coming soon 31609570 BANDSAW TABLE CPL. €575.01
53
 photo_cameraImage coming soon 31609572 PARALLEL GUIDE COMPL. €102.41
60
 photo_cameraImage coming soon 34344383 CHIP CASE €20.58
61
 photo_cameraImage coming soon 31609573 DOOR CPL. €109.85
74
 Metabo BAS 318 Precision WNB Table Extension 31609511 Metabo BAS 318 Precision WNB Table Extension €42.26
75
 photo_cameraImage coming soon 31609513 CARRY HANDLE COMP. €17.79
76
 photo_cameraImage coming soon 31609581 LED LENSE CPL. €9.05
79
 photo_cameraImage coming soon 31609582 TOOL HOLDER COL. €1.80
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

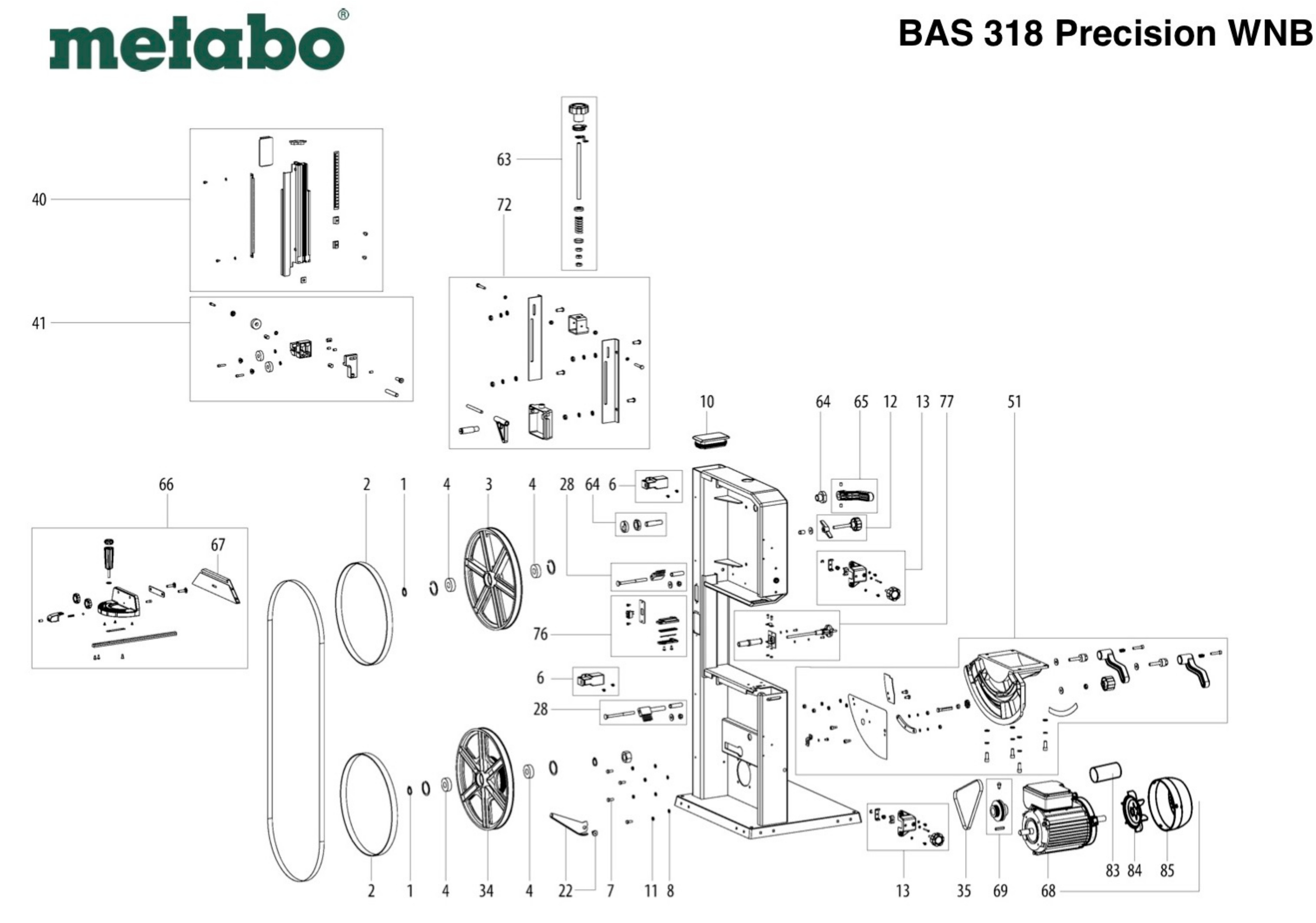

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB 14118011 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB €1.91
2
 Rubber Ring for Pulley Wood Band Saw Metabo BAS 317 Precision DNB 34410193 Rubber Ring for Pulley Wood Band Saw Metabo BAS 317 Precision DNB €9.81
3
 photo_cameraImage coming soon 31541974 BANDSAW WHEEL, UPPER €66.09
4
 photo_cameraImage coming soon 14311446 BALL BEARING €7.37
7
 photo_cameraImage coming soon 14111329 HEXAGON HEAD SCREW €1.61
8
 photo_cameraImage coming soon 14115013 Washer €1.61
10
 photo_cameraImage coming soon 34344371 COVER CAP €2.54
11
 photo_cameraImage coming soon 14115524 Lock washer €1.80
12
 photo_cameraImage coming soon 31609512 Guard button comp. €5.33
22
 photo_cameraImage coming soon 33914850 BEVEL DETENT LOCK HOOK €3.28
28
 photo_cameraImage coming soon 34408175 BRUSH STRIP CPL. €3.28
34
 photo_cameraImage coming soon 31609565 LOWER PULLEY CPL. €59.64
35
 Belt for Band Saw Metabo BAS 317 Precision DNB 7233190017 Belt for Band Saw Metabo BAS 317 Precision DNB €21.46
40
 photo_cameraImage coming soon 31609566 SAWBAND GUARD COMPL. €29.51
41
 photo_cameraImage coming soon 31609567 THREE-ROLLER GUIDE TOP COMPL. €23.74
51
 photo_cameraImage coming soon 31609571 TABLE TRUNNION CPL. €204.70
63
 Blade Tension Set for Band Saw Metabo BAS 318 Precision WNB 31609574 Blade Tension Set for Band Saw Metabo BAS 318 Precision WNB €17.37
64
 photo_cameraImage coming soon 31609575 QUICK RELEASE FUNCTION €20.58
65
 photo_cameraImage coming soon 34116647 OPERATING LEVER €7.37
66
 photo_cameraImage coming soon 31609576 ANGULAR GUIDE COMPL. €29.51
67
 photo_cameraImage coming soon 31609577 FRONT PROFILE CPL. €10.54
68
 photo_cameraImage coming soon 31700479 MOTOR COMPL.,230V €379.52
69
 photo_cameraImage coming soon 31609578 TAPER GROOVE PULLEY CPL. €29.51
72
 Metabo BAS 318 Precision WNB Roller Guide Assy 31609579 Metabo BAS 318 Precision WNB Roller Guide Assy €40.23
77
 photo_cameraImage coming soon 34453094 CABLE COMPL. €17.79
83
 photo_cameraImage coming soon 34325513 CAPACITOR €13.51
84
 photo_cameraImage coming soon 34344537 FAN WING €6.07
85
 photo_cameraImage coming soon 33920486 COVER €7.37

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Band Saw BAS 318 Precision WNB

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Band Saw BAS 318 Precision WNB - 19009000.

In the following table, look for the model of the Band Saw and the respective parts of the code.
BAS 318 Precision WNB - 19009000

BAS 318 Precision WNB/19009000
# Part Num. Description
1 14118011 RETAINING RING
2 34410193 RUBBER RING
3 31541974 BANDSAW WHEEL, UPPER
4 14311446 BALL BEARING
5 34341135 SWITCH
6 34341147 SAFETY SWITCH CPL.
7 14111329 HEXAGON HEAD SCREW
8 14115013 WASHER
9 34343318 PUSH STICK
10 34344371 COVER CAP
11 14115524 LOCK WASHER
12 31609512 GUARD BUTTON COMP.
13 34116655 DOOR LOCK SYSTEM
14 31609560 SAWBAND GUARD COMPL.
15 31609561 HEIGHT-ADJUSTMENT CPL.
16 14113010 HEXAGONAL NUT
17 34344382 SUCTION ADAPTOR
18 34151969 BEARING BOLT
19 31609562 CLAMPING DEVICE CPL.
20 14112416 SCREW,M6 X 20
21 14112456 RAISED CHEESE HEAD SCREW
22 33914850 BEVEL DETENT LOCK HOOK
23 31609563 TENSION ROLLER CPL.
24 14311144 BALL BEARING, 12X28X8
25 14111368 CAP SCREW
26 14119048 WASHER
27 14115027 SPRING WASHER
28 34408175 BRUSH STRIP CPL.
29 14111371 CAP SCREW
30 14113020 HEX NUT
31 14118011 RETAINING RING
33 31609564 THREE-ROLLER GUIDE LOWER CPL.
34 31609565 LOWER PULLEY CPL.
35 7233190017 POLY-RIB BELT 4 PJ 610
40 31609566 SAWBAND GUARD COMPL.
41 31609567 THREE-ROLLER GUIDE TOP COMPL.
42 14311109 BALL BEARING, 10X30X9
44 31609568 GUIDE EXTRUSION CPL.
47 34344377 THUMBSCREW
49 31609569 TABLE INSERT ASSEMBLY COMPL.
50 31609570 BANDSAW TABLE CPL.
51 31609571 TABLE TRUNNION CPL.
53 31609572 PARALLEL GUIDE COMPL.
60 34344383 CHIP CASE
61 31609573 DOOR CPL.
62 34344372 STAR GRIP SCREW
63 31609574 ADJUSTMENT SET FOR BLADE TENSION CPL.
64 31609575 QUICK RELEASE FUNCTION
65 34116647 OPERATING LEVER
66 31609576 ANGULAR GUIDE COMPL.
67 31609577 FRONT PROFILE CPL.
68 31700479 MOTOR COMPL.,230V
69 31609578 TAPER GROOVE PULLEY CPL.
72 31609579 ROLLER GUIDE ASSEMBLY
73 31609580 WHEEL SET CPL.
74 31609511 TABLE SIDE EXTENSION COMPL.
75 31609513 CARRY HANDLE COMP.
76 31609581 LED LENSE CPL.
77 34453094 CABLE COMPL.
79 31609582 TOOL HOLDER COL.
80 31609583 WORKSTAND CPL.
81 31609584 SCREW SET COMPL.
82 33806710 RATING PLATE
83 34325513 CAPACITOR
84 34344537 FAN WING
85 33920486 COVER
1001 33850618 WIRING DIAGRAM
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
BAS 318 Precision WNB - 19009000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo BAS 318 P. WNB

Diagram Metabo BAS 318 P. WNB

Download (573.75KB)

You might also like

Belt for Band Saw Metabo BAS 317 Precision DNB
Metabo SKU: 7233190017
Belt for Band Saw Metabo BAS 317 Precision DNB
Belt for Band Saw Metabo BAS 317 Precision DNB Genuine Spare Parts Metabo, Belt 4 PJ 610 for Band Saw Metabo BAS 317 Precision DNB. Parts for the following products: -  Band Saw Metabo BAS 317 Precision DNB - 0090317100...
on 7/10 Business Days Approx €21.46
Details
Push Stick for Wood Mitre Saw Metabo KGT 305 M
Metabo SKU: 34343318
Push Stick for Wood Mitre Saw Metabo KGT 305 M
Push Stick for Wood Mitre Saw Metabo KGT 305 M Original Spare Part Metabo, Push Stick for Wood Mitre Saw With Upper Work Table KGT 305 M. Part for the following products: -  Wood Mitre...
Last items in stock €8.23
Details
Retaining Ring for Band Saw Metabo BAS 317 Precision DNB
Metabo SKU: 14118011
Retaining Ring for Band Saw Metabo BAS 317 Precision DNB
Retaining Ring for Band Saw Metabo BAS 317 Precision DNB Genuine Spare Parts Metabo, Retaining Ring 15.70 for Band Saw Metabo BAS 317 Precision DNB. Parts for the following products: -  Band Saw Metabo BAS 317 Precision DNB -  Band...
on 7/10 Business Days Approx €1.91
Details
Metabo BAS 318 Precision WNB Roller Guide Assy
Metabo SKU: 31609579
Metabo BAS 318 Precision WNB Roller Guide Assy
Metabo BAS 318 Precision WNB Roller Guide Assembly Original Spare Part Metabo, Roller Guide Assembly for Wood Band Saw BAS 318 Precision WNB - 190090000. Part for the following products: - Wood Band Saw BAS 318...
Last items in stock €40.23
Details
Metabo BAS 318 Precision WNB Table Extension
Metabo SKU: 31609511
Metabo BAS 318 Precision WNB Table Extension
Metabo BAS 318 Precision WNB Table Side Extension Complete Original Spare Part Metabo, Table Side Extension Complete for Wood Band Saw BAS 318 Precision WNB - 190090000. Part for the following products: - Wood Band...
Last items in stock €42.26
Details
Comments (0)
