Metabo Spare Parts for Band Saw BAS 261 Precision

SKU: BAS 261 Precision - 19008000
€1.65
VAT included

Metabo Spare Parts for Band Saw BAS 261 Precision

Metabo original spare parts for to replace broken parts for to fix Band Saw BAS 261 Precision - 19008000.

Fix Your Band Saw BAS 261 Precision. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
BAS 261 Precision - 19008000
Metabo Spare Parts for Band Saw BAS 261 Precision
  • Metabo Spare Parts for Band Saw BAS 261 Precision
  • Metabo Spare Parts for Band Saw BAS 261 Precision
  • Metabo Spare Parts for Band Saw BAS 261 Precision
  • Metabo Spare Parts for Band Saw BAS 261 Precision
Metabo

Metabo Spare Parts for Band Saw BAS 261 Precision

SKU: BAS 261 Precision - 19008000 Condition: New
€1.65
VAT included

Metabo Spare Parts for Band Saw BAS 261 Precision

Metabo original spare parts for to replace broken parts for to fix Band Saw BAS 261 Precision - 19008000.

Fix Your Band Saw BAS 261 Precision. All Spares can be supplied at discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
BAS 261 Precision - 19008000
settings 50 Spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
Machine Type: Saw
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
50 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

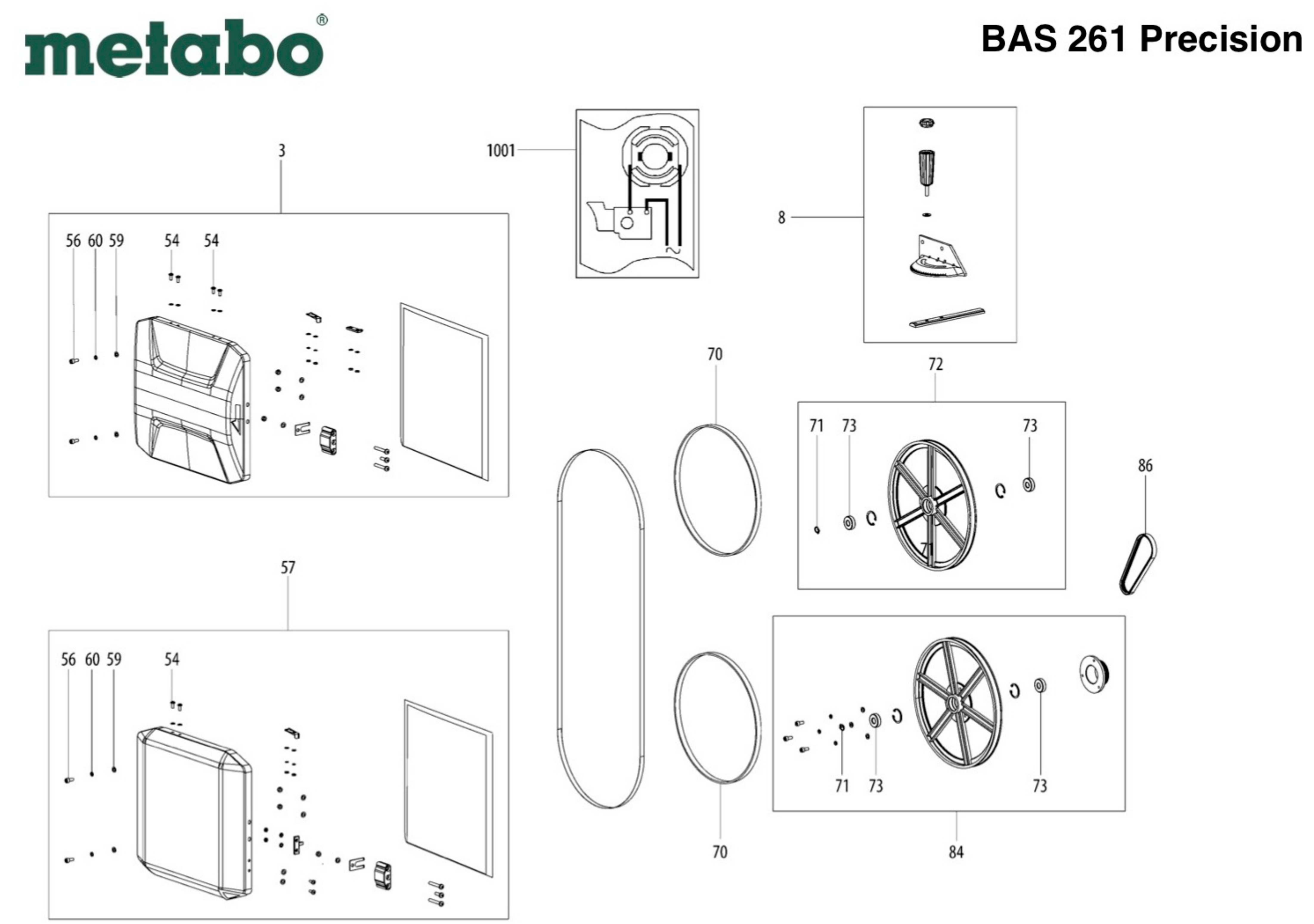

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 33806709 Rating plate €1.61
3
 photo_cameraImage coming soon 31609589 Door compl. €35.27
4
 photo_cameraImage coming soon 17611216 Ball bearing,10x22x6 €13.51
5
 photo_cameraImage coming soon 34344411 Cover cap €1.80
6
 photo_cameraImage coming soon 31609590 ROLLER GUIDE €18.07
7
 photo_cameraImage coming soon 31609603 Safety switch cpl. €18.32
8
 photo_cameraImage coming soon 31609591 Angular guide compl. €14.92
9
 Push Stick for Wood Mitre Saw Metabo KGT 305 M 34343318 Push Stick for Wood Mitre Saw Metabo KGT 305 M €3.62
12
 photo_cameraImage coming soon 31609592 Clamping device compl. €20.58
19
 photo_cameraImage coming soon 31609512 Guard button comp. €5.33
23
 photo_cameraImage coming soon 34325504 Capacitor 12uF €5.33
24
 230V Motor Complete for Band Saw Metabo BAS 261 Precision 31700484 230V Motor Complete for Band Saw Metabo BAS 261 Precision €244.33
26
 photo_cameraImage coming soon 34344420 Table insert €5.21
27
 photo_cameraImage coming soon 31609594 fence comp. €204.70
33
 ON/OFF Switch for Band Saw Metabo BAS 261 Precision 34341148 ON/OFF Switch for Band Saw Metabo BAS 261 Precision €23.58
36
 Brush Strip for Band Saw Metabo BAS 261 Precision 31609596 Brush Strip for Band Saw Metabo BAS 261 Precision €14.09
38
 photo_cameraImage coming soon 31609597 Guide roller compl. €17.79
42
 photo_cameraImage coming soon 31541981 TABLE TRUNNION back €11.84
44
 photo_cameraImage coming soon 14111385 Cap screw €1.80
45
 photo_cameraImage coming soon 14111329 HEXAGON HEAD SCREW €1.61
46
 photo_cameraImage coming soon 31541980 TABLE TRUNNION €10.54
48
 photo_cameraImage coming soon 34344418 Suction adaptor €4.59
49
 photo_cameraImage coming soon 14115013 Washer €1.61
50
 photo_cameraImage coming soon 14115524 Lock washer €1.80
51
 photo_cameraImage coming soon 31609604 Taper groove pulley cpl. €3.84
52
 photo_cameraImage coming soon 14113010 Hexagonal nut €1.70
53
 photo_cameraImage coming soon 14112446 HEX. SOCKET SET SCREW FLAT PT €1.71
54
 photo_cameraImage coming soon 14112456 RAISED CHEESE HEAD SCREW €1.72
55
 Guide Extrusion Complete for Band Saw Metabo BAS 261 Precision 31609598 Guide Extrusion Complete for Band Saw Metabo BAS 261 Precision €18.00
56
 photo_cameraImage coming soon 14111368 Cap screw €1.80
57
 photo_cameraImage coming soon 31609599 Door compl. €29.51
58
 photo_cameraImage coming soon 31609606 LED lense cpl. €23.74
59
 photo_cameraImage coming soon 14119048 Washer €1.61
60
 photo_cameraImage coming soon 14115027 Spring washer €1.61
61
 Parallel Fence Complete for Band Saw Metabo BAS 261 Precision 31606506 Parallel Fence Complete for Band Saw Metabo BAS 261 Precision €48.72
70
 Bandsaw Tyre for Band Saw Metabo BAS 261 Precision 34410194 Bandsaw Tyre for Band Saw Metabo BAS 261 Precision €17.44
71
 photo_cameraImage coming soon 14118004 Retaining ring €1.80
72
 photo_cameraImage coming soon 31606416 BANDSAW WHEEL, UPPER €35.27
73
 photo_cameraImage coming soon 14311574 DEEP GROOVE BALL BEARING €4.59
74
 photo_cameraImage coming soon 14111027 HEXAGON HEAD SCREW €1.61
75
 photo_cameraImage coming soon 34151970 BEARING SHAFT €5.33
76
 Height-Adjustment Cpl. for Band Saw Metabo BAS 261 Precision 31609605 Height-Adjustment Cpl. for Band Saw Metabo BAS 261 Precision €34.86
78
 photo_cameraImage coming soon 33914876 FENCE €1.61
81
 photo_cameraImage coming soon 34344423 Thumbscrew €1.61
84
 photo_cameraImage coming soon 31609607 Lower Pulley €48.48
85
 photo_cameraImage coming soon 34453097 Cable compl. €20.58
86
 Metabo BAS 261 Precision Driving Belt 34426042 Metabo BAS 261 Precision Driving Belt €18.48
87
 photo_cameraImage coming soon 31541987 Support €3.28
89
 photo_cameraImage coming soon 33914878 Push-fit protective plate €1.80
96
 photo_cameraImage coming soon 34116655 DOOR LOCK SYSTEM €11.84
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

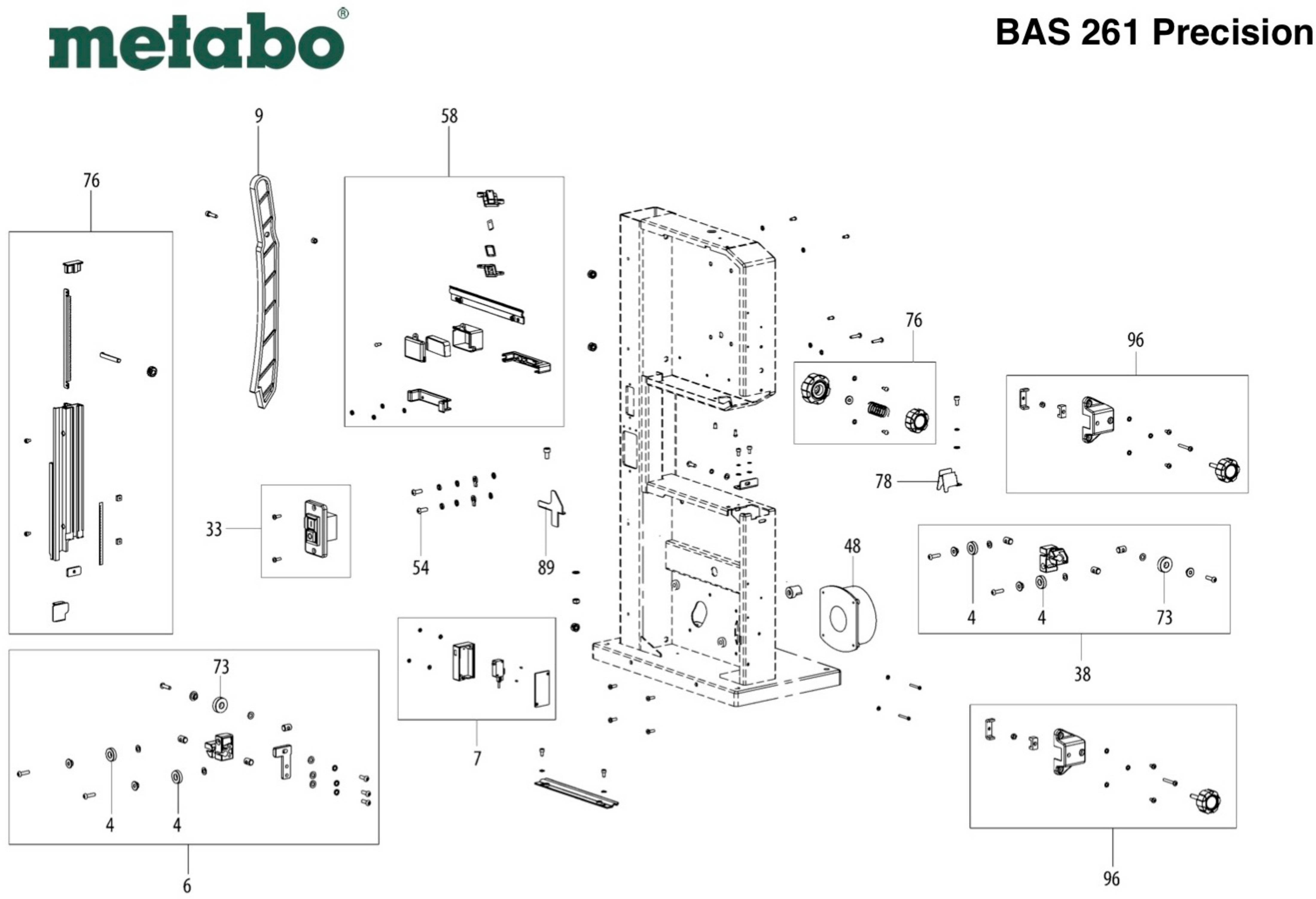

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon 17611216 Ball bearing,10x22x6 €13.51
6
 photo_cameraImage coming soon 31609590 ROLLER GUIDE €18.07
7
 photo_cameraImage coming soon 31609603 Safety switch cpl. €18.32
9
 Push Stick for Wood Mitre Saw Metabo KGT 305 M 34343318 Push Stick for Wood Mitre Saw Metabo KGT 305 M €3.62
33
 ON/OFF Switch for Band Saw Metabo BAS 261 Precision 34341148 ON/OFF Switch for Band Saw Metabo BAS 261 Precision €23.58
38
 photo_cameraImage coming soon 31609597 Guide roller compl. €17.79
48
 photo_cameraImage coming soon 34344418 Suction adaptor €4.59
58
 photo_cameraImage coming soon 31609606 LED lense cpl. €23.74
76
 Height-Adjustment Cpl. for Band Saw Metabo BAS 261 Precision 31609605 Height-Adjustment Cpl. for Band Saw Metabo BAS 261 Precision €34.86
78
 photo_cameraImage coming soon 33914876 FENCE €1.61
89
 photo_cameraImage coming soon 33914878 Push-fit protective plate €1.80
96
 photo_cameraImage coming soon 34116655 DOOR LOCK SYSTEM €11.84
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

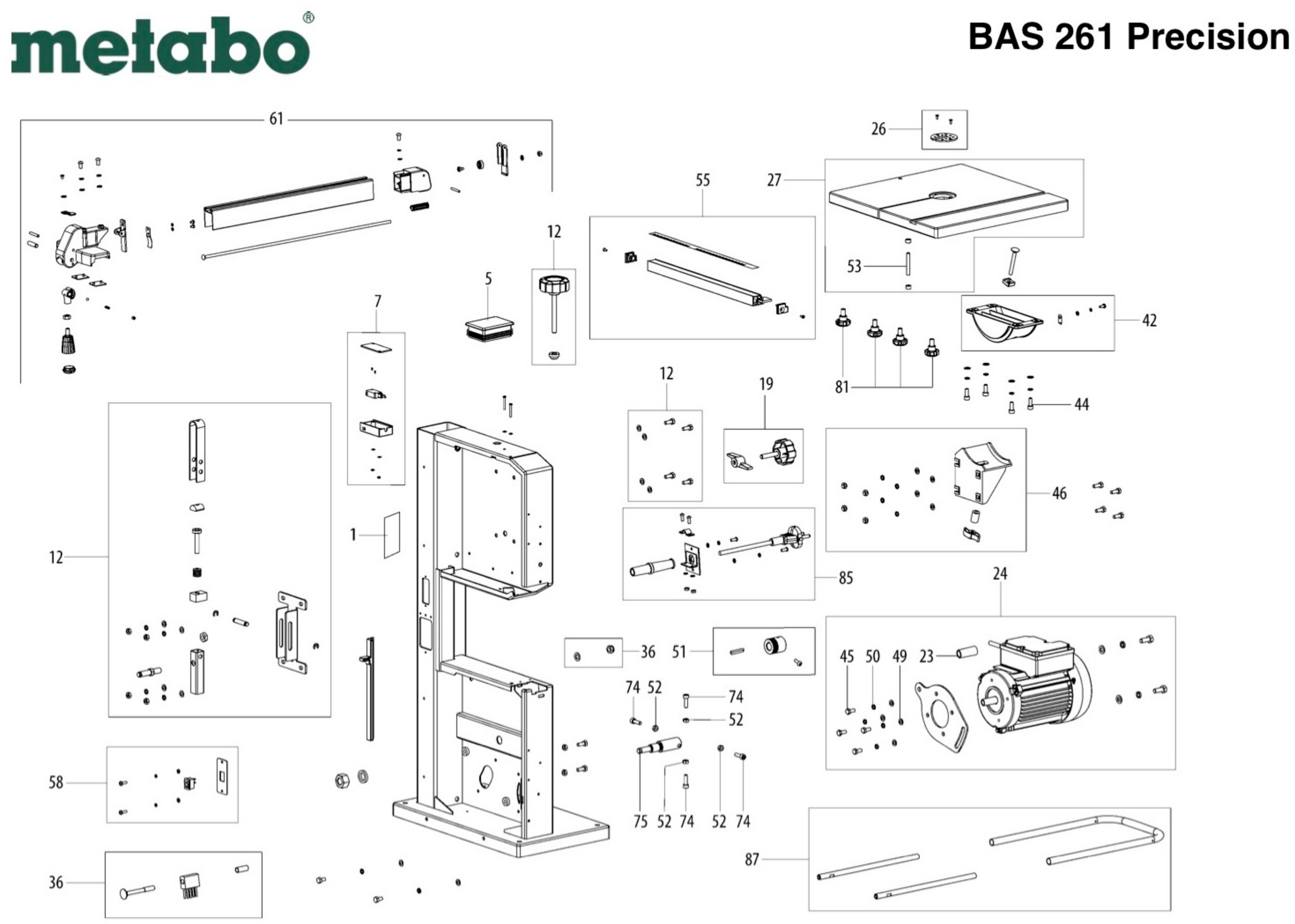

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 33806709 Rating plate €1.61
5
 photo_cameraImage coming soon 34344411 Cover cap €1.80
12
 photo_cameraImage coming soon 31609592 Clamping device compl. €20.58
19
 photo_cameraImage coming soon 31609512 Guard button comp. €5.33
23
 photo_cameraImage coming soon 34325504 Capacitor 12uF €5.33
24
 230V Motor Complete for Band Saw Metabo BAS 261 Precision 31700484 230V Motor Complete for Band Saw Metabo BAS 261 Precision €244.33
26
 photo_cameraImage coming soon 34344420 Table insert €5.21
27
 photo_cameraImage coming soon 31609594 fence comp. €204.70
36
 Brush Strip for Band Saw Metabo BAS 261 Precision 31609596 Brush Strip for Band Saw Metabo BAS 261 Precision €14.09
42
 photo_cameraImage coming soon 31541981 TABLE TRUNNION back €11.84
44
 photo_cameraImage coming soon 14111385 Cap screw €1.80
45
 photo_cameraImage coming soon 14111329 HEXAGON HEAD SCREW €1.61
46
 photo_cameraImage coming soon 31541980 TABLE TRUNNION €10.54
49
 photo_cameraImage coming soon 14115013 Washer €1.61
50
 photo_cameraImage coming soon 14115524 Lock washer €1.80
51
 photo_cameraImage coming soon 31609604 Taper groove pulley cpl. €3.84
52
 photo_cameraImage coming soon 14113010 Hexagonal nut €1.70
53
 photo_cameraImage coming soon 14112446 HEX. SOCKET SET SCREW FLAT PT €1.71
55
 Guide Extrusion Complete for Band Saw Metabo BAS 261 Precision 31609598 Guide Extrusion Complete for Band Saw Metabo BAS 261 Precision €18.00
61
 Parallel Fence Complete for Band Saw Metabo BAS 261 Precision 31606506 Parallel Fence Complete for Band Saw Metabo BAS 261 Precision €48.72
74
 photo_cameraImage coming soon 14111027 HEXAGON HEAD SCREW €1.61
75
 photo_cameraImage coming soon 34151970 BEARING SHAFT €5.33
81
 photo_cameraImage coming soon 34344423 Thumbscrew €1.61
85
 photo_cameraImage coming soon 34453097 Cable compl. €20.58
87
 photo_cameraImage coming soon 31541987 Support €3.28

Shipping and delivery information will be available shortly.

Metabo Spare Parts for Band Saw BAS 261 Precision

Metabo original spare parts for to replace broken parts for to fix Band Saw BAS 261 Precision - 19008000.

In the following table, look for the model of the Band Saw and the respective parts of the code.
Band Saw BAS 261 Precision - 19008000

Band Saw BAS 261 Precision
# Part Num. Description
1 33806709 Rating plate
3 31609589 Door compl.
4 17611216 Ball bearing,10x22x6
5 34344411 Cover cap
6 31609590 ROLLER GUIDE
7 31609603 Safety switch cpl.
8 31609591 Angular guide compl.
9 34343318 Push stick
12 31609592 Clamping device compl.
19 31609512 Guard button comp.
23 34325504 Capacitor 12uF
24 31700484 Motor compl.,230V
26 34344420 Table insert
27 31609594 fence comp.
33 34341148 Switch
36 31609596 BRUSH STRIP cpl.
38 31609597 Guide roller compl.
42 31541981 TABLE TRUNNION back
44 14111385 Cap screw
45 14111329 Hexagon head screw
46 31541980 TABLE TRUNNION
48 34344418 Suction adaptor
49 14115013 Washer
50 14115524 Lock washer
51 31609604 Taper groove pulley cpl.
52 14113010 Hexagonal nut
53 14112446 HEX. SOCKET SET SCREW, FLAT PT
54 14112456 RAISED CHEESE HEAD SCREW
55 31609598 GUIDE EXTRUSION cpl.
56 14111368 Cap screw
57 31609599 Door compl.
58 31609606 LED lense cpl.
59 14119048 Washer
60 14115027 Spring washer
61 31606506 Parallel guide compl.
70 34410194 BANDSAW TYRE
71 14118004 Retaining ring
72 31606416 BANDSAW WHEEL, UPPER
73 14311574 DEEP GROOVE BALL BEARING
74 14111027 Hexagon head screw
75 34151970 BEARING SHAFT
76 31609605 HEIGHT-ADJUSTMENT cpl.
78 33914876 FENCE
81 34344423 Thumbscrew
84 31609607 Lower Pulley
85 34453097 Cable compl.
86 34426042 Driving Belt
87 31541987 Support
89 33914878 Push-fit protective plate
96 34116655 Door lock system
1001 33851017 Wiring diagram
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
BAS 261 Precision - 19008000
12 Items

Data sheet

Machine Type
Saw
SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo BAS 261 Precision

Diagram Metabo BAS 261 Precision

Download (511KB)

You might also like

Push Stick for Wood Mitre Saw Metabo KGT 305 M
Metabo SKU: 34343318
Push Stick for Wood Mitre Saw Metabo KGT 305 M
Push Stick for Wood Mitre Saw Metabo KGT 305 M Original Spare Part Metabo, Push Stick for Wood Mitre Saw With Upper Work Table KGT 305 M. Part for the following products: -  Wood Mitre...
Usually Ships in: 10 Business Days Approx. €3.62
Details
230V Motor Complete for Band Saw Metabo BAS 261 Precision
Metabo SKU: 31700484
230V Motor Complete for Band Saw Metabo BAS 261 Precision
230V Motor Complete for Band Saw Metabo BAS 261 Precision Original Spare Part Metabo, 230V Motor Complete for Wood Band Saw BAS 261 Precision - 19008000. Part for the following products: -  Wood Band Saw BAS 261 Precision - 19008000...
on 7/10 Business Days Approx €244.33
Details
Armature Gear for Band Saw Metabo BAS 261 Precision
Metabo SKU: 34116176
Armature Gear for Table Saw Metabo TS 216 Floor
Armature Gear for Table Saw Metabo TS 216 Floor Original Spare Part Metabo, Armature Gear for Table Saw TS 216 Floor - 00676000. Part for the following products: - Table Saw TS 216 Floor - 00676000 - Code : 34116176
AVAILABLE €20.79
Details
Parallel Fence Complete for Band Saw Metabo BAS 261 Precision
Metabo SKU: 31606506
Parallel Fence Complete for Band Saw Metabo BAS 261 Precision
Parallel Fence Complete for Band Saw Metabo BAS 261 Precision Original Spare Part Metabo, Parallel Fence Complete for Wood Band Saw BAS 261 Precision - 19008000. Part for the following products: -  Wood Band Saw BAS 261 Precision -...
on 7/10 Business Days Approx €48.72
Details
Guide Extrusion Complete for Band Saw Metabo BAS 261 Precision
Metabo SKU: 31609598
Guide Extrusion Complete for Band Saw Metabo BAS 261 Precision
Guide Extrusion Complete for Band Saw Metabo BAS 261 Precision Original Spare Part Metabo, Guide Extrusion Complete for Wood Band Saw BAS 261 Precision - 19008000. Part for the following products: -  Wood Band Saw BAS 261 Precision -...
on 7/10 Business Days Approx €18.00
Details
ON/OFF Switch for Band Saw Metabo BAS 261 Precision
Metabo SKU: 34341148
ON/OFF Switch for Band Saw Metabo BAS 261 Precision
ON/OFF Switch for Band Saw Metabo BAS 261 Precision Original Spare Part Metabo, ON/OFF Switch for Wood Band Saw BAS 261 Precision - 19008000. Part for the following products: -  Wood Band Saw BAS 261 Precision - 19008000 - Code :...
Usually Ships in: 7/10 Business Days Approx. €23.58
Details
Bandsaw Tyre for Band Saw Metabo BAS 261 Precision
Metabo SKU: 34410194
Bandsaw Tyre for Band Saw Metabo BAS 261 Precision
Bandsaw Tyre for Band Saw Metabo BAS 261 Precision Original Spare Part Metabo, Bandsaw Tyre for Wood Band Saw BAS 261 Precision - 19008000. Part for the following products: -  Wood Band Saw BAS 261 Precision - 19008000 - Code : 34410194
on 7/10 Business Days Approx €17.44
Details
Brush Strip for Band Saw Metabo BAS 261 Precision
Metabo SKU: 31609596
Brush Strip for Band Saw Metabo BAS 261 Precision
Brush Strip Cpl. for Band Saw Metabo BAS 261 Precision Original Spare Part Metabo, Brush Strip Cpl. for Wood Band Saw BAS 261 Precision - 19008000. Part for the following products: -  Wood Band Saw BAS 261 Precision - 19008000 - Code...
on 7/10 Business Days Approx €14.09
Details
Metabo BAS 261 Precision Driving Belt
Metabo SKU: 34426042
Metabo BAS 261 Precision Driving Belt
Metabo BAS 261 Precision Driving Belt Original Spare Part Metabo, Driving Belt for Wood Band Saw BAS 261 Precision - 19008000. Part for the following products: -  Wood Band Saw BAS 261 Precision - 19008000 -...
on 7/10 Business Days Approx €18.48
Details
Comments (0)
No customer reviews for the moment.
