Metabo Spare Parts for Band Saw BAS 505 Precision DNB

SKU: BAS 505 Precision DNB - 05053000
€38.13
VAT included

Metabo Spare Parts for Band Saw BAS 505 Precision DNB

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Band Saw BAS 505 Precision DNB - 05053000.

BAS 505 Precision DNB - 05053000
Metabo Spare Parts for Band Saw BAS 505 Precision DNB
  • Metabo Spare Parts for Band Saw BAS 505 Precision DNB
  • Metabo Spare Parts for Band Saw BAS 505 Precision DNB
  • Metabo Spare Parts for Band Saw BAS 505 Precision DNB
Metabo

Metabo Spare Parts for Band Saw BAS 505 Precision DNB

SKU: BAS 505 Precision DNB - 05053000 Condition: New
€38.13
VAT included

Metabo Spare Parts for Band Saw BAS 505 Precision DNB

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Band Saw BAS 505 Precision DNB - 05053000.

BAS 505 Precision DNB - 05053000
settings 97 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
97 spare parts
Page 1 zoom_in View exploded

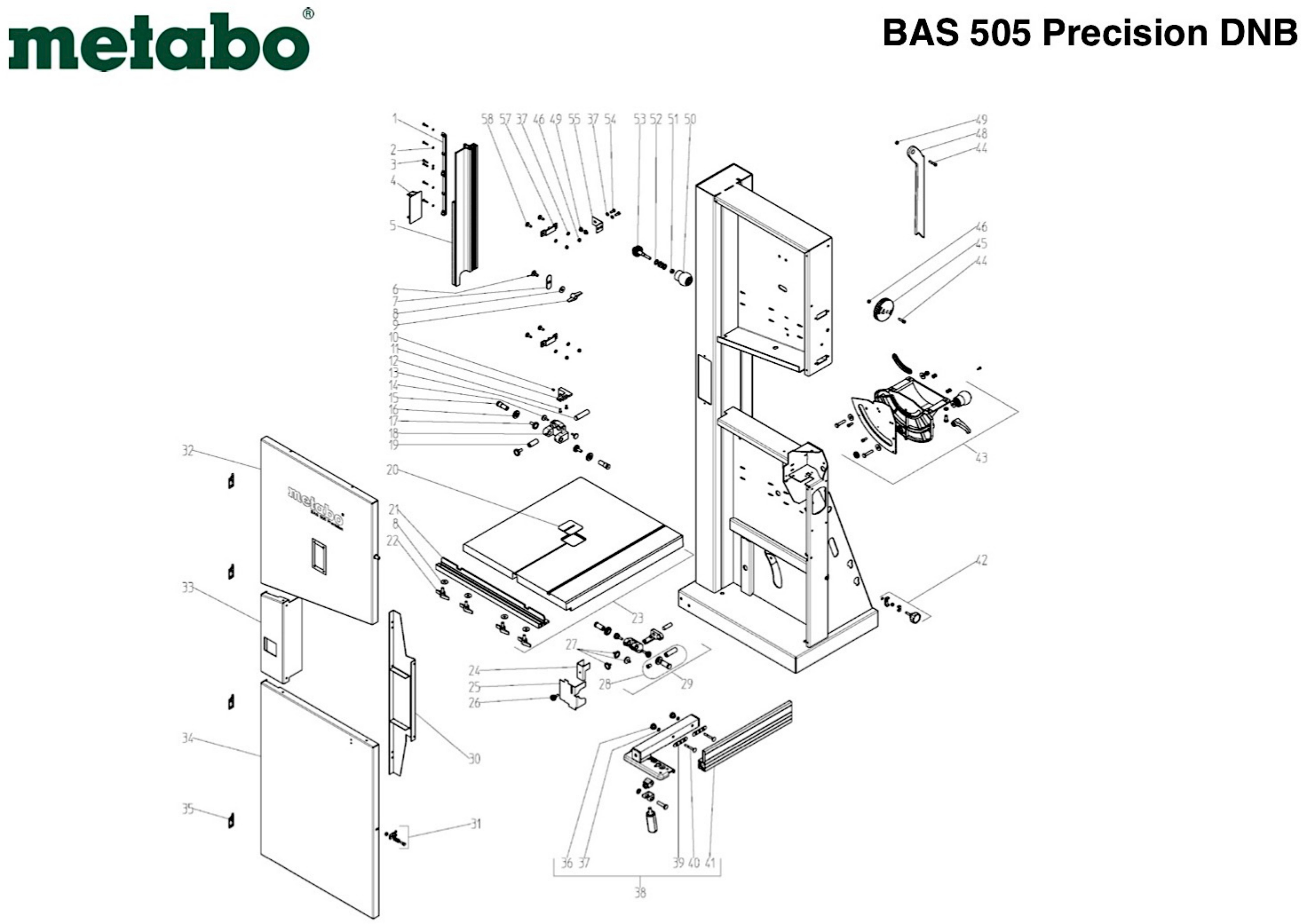

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1380085514 TOOTHED RACK 13 MM €3.25
2
 photo_cameraImage coming soon 14115043 Serrated lock washer €1.59
3
 photo_cameraImage coming soon 6123084703 RAISED CHEESE HEAD SCREW M 4X20 VERZ. €1.64
4
 photo_cameraImage coming soon 1381419360 LATERAL SLIDE 64,8X120 €10.43
5
 photo_cameraImage coming soon 1383419430 BLADE GUIDE TUBE EXTRUSION 600 MM €123.45
6
 photo_cameraImage coming soon 6110017942 TRUSS HEAD SCREW €1.59
7
 photo_cameraImage coming soon 1382083667 BOLT GUIDE BL 1,5X22X60 (81382083667) €1.59
8
 photo_cameraImage coming soon 14115134 Washer €1.59
9
 photo_cameraImage coming soon 7005135529 KNOB HELIX BAS €1.82
10
 photo_cameraImage coming soon 6163121261 Grub screw €1.59
11
 photo_cameraImage coming soon 1380406469 SEAT, THREE-ROLLER GUIDE OBEN €17.61
13
 photo_cameraImage coming soon 1485409005 RETAINING BOLT RD 16/14,5X65 €20.37
14
 photo_cameraImage coming soon 6241125058 KNURLED NUT €1.78
15
 photo_cameraImage coming soon 1385693105 BEARING BUSH RD 18X46 €20.37
16
 photo_cameraImage coming soon 1385693113 KNURLED THUMB NUT M 16X1 €8.96
18
 photo_cameraImage coming soon 1380419161 CASING, THREE-ROLLER-GUIDE GROß €53.50
19
 photo_cameraImage coming soon 1385419178 BUSHING RD 16X41 €13.37
20
 Table Insert for Band Saw BAS 505 Precision WNB 1382692671 Table Insert for Band Saw BAS 505 Precision WNB €6.55
21
 photo_cameraImage coming soon 1009720940 GUIDE EXTRUSION MIT SKALA BAS 505 €34.91
22
 photo_cameraImage coming soon 6150421509 SCREW €4.62
24
 photo_cameraImage coming soon 1382713008 SAWBAND GUARD BL 1,50X63,5X96 BAS505 €17.61
25
 photo_cameraImage coming soon 1382693201 GUARD PLATE BL 1,50X103X177 €17.61
26
 photo_cameraImage coming soon 6143075468 KNURLED THUMB SCREW M 6X16 / RD 20 VERZ. €1.78
27
 Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB 1009719829 Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB €12.01
29
 Upper Blade Guide for Band Saw Metabo BAS 317 Precision WNB 1009719810 Upper Blade Guide for Band Saw Metabo BAS 317 Precision WNB €74.06
30
 photo_cameraImage coming soon 1382723186 REINFORCING PLAT BL 1,50X152X730 BAS505 €34.91
31
 photo_cameraImage coming soon 1009740356 CLAMP HOOK CPL. €14.66
32
 photo_cameraImage coming soon 1382723127 DOOR, UPPER BL 1,50X636X702 BAS505 €116.08
33
 photo_cameraImage coming soon 1382723178 CONNECTING PLATE €34.91
34
 photo_cameraImage coming soon 1382723151 DOOR CPL. €116.08
35
 photo_cameraImage coming soon 1321712858 BOLT-ON HINGE 40X40 €7.30
36
 photo_cameraImage coming soon 6241125058 KNURLED NUT €1.78
37
 photo_cameraImage coming soon 14115194 Washer €1.75
38
 Fence Carrier for Band Saw BAS 505 Precision WNB 1009693307 Fence Carrier for Band Saw BAS 505 Precision WNB €51.87
39
 photo_cameraImage coming soon 1392201587 GUIDE PLATE, FLIPSTOP €1.59
40
 photo_cameraImage coming soon 6110052292 CUP SQUARE NECK SCREW M 6X50 VERZ. €1.59
41
 photo_cameraImage coming soon 1383693051 AUXILIARY FENCE EXTRUSION 450 MM €40.62
42
 photo_cameraImage coming soon 1009739676 DOOR LOCK SYSTEM BAS 317 PRECISION €7.92
43
 Table Trunnion for Band Saw Metabo BAS 317 Precision WNB 1009719942 Table Trunnion for Band Saw Metabo BAS 317 Precision WNB €83.57
44
 photo_cameraImage coming soon 14111390 Cap screw €1.78
45
 photo_cameraImage coming soon 1381692694 SETTING KNOB, LOCK ACTION €6.01
46
 photo_cameraImage coming soon 14113065 HEXAGONAL LOCK NUT €1.80
48
 Push Stick for Wood Mitre Saw Metabo KGT 305 M 34343318 Push Stick for Wood Mitre Saw Metabo KGT 305 M €8.23
49
 photo_cameraImage coming soon 14113010 Hexagonal nut €1.70
50
 Metabo KGT 300 Knob RED 1388698264 Metabo KGT 300 Knob RED €8.40
51
 photo_cameraImage coming soon 6209110995 NUT M8 €1.73
52
 photo_cameraImage coming soon 14115054 SAUCER SPRING €1.59
53
 photo_cameraImage coming soon 1009008876 THREADED BOLT WITH GEAR €34.91
54
 photo_cameraImage coming soon 14111329 HEXAGON HEAD SCREW €1.61
55
 photo_cameraImage coming soon 1382046028 STAY BRACKET BL 1,5X33X82 €2.51
57
 photo_cameraImage coming soon 1380404164 GUIDE EXTRUSION €6.01
58
 photo_cameraImage coming soon 6110000608 CUP SQUARE NECK SCREW €1.59
59
 Switch Ass'y for Band Saw Metabo BAS 505 Precision DNB 8132744492 Switch Ass'y for Band Saw Metabo BAS 505 Precision DNB €248.05
60
 Switch Enclosur for Band Saw Metabo BAS 505 Precision WNB 1382692981 Switch Enclosur for Band Saw Metabo BAS 505 Precision WNB €84.21
61
 photo_cameraImage coming soon 6144063978 HEX.HEAD COLLAR DRILLING SCREW €1.59
62
 photo_cameraImage coming soon 14112342 SELF-TAPP. COUNTERS. SCREW €1.59
63
 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB 14118011 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB €1.91
64
 photo_cameraImage coming soon 1009010870 LOWER BANDSAW WHEEL ASSEMBLY €436.36
65
 photo_cameraImage coming soon 6200046208 HEXAGON NUT M 20X1,5 VERZ. (86200046208) €1.77
66
 photo_cameraImage coming soon 6301047329 SPRING LOCK WASHER B 20 VERZ. €1.59
67
 photo_cameraImage coming soon 1485721688 BEARING SHAFT RD 25X170 BAS505 €40.62
68
 Hex Socket Screw M6X12 for Band Saw BAS 505 Precision WNB 6161050910 Hex Socket Screw M6X12 for Band Saw BAS 505 Precision WNB €1.81
69
 photo_cameraImage coming soon 7240043275 V-BELT PULLEY SPZ DW 116X1 BOHRUNG 24 NU €66.39
70
 photo_cameraImage coming soon 1009744823 BELT CLAMPING SYSTEM €34.91
71
 photo_cameraImage coming soon 6209620098 FLANGE NUT €1.59
72
 photo_cameraImage coming soon 7052740210 LEAF SPRING BAS 317 €1.59
73
 photo_cameraImage coming soon 14111304 Fillister head screw €1.59
74
 photo_cameraImage coming soon 7230664514 V-BELT €29.20
76
 photo_cameraImage coming soon 1009707596 DUST EXTRACTION PORT MIT DURCHGREIFSCHUT €23.50
77
 photo_cameraImage coming soon 8013719285 ELECTRIC MOTOR 1,90 DNB M.BR. (BAS) €399.12
78
 photo_cameraImage coming soon 1331408847 FAN COVER 120/13 €3.25
79
 photo_cameraImage coming soon 1331408839 FAN WING 120/13 WELLEND. 16 €2.51
80
 photo_cameraImage coming soon 7232047415 BANDSAW TYRE 445X2,5X24 65 SHORE €29.20
81
 photo_cameraImage coming soon 1485208140 THREADED ROD M 8X94 €2.51
82
 photo_cameraImage coming soon 6103001178 Hex head screw €1.66
84
 photo_cameraImage coming soon 1009732620 TENSION BRACKET €53.50
85
 photo_cameraImage coming soon 6500087283 PARALLEL PIN 10 h11X100 (86500087283) €3.80
86
 photo_cameraImage coming soon 7016050711 STARLOCK (87016050711) €1.59
87
 photo_cameraImage coming soon 1382721493 TENSION BRACKET BL 2,99X152,5X256,5 BAS5 €47.98
88
 photo_cameraImage coming soon 7051697094 PRESSURE SPRING D=7,5/DE=40/LO=160 €20.37
89
 photo_cameraImage coming soon 1382721540 SCAL BL 1,50X16X180 BAS505 €6.01
90
 photo_cameraImage coming soon 1141721468 ADHESIVE LABEL CLEAR/BLACK 16X90 BLATTSP €7.30
91
 photo_cameraImage coming soon 6200050477 HEXAGON NUT M 16X1,5 VERZ. (86200050477) €1.59
92
 photo_cameraImage coming soon 6301000292 SPRING LOCK WASHER B 16 VERZ. (86301000292) €1.59
93
 photo_cameraImage coming soon 1485704023 BEARING SHAFT RD 21X70 BAS505 €23.50
94
 photo_cameraImage coming soon 1388198580 UPPER BANDSAW WHEEL ASSEMBLY €278.06
95
 photo_cameraImage coming soon 6442084643 BUSH €4.94
96
 photo_cameraImage coming soon 9132081414 CARBON BRUSH €9.91
97
 photo_cameraImage coming soon 6110082701 CUP SQUARE NECK SCREW M 8X100 VERZ. (86110082701) €1.77
98
 photo_cameraImage coming soon 14111027 HEXAGON HEAD SCREW €1.61
99
 photo_cameraImage coming soon 6172001821 Fillister head screw €1.59
100
 photo_cameraImage coming soon 14115001 Washer €1.59
101
 photo_cameraImage coming soon 1382721523 PRESSURE PLATE BL 2,99X76X88 BAS505 €8.96
102
 photo_cameraImage coming soon 6721060355 FEATHER KE A 3X3X8 VERZ. €2.51
103
 photo_cameraImage coming soon 1485692866 SPINDLE, HEIGHT ADJUSTMENT RD 20X304,5 €66.39
104
 photo_cameraImage coming soon 7104693142 CHECK WASHE GTM-1224-015 €3.80
105
 photo_cameraImage coming soon 7003079524 HANDWHEEL €17.61
106
 photo_cameraImage coming soon 6202002305 HEXAGON NUT, PREV. TORQUE TYPE €1.59
Page 2 zoom_in View exploded

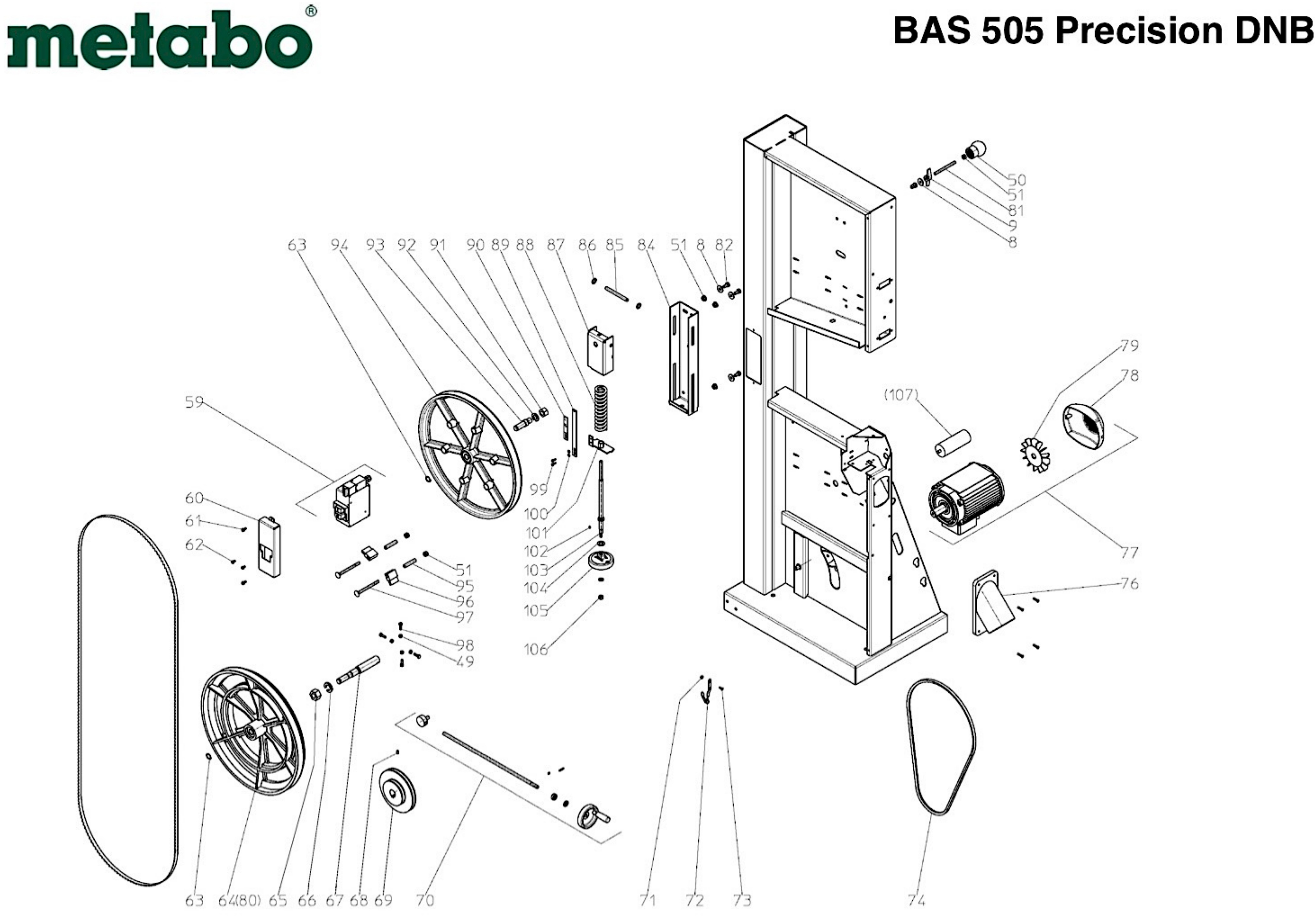

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
59
 Switch Ass'y for Band Saw Metabo BAS 505 Precision DNB 8132744492 Switch Ass'y for Band Saw Metabo BAS 505 Precision DNB €248.05
60
 Switch Enclosur for Band Saw Metabo BAS 505 Precision WNB 1382692981 Switch Enclosur for Band Saw Metabo BAS 505 Precision WNB €84.21
61
 photo_cameraImage coming soon 6144063978 HEX.HEAD COLLAR DRILLING SCREW €1.59
62
 photo_cameraImage coming soon 14112342 SELF-TAPP. COUNTERS. SCREW €1.59
63
 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB 14118011 Retaining Ring for Band Saw Metabo BAS 317 Precision DNB €1.91
65
 photo_cameraImage coming soon 6200046208 HEXAGON NUT M 20X1,5 VERZ. (86200046208) €1.77
66
 photo_cameraImage coming soon 6301047329 SPRING LOCK WASHER B 20 VERZ. €1.59
67
 photo_cameraImage coming soon 1485721688 BEARING SHAFT RD 25X170 BAS505 €40.62
68
 Hex Socket Screw M6X12 for Band Saw BAS 505 Precision WNB 6161050910 Hex Socket Screw M6X12 for Band Saw BAS 505 Precision WNB €1.81
69
 photo_cameraImage coming soon 7240043275 V-BELT PULLEY SPZ DW 116X1 BOHRUNG 24 NU €66.39
70
 photo_cameraImage coming soon 1009744823 BELT CLAMPING SYSTEM €34.91
71
 photo_cameraImage coming soon 6209620098 FLANGE NUT €1.59
72
 photo_cameraImage coming soon 7052740210 LEAF SPRING BAS 317 €1.59
73
 photo_cameraImage coming soon 14111304 Fillister head screw €1.59
74
 photo_cameraImage coming soon 7230664514 V-BELT €29.20
76
 photo_cameraImage coming soon 1009707596 DUST EXTRACTION PORT MIT DURCHGREIFSCHUT €23.50
77
 photo_cameraImage coming soon 8013719285 ELECTRIC MOTOR 1,90 DNB M.BR. (BAS) €399.12
78
 photo_cameraImage coming soon 1331408847 FAN COVER 120/13 €3.25
79
 photo_cameraImage coming soon 1331408839 FAN WING 120/13 WELLEND. 16 €2.51
81
 photo_cameraImage coming soon 1485208140 THREADED ROD M 8X94 €2.51
82
 photo_cameraImage coming soon 6103001178 Hex head screw €1.66
84
 photo_cameraImage coming soon 1009732620 TENSION BRACKET €53.50
85
 photo_cameraImage coming soon 6500087283 PARALLEL PIN 10 h11X100 (86500087283) €3.80
86
 photo_cameraImage coming soon 7016050711 STARLOCK (87016050711) €1.59
87
 photo_cameraImage coming soon 1382721493 TENSION BRACKET BL 2,99X152,5X256,5 BAS5 €47.98
88
 photo_cameraImage coming soon 7051697094 PRESSURE SPRING D=7,5/DE=40/LO=160 €20.37
89
 photo_cameraImage coming soon 1382721540 SCAL BL 1,50X16X180 BAS505 €6.01
90
 photo_cameraImage coming soon 1141721468 ADHESIVE LABEL CLEAR/BLACK 16X90 BLATTSP €7.30
91
 photo_cameraImage coming soon 6200050477 HEXAGON NUT M 16X1,5 VERZ. (86200050477) €1.59
92
 photo_cameraImage coming soon 6301000292 SPRING LOCK WASHER B 16 VERZ. (86301000292) €1.59
93
 photo_cameraImage coming soon 1485704023 BEARING SHAFT RD 21X70 BAS505 €23.50
94
 photo_cameraImage coming soon 1388198580 UPPER BANDSAW WHEEL ASSEMBLY €278.06
95
 photo_cameraImage coming soon 6442084643 BUSH €4.94
96
 photo_cameraImage coming soon 9132081414 CARBON BRUSH €9.91
97
 photo_cameraImage coming soon 6110082701 CUP SQUARE NECK SCREW M 8X100 VERZ. (86110082701) €1.77
98
 photo_cameraImage coming soon 14111027 HEXAGON HEAD SCREW €1.61
99
 photo_cameraImage coming soon 6172001821 Fillister head screw €1.59
100
 photo_cameraImage coming soon 14115001 Washer €1.59
101
 photo_cameraImage coming soon 1382721523 PRESSURE PLATE BL 2,99X76X88 BAS505 €8.96
102
 photo_cameraImage coming soon 6721060355 FEATHER KE A 3X3X8 VERZ. €2.51
103
 photo_cameraImage coming soon 1485692866 SPINDLE, HEIGHT ADJUSTMENT RD 20X304,5 €66.39
104
 photo_cameraImage coming soon 7104693142 CHECK WASHE GTM-1224-015 €3.80
105
 photo_cameraImage coming soon 7003079524 HANDWHEEL €17.61
106
 photo_cameraImage coming soon 6202002305 HEXAGON NUT, PREV. TORQUE TYPE €1.59

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Band Saw BAS 505 Precision DNB

We are METABO original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Band Saw BAS 505 Precision DNB - 05053000.

In the following table, look for the model of the Band Saw and the respective parts of the code.
BAS 505 Precision DNB - 05053000

Band Saw BAS 505 Precision DNB/05053000
# Part Num. Description
1 1380085514 TOOTHED RACK 13 MM
2 14115043 SERRATED LOCK WASHER
3 6123084703 RAISED CHEESE HEAD SCREW M 4X20 VERZ.
4 1381419360 LATERAL SLIDE 64,8X120
5 1383419430 BLADE GUIDE TUBE EXTRUSION 600 MM
6 6110017942 TRUSS HEAD SCREW
7 1382083667 BOLT GUIDE BL 1,5X22X60
8 14115134 WASHER
9 7005135529 THUMB-NUT
10 6163121261 GRUB SCREW
11 1380406469 SEAT, THREE-ROLLER GUIDE OBEN
12 14112287 SELF-TAP. FILL. H. SCREW
13 1485409005 RETAINING BOLT RD 16/14,5X65
14 6241125058 KNURLED NUT
15 1385693105 BEARING BUSH RD 18X46
16 1385693113 KNURLED THUMB NUT M 16X1
17 1485415544 THRUST BEARING RD 25/8X28 GEHÄRTET
18 1380419161 CASING, THREE-ROLLER-GUIDE GROß
19 1385419178 BUSHING RD 16X41
20 1382692671 TABLE INSERT BL 2,00X69X70,5
21 1009720940 GUIDE EXTRUSION MIT SKALA BAS 505
22 6150421509 THUMB SCREW RED M 8X18
23 1009720924 TABLE ASSEMBLY BAS 505
24 1382713008 SAWBAND GUARD BL 1,50X63,5X96 BAS505
25 1382693201 GUARD PLATE BL 1,50X103X177
26 6143075468 KNURLED THUMB SCREW M 6X16 / RD 20 VERZ.
27 1009719829 THRUST BEARING BAS 317 PRECISION
28 1009719870 BEARING BUSH BAS 317 PRECISION -discontinued
29 1009719810 THREE-ROLLER GUIDE BAS 317 PRECISION
30 1382723186 REINFORCING PLAT BL 1,50X152X730 BAS505
31 1009740356 CLAMP HOOK CPL.
32 1382723127 DOOR, UPPER BL 1,50X636X702 BAS505
33 1382723178 CONNECTING PLATE
34 1382723151 DOOR CPL.
35 1321712858 BOLT-ON HINGE 40X40
36 6241125058 KNURLED NUT
37 14115194 WASHER
38 1009693307 FENCE CARRIER INCL.VORSATZPROFIL BAS 505
39 1392201587 GUIDE PLATE, FLIPSTOP
40 6110052292 CUP SQUARE NECK SCREW M 6X50 VERZ.
41 1383693051 AUXILIARY FENCE EXTRUSION 450 MM
42 1009739676 DOOR LOCK SYSTEM BAS 317 PRECISION
43 1009719942 TABLE TRUNNION BAS 317 PRECISION
44 14111390 CAP SCREW
45 1381692694 SETTING KNOB, LOCK ACTION
46 14113065 HEXAGONAL LOCK NUT
48 34343318 PUSH STICK
49 14113010 HEXAGONAL NUT
50 1388698264 KNOB, RED
51 6209110995 FLANGE NUT
52 14115054 SAUCER SPRING
53 1009008876 THREADED BOLT WITH GEAR
54 14111329 HEXAGON HEAD SCREW
55 1382046028 STAY BRACKET BL 1,5X33X82
57 1380404164 GUIDE EXTRUSION
58 6110000608 CUP SQUARE NECK SCREW
59 8132744492 SWITCH DN N=4000
60 1382692981 SWITCH ENCLOSUR BL 2,00X120,5X270
61 6144063978 HEX.HEAD COLLAR DRILLING SCREW
62 14112342 SELF-TAPP. COUNTERS. SCREW
63 14118011 RETAINING RING
64 1009010870 LOWER BANDSAW WHEEL ASSEMBLY
65 6200046208 HEXAGON NUT M 20X1,5 VERZ.
66 6301047329 SPRING LOCK WASHER B 20 VERZ.
67 1485721688 BEARING SHAFT RD 25X170 BAS505
68 6161050910 HEX. SOCKET SET SCREW, FLAT PT M 6X12 VE
69 7240043275 V-BELT PULLEY SPZ DW 116X1 BOHRUNG 24 NU
70 1009744823 BELT CLAMPING SYSTEM
71 6209620098 FLANGE NUT
72 7052740210 LEAF SPRING BAS 317
73 14111304 FILLISTER HEAD SCREW
74 7230664514 V-BELT
76 1009707596 DUST EXTRACTION PORT MIT DURCHGREIFSCHUT
77 8013719285 ELECTRIC MOTOR 1,90 DNB M.BR. (BAS)
78 1331408847 FAN COVER 120/13
79 1331408839 FAN WING 120/13 WELLEND. 16
80 7232047415 BANDSAW TYRE 445X2,5X24 65 SHORE
81 1485208140 THREADED ROD M 8X94
82 6103001178 HEX HEAD SCREW
84 1009732620 TENSION BRACKET
85 6500087283 PARALLEL PIN 10 H11X100
86 7016050711 STARLOCK
87 1382721493 TENSION BRACKET BL 2,99X152,5X256,5 BAS5
88 7051697094 PRESSURE SPRING D=7,5/DE=40/LO=160
89 1382721540 SCAL BL 1,50X16X180 BAS505
90 1141721468 ADHESIVE LABEL CLEAR/BLACK 16X90 BLATTSP
91 6200050477 HEXAGON NUT M 16X1,5 VERZ.
92 6301000292 SPRING LOCK WASHER B 16 VERZ.
93 1485704023 BEARING SHAFT RD 21X70 BAS505
94 1388198580 UPPER BANDSAW WHEEL ASSEMBLY
95 6442084643 SPACER SLEEVE RD 10,7/8,5X50 VERZ.
96 9132081414 BRUSH STRIP
97 6110082701 CUP SQUARE NECK SCREW M 8X100 VERZ.
98 14111027 HEXAGON HEAD SCREW
99 6172001821 FILLISTER HEAD SCREW
100 14115001 WASHER
101 1382721523 PRESSURE PLATE BL 2,99X76X88 BAS505
102 6721060355 FEATHER KE A 3X3X8 VERZ.
103 1485692866 SPINDLE, HEIGHT ADJUSTMENT RD 20X304,5
104 7104693142 CHECK WASHE GTM-1224-015
105 7003079524 HANDWHEEL
106 6202002305 HEXAGON NUT, PREV. TORQUE TYPE
107 399999990 PARTIC. NON NECESSARIO
1001 338505610 WIRING DIAGRAM,400V
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
BAS 505 Precision DNB - 05053000
12 Items

Specific References

New

Download

Diagram Metabo BAS 505 P. DNB

Diagram Metabo BAS 505 P. DNB

Download (391.67KB)

You might also like

Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB
Metabo SKU: 1009719829
Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB
Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB Genuine Spare Part Metabo, Band Guide for Wood Band Saw Metabo BAS 317 Precision DNB - WNB - BAS 505 Precision DNB - WNB.  Parts for the following...
on 7/10 Business Days Approx. €12.01
Details
Push Stick for Wood Mitre Saw Metabo KGT 305 M
Metabo SKU: 34343318
Push Stick for Wood Mitre Saw Metabo KGT 305 M
Push Stick for Wood Mitre Saw Metabo KGT 305 M Original Spare Part Metabo, Push Stick for Wood Mitre Saw With Upper Work Table KGT 305 M. Part for the following products: -  Wood Mitre...
Last items in stock €8.23
Details
Retaining Ring for Band Saw Metabo BAS 317 Precision DNB
Metabo SKU: 14118011
Retaining Ring for Band Saw Metabo BAS 317 Precision DNB
Retaining Ring for Band Saw Metabo BAS 317 Precision DNB Genuine Spare Parts Metabo, Retaining Ring 15.70 for Band Saw Metabo BAS 317 Precision DNB. Parts for the following products: -  Band Saw Metabo BAS 317 Precision DNB -  Band...
on 7/10 Business Days Approx €1.91
Details
Hex Socket Screw M6X12 for Band Saw BAS 505 Precision WNB
Metabo SKU: 6161050910
Hex Socket Screw M6X12 for Band Saw BAS 505 Precision WNB
Hex Socket Screw M6X12 for Band Saw Metabo BAS 505 Precision WNB Metabo Original replacement part, Hex Socket Screw, Flat PT M 6X12 VE for Band Saws BAS 505 Precision WNB - DNB - BAS 250 - BAS 316 G...
on 7/10 Business Days Approx €1.81
Details
Switch Ass'y for Band Saw Metabo BAS 505 Precision DNB
Metabo SKU: 8132744492
Switch Ass'y for Band Saw Metabo BAS 505 Precision DNB
Switch Ass'y for Band Saw Metabo BAS 505 Precision DNB Metabo Original replacement part, Switch Assembly for Band Saw BAS 505 Precision DNB. Part for the following products: -  Band Saw BAS 505 Precision DNB - 05053000 - Code:...
Last items in stock €248.05
Details
Fence Carrier for Band Saw BAS 505 Precision WNB
Metabo SKU: 1009693307
Fence Carrier for Band Saw BAS 505 Precision WNB
Fence Carrier for Band Saw Metabo BAS 505 Precision WNB Metabo Original replacement part, Fence Carrier Inclinate for Band Saws BAS 505 Precision WNB - BAS 505 Precision DNB. Part for the following...
Last items in stock €51.87
Details
Table Insert for Band Saw BAS 505 Precision WNB
Metabo SKU: 1382692671
Table Insert for Band Saw BAS 505 Precision WNB
Table Insert for Band Saw Metabo BAS 505 Precision WNB Metabo Original replacement part, Table Insert Bl 2,00X69X70,5 for Band Saws BAS 505 Precision WNB - BAS 505 Precision DNB. Part for the...
on 10 Business Days Approx €6.55
Details
Metabo KGT 300 Knob RED
Metabo SKU: 1388698264
Metabo KGT 300 Knob RED
Metabo KGT 300 Knob, RED Genuine part Metabo, Knob, RED for Mitre Saw Metabo KGT 300 - 0103300000 11 Parts for the following products: -  Mitre Saw Metabo KGT 300 - 0103300000 11 - BAS 505 Precision WNB -...
Last items in stock €8.40
Details
Comments (0)
