Metabo

Metabo Spare Parts for Mitre Saw KS 216 M Lasercut 0102160300 10

SKU: KS 216 M Lasercut 0102160300 10
€1.93
VAT included

Metabo Spare Parts for Mitre Saw KS 216 M Lasercut 0102160300 10

Metabo genuine spare parts or replacement parts for to repair Mitre Saw KS 216 M Lasercut 0102160300 10.

Fix Your Mitre Saw KS 216 M Lasercut. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Metabo Spare Parts for Mitre Saw KS 216 M Lasercut 0102160300 10
  • Metabo Spare Parts for Mitre Saw KS 216 M Lasercut 0102160300 10
  • Metabo Spare Parts for Mitre Saw KS 216 M Lasercut 0102160300 10
  • Metabo Spare Parts for Mitre Saw KS 216 M Lasercut 0102160300 10
Metabo

Metabo Spare Parts for Mitre Saw KS 216 M Lasercut 0102160300 10

SKU: KS 216 M Lasercut 0102160300 10 Condition: New
€1.93
VAT included

Metabo Spare Parts for Mitre Saw KS 216 M Lasercut 0102160300 10

Metabo genuine spare parts or replacement parts for to repair Mitre Saw KS 216 M Lasercut 0102160300 10.

Fix Your Mitre Saw KS 216 M Lasercut. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 79 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
79 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

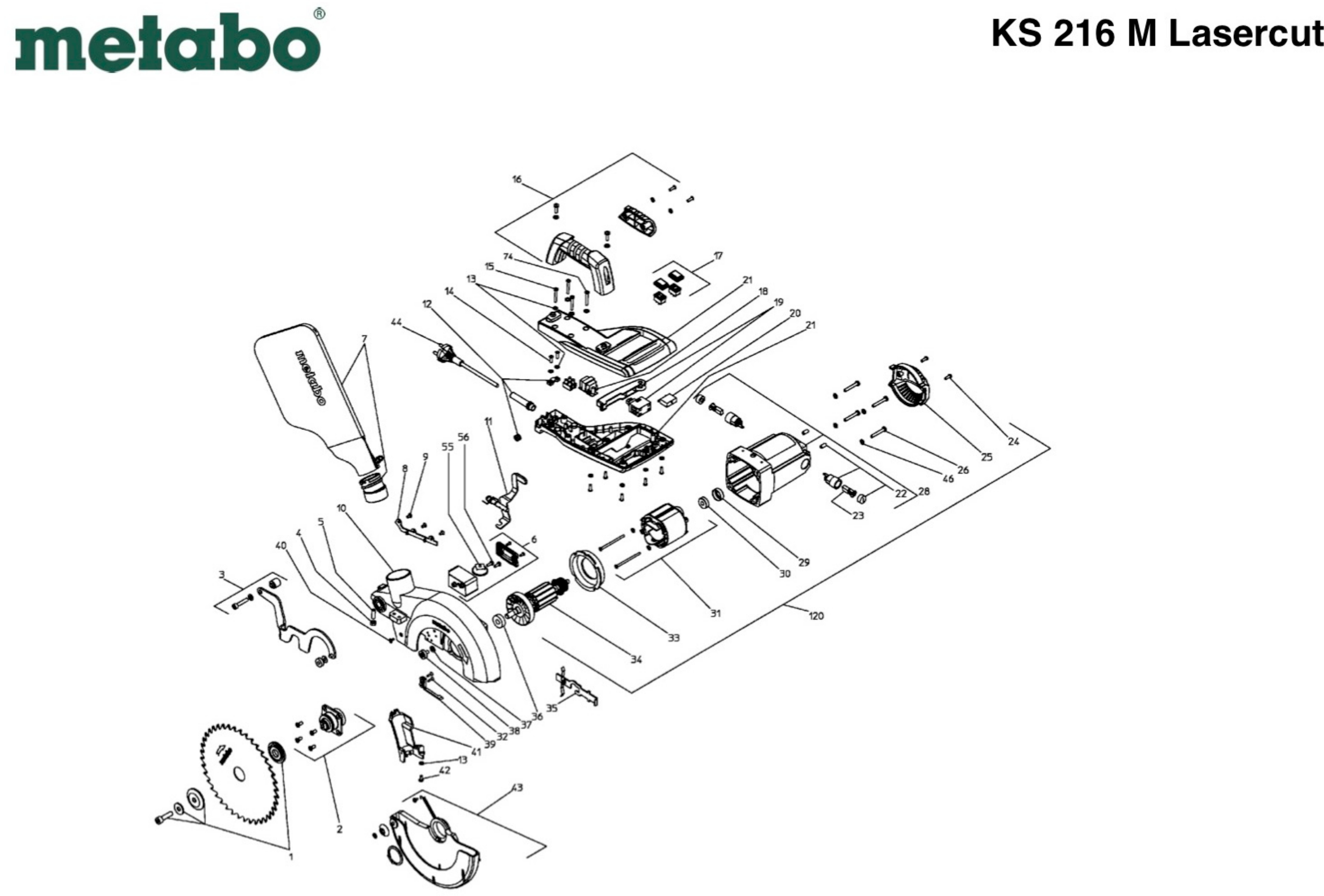

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1010734645 Flange compl. €8.64
3
 photo_cameraImage coming soon 1010734130 Swivel lever compl. €9.22
4
 photo_cameraImage coming soon 14113010 Hexagonal nut €1.70
5
 photo_cameraImage coming soon 14112448 HEX. SOCKET SET SCREW FLAT PT M 6X20 VE €1.59
6
 photo_cameraImage coming soon 1010735005 Cover lighting compl. €7.30
8
 photo_cameraImage coming soon 1381734729 Cover cable duct €1.59
10
 photo_cameraImage coming soon 1010734580 Wheel guard compl. €55.10
11
 photo_cameraImage coming soon 1010734548 Unlock lever compl. €3.34
12
 photo_cameraImage coming soon 1010734157 STRAIN RELIEF COMPLETE €1.59
13
 photo_cameraImage coming soon 14115001 Washer €1.59
14
 photo_cameraImage coming soon 6172722847 CROSS REC'D PAN HEAD TAP.SCREW ST 4,2X13 €1.64
15
 photo_cameraImage coming soon 14111142 Fillister head screw €1.59
16
 photo_cameraImage coming soon 1010734190 Handle compl. €13.75
17
 Switch Set for Mitre Saw Metabo KGS 216 M 1010734203 Switch Set for Mitre Saw Metabo KGS 216 M €6.83
18
 Power Supply Pack for Mitre Saw Metabo KS 216 M Lasercut 8106734071 Power Supply Pack for Mitre Saw Metabo KS 216 M Lasercut €20.79
19
 photo_cameraImage coming soon 1010734084 Switch compl. €6.19
20
 photo_cameraImage coming soon 8050734103 Condenser €2.77
21
 photo_cameraImage coming soon 1010734173 Handle compl. €24.20
22
 photo_cameraImage coming soon 1010733983 Carbon brush holder compl. €1.83
23
 photo_cameraImage coming soon 1388734023 Carbon brush €15.65
24
 photo_cameraImage coming soon 6172001821 Fillister head screw €1.59
25
 photo_cameraImage coming soon 1381733960 MOTOR COVER €20.98
26
 photo_cameraImage coming soon 14111677 Fillister head screw €1.78
27
 photo_cameraImage coming soon 1010735030 TURNTABLE COMPLETE €47.98
28
 photo_cameraImage coming soon 1010734009 Motor housing compl. €13.77
29
 photo_cameraImage coming soon 7057734846 Rubber bushing €1.64
30
 photo_cameraImage coming soon 14311518 Ball bearing,8x22x7 €3.92
31
 photo_cameraImage coming soon 8014734040 Stator €40.62
32
 photo_cameraImage coming soon 6174001900 COUNTERSUNK HEAD TAPPING SCREW €1.64
33
 photo_cameraImage coming soon 1331734868 Air guide cover €1.64
34
 photo_cameraImage coming soon 8014734881 Armature €42.03
35
 photo_cameraImage coming soon 1010734815 Spindle lock compl. €1.64
37
 photo_cameraImage coming soon 14115194 Washer €1.75
38
 photo_cameraImage coming soon 1010734807 Bearing compl. €1.83
41
 photo_cameraImage coming soon 1381734770 Extraction channel €1.59
42
 photo_cameraImage coming soon 14112456 RAISED CHEESE HEAD SCREW €1.72
45
 photo_cameraImage coming soon 6205028046 HEXAGON THIN NUT (86205084779) €1.59
46
 photo_cameraImage coming soon 14115002 Washer €1.59
47
 photo_cameraImage coming soon 14115042 Serrated lock washer €1.59
48
 photo_cameraImage coming soon 6172015687 CROSS REC D PAN HEAD TAP.SCREW €1.64
49
 photo_cameraImage coming soon 14115011 Washer €1.59
50
 photo_cameraImage coming soon 1010734661 Motor head axle compl. €10.74
51
 photo_cameraImage coming soon 1380735047 Motor bracket €7.30
52
 photo_cameraImage coming soon 6103001127 Hex head screw €1.73
53
 photo_cameraImage coming soon 14111387 Cap screw €1.78
54
 photo_cameraImage coming soon 34170107 Grub screw €5.67
55
 photo_cameraImage coming soon 8602735010 LED-LAMP €7.30
56
 photo_cameraImage coming soon 14111304 Fillister head screw €1.59
57
 photo_cameraImage coming soon 9102689833 ALLEN HEXAGON KEY €4.67
58
 photo_cameraImage coming soon 14111029 Hexagon head screw €1.78
59
 photo_cameraImage coming soon 1010734483 Motor bracket compl. €26.26
60
 photo_cameraImage coming soon 1482735076 Clamping plate €1.59
62
 photo_cameraImage coming soon 1010734530 TRANSPORT LOCK COMPLETE €1.64
64
 photo_cameraImage coming soon 14115039 Lock washer €1.59
65
 photo_cameraImage coming soon 1381735024 Laser housing €1.59
73
 photo_cameraImage coming soon 1010734394 Scale set compl. €1.59
74
 photo_cameraImage coming soon 6172006963 CROSS REC'D PAN HEAD TAP.SCREW ST 4,2X32 €1.64
75
 photo_cameraImage coming soon 6143025088 RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO €1.64
79
 photo_cameraImage coming soon 1010734360 Clamping lever compl. €3.25
90
 photo_cameraImage coming soon 1385735061 Tipping axis €1.59
91
 photo_cameraImage coming soon 14112450 HEXAGON HEAD SCREW M 10X40 VERZ. €1.59
92
 photo_cameraImage coming soon 14111218 Countersunk screw €1.56
93
 photo_cameraImage coming soon 1381734958 Table insert €1.59
97
 photo_cameraImage coming soon 14111389 Cap screw €1.78
98
 photo_cameraImage coming soon 14115041 Serrated lock washer €1.77
99
 photo_cameraImage coming soon 34111163 Thumbscrew €1.78
100
 photo_cameraImage coming soon 34111275 Thumbscrew,M6 x 12 €1.59
101
 photo_cameraImage coming soon 1010734351 Workpiece holder compl. €27.04
102
 photo_cameraImage coming soon 1010734300 Table side extension right €29.20
103
 photo_cameraImage coming soon 1010734335 Clamping lever compl. left €1.83
104
 photo_cameraImage coming soon 1010734220 Control grip compl. €3.25
107
 photo_cameraImage coming soon 14115005 Washer €1.68
109
 photo_cameraImage coming soon 1010734270 Table side extension left €29.20
110
 photo_cameraImage coming soon 14113203 Hex nut €1.59
111
 Metabo KGS 216 M Stop Complete 1010734980 Metabo KGS 216 M Stop Complete €31.95
112
 photo_cameraImage coming soon 1010734246 Table compl. €66.39
113
 photo_cameraImage coming soon 1010734343 Clamping lever compl. right €1.83
114
 photo_cameraImage coming soon 1010735056 Locking table trunnion compl. €2.51
120
 photo_cameraImage coming soon 1010735595 MOTOR ASSEMBLY 230V KS 216 €114.86
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

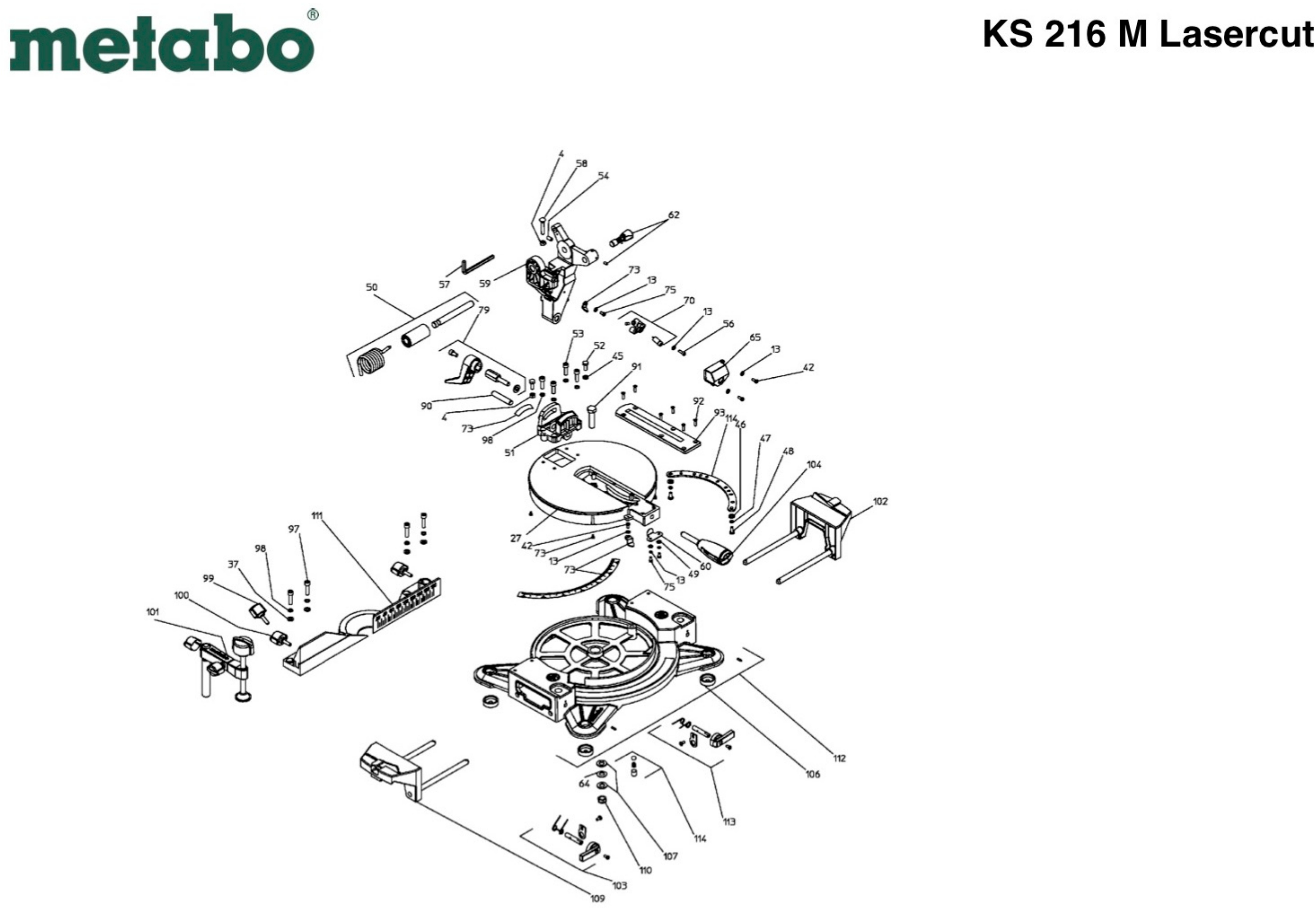

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
27
 photo_cameraImage coming soon 1010735030 TURNTABLE COMPLETE €47.98
45
 photo_cameraImage coming soon 6205028046 HEXAGON THIN NUT (86205084779) €1.59
47
 photo_cameraImage coming soon 14115042 Serrated lock washer €1.59
48
 photo_cameraImage coming soon 6172015687 CROSS REC D PAN HEAD TAP.SCREW €1.64
49
 photo_cameraImage coming soon 14115011 Washer €1.59
50
 photo_cameraImage coming soon 1010734661 Motor head axle compl. €10.74
51
 photo_cameraImage coming soon 1380735047 Motor bracket €7.30
52
 photo_cameraImage coming soon 6103001127 Hex head screw €1.73
53
 photo_cameraImage coming soon 14111387 Cap screw €1.78
54
 photo_cameraImage coming soon 34170107 Grub screw €5.67
57
 photo_cameraImage coming soon 9102689833 ALLEN HEXAGON KEY €4.67
58
 photo_cameraImage coming soon 14111029 Hexagon head screw €1.78
59
 photo_cameraImage coming soon 1010734483 Motor bracket compl. €26.26
60
 photo_cameraImage coming soon 1482735076 Clamping plate €1.59
62
 photo_cameraImage coming soon 1010734530 TRANSPORT LOCK COMPLETE €1.64
64
 photo_cameraImage coming soon 14115039 Lock washer €1.59
65
 photo_cameraImage coming soon 1381735024 Laser housing €1.59
73
 photo_cameraImage coming soon 1010734394 Scale set compl. €1.59
75
 photo_cameraImage coming soon 6143025088 RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO €1.64
79
 photo_cameraImage coming soon 1010734360 Clamping lever compl. €3.25
90
 photo_cameraImage coming soon 1385735061 Tipping axis €1.59
91
 photo_cameraImage coming soon 14112450 HEXAGON HEAD SCREW M 10X40 VERZ. €1.59
92
 photo_cameraImage coming soon 14111218 Countersunk screw €1.56
93
 photo_cameraImage coming soon 1381734958 Table insert €1.59
97
 photo_cameraImage coming soon 14111389 Cap screw €1.78
98
 photo_cameraImage coming soon 14115041 Serrated lock washer €1.77
99
 photo_cameraImage coming soon 34111163 Thumbscrew €1.78
100
 photo_cameraImage coming soon 34111275 Thumbscrew,M6 x 12 €1.59
101
 photo_cameraImage coming soon 1010734351 Workpiece holder compl. €27.04
102
 photo_cameraImage coming soon 1010734300 Table side extension right €29.20
103
 photo_cameraImage coming soon 1010734335 Clamping lever compl. left €1.83
104
 photo_cameraImage coming soon 1010734220 Control grip compl. €3.25
107
 photo_cameraImage coming soon 14115005 Washer €1.68
109
 photo_cameraImage coming soon 1010734270 Table side extension left €29.20
110
 photo_cameraImage coming soon 14113203 Hex nut €1.59
111
 Metabo KGS 216 M Stop Complete 1010734980 Metabo KGS 216 M Stop Complete €31.95
112
 photo_cameraImage coming soon 1010734246 Table compl. €66.39
113
 photo_cameraImage coming soon 1010734343 Clamping lever compl. right €1.83
114
 photo_cameraImage coming soon 1010735056 Locking table trunnion compl. €2.51

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Mitre Saw KS 216 M Lasercut 0102160300 10

Fix Your Mitre Saw KS 216 M Lasercut 0102160300 10. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Mitre Saw and the respective parts of the code.
KS 216 M Lasercut 0102160300 10

Mitre Saw KS 216 M Lasercut
# Part Num. Description
1 1010734645 Flange compl.
2 1010734602 Gear-box compl.
3 1010734130 Swivel lever compl.
4 14113010 Hexagonal nut
5 14112448 HEX. SOCKET SET SCREW, FLAT PT M 6X20 VE
6 1010735005 Cover lighting compl.
7 1010734572 Dust etraction kit compl.
8 1381734729 Cover cable duct
9 6131001531 CROSS RECESSED FLAT HEAD SCREW M 4X8 VER
10 1010734580 Wheel guard compl.
11 1010734548 Unlock lever compl.
12 1010734157 Strain relief compl.
13 14115001 Washer
14 6172722847 CROSS REC'D PAN HEAD TAP.SCREW ST 4,2X13
15 14111142 Fillister head screw
16 1010734190 Handle compl.
17 1010734203 Switch set
18 8106734071 Power supply pack
19 1010734084 Switch compl.
20 8050734103 Condenser
21 1010734173 Handle compl.
22 1010733983 Carbon brush holder compl.
23 1388734023 Carbon brush
24 6172001821 Fillister head screw
25 1381733960 MOTOR COVER
26 14111677 Fillister head screw
27 1010735030 Turntable compl.
28 1010734009 Motor housing compl.
29 7057734846 Rubber bushing
30 14311518 Ball bearing,8x22x7
31 8014734040 Stator
32 6174001900 COUNTERSUNK HEAD TAPPING SCREW
33 1331734868 Air guide cover
34 8014734881 Armature
35 1010734815 Spindle lock compl.
36 7100010180 DEEP GROOVE BALL BEARING
37 14115194 Washer
38 1010734807 Bearing compl.
39 1381735660 Cover spring
40 6174188961 COUNTERSUNK HEAD TAPPING SCREW ST 2,9X9,
41 1381734770 Extraction channel
42 14112456 RAISED CHEESE HEAD SCREW
43 1010734629 Safety guard compl.
44 8402734940 CABLE WITH PLUG
45 6205028046 HEXAGON THIN NUT
46 14115002 Washer
47 14115042 Serrated lock washer
48 6172015687 CROSS REC'D PAN HEAD TAP.SCREW
49 14115011 Washer
50 1010734661 Motor head axle compl.
51 1380735047 Motor bracket
52 6103001127 Hex head screw
53 14111387 Cap screw
54 34170107 Grub screw
55 8602735010 LED-Lamp
56 14111304 Fillister head screw
57 9102689833 ALLEN HEXAGON KEY
58 14111029 Hexagon head screw
59 1010734483 Motor bracket compl.
60 1482735076 Clamping plate
62 1010734530 Transport lock compl.
64 14115039 Lock washer
65 1381735024 Laser housing
70 1010734467 Laser with holder
73 1010734394 Scale set compl.
74 6172006963 CROSS REC'D PAN HEAD TAP.SCREW ST 4,2X32
75 6143025088 RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO
79 1010734360 Clamping lever compl.
90 1385735061 Tipping axis
91 14112450 HEXAGON HEAD SCREW M 10X40 VERZ.
92 14111218 Countersunk screw
93 1381734958 Table insert
97 14111389 Cap screw
98 14115041 Serrated lock washer
99 34111163 Thumbscrew
100 34111275 Thumbscrew,M6 x 12
101 1010734351 Workpiece holder compl.
102 1010734300 Table side extension right
103 1010734335 Clamping lever compl. left
104 1010734220 Control grip compl.
106 1010734114 Foot set
107 14115005 Washer
109 1010734270 Table side extension left
110 14113203 Hex nut
111 1010734980 Stop compl.
112 1010734246 Table compl.
113 1010734343 Clamping lever compl. right
114 1010735056 Locking table trunnion compl.
120 1010735595 MOTOR ASSEMBLY 230V KS 216
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
KS 216 M Lasercut 0102160300 10
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo KS 216 M

Diagram Metabo KS 216 M

Download (327.33KB)

You might also like

Switch Set for Mitre Saw Metabo KGS 216 M
Metabo SKU: 1010734203
Switch Set for Mitre Saw Metabo KGS 216 M
Switch Set for Mitre Saw Metabo KGS 216 M Genuine part Metabo, Switch Set for Mitre Saws KGS 216 M/0102160400 - KS 216 M Lasercut 0102160300. Part for the following products: - Mitre Saw Metabo KGS 216 M/0102160400 - Mitre Saw Metabo...
AVAILABLE €6.83
Details
Power Supply Pack for Mitre Saw Metabo KS 216 M Lasercut
Metabo SKU: 8106734071
Power Supply Pack for Mitre Saw Metabo KS 216 M Lasercut
Power Supply Pack for Mitre Saw Metabo KS 216 M Lasercut Genuine part Metabo, Power Supply Pack for Mitre Saw Metabo Metabo KS 216 M Lasercut - KGS 216 M - Slide Compound Mitre Saw Metabo KGS 254/0102540000. Parts for the following...
Last items in stock €20.79
Details
Metabo KGS 216 M Stop Complete
Metabo SKU: 1010734980
Metabo KGS 216 M Stop Complete
Metabo KGS 216 M Stop Complete Genuine part Metabo, Stop Complete for Mitre Saws KGS 216 M Lasercut - KGS 216 M. Part for the following products: - Mitre Saw KGS 216 M - 0102160400 - Mitre Saw KS 216 M Lasercut -...
Last items in stock €31.95
Details
Comments (0)
