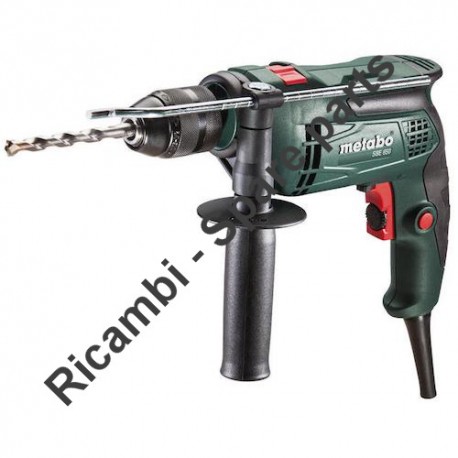

Metabo Spare Parts for Percussion Drill SBE 650

SKU: Metabo SBE 650 - 00671000
€1.92
VAT included

Metabo Spare Parts for Percussion Drill SBE 650

Metabo original spare parts, sourced from the manufacturer, at the best price on the web, for to Make Maintenance or Replacement of Broken parts of the Percussion Drill SBE 650 - 00671000.
Metabo Spare Parts for Percussion Drill SBE 650
  • Metabo Spare Parts for Percussion Drill SBE 650
  • Metabo Spare Parts for Percussion Drill SBE 650
Metabo

Metabo Spare Parts for Percussion Drill SBE 650

SKU: Metabo SBE 650 - 00671000 Condition: New
€1.92
VAT included

Metabo Spare Parts for Percussion Drill SBE 650

Metabo original spare parts, sourced from the manufacturer, at the best price on the web, for to Make Maintenance or Replacement of Broken parts of the Percussion Drill SBE 650 - 00671000.
settings 27 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
27 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Deth Rod for Rotary Hammer Metabo BH E 6020 S 34151163 Deth Rod for Rotary Hammer Metabo BH E 6020 S €5.00
3
 Cap Screw for Cordless Drill Driver Metabo SB 18 34170505 Cap Screw for Cordless Drill Driver Metabo SB 18 €2.35
4
 photo_cameraImage coming soon 34003741 Spindle €7.04
5
 photo_cameraImage coming soon 34201091 Pressure spring €1.27
6
 photo_cameraImage coming soon 14311564 Ball bearing, 12x28x8 €2.00
7
 Metabo SBE 650 Spur Gear 34003740 Metabo SBE 650 Spur Gear €15.83
8
 photo_cameraImage coming soon 31609331 Gear flange compl. €9.20
9
 photo_cameraImage coming soon 31609333 impact switch compl €4.73
10
 photo_cameraImage coming soon 34341092 Electronic switch €8.19
11
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
12
 photo_cameraImage coming soon 34341093 Housing w.cover €27.35
13
 photo_cameraImage coming soon 33812682 type label €1.27
14
 photo_cameraImage coming soon 34409222 Rubber plug €1.60
15
 photo_cameraImage coming soon 34325394 Suppressor €4.73
16
 photo_cameraImage coming soon 34325498 capacitor triangle €1.42
17
 photo_cameraImage coming soon 34336249 Cable clip €2.02
18
 photo_cameraImage coming soon 34411313 Cable sleeve €1.27
19
 photo_cameraImage coming soon 33806476 Rating plate €1.27
20
 photo_cameraImage coming soon 14311566 Ball bearing, 6x19x6 €2.48
21
 photo_cameraImage coming soon 31101234 Field coil compl.,230V €18.42
22
 photo_cameraImage coming soon 34300311 Brush holder €4.26
23
 Metabo SBE 650 Carbon Brush Set 31609332 Metabo SBE 650 Carbon Brush Set €17.95
24
 photo_cameraImage coming soon 31001163 Armature compl.,230V €27.35
25
 photo_cameraImage coming soon 14311488 Ball bearing, 8x22x7 €7.22
26
 photo_cameraImage coming soon 34449842 Cable with plug €7.34
28
 photo_cameraImage coming soon 34410188 Sealing ring €1.27
880
 photo_cameraImage coming soon 34413065 Grease GL 402 €9.20

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Percussion Drill SBE 650

Metabo original spare parts, sourced from the manufacturer, at the best price on the web, for to Make Maintenance or Replacement of Broken parts of the Percussion Drill SBE 650 - 00671000.

In the following table, look for the model of the Percussion Drill and the respective parts of the code.
Metabo SBE 650 - 00671000

Trapano a Percussione SBE 650/00671000
# Part Num. Description
1 34151163 Depth stop
2 63105200 Side support handle
3 34170505 Cap screw
4 34003741 Spindle
5 34201091 Pressure spring
6 14311564 Ball bearing, 12x28x8
7 34003740 Spur gear
8 31609331 Gear flange compl.
9 31609333 impact switch compl
10 34341092 Electronic switch
11 14111602 Self-tap fill h screw
12 34341093 Housing w.cover
13 33812682 type label
14 34409222 Rubber plug
15 34325394 Suppressor
16 34325498 capacitor triangle
17 34336249 Cable clip
18 34411313 Cable sleeve
19 33806476 Rating plate
20 14311566 Ball bearing, 6x19x6
21 31101234 Field coil compl.,230V
22 34300311 Brush holder
23 31609332 Carbon brush set
24 31001163 Armature compl.,230V
25 14311488 Ball bearing, 8x22x7
26 34449842 Cable with plug
27 39999999 Part not needed
28 34410188 Sealing ring
880 34413065 Grease GL 402
