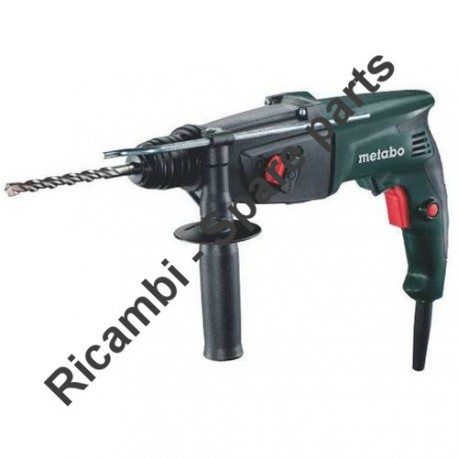

Metabo Spare Parts for Rotary Hammer BH E 6020

SKU: BH E 6020 S R+L - 506020002
€1.66
VAT included

Metabo Spare Parts for Rotary Hammer BH E 6020

Metabo Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer Metabo BH E 6020 S R+L 506020002.
Metabo Spare Parts for Rotary Hammer Metabo BH E 6020
  • Metabo Spare Parts for Rotary Hammer Metabo BH E 6020
  • Metabo Spare Parts for Rotary Hammer Metabo BH E 6020
Metabo

Metabo Spare Parts for Rotary Hammer BH E 6020

SKU: BH E 6020 S R+L - 506020002 Condition: New
€1.66
VAT included

Metabo Spare Parts for Rotary Hammer BH E 6020

Metabo Original spare parts at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer Metabo BH E 6020 S R+L 506020002.
settings 94 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO: METABO S/N START WITH ( 0 ) and have 8 DIGITS
Machine Type: Rotary Hammer
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
94 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

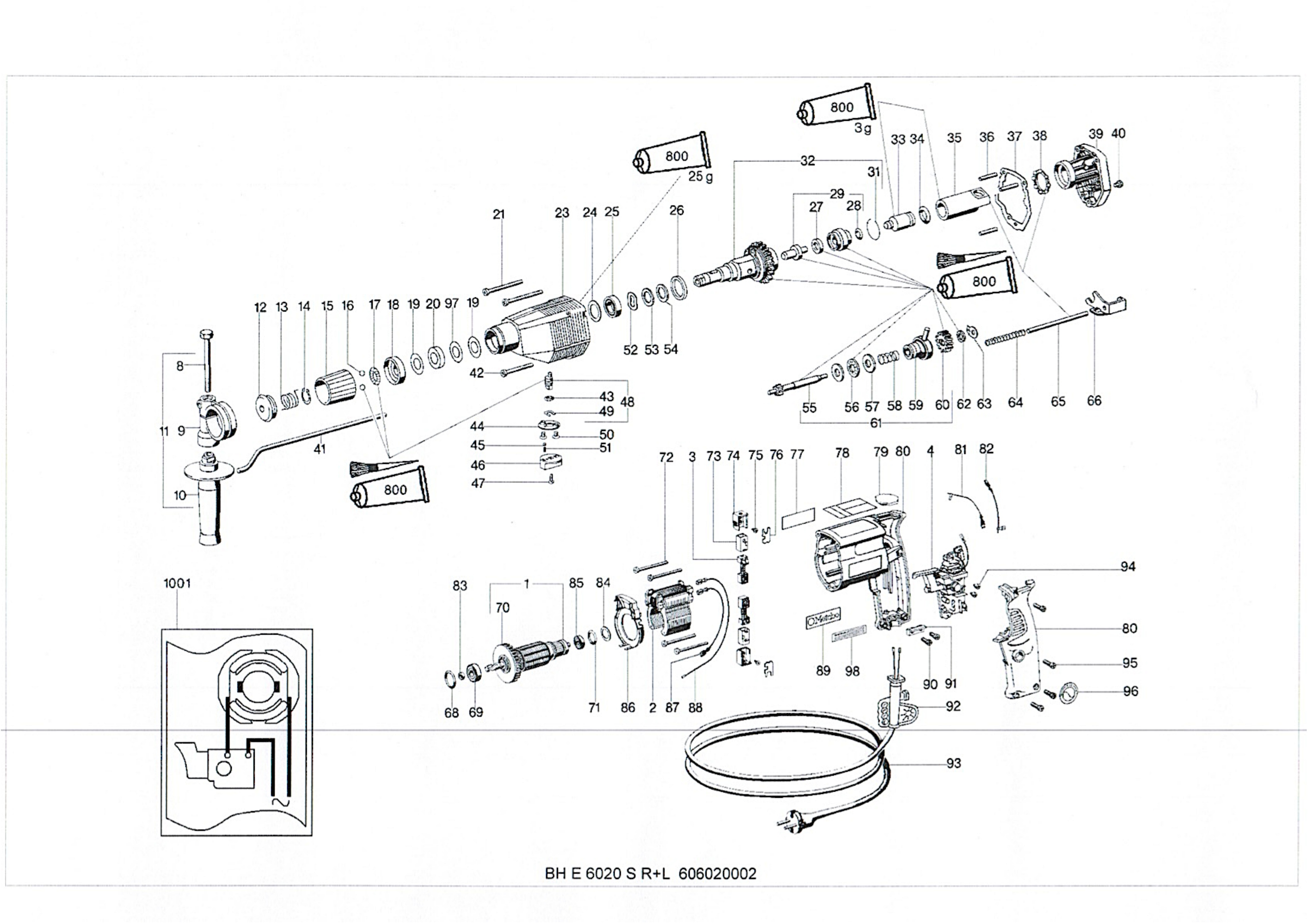

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31000515 Armature Complete 220 V €0.12 Not available for order
2
 photo_cameraImage coming soon 31100653 Field 220 V €0.12 Not available for order
3
 photo_cameraImage coming soon 34301118 Carbon Brushe set €0.12 Not available for order
4
 photo_cameraImage coming soon 34307349 Electronic 220V €0.12 Not available for order
8
 photo_cameraImage coming soon 14111616 Hexagon head screw €1.59
9
 photo_cameraImage coming soon 34335978 Clamping piece €4.69
10
 photo_cameraImage coming soon 31400055 Handle €8.02
11
 photo_cameraImage coming soon 63105200 Additional handle €0.12 Not available for order
12
 Rubber Cap for Rotary Hammer Metabo BH E 6020 S 34409295 Rubber Cap for Rotary Hammer Metabo BH E 6020 S €0.00 Not available for order
13
 Torsion Spring for Rotary Hammer Metabo BH E 6020 S 34202104 Torsion Spring for Rotary Hammer Metabo BH E 6020 S €1.94
14
 photo_cameraImage coming soon 14118012 Retaining ring €1.71
15
 Adjustable Ring for Rotary Hammer Metabo BH E 6020 S 34336168 Adjustable Ring for Rotary Hammer Metabo BH E 6020 S €6.07
16
 Steel Ball for Rotary Hammer Metabo BH E 6020 S 14312032 Steel Ball for Rotary Hammer Metabo BH E 6020 S €1.73
17
 Tension-Spring Ring for Rotary Hammer Metabo BH E 6020 S 34200156 Tension-Spring Ring for Rotary Hammer Metabo BH E 6020 S €3.57
18
 photo_cameraImage coming soon 34336169 Spacer Ring €1.63
19
 photo_cameraImage coming soon 14115387 Washer €0.00 Not available for order
20
 photo_cameraImage coming soon 14319053 Impregnated felt ring €0.12 Not available for order
21
 photo_cameraImage coming soon 34170186 Screw for plastic €1.48
23
 photo_cameraImage coming soon 31601568 Gear case €0.12 Not available for order
24
 photo_cameraImage coming soon 14115394 Washer €0.00 Not available for order
25
 photo_cameraImage coming soon 14311375 Bearing. 20x 32x 7 €18.16
26
 photo_cameraImage coming soon 14319377 Sealing ring €4.00
27
 photo_cameraImage coming soon 34409309 damper ring €0.12 Not available for order
28
 photo_cameraImage coming soon 14319392 O-ring €5.95
29
 photo_cameraImage coming soon 31601968 Bumper €0.12 Not available for order
31
 photo_cameraImage coming soon 14118186 Circlip €1.40
32
 photo_cameraImage coming soon 31601767 Safety clutch €106.97
33
 photo_cameraImage coming soon 31601766 Striker cpl. €34.48
34
 photo_cameraImage coming soon 34409314 Sealing ring €5.17
35
 photo_cameraImage coming soon 34105139 BUSHING €0.12 Not available for order
36
 photo_cameraImage coming soon 14216053 Cylindrical Bushing €0.00 Not available for order
37
 photo_cameraImage coming soon 33921053 Gasket €4.04
37
 photo_cameraImage coming soon 34448920 Complete wire €0.00 Not available for order
38
 photo_cameraImage coming soon 32005020 ball holder €3.39
38
 photo_cameraImage coming soon 34448919 Complete wire €0.00 Not available for order
39
 photo_cameraImage coming soon 31601768 Gearbox flange €43.83
40
 photo_cameraImage coming soon 14111944 Fill. head screw(DIN 7985) €1.65
41
 Deth Rod for Rotary Hammer Metabo BH E 6020 S 34151163 Deth Rod for Rotary Hammer Metabo BH E 6020 S €5.00
42
 photo_cameraImage coming soon 34170181 Screw for plastic €1.48
43
 photo_cameraImage coming soon 14319006 O-ring €1.62
44
 photo_cameraImage coming soon 33912166 Cover €0.00 Not available for order
45
 photo_cameraImage coming soon 14312008 Ball €1.48
46
 photo_cameraImage coming soon 34335345 Switch knob €0.12 Not available for order
47
 photo_cameraImage coming soon 34170238 Cylindrical screw for metal €1.43
48
 photo_cameraImage coming soon 31601508 Switch knob BHE 6020 €4.00
49
 photo_cameraImage coming soon 33900272 Locking plate €1.48
50
 photo_cameraImage coming soon 14112055 Countersunk screw €1.46
51
 photo_cameraImage coming soon 34200061 Spring €0.00 Not available for order
52
 photo_cameraImage coming soon 14311347 Spacer bearings €0.12 Not available for order
53
 photo_cameraImage coming soon 14115145 Washer €0.12 Not available for order
54
 photo_cameraImage coming soon 14115146 Washers €0.12 Not available for order
55
 photo_cameraImage coming soon 34000216 Pinion gear €27.32
56
 photo_cameraImage coming soon 14311374 Needle Bearing €2.56
57
 photo_cameraImage coming soon 33900372 Washer €2.84
58
 photo_cameraImage coming soon 34200129 Spring €0.00 Not available for order
59
 photo_cameraImage coming soon 34114206 ECCENTRlC BHE 6020/6026 €68.12
60
 photo_cameraImage coming soon 34002006 Gear €19.56
61
 photo_cameraImage coming soon 31601496 Pnion gera €0.12 Not available for order
62
 photo_cameraImage coming soon 14311382 Needle Bearing €6.76
63
 photo_cameraImage coming soon 31601736 Support plate €0.12 Not available for order
64
 photo_cameraImage coming soon 34200082 Spring €1.48
65
 photo_cameraImage coming soon 34154007 Guide pin €0.12 Not available for order
66
 photo_cameraImage coming soon 33919105 Gear fork €6.08
68
 photo_cameraImage coming soon 14319257 O-ring €1.59
69
 photo_cameraImage coming soon 14311340 Ball bearing, 8x22x7 €11.17
70
 photo_cameraImage coming soon 33000105 Fan cpl. €4.21
71
 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 14319243 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 €1.88
72
 photo_cameraImage coming soon 14111609 Self-tap. fill. h. screw €1.43
73
 photo_cameraImage coming soon 34300023 Guide brushes €2.84
74
 photo_cameraImage coming soon 34335338 Brush holder €0.12 Not available for order
75
 photo_cameraImage coming soon 34170116 Screw €1.48
76
 photo_cameraImage coming soon 33903482 Cover plate €0.12 Not available for order
77
 photo_cameraImage coming soon 33801715 Label €0.12 Not available for order
78
 photo_cameraImage coming soon 33810521 Information Label €0.12 Not available for order
79
 photo_cameraImage coming soon 34335843 Closing cover €2.33
80
 photo_cameraImage coming soon 31501497 Motor casing with cover €0.12 Not available for order
81
 photo_cameraImage coming soon 34448921 Complete wire €1.82
82
 photo_cameraImage coming soon 34448884 Complete wire €2.16
83
 photo_cameraImage coming soon 34336008 Centrifugal lubrication washer €2.06
84
 photo_cameraImage coming soon 14115340 Washer €1.76
85
 photo_cameraImage coming soon 14311223 Ball bearing, 6x19x6 €11.23
86
 photo_cameraImage coming soon 33915065 Air conveyor €3.53
89
 photo_cameraImage coming soon 33610176 Melabo label €0.12 Not available for order
90
 photo_cameraImage coming soon 14111873 Self-tap. fill. h. screw €1.57
91
 photo_cameraImage coming soon 34337171 Cable holder €1.48
92
 photo_cameraImage coming soon 34410059 Cable sleeve €2.25
93
 photo_cameraImage coming soon 34448906 Cable with plug €17.56
94
 photo_cameraImage coming soon 14111697 Fillister head screw €1.87
95
 photo_cameraImage coming soon 14111706 Self-tap. fill. h. screw €1.74
95
 photo_cameraImage coming soon 39999999 Part not needed €0.12 Not available for order
96
 photo_cameraImage coming soon 33811425 Information plates €0.12 Not available for order
97
 photo_cameraImage coming soon 34409311 Rubber disk €1.31
800
 Grease Tube GF 126 for All Metabo Power Tools 34413080 Grease Tube GF 126 for All Metabo Power Tools €22.39
1001
 photo_cameraImage coming soon XXXXXXXXX connection scheme €0.12 Not available for order

Shipping and delivery information will be available shortly.

Metabo Spare Parts for Rotary Hammer BH E 6020

Metabo Original spare parts

 at the most competitive prices on the web, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Rotary Hammer Metabo BH E 6020 S R+L 506020002.

In the following table, look for the model of the Drill and the respective parts of the code.
BH E 6020 S R+L - 506020002

Rotary Hammer Metabo BH E 6020 S R+L 506020002
# Part Num. Description
1 31000515 Armature Complete 220 V
2 31100653 Field 220 V
3 34301118 Carbon Brushe set
4 34307349 Electronic 220V
8 14111616 Hexagonal head screw
9 34335978 Tightening device
10 31400055 Handle
11 63105200 Additional handle
12 34409295 Rubber cap
13 34202104 Torsion spring
14 14118012 Safety ring
15 34336168 Adjustable ring
16 14312032 Ball
17 34200156 Spring ring
18 34336169 Spacer ring
19 14115387 Washer
20 14319053 Impregnated felt ring
21 34170186 Screw for plastic
23 31601568 Gear case
24 14115394 Washer
25 14311375 Bearing. 20x 32x 7
26 14319377 Sealing ring
27 34409309 damper ring
28 14319392 Ring-O
29 31601968 Bumper
31 14118186 Elastic ring
32 31601767 Safety clutch
33 31601766 Hammer
34 34409314 Sealing ring
35 34105139 BUSHING
36 14216053 Cylindrical Bushing
37 33921053 Gasket
38 32005020 ball holder
39 31601768 Gearbox flange
40 14111944 Screw (DIN 7985)
41 34151163 Depth rod
42 34170181 Screw for plastic
43 14319006 Ring-O
44 33912166 Cover
45 14312008 Ball
46 34335345 Switch knob
47 34170238 Cylindrical screw for metal
48 31601508 Switch knob BHE 6020
49 33900272 Safety
50 14112055 Mikrov screw.
51 34200061 Spring
52 14311347 Spacer bearings
53 14115145 Washer
54 14115146 Washers
55 34000216 Pinion gear
56 14311374 Needle Bearing
57 33900372 Washer
58 34200129 Spring
59 34114206 ECCENTRlC BHE 6020/6026
60 34002006 Gear
61 31601496 Pnion gera
62 14311382 Needle Bearing
63 31601736 Support plate
64 34200082 Spring
65 34154007 Guide pin
66 33919105 Gear fork
68 14319257 Ring - O
69 14311340 Bearing 8x22x7
70 33000105 Fan
71 14319243 Ring - O
72 14111609 Screw
73 34300023 Guide brushes
74 34335338 Brush holder
75 34170116 Screw
76 33903482 Cover plate
77 33801715 Label
78 33810521 Information Label
79 34335843 Closing cover
80 31501497 Motor casing with cover
81 34448921 Complete wire
82 34448884 Complete wire
83 34336008 Centrifugal lubrication washer
84 14115340 Washer
85 14311223 Bearing 6x19x6
86 33915065 Air conveyor
37 34448920 Complete wire
38 34448919 Complete wire
89 33610176 Melabo label
90 14111873 Screw
91 34337171 Cable holder
92 34410059 Cable holder sleeve
93 34448906 Cable with CEE plug
94 14111697 Head screw with cap
95 14111706 Screw
96 33811425 Information plates
97 34409311 Rubber disk
95 39999999 NOT NECESSARY
800 34413080 GREASE TUBE GF126
1001 xxxxxxxxx connection scheme

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
BH E 6020 S R+L - 506020002
12 Items

Data sheet

SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO
METABO S/N START WITH ( 0 ) and have 8 DIGITS
Machine Type
Rotary Hammer

Specific References

New

Download

Diagram Metabo BH E 6020

Diagram Metabo BH E 6020

Download (876.04KB)

You might also like

Grease Tube GF 126 for All Metabo Power Tools
Bosch SKU: 34413080
Grease Tube GF 126 for All Metabo Power Tools
Grease Tube GF 126 for All Metabo Power Tools Genuine spare part Metabo, Grease Tube GF 126 for All Metabo Power Tools Part for the following produts: - Suitable for All Metabo Power Tools - Code: 34413080
AVAILABLE €22.39
Details
Adjustable Ring for Rotary Hammer Metabo BH E 6020 S
Metabo SKU: 34336168
Adjustable Ring for Rotary Hammer Metabo BH E 6020 S
Adjustable Ring for Rotary Hammer Metabo BH E 6020 S Genuine part Metabo, Adjustable Ring for Rotary Hammers BH E 6020 S R+L - BH E 6024 S - R+L.  Parts for the following products: - ...
on 7/10 Business Days Approx €6.07
Details
Rubber Cap for Rotary Hammer Metabo BH E 6020 S
Metabo SKU: 34409295
Rubber Cap for Rotary Hammer Metabo BH E 6020 S
Rubber Cap for Rotary Hammer Metabo BH E 6020 S Genuine part Metabo, Rubber Cap for Rotary Hammers BH E 6020 S R+L - BH E 6024 S - R+L.  Parts for the following products: -  Rotary Hammer...
Out-of-Stock €0.00
Details
Torsion Spring for Rotary Hammer Metabo BH E 6020 S
Metabo SKU: 34202104
Torsion Spring for Rotary Hammer Metabo BH E 6020 S
Torsion Spring for Rotary Hammer Metabo BH E 6020 S Genuine part Metabo, Torsion Spring for Rotary Hammers BH E 6020 S R+L - BH E 6024 S - R+L.  Parts for the following products: -  Rotary...
on 7/10 Business Days Approx €1.94
Details
Tension-Spring Ring for Rotary Hammer Metabo BH E 6020 S
Metabo SKU: 34200156
Tension-Spring Ring for Rotary Hammer Metabo BH E 6020 S
Tension-Spring Ring for Rotary Hammer Metabo BH E 6020 S Genuine part Metabo, Tension-Spring Ring for Rotary Hammers BH E 6020 S R+L - BH E 6024 S - R+L.  Parts for the following products: -  Rotary Hammer Metabo BH E 6020 S R+L -...
on 7/10 Business Days Approx €3.57
Details
Deth Stop for Rotary Hammer Metabo BH E 6020 S
Metabo SKU: 34151163
Deth Rod for Rotary Hammer Metabo BH E 6020 S
Deth Rod for Rotary Hammer Metabo BH E 6020 S Genuine part Metabo, Deth Stop Rod for Rotary Hammers BH E 6020 S R+L - BH E 6024 S - R+L.  Parts for the following products: -  Rotary Hammer Metabo BH E 6020 S R+L -  Rotary Hammer...
on 7/10 Business Days Approx €5.00
Details
Steel Ball for Rotary Hammer Metabo BH E 6020 S
Metabo SKU: 14312032
Steel Ball for Rotary Hammer Metabo BH E 6020 S
Steel Ball for Rotary Hammer Metabo BH E 6020 S Genuine part Metabo, Steel Ball mm 7.02 for Rotary Hammers BH E 6020 S R+L - BH E 6024 S - R+L.  Parts for the following products: -  Rotary...
on 7/10 Business Days Approx €1.73
Details
Comments (0)
No customer reviews for the moment.
