Metabo

Metabo Spare Parts for Combination Hammer KHE 3251

SKU: Metabo KHE 3251 - 00659000
€2.05
VAT included

Metabo Spare Parts for Combination Hammer KHE 3251

Metabo original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Combination Hammer KHE 3251 - 00659000.

Combination Hammer KHE 3251 - 00659000
Metabo Spare Parts for Combination Hammer KHE 3251
  • Online only
  • Metabo Spare Parts for Combination Hammer KHE 3251
  • Metabo Spare Parts for Combination Hammer KHE 3251
Metabo

Metabo Spare Parts for Combination Hammer KHE 3251

SKU: Metabo KHE 3251 - 00659000 Condition: New
€2.05
VAT included

Metabo Spare Parts for Combination Hammer KHE 3251

Metabo original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Combination Hammer KHE 3251 - 00659000.

Combination Hammer KHE 3251 - 00659000
settings 63 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
63 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

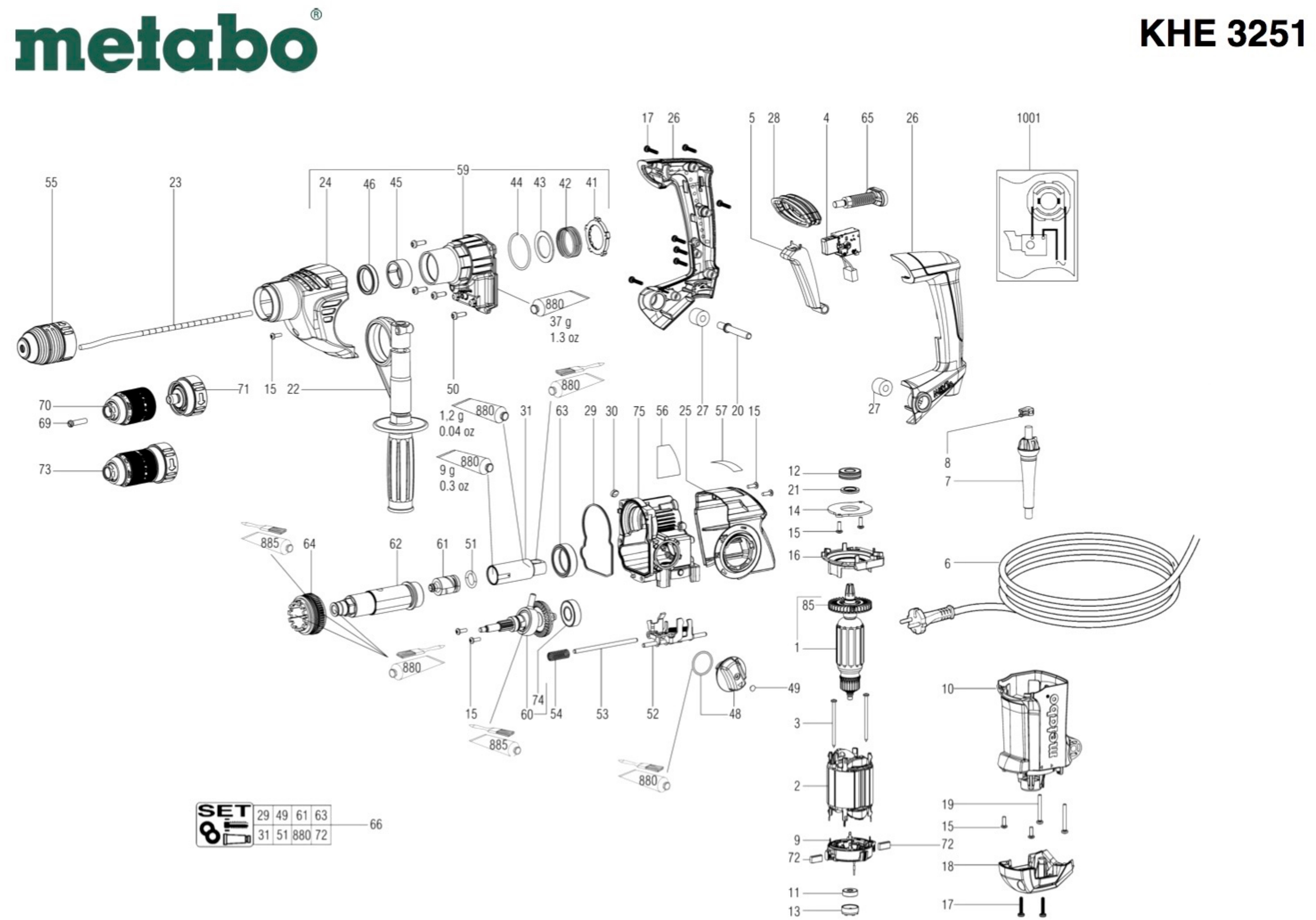

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Metabo Armature for KHE 3250 31000976 Metabo Armature for KHE 3250 €100.77
2
 Metabo KHE 3250 Field Coil 230V 31101173 Metabo KHE 3250 Field Coil 230V €26.42
3
 photo_cameraImage coming soon 14111826 Self-tap. fill. h. screw €1.81
4
 photo_cameraImage coming soon 34340937 Electronic switch without dial,230V €21.39
5
 photo_cameraImage coming soon 34339908 Switch trigger €1.64
6
 Cord CEE Plug for Rotary Hammer Metabo UHE 2250 Multi 34448673 Cord CEE Plug for Rotary Hammer Metabo UHE 2250 Multi €22.87
7
 photo_cameraImage coming soon 34339430 Cable sleeve €2.52
8
 photo_cameraImage coming soon 34336249 Cable clip €2.02
9
 Metabo Brush Holder for KHE 3251 31605194 Metabo Brush Holder for KHE 3251 €20.50
10
 photo_cameraImage coming soon 31501343 Motor housing €13.91
11
 Ball Bearing 6x19x6 mm for Angle Grinders Metabo W 7-8-9-115 14311517 Ball Bearing 6x19x6 mm for Angle Grinders Metabo W 7-8-9-115 €7.95
12
 photo_cameraImage coming soon 14311536 Ball bearing,12X 28X 8 €6.19
13
 photo_cameraImage coming soon 34409787 Rubber bushing €1.76
14
 photo_cameraImage coming soon 33900736 Fixed bearing cover €1.93
15
 photo_cameraImage coming soon 14112007 Fill. head screw €1.66
16
 photo_cameraImage coming soon 34339913 Baffle €2.59
17
 photo_cameraImage coming soon 14111706 Self-tap. fill. h. screw €1.98
18
 photo_cameraImage coming soon 34339910 Motor cap €2.59
19
 photo_cameraImage coming soon 14112400 Fillister head screw €1.75
20
 photo_cameraImage coming soon 34151555 Bearing bolt €9.22
21
 Spacer Sleeve for Rotary Hammer Metabo KHE 3250 34100605 Spacer Sleeve for Rotary Hammer Metabo KHE 3250 €4.32
22
 photo_cameraImage coming soon 31400138 Support handle compl. €21.39
23
 Deth Rod for Rotary Hammer Metabo BH E 6020 S 34151163 Deth Rod for Rotary Hammer Metabo BH E 6020 S €5.00
24
 photo_cameraImage coming soon 34343007 Housing in the front €7.52
25
 photo_cameraImage coming soon 34343008 Housing rear €6.19
26
 photo_cameraImage coming soon 34339911 Handle upper+lower part €21.39
27
 photo_cameraImage coming soon 34409879 Damping ring €12.13
28
 photo_cameraImage coming soon 34409892 Bellows €5.44
29
 photo_cameraImage coming soon 34409885 SEAL €2.59
30
 photo_cameraImage coming soon 34407067 Felt seal €1.81
31
 Metabo Exciter Sleeve for KHA 36 LTX 34105962 Metabo Exciter Sleeve for KHA 36 LTX €19.57
41
 photo_cameraImage coming soon 34339954 Retaining ring €1.75
42
 photo_cameraImage coming soon 34200349 Pressure spring,34,7x38,3x1,8x27,7 €1.81
43
 photo_cameraImage coming soon 14115559 Supporting disc €1.75
44
 photo_cameraImage coming soon 14115654 Circlip €1.75
45
 photo_cameraImage coming soon 14311469 Needle sleeve €5.44
46
 photo_cameraImage coming soon 14319534 Shaft sealing ring €1.75
48
 photo_cameraImage coming soon 31604734 Control knob compl. €9.92
49
 Control Knob Hole Cover for Rotary Hammer Metabo KHE 22 SP 34337675 Control Knob Hole Cover for Rotary Hammer Metabo KHE 22 SP €1.93
50
 photo_cameraImage coming soon 14112164 Fill. head screw(DIN 7985) €1.76
51
 photo_cameraImage coming soon 14319535 O-ring €1.75
52
 photo_cameraImage coming soon 31604791 Shift element compl. €21.39
54
 photo_cameraImage coming soon 34200279 Pressure spring €1.75
55
 photo_cameraImage coming soon 31604735 Adaptor SDS -PLUS €66.93
56
 photo_cameraImage coming soon 33805642 Rating plate €1.64
59
 photo_cameraImage coming soon 31604996 Gear housing cpl. €68.84
60
 photo_cameraImage coming soon 31604995 Pinion shaft compl. €137.77
61
 Metabo Striker for KHA 36 LTX 34105952 Metabo Striker for KHA 36 LTX €15.83
62
 photo_cameraImage coming soon 31604994 Drill driving sleeve compl. €142.31
63
 photo_cameraImage coming soon 31605002 Bearing ring compl. €30.45
64
 photo_cameraImage coming soon 31604790 Intermediate gear cpl. €55.10
65
 photo_cameraImage coming soon 31604884 Spring-locked connecting pin compl. €27.49
66
 photo_cameraImage coming soon 31605012 Maintenance kit €269.34
69
 photo_cameraImage coming soon 34170336 Cap screw €5.84
70
 photo_cameraImage coming soon 30100219 Futuro plus ring S2M 13 mm €68.37
71
 photo_cameraImage coming soon 31605063 Quick-change adaptor €48.87
72
 Carbon Brushes for Hammers Metabo UHE 2250-KHE 3250 31604695 Carbon Brushes for Hammers Metabo UHE 2250-KHE 3250 €21.46
73
 photo_cameraImage coming soon 31604750 Keyless chuck w.adapt. €97.62
74
 photo_cameraImage coming soon 14311579 BALL BEARING, 15x32x9 €3.91
75
 photo_cameraImage coming soon 31510493 Gear housing rear €43.25
85
 photo_cameraImage coming soon 33000195 Fan €1.64
880
 Grease Tube GF 126 for All Metabo Power Tools 34413080 Grease Tube GF 126 for All Metabo Power Tools €22.39
885
 photo_cameraImage coming soon 34413121 Tube Grease,50g Klueber Microlube GL 261 €45.54

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Combination Hammer KHE 3251

Metabo original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Combination Hammer KHE 3251 - 00659000.

In the following table, look for the model of the Hammer and the respective parts of the code.
Metabo KHE 3251 - 00659000

Combination Hammer KHE 3251/00659000
# Part Num. Description
1 31000976 Armature 230 V
2 31101173 Field coil 230V
3 14111826 Self-tap. fill. h. screw
4 34340937 Electronic switch without dial,230V
5 34339908 Switch trigger
6 34448673 Cord with plug
7 34339430 Cable sleeve
8 34336249 Cable clip
9 31605194 Brush holder module 230V
10 31501343 Motor housing
11 14311517 Ball bearing,6x19x6
12 14311536 Ball bearing,12X 28X 8
13 34409787 Rubber bushing
14 33900736 Fixed bearing cover
15 14112007 Fill. head screw
16 34339913 Baffle
17 14111706 Self-tap. fill. h. screw
18 34339910 Motor cap
19 14112400 Fillister head screw
20 34151555 Bearing bolt
21 34100605 Spacer sleeve
22 31400138 Support handle compl.
23 34151163 Depth stop
24 34343007 Housing in the front
25 34343008 Housing rear
26 34339911 Handle upper+lower part
27 34409879 Damping ring
28 34409892 Bellows
29 34409885 SEAL
30 34407067 Felt seal
31 34105962 Exciter sleeve
41 34339954 Retaining ring
42 34200349 Pressure spring,34,7x38,3x1,8x27,7
43 14115559 Supporting disc
44 14115654 Circlip
45 14311469 Needle sleeve
46 14319534 Shaft sealing ring
48 31604734 Control knob compl.
49 34337675 Seal
50 14112164 Fill. head screw(DIN 7985)
51 14319535 O-ring
52 31604791 Shift element compl.
53 34154014 shift bolt
54 34200279 Pressure spring
55 31604735 Adaptor SDS -PLUS
56 33805642 Rating plate
57 39999999 Part not needed
59 31604996 Gear housing cpl.
60 31604995 Pinion shaft compl.
61 34105952 Striker
62 31604994 Drill driving sleeve compl.
63 31605002 Bearing ring compl.
64 31604790 Intermediate gear cpl.
65 31604884 Spring-locked connecting pin compl.
66 31605012 Maintenance kit
69 34170336 Cap screw
70 30100219 Futuro plus ring S2M 13 mm
71 31605063 Quick-change adaptor
72 31604695 Carbon brush set,230 V
73 31604750 Keyless chuck w.adapt.
74 14311579 BALL BEARING, 15x32x9
75 31510493 Gear housing rear
85 33000195 Fan
880 34413080 Grease FG 126
885 34413121 Tube Grease,50g Klueber Microlube GL 261
1001 33850516 Wiring diagram,230 V
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo KHE 3251 - 00659000
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo KHE 3251

Diagram Metabo KHE 3251

Download (203.03KB)
