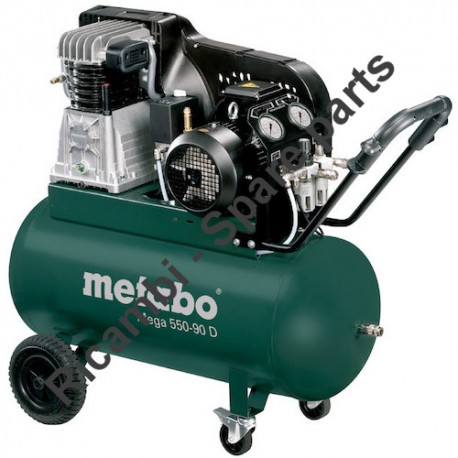

Metabo Spare Parts for Air Compressor Mega 550-90 D
€1,287.06
VAT included
Metabo Spare Parts for Air Compressor Mega 550-90 D
Metabo original replacement parts for to replace broken parts for to fix Air Compressor Mega 550-90 D/01540000.
Metabo Spare Parts for Air Compressor Mega 550-90 D
€1,287.06
VAT included
Metabo Spare Parts for Air Compressor Mega 550-90 D
Metabo original replacement parts for to replace broken parts for to fix Air Compressor Mega 550-90 D/01540000.
settings
46 spare parts
description
2 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
46 spare parts
Page 1
zoom_in View exploded
Page 2
zoom_in View exploded
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Metabo Spare Parts for Air Compressor Mega 550-90 D
Metabo original replacement parts for to replace broken parts for to fix Air Compressor Mega 550-90 D/01540000.In the following table, look for the model of the Air Compressor and the respective parts of the code.
| Air Compressor Mega 550-90 D/01540000 | ||
| # | Part Num. | Description |
| 1 | 31605992 | COMPRESSOR pump cpl. |
| 2 | 34343810 | Wheel |
| 3 | 34116487 | Caster |
| 4 | 34344038 | Handle |
| 5 | 34116489 | CHECK VALV |
| 6 | 34116493 | Clutch |
| 7 | 34116501 | BALL DRAIN |
| 8 | 34116496 | PRESSURE REGULATOR |
| 9 | 34344092 | Manometer |
| 10 | 34116498 | Safetyvalve |
| 11 | 33908372 | nipple |
| 12 | 34116499 | WHEEL HUB |
| 13 | 34344042 | Handle |
| 14 | 33908375 | nipple |
| 15 | 31541875 | Belt pulley |
| 16 | 34426037 | V-belt |
| 17 | 34411272 | hose |
| 18 | 34341071 | Pressure switch |
| 19 | 34450001 | Cable |
| 20 | 34450009 | CABLE, POWER SUPPLY |
| 21 | 31700447 | Motor |
| 22 | 34411276 | Enclosure rear |
| 23 | 34411279 | Enclosure in the front |
| 24 | 31541886 | PRESSURE LINE |
| 25 | 34411282 | TERMINAL BOX ET |
| 26 | 33000692 | Fan |
| 27 | 33000222 | FAN COVER |
| 29 | 34116257 | Tank 90 |
| 30 | 34116508 | Plug |
| 31 | 31609783 | Adapter cpl. |
| 34 | 34116204 | Connection elbow fitting |
| 35 | 34116599 | Angle compl.,AG 1/4" |
| 36 | 34116600 | Angle compl.,AG 1/4" IG 1/4" |
| 37 | 34411334 | hose |
| 39 | 33806213 | Rating plate |
| 41 | 31541889 | CYLINDER HEAD set |
| 42 | 34114828 | INTERMEDIATE COOLER ET |
| 43 | 34114850 | VALVE PLATE SET |
| 44 | 31541891 | Bearing cover set |
| 45 | 31606000 | Sealing set |
| 46 | 31541894 | AFTERCOOLER set |
| 48 | 34100631 | Cylinder set |
| 49 | 31541898 | Belt wheel |
| 50 | 34121131 | PISTON-CONNECTING ROD SET |
| 51 | 34344045 | DIP STIC set |
| 52 | 31541670 | Base plate set |
| 53 | 34116511 | Safetyvalve set |
| 54 | 34344048 | Pleated PAPER FILTER CARTRIDGE |
| 55 | 31606003 | Maintenance kit |
| 56 | 34116203 | CHECK VALV set |
| 57 | 34116201 | Clutch |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
