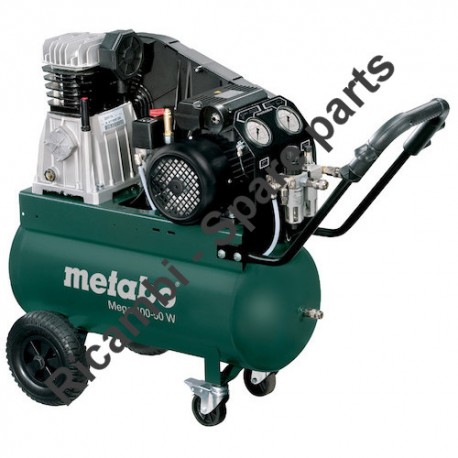

Metabo Spare Parts for Air Compressor Mega 400-50 W
€142.93
VAT included
Metabo Spare Parts for Air Compressor Mega 400-50 W
Metabo genuine spare parts for to fix Air Compressor Mega 400-50 W/01536000.
Metabo Spare Parts for Air Compressor Mega 400-50 W
€142.93
VAT included
Metabo Spare Parts for Air Compressor Mega 400-50 W
Metabo genuine spare parts for to fix Air Compressor Mega 400-50 W/01536000.
settings
43 spare parts
description
2 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
43 spare parts
Page 1
zoom_in View exploded
Page 2
zoom_in View exploded
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
40
|
photo_cameraImage coming soon | 34344043 air filter | €27.35 | |
|
41
|
photo_cameraImage coming soon | 31541888 CYLINDER HEAD set | €247.83 | |
|
43
|
photo_cameraImage coming soon | 34114841 VALVE PLATE SET | €85.12 | |
|
44
|
photo_cameraImage coming soon | 31541758 Bearing cover set | €102.40 | |
|
45
|
photo_cameraImage coming soon | 31605999 Sealing set | €51.98 | |
|
47
|
photo_cameraImage coming soon | 31606246 elbow fitting set | €11.50 | |
|
48
|
photo_cameraImage coming soon | 34100621 Cylinder set | €217.65 | |
|
49
|
photo_cameraImage coming soon | 31541900 Belt wheel | €170.11 | |
|
50
|
photo_cameraImage coming soon | 34121103 PISTON-CONNECTING ROD SET | €90.88 | |
|
51
|
photo_cameraImage coming soon | 34344044 DIP STIC set | €102.40 | |
|
52
|
photo_cameraImage coming soon | 31541901 Base plate set | €51.98 | |
|
55
|
photo_cameraImage coming soon | 31606002 Maintenance kit | €37.58 |
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Metabo Spare Parts for Air Compressor Mega 400-50 W
Metabo genuine spare parts for to fix Air Compressor Mega 400-50 W/01536000.In the following table, look for the model of the Air Compressor and the respective parts of the code.
| Air Compressor Mega 400-50 W/01536000 | ||
| # | Part Num. | Description |
| 1 | 31605994 | COMPRESSOR pump cpl. |
| 2 | 34343810 | Wheel |
| 3 | 34116487 | Caster |
| 4 | 34344038 | Handle |
| 5 | 34116491 | CHECK VALV |
| 6 | 34116493 | Clutch |
| 7 | 34116501 | BALL DRAIN |
| 8 | 34116496 | PRESSURE REGULATOR |
| 9 | 34344092 | Manometer |
| 10 | 34116498 | Safetyvalve |
| 11 | 33908374 | nipple |
| 12 | 34116499 | WHEEL HUB |
| 13 | 34344042 | Handle |
| 14 | 33908375 | nipple |
| 15 | 31541878 | Belt pulley |
| 16 | 34426039 | V-belt |
| 17 | 34411272 | hose |
| 18 | 34341068 | Pressure switch |
| 19 | 34450005 | Cable |
| 21 | 31700449 | Motor |
| 22 | 31609732 | Enclosure compl. |
| 24 | 31541885 | PRESSURE LINE |
| 25 | 34411284 | TERMINAL BOX |
| 26 | 33000694 | Fan |
| 27 | 33000224 | FAN COVER |
| 28 | 34325492 | Condenser |
| 29 | 34116506 | Tank 50 |
| 30 | 34116508 | Plug |
| 31 | 31609783 | Adapter cpl. |
| 34 | 34116204 | Connection elbow fitting |
| 35 | 34116599 | Angle compl.,AG 1/4" |
| 36 | 34116600 | Angle compl.,AG 1/4" IG 1/4" |
| 37 | 34411334 | hose |
| 38 | 33914803 | CONNECTING |
| 39 | 33806209 | Rating plate |
| 40 | 34344043 | air filter |
| 41 | 31541888 | CYLINDER HEAD set |
| 43 | 34114841 | VALVE PLATE SET |
| 44 | 31541758 | Bearing cover set |
| 45 | 31605999 | Sealing set |
| 47 | 31606246 | elbow fitting set |
| 48 | 34100621 | Cylinder set |
| 49 | 31541900 | Belt wheel |
| 50 | 34121103 | PISTON-CONNECTING ROD SET |
| 51 | 34344044 | DIP STIC set |
| 52 | 31541901 | Base plate set |
| 55 | 31606002 | Maintenance kit |
| 57 | 34116201 | Clutch |
