Metabo

Metabo Spare Parts for Air Compressor Basic 250-24 W

SKU: Metabo Basic 250-24 W - 01533000
€1.73
VAT included

Metabo Spare Parts for Air Compressor Basic 250-24 W

Metabo service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues forg Air Compressor Basic 250-24 W - 01533000.

Metabo Basic 250-24 W - 01533000
Metabo Spare Parts for Air Compressor Basic 250-24 W
  • Online only
  • Metabo Spare Parts for Air Compressor Basic 250-24 W
  • Metabo Spare Parts for Air Compressor Basic 250-24 W
Metabo

Metabo Spare Parts for Air Compressor Basic 250-24 W

SKU: Metabo Basic 250-24 W - 01533000 Condition: New
€1.73
VAT included

Metabo Spare Parts for Air Compressor Basic 250-24 W

Metabo service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues forg Air Compressor Basic 250-24 W - 01533000.

Metabo Basic 250-24 W - 01533000
settings 39 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
39 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

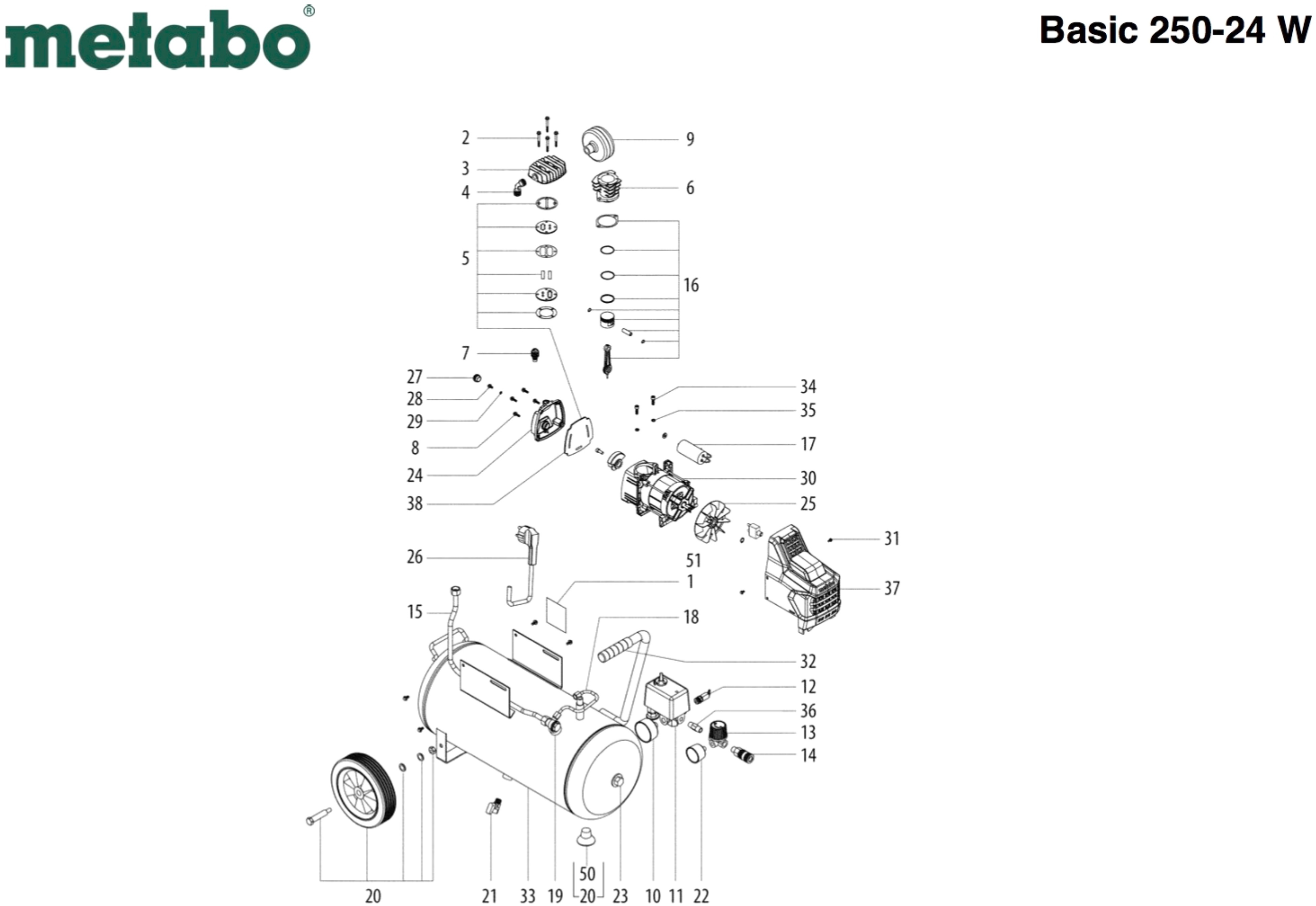

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 33806188 Rating plate €1.27
2
 photo_cameraImage coming soon 34172195 HEXAGON HEAD SCREW M 6X50 VERZ. €1.27
3
 photo_cameraImage coming soon 31541872 CYLINDER HEAD €9.20
4
 photo_cameraImage coming soon 34172191 ELBOW TAP CONNECTOR 3/8"X10 MM ET €1.99
5
 photo_cameraImage coming soon 31605809 Sealing set €10.49
6
 photo_cameraImage coming soon 34116463 Cylinder €29.92
7
 photo_cameraImage coming soon 34344000 Plug €4.15
8
 photo_cameraImage coming soon 14112431 Cap screw,M6x15 €1.27
9
 photo_cameraImage coming soon 34116479 AIR FILTER €2.57
10
 photo_cameraImage coming soon 34116468 PRESSURE GAUGE, REAR CONNECT RD 40 R1/8" €9.90
11
 photo_cameraImage coming soon 34341106 Switch €46.22
12
 photo_cameraImage coming soon 34116465 SAFETY VALVE 1/4"A/8 BAR ET €7.04
13
 photo_cameraImage coming soon 34116467 PRESSURE REGULATOR RP-192 1/4"I-A ET €12.79
14
 photo_cameraImage coming soon 34121087 Quick COUPLER, SLEEVE R 1/4" AG €5.74
15
 photo_cameraImage coming soon 34344010 PRESSURE LINE €3.58
16
 photo_cameraImage coming soon 31605811 Piston compl. €13.81
17
 photo_cameraImage coming soon 34325486 Condenser €9.20
18
 Pressure Switch-Check Valve Pipe for Compressor Metabo Basic 250-24 W 31541871 Pressure Switch-Check Valve Pipe for Compressor Metabo Basic 250-24 W €13.81
19
 photo_cameraImage coming soon 34116462 CHECK VALV €10.92
20
 photo_cameraImage coming soon 31605816 Set of wheels Ø250 Ø20 €11.50
21
 photo_cameraImage coming soon 34116480 DRAIN VALVE €4.73
22
 photo_cameraImage coming soon 34116469 PRESSURE GAUGE, REAR CONNECT RD 50 R1/4" €11.89
23
 photo_cameraImage coming soon 34172192 Threaded Plug R 1/2" VERZ. €1.27
24
 photo_cameraImage coming soon 34344004 Cover €5.74
25
 photo_cameraImage coming soon 34344006 FAN WING €1.99
26
 photo_cameraImage coming soon 34449990 CABLE, RUBBER JACKET,WITH PLUG A=437.1U €8.19
27
 photo_cameraImage coming soon 34116481 OIL SIGHT GLASS €1.99
28
 photo_cameraImage coming soon 14111026 Hexagon head screw €1.27
29
 photo_cameraImage coming soon 14319365 O-ring €1.45
30
 photo_cameraImage coming soon 31700441 Motor compl. €170.11
31
 photo_cameraImage coming soon 14112433 Cylinder head screw €1.27
32
 photo_cameraImage coming soon 34344019 Handle €3.00
33
 photo_cameraImage coming soon 34116482 Container €125.45
34
 photo_cameraImage coming soon 14111401 Cheese-head screw €1.27
35
 photo_cameraImage coming soon 14115029 LOCK WASHER DIN 127A, 8 mm €1.27
36
 photo_cameraImage coming soon 34116464 DOUBLE NIPPLE R 1/4" €1.42
37
 photo_cameraImage coming soon 34344003 Covering hood, motor €7.04
38
 photo_cameraImage coming soon 33901208 Gasket €1.27
50
 photo_cameraImage coming soon 34411353 Rubber foot €1.27

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Air Compressor Basic 250-24 W

Metabo service center and original spare parts Worldwide Distributor

. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues forg Air Compressor Basic 250-24 W - 01533000.

In the following table, look for the model of the Air Compressor and the respective parts of the code.
Air Compressor Basic 250-24 W/01533000

Air Compressor Basic 250-24 W/01533000
# Part Num. Description
1 33806188 Rating plate
2 34172195 HEXAGON HEAD SCREW M 6X50 VERZ.
3 31541872 CYLINDER HEAD
4 34172191 ELBOW TAP CONNECTOR 3/8"X10 MM ET
5 31605809 Sealing set
6 34116463 Cylinder
7 34344000 Plug
8 14112431 Cap screw,M6x15
9 34116479 AIR FILTER
10 34116468 PRESSURE GAUGE, REAR CONNECT RD 40 R1/8"
11 34341106 Switch
12 34116465 SAFETY VALVE 1/4"A/8 BAR ET
13 34116467 PRESSURE REGULATOR RP-192 1/4"I-A ET
14 34121087 Quick COUPLER, SLEEVE R 1/4" AG
15 34344010 PRESSURE LINE
16 31605811 Piston compl.
17 34325486 Condenser
18 31541871 Tube
19 34116462 CHECK VALV
20 31605816 Set of wheels Ø250 Ø20
21 34116480 DRAIN VALVE
22 34116469 PRESSURE GAUGE, REAR CONNECT RD 50 R1/4"
23 34172192 Threaded Plug R 1/2" VERZ.
24 34344004 Cover
25 34344006 FAN WING
26 34449990 CABLE, RUBBER JACKET,WITH PLUG A=437.1U
27 34116481 OIL SIGHT GLASS
28 14111026 Hexagon head screw
29 14319365 O-ring
30 31700441 Motor compl.
31 14112433 Cylinder head screw
32 34344019 Handle
33 34116482 Container
34 14111401 Cheese-head screw
35 14115029 LOCK WASHER DIN 127A, 8 mm
36 34116464 DOUBLE NIPPLE R 1/4"
37 34344003 Covering hood, motor
38 33901208 Gasket
40 39999999 Part not needed
50 34411353 Rubber foot
51 34341182 Circuit breaker, 6A
