Metabo

Metabo Spare Parts for Angle Grinder W 750-115

SKU: Metabo W750-115 - 01230000
€1.66
VAT included

Metabo Spare Parts for Angle Grinder W 750-115

We are METABO original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 750-115 - 01230000.

Metabo W 750-115 - 01230000
Metabo Spare Parts for Angle Grinder W 750-115
  • Metabo Spare Parts for Angle Grinder W 750-115
  • Metabo Spare Parts for Angle Grinder W 750-115
Metabo

Metabo Spare Parts for Angle Grinder W 750-115

SKU: Metabo W750-115 - 01230000 Condition: New
€1.66
VAT included

Metabo Spare Parts for Angle Grinder W 750-115

We are METABO original spare parts and Accessories Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 750-115 - 01230000.

Metabo W 750-115 - 01230000
settings 43 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
43 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

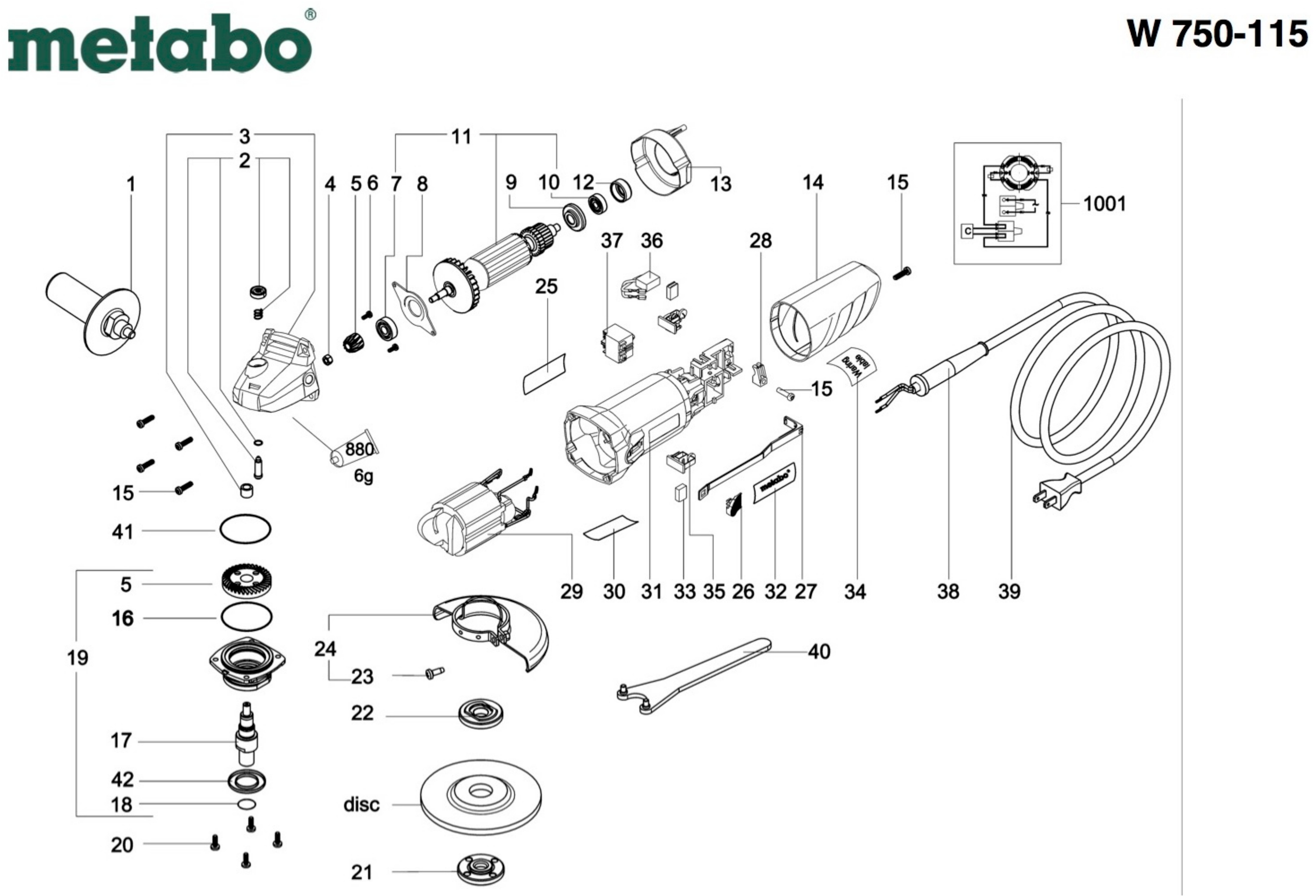

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31400054 Handle cpl. €12.25
2
 photo_cameraImage coming soon 31604061 Spindle stop compl. €3.40
3
 photo_cameraImage coming soon 31606364 Gear housing compl. €31.90
4
 photo_cameraImage coming soon 34110094 Hexagon nut w.recess €2.02
5
 photo_cameraImage coming soon 31605781 Bevel gear and pinion €26.45
6
 photo_cameraImage coming soon 14111046 Fillister head screw €1.66
7
 photo_cameraImage coming soon 14311542 Ball bearing, 8x22x7 €6.28
8
 photo_cameraImage coming soon 31541749 Fixed bearing cover €1.66
9
 Armature Sealing Washer for Angle Grinder Metabo W 6-115 34339274 Armature Sealing Washer for Angle Grinder Metabo W 6-115 €5.18
10
 photo_cameraImage coming soon 14311587 Ball bearing, 6x19x6 €3.98
11
 photo_cameraImage coming soon 31001071 Armature cpl. 230 V €56.22
12
 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm 34409526 Armature Bearing Rubber Holder for Angle Grinders Metabo 115 mm €2.08
13
 photo_cameraImage coming soon 34339943 Baffle €1.52
14
 photo_cameraImage coming soon 34339945 Cover €3.63
15
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
16
 photo_cameraImage coming soon 14319592 O-ring €1.73
17
 photo_cameraImage coming soon 34116115 Spindle M14 €7.65
18
 photo_cameraImage coming soon 14319254 O-ring €1.66
19
 photo_cameraImage coming soon 31606378 Flange compl. €38.13
20
 photo_cameraImage coming soon 14112007 Fill. head screw €1.66
21
 photo_cameraImage coming soon 34110690 Flange nut €9.91
22
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
23
 photo_cameraImage coming soon 14112406 Fillister head screw €1.73
24
 Wheel Guard for Angle Grinder Metabo W 750-115 33920366 Wheel Guard for Angle Grinder Metabo W 750-115 €11.91
25
 photo_cameraImage coming soon 33812216 M-Label,08 52x22 €1.74
26
 photo_cameraImage coming soon 34341051 Switch slide red €1.73
27
 photo_cameraImage coming soon 34339917 Switch rod €1.88
28
 photo_cameraImage coming soon 34336249 Cable clip €2.02
29
 photo_cameraImage coming soon 31101180 Field coil €25.01
30
 photo_cameraImage coming soon 33806578 Rating plate, 01230000 W 750-115 €1.52
31
 photo_cameraImage coming soon 34339944 Motor housing €8.54
32
 photo_cameraImage coming soon 33812254 Metabo plate €1.66
33
 Carbon Brushes for Angle Grinder Metabo W 720-115 31605277 Carbon Brushes for Angle Grinder Metabo W 720-115 €24.78
35
 photo_cameraImage coming soon 34301295 METABO Brush holder €3.50
36
 photo_cameraImage coming soon 34325503 Capacitor €2.40
37
 Metabo W 750-115 Switch EPXe 230V 34341102 Metabo W 750-115 Switch EPXe 230V €19.23
38
 photo_cameraImage coming soon 34409736 Cable sleeve €1.66
39
 photo_cameraImage coming soon 34449954 Cable w.CEE plug €16.22
40
 photo_cameraImage coming soon 34416392 Pin spanner €5.32
41
 photo_cameraImage coming soon 33906016 Compensating Washer €1.82
42
 photo_cameraImage coming soon 33900779 Washer €1.73
880
 photo_cameraImage coming soon 34413091 Grease 100G €15.35
1001
 photo_cameraImage coming soon 33850447 Diagram €13.97

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Angle Grinder W 750-115

We are METABO original spare parts and Accessories Worldwide Dealers

at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Angle Grinder W 750-115 - 01230000.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Metabo W 750-115 - 01230000

Angle Grinder W 750-115/01230000
# Part Num. Description
1 31400054 Handle cpl.
2 31604061 Spindle stop compl.
3 31606364 Gear housing compl.
4 34110094 Hexagon nut w.recess
5 31605781 Bevel gear and pinion
6 14111046 Fillister head screw
7 14311542 Ball bearing, 8x22x7
8 31541749 Fixed bearing cover
9 34339274 Sealing washer
10 14311587 Ball bearing, 6x19x6
11 31001071 Armature cpl. 230 V
12 34409526 Rubber bushing
13 34339943 Baffle
14 34339945 Cover
15 14111602 Self-tap fill h screw
16 14319592 O-ring
17 34116115 Spindle M14
18 14319254 O-ring
19 31606378 Flange compl.
20 14112007 Fill. head screw
21 34110690 Flange nut
22 34103116 Clamping flange
23 14112406 Fillister head screw
24 33920366 Wheel guard compl.,Ø115
25 33812216 M-Label,08 52x22
26 34341051 Switch slide red
27 34339917 Switch rod
28 34336249 Cable clip
29 31101180 Field coil
30 33806578 Rating plate, 01230000 W 750-115
31 34339944 Motor housing
32 33812254 Metabo plate
33 31605277 Carbon brush compl.
35 34301295 Brush holder
36 34325503 Capacitor
37 34341102 Switch,EPXe 230 V
38 34409736 Cable sleeve
39 34449954 Cable w.CEE plug
40 34416392 Pin spanner
41 33906016 Compensating Washer
42 33900779 Washer
880 34413091 Grease 100G
1001 33850447 Diagram
