Metabo

Metabo Spare Parts for Vacuum Cleaner ASR 25 L SC

SKU: Metabo ASR 25 L SC - 02024000
€12.79
VAT included

Metabo Spare Parts for Vacuum Cleaner ASR 25 L SC

We have the original Spares METABO for Vacuum Cleaner ASR 25 L SC - 02024000 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Vacuum Cleaner ASR 25 L SC. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
Metabo Spare Parts for Vacuum Cleaner ASR 25 L SC
  • Online only
  • Metabo Spare Parts for Vacuum Cleaner ASR 25 L SC
  • Metabo Spare Parts for Vacuum Cleaner ASR 25 L SC
Metabo

Metabo Spare Parts for Vacuum Cleaner ASR 25 L SC

SKU: Metabo ASR 25 L SC - 02024000 Condition: New
€12.79
VAT included

Metabo Spare Parts for Vacuum Cleaner ASR 25 L SC

We have the original Spares METABO for Vacuum Cleaner ASR 25 L SC - 02024000 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Vacuum Cleaner ASR 25 L SC. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.
settings 55 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
55 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

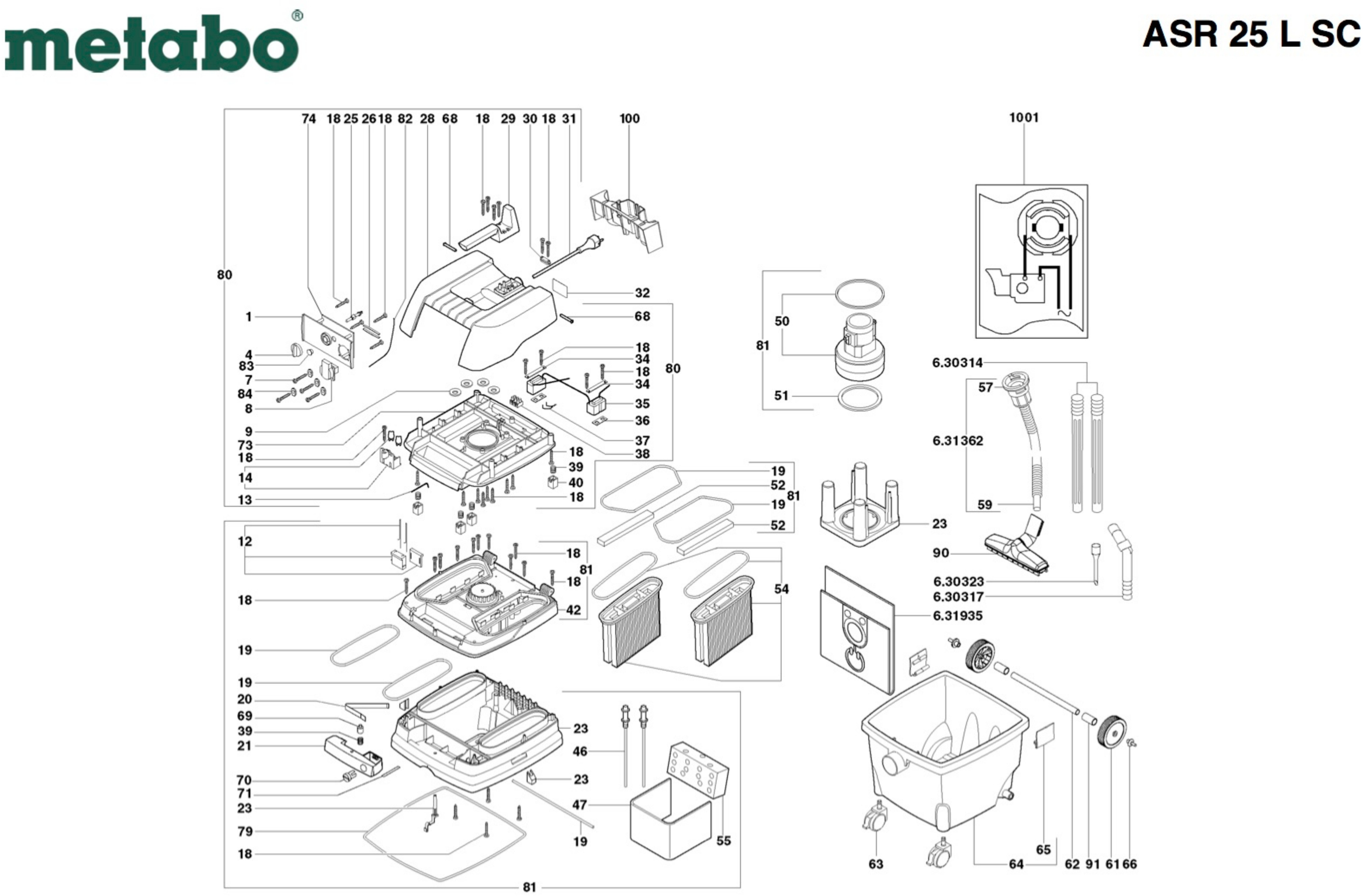

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 34339237 Face plate €12.07
4
 photo_cameraImage coming soon 34339241 Switch toggle €3.91
7
 photo_cameraImage coming soon 14112013 Chipboard screw €1.83
8
 photo_cameraImage coming soon 34449234 Power socket €27.04
9
 photo_cameraImage coming soon 34114758 Washer €1.64
13
 photo_cameraImage coming soon 33913134 Contact wire €1.64
18
 photo_cameraImage coming soon 14112013 Chipboard screw €1.83
19
 photo_cameraImage coming soon 34409618 Foam rubber €7.52
20
 photo_cameraImage coming soon 34200296 Flat spring €2.59
21
 photo_cameraImage coming soon 34337741 Latch €18.13
23
 photo_cameraImage coming soon 31603420 Body compl. €134.73
25
 photo_cameraImage coming soon 34114757 Spindle €3.34
26
 photo_cameraImage coming soon 34200297 Switch spring €3.34
28
 photo_cameraImage coming soon 34337745 Cover €30.08
29
 photo_cameraImage coming soon 34337746 Handle €12.07
30
 photo_cameraImage coming soon 34337831 Cable clip €1.64
31
 photo_cameraImage coming soon 34449876 Cable w.socket,230V €41.83
32
 photo_cameraImage coming soon 33806075 Rating plate €1.64
34
 photo_cameraImage coming soon 33913168 Retraining sheet €1.83
35
 photo_cameraImage coming soon 34307234 Vibrator €149.90
36
 photo_cameraImage coming soon 34409342 Gasket €1.83
37
 photo_cameraImage coming soon 33913132 Contact strap €1.83
38
 photo_cameraImage coming soon 34305003 Terminal rail €1.83
39
 photo_cameraImage coming soon 34200185 Pressure spring €1.83
40
 photo_cameraImage coming soon 34114756 Pressure plate €1.64
42
 photo_cameraImage coming soon 34337739 Motor housing €55.10
46
 photo_cameraImage coming soon 31603794 Electrode cpl. €4.67
47
 photo_cameraImage coming soon 34410124 Sound damper €4.67
50
 photo_cameraImage coming soon 31700299 Blower €386.89
51
 photo_cameraImage coming soon 34409303 Sealing ring €9.22
52
 photo_cameraImage coming soon 34410128 Protective filter €3.34
54
 photo_cameraImage coming soon 63193400 2 Filter cartidges, Polyester €369.82
55
 photo_cameraImage coming soon 34410125 Sound damper €20.98
57
 photo_cameraImage coming soon 34337398 Hose connector €13.77
58
 photo_cameraImage coming soon 63136200 Suction hose, 35 mm dia. €168.29
59
 photo_cameraImage coming soon 63079800 Extraction adapter Metabo €43.92
61
 photo_cameraImage coming soon 34337761 Wheel €10.74
62
 photo_cameraImage coming soon 34116585 Spindle €24.20
63
 photo_cameraImage coming soon 34125012 Caster €13.77
64
 photo_cameraImage coming soon 31605504 Container cpl. €237.11
65
 photo_cameraImage coming soon 34337759 Latch €9.92
66
 photo_cameraImage coming soon 34336966 Plug €2.52
68
 photo_cameraImage coming soon 34151499 Bearing bolt €3.34
69
 photo_cameraImage coming soon 34114759 Locking button €3.34
70
 photo_cameraImage coming soon 34337832 Locking piece €3.34
71
 photo_cameraImage coming soon 34202181 Spring €9.22
73
 photo_cameraImage coming soon 34337756 Supporting plate €60.79
74
 photo_cameraImage coming soon 34308065 Electronic cpl. €208.67
78
 Fleece Filter Dust Bag for Vacuum Cleaner Metabo ASR 25-35 L SC 63034300 Fleece Filter Dust Bag for Vacuum Cleaner Metabo ASR 25-35 L SC €20.79
79
 photo_cameraImage coming soon 34409639 Foam rubber €7.52
80
 photo_cameraImage coming soon 31605506 Electronic unit €330.01
81
 photo_cameraImage coming soon 31700299 Blower €386.89
82
 photo_cameraImage coming soon 34409632 Vacuum hose €2.59
83
 photo_cameraImage coming soon 34307232 Lamp rail €10.74
90
 photo_cameraImage coming soon 34343663 Floor nozzle €49.42
91
 photo_cameraImage coming soon 34100636 Bearing bushing €5.62
100
 photo_cameraImage coming soon 34344698 Tray f. accessory €18.13

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Vacuum Cleaner ASR 25 L SC

We have the original Spares METABO for Vacuum Cleaner ASR 25 L SC - 02024000 the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of the Vacuum Cleaner and the respective parts of the code.
Metabo ASR 25 L SC - 02024000

Vacuum Cleaner ASR 25 L SC/02024000
# Part Num. Description
1 34339237 Face plate
4 34339241 Switch toggle
7 14112013 Chipboard screw
8 34449234 Power socket
9 34114758 Washer
12 31603421 Motor power socket
13 33913134 Contact wire
14 31603424 Motor power plug
18 14112013 Chipboard screw
19 34409618 Foam rubber
20 34200296 Flat spring
21 34337741 Latch
23 31603420 Body compl.
25 34114757 Spindle
26 34200297 Switch spring
28 34337745 Cover
29 34337746 Handle
30 34337831 Cable clip
31 34449876 Cable w.socket,230V
32 33806075 Rating plate
34 33913168 Retraining sheet
35 34307234 Vibrator
36 34409342 Gasket
37 33913132 Contact strap
38 34305003 Terminal rail
39 34200185 Pressure spring
40 34114756 Pressure plate
42 34337739 Motor housing
46 31603794 Electrode cpl.
47 34410124 Sound damper
50 31700299 Blower
51 34409303 Sealing ring
52 34410128 Protective filter
54 63193400 2 Filter cartidges, Polyester
55 34410125 Sound damper
57 34337398 Hose connector
58 63136200 Suction hose, 35 mm dia.
59 63079800 Extraction adapter Metabo
61 34337761 Wheel
62 34116585 Spindle
63 34125012 Caster
64 31605504 Container cpl.
65 34337759 Latch
66 34336966 Plug
68 34151499 Bearing bolt
69 34114759 Locking button
70 34337832 Locking piece
71 34202181 Spring
73 34337756 Supporting plate
74 34308065 Electronic cpl.
78 63034300 Fleece filter bags - 25/35 l
79 34409639 Foam rubber
80 31605506 Electronic unit
81 31700299 Blower
82 34409632 Vacuum hose
83 34307232 Lamp rail
90 34343663 Floor nozzle
91 34100636 Bearing bushing
100 34344698 Tray f. accessory
1001 33850439 Diagram
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Metabo ASR 25 L SC - 02024000
12 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo ASR 25 L SC

Diagram Metabo ASR 25 L SC

Download (460.15KB)
