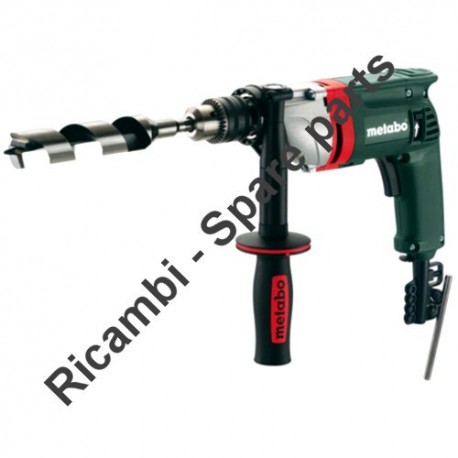

Metabo Spare Parts for Percussion Drill BE 751
Metabo genuine spare parts or replacements parts for to fix Percussion Drill BE 751 - 00581000.

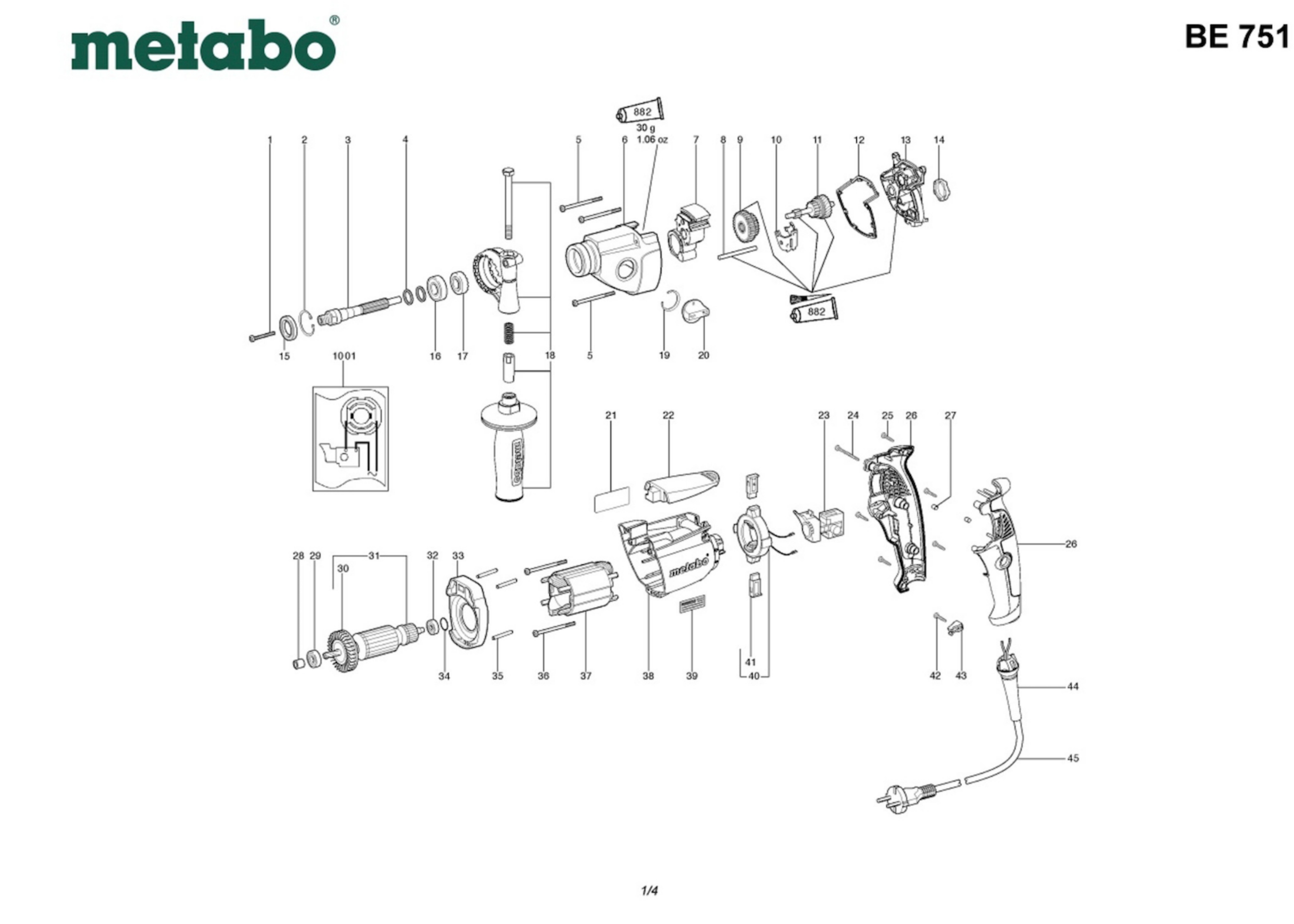

In the following table, look for the model of the Drill and the respective parts of the code.

| Percussion Drill BE 751/00581000 |
| # |
Part Num. |
Description |
| 1 |
34170194 |
Cheese-head screw |
| 2 |
14118168 |
Retaining ring |
| 3 |
34160402 |
Drill spindle |
| 4 |
33900675 |
Ring |
| 5 |
14112361 |
Self-tap. fill. h. screw |
| 6 |
31604753 |
Gear housing cpl. |
| 7 |
34339718 |
Cover |
| 8 |
34154001 |
Guide bolt |
| 9 |
34000401 |
Sliding block |
| 10 |
33913307 |
Shift fork |
| 11 |
31604282 |
Pinion shaft w.slip-clutch |
| 12 |
34409793 |
Seal |
| 13 |
31604280 |
Gear flange compl. |
| 14 |
34409592 |
Rubber buffer |
| 15 |
33921092 |
Shaft sealing ring |
| 16 |
14311579 |
BALL BEARING, 15x32x9 |
| 17 |
34105565 |
Slotted disc |
| 18 |
31400103 |
Side support handle compl. |
| 19 |
14115581 |
Ring |
| 20 |
31604196 |
Control knob compl. |
| 21 |
33805411 |
Rating plate |
| 22 |
34339407 |
Cover w.o. electronic |
| 23 |
34340922 |
Electronic switch with dial |
| 24 |
14111699 |
Self-tap. fill. h. screw |
| 25 |
14111602 |
Self-tap fill h screw |
| 26 |
34339853 |
Pistol grip 2-part, gummed |
| 27 |
34409758 |
Rubber plug |
| 28 |
34337604 |
Sealing ring |
| 29 |
14311580 |
Ball bearing, 8x22x7 |
| 30 |
33000182 |
Fan |
| 31 |
31000922 |
Armature compl.,230 V |
| 32 |
14311581 |
Ball bearing, 6X 19X 6 |
| 33 |
34339475 |
Intermediate flange |
| 34 |
14319243 |
O-ring |
| 35 |
34152023 |
Cylindrical pin |
| 36 |
14111826 |
Self-tap. fill. h. screw |
| 37 |
31101079 |
Field coil w.field coil,230 V |
| 38 |
31501325 |
Motor housing |
| 40 |
31605199 |
Brush holder module,230V - V-El. 850W |
| 41 |
31604695 |
Carbon brush set,230 V |
| 42 |
14111706 |
Self-tap. fill. h. screw |
| 43 |
34336249 |
Cable clip |
| 44 |
34339430 |
Cable sleeve |
| 45 |
34449318 |
Cable with plug |
| 882 |
34413080 |
Grease FG 126 |
