Metabo

Metabo Spare Parts for Angle Grinder WE 24-230 MVT/Quick

SKU: WE 24-230 MVT/Quick - 06470000
€1.66
VAT included

Metabo Spare Parts for Angle Grinder WE 24-230 MVT/Quick

Metabo genuine spare parts or replacements parts for to repair Angle Grinder WE 24-230 MVT Quick - 06470000.

Angle Grinder WE 24-230 MVT Quick - 06470000
Metabo Spare Parts for Angle Grinder WE 24-230 MVT/Quick
  • Metabo Spare Parts for Angle Grinder WE 24-230 MVT/Quick
  • Metabo Spare Parts for Angle Grinder WE 24-230 MVT/Quick
Metabo

Metabo Spare Parts for Angle Grinder WE 24-230 MVT/Quick

SKU: WE 24-230 MVT/Quick - 06470000 Condition: New
€1.66
VAT included

Metabo Spare Parts for Angle Grinder WE 24-230 MVT/Quick

Metabo genuine spare parts or replacements parts for to repair Angle Grinder WE 24-230 MVT Quick - 06470000.

Angle Grinder WE 24-230 MVT Quick - 06470000
settings 49 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
49 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

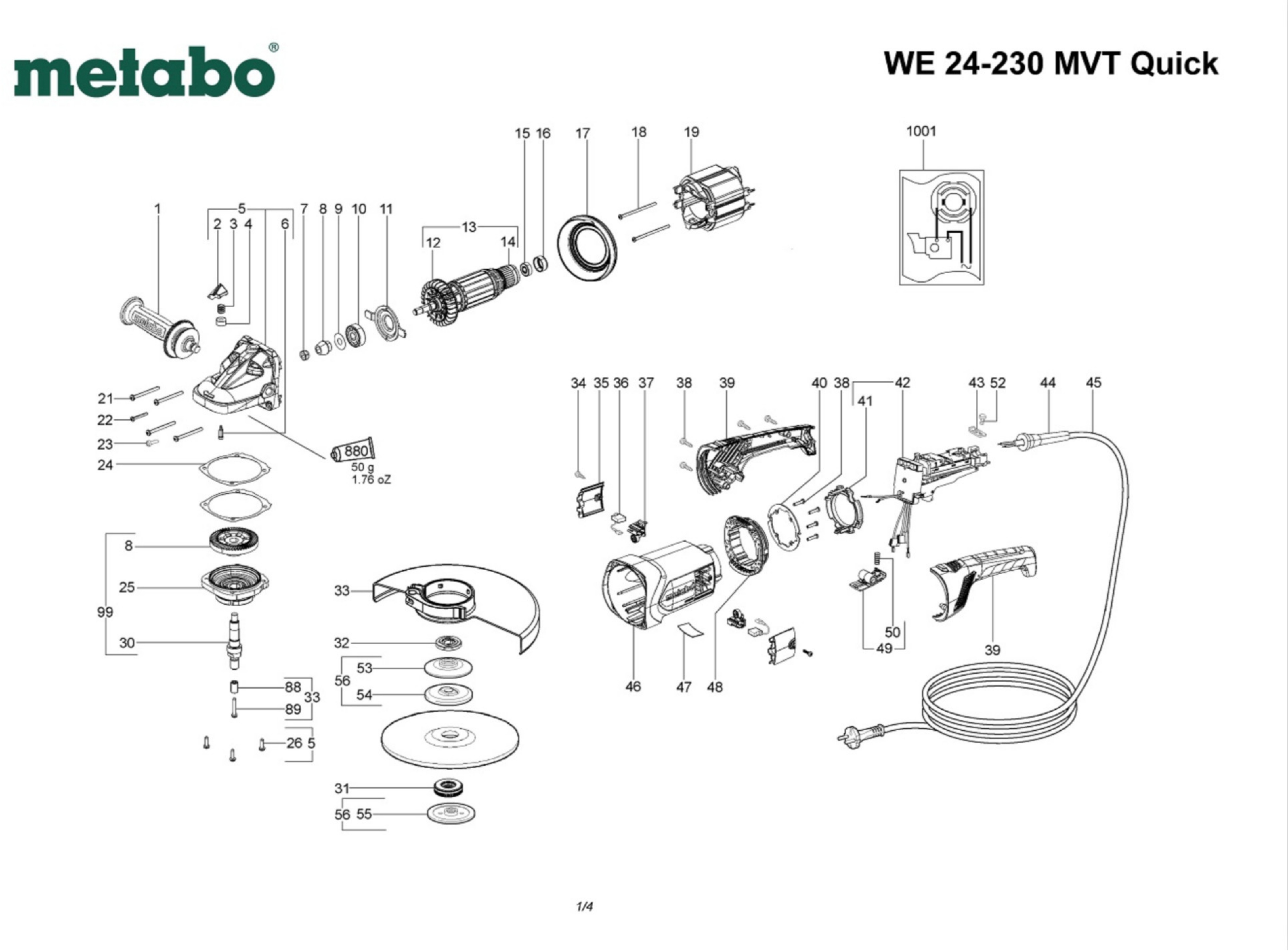

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 31400096 Anti-vibration handle,M 14 €22.95
2
 photo_cameraImage coming soon 34339979 Push button black €1.28
3
 photo_cameraImage coming soon 34200339 Pressure spring €1.76
4
 photo_cameraImage coming soon 34100583 Guide bush €3.26
5
 Gear Box for Angle Grinder Metabo W 22-230 MVT 31604550 Gear Box for Angle Grinder Metabo W 22-230 MVT €85.48
6
 photo_cameraImage coming soon 34151543 Bolt €1.34
7
 photo_cameraImage coming soon 34110066 Self locking nut €3.12
8
 photo_cameraImage coming soon 31604553 Bevel gear €51.09
9
 photo_cameraImage coming soon 14112387 Washer €1.34
10
 photo_cameraImage coming soon 14311551 Ball bearing, 12x37x12 €3.92
11
 photo_cameraImage coming soon 33900728 Fixed bearing cover €2.99
12
 Fan with Dust Protection for Angle Grinder Metabo W 22-230 MVT 31604556 Fan with Dust Protection for Angle Grinder Metabo W 22-230 MVT €14.81
13
 photo_cameraImage coming soon 31001133 Armature compl.,230 V €122.03
14
 Armature Sealing Washer for Angle Grinders Metabo 230 mm 34339063 Armature Sealing Washer for Angle Grinders Metabo 230 mm €1.75
15
 photo_cameraImage coming soon 14311340 Ball bearing, 8x22x7 €11.17
16
 Armature Bearing Rubber Holder for Angle Grinders Metabo 230 mm 34409408 Armature Bearing Rubber Holder for Angle Grinders Metabo 230 mm €2.08
17
 photo_cameraImage coming soon 33915113 Baffle €1.34
18
 photo_cameraImage coming soon 14112168 Self-tap. fill. h. screw €1.53
19
 photo_cameraImage coming soon 31100959 Field coil €57.68
21
 photo_cameraImage coming soon 14111937 Self-tap. fill. h. screw €1.34
22
 photo_cameraImage coming soon 14112202 Fillister head screw €1.53
23
 photo_cameraImage coming soon 14111985 Fillister head screw €1.53
24
 photo_cameraImage coming soon 33901181 Gasket €1.34
25
 photo_cameraImage coming soon 31604555 Gear flange cpl. €46.15
29
 photo_cameraImage coming soon 14118150 Circlip €1.34
30
 photo_cameraImage coming soon 34160298 Spindle shaft €24.18
31
 photo_cameraImage coming soon 31602762 QUICK NUT €27.00
32
 photo_cameraImage coming soon 34103116 Clamping flange €13.19
33
 photo_cameraImage coming soon 31605351 Wheel guard compl. €57.69
34
 photo_cameraImage coming soon 34170205 Screw €1.53
35
 photo_cameraImage coming soon 34339553 Brush holder cover €1.34
36
 Carbon Brushes for Angle Grinders Metabo W 22-230 MVT 31604557 Carbon Brushes for Angle Grinders Metabo W 22-230 MVT €28.12
37
 photo_cameraImage coming soon 34300095 Brush guide €6.22
38
 Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
39
 photo_cameraImage coming soon 34339976 Handle upper+lower part €7.71
40
 photo_cameraImage coming soon 33900732 Retaining sheet €1.44
41
 photo_cameraImage coming soon 34339980 Edge protection €1.28
42
 Metabo Electronic Switch Set for WE 24-230 MVT 31605218 Metabo Electronic Switch Set for WE 24-230 MVT €89.74
43
 photo_cameraImage coming soon 33912773 Cable clip €1.53
44
 photo_cameraImage coming soon 34409455 Cable sleeve €2.42
45
 Power Cord with CEE Plug for Grinder Metabo W 22-230 MVT 34448780 Power Cord with CEE Plug for Grinder Metabo W 22-230 MVT €40.51
46
 photo_cameraImage coming soon 31501330 Motor housing €18.92
48
 photo_cameraImage coming soon 34339749 Damper €7.71
49
 photo_cameraImage coming soon 34339552 Locking lever €1.44
50
 photo_cameraImage coming soon 34200217 Pressure spring €1.34
52
 photo_cameraImage coming soon 14111680 Self-tap. fill. h. screw €1.70
88
 photo_cameraImage coming soon 34100609 Spacer bush €1.34
89
 photo_cameraImage coming soon 14111134 Cap screw €1.34
880
 photo_cameraImage coming soon 34413091 Grease 100G €15.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Angle Grinder WE 24-230 MVT/Quick

Metabo genuine spare parts or replacements parts for to repair Angle Grinder WE 24-230 MVT Quick - 06470000.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
WE 24-230 MVT/Quick - 06470000

Angle Grinder WE 24-230 MVT Quick/06470000
# Part Num. Description
1 31400096 Anti-vibration handle,M 14
2 34339979 Push button black
3 34200339 Pressure spring
4 34100583 Guide bush
5 31604550 Gear housing cpl.
6 34151543 Bolt
7 34110066 Self locking nut
8 31604553 Bevel gear
9 14112387 Washer
10 14311551 Ball bearing, 12x37x12
11 33900728 Fixed bearing cover
12 31604556 Fan w. dust guard
13 31001133 Armature compl.,230 V
14 34339063 Sealing washer
15 14311340 Ball bearing, 8x22x7
16 34409408 Rubber bearing
17 33915113 Baffle
18 14112168 Self-tap. fill. h. screw
19 31100959 Field coil
21 14111937 Self-tap. fill. h. screw
22 14112202 Fillister head screw
23 14111985 Fillister head screw
24 33901181 Gasket
25 31604555 Gear flange cpl.
29 14118150 Circlip
30 34160298 Spindle shaft
31 31602762 QUICK NUT
32 34103116 Clamping flange
33 31605351 Wheel guard compl.
34 34170205 Screw
35 34339553 Brush holder cover
36 31604557 Carbon brush set,230 V
37 34300095 Brush guide
38 14111602 Self-tap fill h screw
39 34339976 Handle upper+lower part
40 33900732 Retaining sheet
41 34339980 Edge protection
42 31605218 Electronic switch set,Defond 230V
43 33912773 Cable clip
44 34409455 Cable sleeve
45 34448780 Cable with plug
46 31501330 Motor housing
47 33806339 Rating plate
48 34339749 Damper
49 34339552 Locking lever
50 34200217 Pressure spring
52 14111680 Self-tap. fill. h. screw
88 34100609 Spacer bush
89 14111134 Cap screw
99 31606409 Gear flange cpl.
880 34413091 Grease 100G
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
WE 24-230 MVT/Quick - 06470000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:
METABO S/N START WITH ( 0 ) and have 8 DIGITS

Specific References

New

Download

Diagram Metabo WE 24-230 MVT Q

Diagram Metabo WE 24-230 MVT Q

Download (201.4KB)
