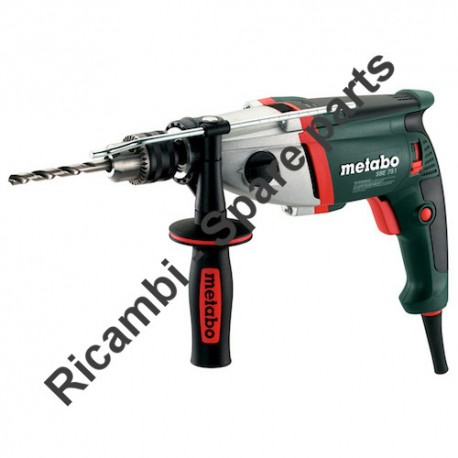

Metabo Spare Parts for Impact Drill SBE 751

SKU: Metabo SBE 751 - 00863000
€1.92
VAT included

Metabo Spare Parts for Impact Drill SBE 751

METABO Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Impact Drill SBE 751 - 00863000.

Metabo SBE 751 - 00863000
Metabo Spare Parts for Impact Drill SBE 751
  • Metabo Spare Parts for Impact Drill SBE 751
  • Metabo Spare Parts for Impact Drill SBE 751

Metabo Spare Parts for Impact Drill SBE 751

SKU: Metabo SBE 751 - 00863000 Condition: New
€1.92
VAT included

Metabo Spare Parts for Impact Drill SBE 751

METABO Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Impact Drill SBE 751 - 00863000.

Metabo SBE 751 - 00863000
settings 47 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N METABO:: METABO S/N START WITH ( 0 ) and have 8 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

47 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 14118168 Retaining ring €1.53
2
photo_cameraImage coming soon 33921092 Shaft sealing ring €1.44
3
Deth Rod for Rotary Hammer Metabo BH E 6020 S 34151163 Deth Rod for Rotary Hammer Metabo BH E 6020 S €5.00
4
photo_cameraImage coming soon 14112361 Self-tap. fill. h. screw €1.81
5
photo_cameraImage coming soon 31604279 Gear housing compl. €63.67
6
Sliding Block for Impact Drill Metabo BE 751 34000401 Sliding Block for Impact Drill Metabo BE 751 €14.94
7
photo_cameraImage coming soon 31604194 Switch housing compl. €8.50
8
Pinion Shaft with Slip-Clutch for Percussion Drill Metabo BE 751 31604282 Pinion Shaft with Slip-Clutch for Percussion Drill Metabo BE 751 €58.40
9
Metabo Percussion Drill SB 710 Seal 34409793 Metabo Percussion Drill SB 710 Seal €2.30
10
photo_cameraImage coming soon 31604280 Gear flange compl. €33.81
11
photo_cameraImage coming soon 34160402 Drill spindle €22.70
12
photo_cameraImage coming soon 14311579 BALL BEARING, 15x32x9 €3.91
13
photo_cameraImage coming soon 34105565 Slotted disc €3.65
14
photo_cameraImage coming soon 31400103 Side support handle compl. €12.50
15
photo_cameraImage coming soon 14115581 Ring €1.53
16
photo_cameraImage coming soon 31604196 Control knob compl. €2.12
17
photo_cameraImage coming soon 34154001 Guide bolt €4.35
18
photo_cameraImage coming soon 33913307 Shift fork €2.26
19
photo_cameraImage coming soon 14111699 Self-tap. fill. h. screw €1.98
20
photo_cameraImage coming soon 34337604 Sealing ring €1.98
21
photo_cameraImage coming soon 14311580 Ball bearing, 8x22x7 €2.59
22
photo_cameraImage coming soon 33000182 Fan €2.07
23
photo_cameraImage coming soon 31000922 Armature compl.,230 V €61.24
24
photo_cameraImage coming soon 14311581 Ball bearing, 6X 19X 6 €2.54
25
photo_cameraImage coming soon 34339475 Intermediate flange €1.38
26
photo_cameraImage coming soon 14111826 Self-tap. fill. h. screw €1.81
27
Stator (Filed) for Percussion Drills Metabo SBE 710-751-850 31101079 Stator (Filed) for Percussion Drills Metabo SBE 710-751-850 €45.77
28
photo_cameraImage coming soon 33805343 Rating plate €1.22
29
photo_cameraImage coming soon 34339407 Cover w.o. electronic €2.48
30
photo_cameraImage coming soon 34409592 Rubber buffer €1.81
31
O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 14319243 O-Ring mm 1,98x15,08x19,06 for Percussion Drill Metabo SB 710 €1.88
32
photo_cameraImage coming soon 34152023 Cylindrical pin €1.81
33
Motor Housing for Percussion Drill Metabo SB 710 31501325 Motor Housing for Percussion Drill Metabo SB 710 €15.50
35
Carbon Brushes for Hammers Metabo UHE 2250-KHE 3250 31604695 Carbon Brushes for Hammers Metabo UHE 2250-KHE 3250 €21.46
36
photo_cameraImage coming soon 31605199 Brush holder module,230V - V-El. 850W €14.92
37
Metabo SBE 710 Electronic Switch 34340922 Metabo SBE 710 Electronic Switch €22.69
38
Self Tapping Fill h Screw 4x18 for Power Tools Metabo 14111602 Self Tapping Fill h Screw 4x18 for Power Tools Metabo €1.92
39
photo_cameraImage coming soon 34339853 Pistol grip 2-part, gummed €116.20
40
photo_cameraImage coming soon 34409758 Rubber plug €1.46
41
photo_cameraImage coming soon 14111706 Self-tap. fill. h. screw €1.98
42
photo_cameraImage coming soon 34336249 Cable clip €2.02
43
photo_cameraImage coming soon 34339430 Cable sleeve €2.52
44
photo_cameraImage coming soon 34449318 Cable with plug €23.87
880
photo_cameraImage coming soon 34413093 Grease 50Gr 1,8oz €34.48
882
Grease Tube GF 126 for All Metabo Power Tools 34413080 Grease Tube GF 126 for All Metabo Power Tools €22.39
884
photo_cameraImage coming soon 34413056 Grease SF 011 50Gr 1,8oz €37.66
886
photo_cameraImage coming soon 34413103 Grease 50Gr 1,8oz €13.97

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Metabo Spare Parts for Impact Drill SBE 751

METABO Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Impact Drill SBE 751 - 00863000.

In the following table, look for the model of the Percussion Drill and the respective parts of the code.
Metabo SBE 751 - 00863000

Impact Drill SBE 751/00863000
# Part Num. Description
1 14118168 Retaining ring
2 33921092 Shaft sealing ring
3 34151163 Depth stop
4 14112361 Self-tap. fill. h. screw
5 31604279 Gear housing compl.
6 34000401 Sliding block
7 31604194 Switch housing compl.
8 31604282 Pinion shaft w.slip-clutch
9 34409793 Seal
10 31604280 Gear flange compl.
11 34160402 Drill spindle
12 14311579 BALL BEARING, 15x32x9
13 34105565 Slotted disc
14 31400103 Side support handle compl.
15 14115581 Ring
16 31604196 Control knob compl.
17 34154001 Guide bolt
18 33913307 Shift fork
19 14111699 Self-tap. fill. h. screw
20 34337604 Sealing ring
21 14311580 Ball bearing, 8x22x7
22 33000182 Fan
23 31000922 Armature compl.,230 V
24 14311581 Ball bearing, 6X 19X 6
25 34339475 Intermediate flange
26 14111826 Self-tap. fill. h. screw
27 31101079 Field coil w.field coil,230 V
28 33805343 Rating plate
29 34339407 Cover w.o. electronic
30 34409592 Rubber buffer
31 14319243 O-ring
32 34152023 Cylindrical pin
33 31501325 Motor housing
35 31604695 Carbon brush set,230 V
36 31605199 Brush holder module,230V - V-El. 850W
37 34340922 Electronic switch with dial
38 14111602 Self-tap fill h screw
39 34339853 Pistol grip 2-part, gummed
40 34409758 Rubber plug
41 14111706 Self-tap. fill. h. screw
42 34336249 Cable clip
43 34339430 Cable sleeve
44 34449318 Cable with plug
880 34413093 Grease 50Gr 1,8oz
882 34413080 Grease FG 126
884 34413056 Grease SF 011 50Gr 1,8oz
886 34413103 Grease 50Gr 1,8oz
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Metabo websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Metabo brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
